#include <kis_abr_brush.h>

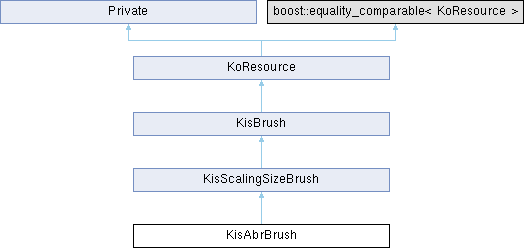

Inheritance diagram for KisAbrBrush:

Public Member Functions
QImage	brushTipImage () const override
	brushImage the image the brush tip can paint with. Not all brush types have a single image.

KoResourceSP	clone () const override

QString	defaultFileExtension () const override

bool	isSerializable () const override

	KisAbrBrush (const KisAbrBrush &rhs)

	KisAbrBrush (const KisAbrBrush &rhs, KisAbrBrushCollection *parent)

	KisAbrBrush (const QString &filename, KisAbrBrushCollection *parent)
	Construct brush to load filename later as brush.

bool	loadFromDevice (QIODevice *dev, KisResourcesInterfaceSP resourcesInterface) override

KisAbrBrush &	operator= (const KisAbrBrush &rhs)=delete

QPair< QString, QString >	resourceType () const override

bool	saveToDevice (QIODevice *dev) const override

void	setBrushTipImage (const QImage &image) override

void	toXML (QDomDocument &d, QDomElement &e) const override

Public Member Functions inherited from KisScalingSizeBrush
	KisScalingSizeBrush ()

	KisScalingSizeBrush (const KisScalingSizeBrush &rhs)

	KisScalingSizeBrush (const QString &filename)

void	setUserEffectiveSize (qreal value) override

qreal	userEffectiveSize () const override

Public Member Functions inherited from KisBrush
qreal	angle () const

virtual bool	applyingGradient () const

bool	autoSpacingActive () const

qreal	autoSpacingCoeff () const

virtual enumBrushApplication	brushApplication () const

virtual quint32	brushIndex () const

virtual enumBrushType	brushType () const

virtual bool	canPaintFor (const KisPaintInformation &)

virtual QSizeF	characteristicSize (KisDabShape const &) const

void	clearBrushPyramid ()

virtual void	coldInitBrush ()

virtual void	generateMaskAndApplyMaskOrCreateDab (KisFixedPaintDeviceSP dst, ColoringInformation *coloringInfo, KisDabShape const &, const KisPaintInformation &info, double subPixelX, double subPixelY, qreal softnessFactor, qreal lightnessStrength) const

void	generateMaskAndApplyMaskOrCreateDab (KisFixedPaintDeviceSP dst, ColoringInformation *coloringInfo, KisDabShape const &, const KisPaintInformation &info, double subPixelX=0, double subPixelY=0, qreal softnessFactor=DEFAULT_SOFTNESS_FACTOR) const

qint32	height () const

QPointF	hotSpot (KisDabShape const &, const KisPaintInformation &info) const

virtual bool	isPiercedApprox () const

	KisBrush ()

	KisBrush (const KisBrush &rhs)

	KisBrush (const QString &filename)

virtual void	lodLimitations (KisPaintopLodLimitations *l) const

void	mask (KisFixedPaintDeviceSP dst, const KisPaintDeviceSP src, KisDabShape const &shape, const KisPaintInformation &info, double subPixelX=0, double subPixelY=0, qreal softnessFactor=DEFAULT_SOFTNESS_FACTOR, qreal lightnessStrength=DEFAULT_LIGHTNESS_STRENGTH) const

void	mask (KisFixedPaintDeviceSP dst, const KoColor &color, KisDabShape const &shape, const KisPaintInformation &info, double subPixelX=0, double subPixelY=0, qreal softnessFactor=DEFAULT_SOFTNESS_FACTOR, qreal lightnessStrength=DEFAULT_LIGHTNESS_STRENGTH) const

double	maskAngle (double angle=0) const

virtual qint32	maskHeight (KisDabShape const &, qreal subPixelX, qreal subPixelY, const KisPaintInformation &info) const

virtual qint32	maskWidth (KisDabShape const &, qreal subPixelX, qreal subPixelY, const KisPaintInformation &info) const

virtual void	notifyBrushIsGoingToBeClonedForStroke ()

virtual void	notifyStrokeStarted ()

KisBrush &	operator= (const KisBrush &rhs)=delete

virtual KisOptimizedBrushOutline	outline (bool forcePreciseOutline=false) const

virtual KisFixedPaintDeviceSP	outlineSourceImage () const

virtual KisFixedPaintDeviceSP	paintDevice (const KoColorSpace *colorSpace, KisDabShape const &, const KisPaintInformation &info, double subPixelX=0, double subPixelY=0) const

virtual void	prepareForSeqNo (const KisPaintInformation &info, int seqNo)

virtual bool	preserveLightness () const

QPair< QString, QString >	resourceType () const override

qreal	scale () const

virtual void	setAngle (qreal _angle)

void	setAutoSpacing (bool active, qreal coeff)

virtual void	setBrushApplication (enumBrushApplication brushApplication)

virtual void	setGradient (KoAbstractGradientSP gradient)

virtual void	setScale (qreal _scale)

virtual void	setSpacing (double spacing)

double	spacing () const

virtual bool	supportsCaching () const

qint32	width () const

	~KisBrush () override

Public Member Functions inherited from KoResource
bool	active () const

void	addMetaData (QString key, QVariant value)
	store the given key, value pair in the resource

virtual void	clearSideLoadedResources ()

virtual QList< KoResourceLoadResult >	embeddedResources (KisResourcesInterfaceSP globalResourcesInterface) const

QString	filename () const

QImage	image () const

bool	isDirty () const

virtual bool	isEphemeral () const

	KoResource ()

	KoResource (const KoResource &rhs)

	KoResource (const QString &filename)

virtual QList< KoResourceLoadResult >	linkedResources (KisResourcesInterfaceSP globalResourcesInterface) const

bool	load (KisResourcesInterfaceSP resourcesInterface)

QString	md5Sum (bool generateIfEmpty=true) const

QMap< QString, QVariant >	metadata () const
	get a map with all the metadata

virtual QString	name () const

KoResource &	operator= (const KoResource &rhs)=delete

bool	permanent () const

virtual QList< int >	requiredCanvasResources () const

QList< KoResourceLoadResult >	requiredResources (KisResourcesInterfaceSP globalResourcesInterface) const

int	resourceId () const

bool	save ()

void	setActive (bool active)

void	setDirty (bool value)
	Mark the preset as modified but not saved.

void	setFilename (const QString &filename)

void	setImage (const QImage &image)

void	setMD5Sum (const QString &md5sum)
	Set the md5sum of this resource. It must be in hex-encoded string format.

void	setName (const QString &name)

void	setPermanent (bool permanent)

void	setResourceId (int id)

void	setStorageLocation (const QString &location)

void	setValid (bool valid)

void	setVersion (int version)

virtual QList< KoResourceLoadResult >	sideLoadedResources (KisResourcesInterfaceSP globalResourcesInterface) const

KoResourceSignature	signature () const

QString	storageLocation () const

QList< KoResourceLoadResult >	takeSideLoadedResources (KisResourcesInterfaceSP globalResourcesInterface)

virtual QImage	thumbnail () const
	thumbnail the thumbnail image to use in resource selectors

virtual QString	thumbnailPath () const
	thumbnailPath returns the path to a separate thumbnail image, outside the actual resource file itself. If the path is relative, it is supposed start in the same location as the resource itself. If it's absolute, that is, it starts with "/", it is from the root of the storage.

virtual void	updateThumbnail ()
	updateThumbnail updates the thumbnail for this resource. Reimplement if your thumbnail is something else than the image set with setImage.

bool	valid () const

int	version () const
	Get the version of the resource.

virtual	~KoResource ()

Public Member Functions inherited from Private
	Private (KisCanvas2 *c)

Private Attributes
KisAbrBrushCollection *	m_parent

Friends
class	KisAbrBrushCollection

Additional Inherited Members
Static Public Member Functions inherited from KisBrush
static KisBrushSP	fromXML (const QDomElement &element, KisResourcesInterfaceSP resourcesInterface)

static KoResourceLoadResult	fromXMLLoadResult (const QDomElement &element, KisResourcesInterfaceSP resourcesInterface)

Public Attributes inherited from KoResource
bool	active {true}

QString	filename

QImage	image

QString	md5sum

QMap< QString, QVariant >	metadata

bool	modified {false}

QString	name

bool	permanent {false}

int	resourceId {-1}

QString	storageLocation

bool	valid {false}

int	version {-1}

Public Attributes inherited from Private
KisCanvas2 *	canvas

int	displayedFrame

int	intendedFrame

Static Public Attributes inherited from KisBrush
static const QString	brushTypeMetaDataKey = "image-based-brush"

Protected Member Functions inherited from KisBrush
void	generateOutlineCache ()

bool	outlineCacheIsValid () const

void	predefinedBrushToXML (const QString &type, QDomElement &e) const

void	resetOutlineCache ()

virtual void	setBrushType (enumBrushType type)

void	setHeight (qint32 height)

void	setHotSpot (QPointF)

void	setWidth (qint32 width)

Detailed Description

Definition at line 27 of file kis_abr_brush.h.

Constructor & Destructor Documentation

◆ KisAbrBrush() [1/3]

KisAbrBrush::KisAbrBrush	(	const QString &	filename,
		KisAbrBrushCollection *	parent )

Construct brush to load filename later as brush.

Definition at line 29 of file kis_abr_brush.cpp.

    : KisScalingSizeBrush(filename)
    , m_parent(parent)
{
    setBrushType(INVALID);
    setSpacing(DEFAULT_SPACING);
}

References DEFAULT_SPACING, INVALID, KisBrush::setBrushType(), and KisBrush::setSpacing().

◆ KisAbrBrush() [2/3]

KisAbrBrush::KisAbrBrush ( const KisAbrBrush & rhs )

Definition at line 37 of file kis_abr_brush.cpp.

    : KisScalingSizeBrush(rhs)
    , m_parent(0)
{
    // Warning! The brush became detached from the parent collection!
}

◆ KisAbrBrush() [3/3]

KisAbrBrush::KisAbrBrush	(	const KisAbrBrush &	rhs,
		KisAbrBrushCollection *	parent )

Definition at line 44 of file kis_abr_brush.cpp.

    : KisScalingSizeBrush(rhs)
    , m_parent(parent)
{
}

Member Function Documentation

◆ brushTipImage()

QImage KisAbrBrush::brushTipImage ( ) const

overridevirtual

brushImage the image the brush tip can paint with. Not all brush types have a single image.

Returns: a valid QImage.

Reimplemented from KisBrush.

Definition at line 93 of file kis_abr_brush.cpp.

{
    if (KisBrush::brushTipImage().isNull() && m_parent) {
        m_parent->load();
    }
    return KisBrush::brushTipImage();
}

References KisBrush::brushTipImage(), KisAbrBrushCollection::load(), and m_parent.

◆ clone()

KoResourceSP KisAbrBrush::clone ( ) const

overridevirtual

Implements KoResource.

Definition at line 50 of file kis_abr_brush.cpp.

{
    return KoResourceSP(new KisAbrBrush(*this));
}

References KisAbrBrush().

◆ defaultFileExtension()

QString KisAbrBrush::defaultFileExtension ( ) const

overridevirtual

Returns: default file extension for saving the brush

Reimplemented from KoResource.

Definition at line 88 of file kis_abr_brush.cpp.

{
    return QString();
}

◆ isSerializable()

bool KisAbrBrush::isSerializable ( ) const

overridevirtual

Serializable resource is the one which can be saved/loaded into a specific storage via saveToDevice()/loadFromDevice() methods. Some resources, like KisAbrBrush or KisPsdLayerStyle, are stored in specific libraries in "batches". Such resources cannot be saved individually. They are created by the corresponding factories.

In contrast to ephemeral resource, non-serializable resource will always have a correct md5Sum() and may be stored in the resources database.

Reimplemented from KoResource.

Definition at line 55 of file kis_abr_brush.cpp.

{
    return false;
}

◆ loadFromDevice()

bool KisAbrBrush::loadFromDevice	(	QIODevice *	dev,
		KisResourcesInterfaceSP	resourcesInterface )

overridevirtual

Implements KoResource.

Definition at line 60 of file kis_abr_brush.cpp.

{
    Q_UNUSED(dev);
    Q_UNUSED(resourcesInterface);
    return false;
}

◆ operator=()

KisAbrBrush & KisAbrBrush::operator= ( const KisAbrBrush & rhs )

delete

◆ resourceType()

QPair< QString, QString > KisAbrBrush::resourceType ( ) const

inlineoverridevirtual

Returns: the resource type

Implements KoResource.

Definition at line 43 of file kis_abr_brush.h.

                                                          {
        return QPair<QString, QString>(ResourceType::Brushes, ResourceSubType::AbrBrushes);
    }

References ResourceSubType::AbrBrushes, and ResourceType::Brushes.

◆ saveToDevice()

bool KisAbrBrush::saveToDevice ( QIODevice * dev ) const

overridevirtual

Reimplemented from KoResource.

Definition at line 67 of file kis_abr_brush.cpp.

{
    Q_UNUSED(dev);
    return false;
}

◆ setBrushTipImage()

void KisAbrBrush::setBrushTipImage ( const QImage & image )

overridevirtual

The image is used to represent the brush in the gui, and may also, depending on the brush type be used to define the actual brush instance.

Reimplemented from KisBrush.

Definition at line 73 of file kis_abr_brush.cpp.

{
    setValid(true);
    setBrushType(MASK);

    KisBrush::setBrushTipImage(image);
}

References KoResource::image, MASK, KisBrush::setBrushTipImage(), KisBrush::setBrushType(), and KoResource::setValid().

◆ toXML()

void KisAbrBrush::toXML	(	QDomDocument &	,
		QDomElement &	element ) const

overridevirtual

Serialize this brush to XML.

Reimplemented from KisBrush.

Definition at line 81 of file kis_abr_brush.cpp.

{
    e.setAttribute("name", name()); // legacy
    predefinedBrushToXML("abr_brush", e);
    KisBrush::toXML(d, e);
}

References KisBrush::d, KoResource::name, KisBrush::predefinedBrushToXML(), and KisBrush::toXML().

Friends And Related Symbol Documentation

◆ KisAbrBrushCollection

friend class KisAbrBrushCollection

friend

Definition at line 54 of file kis_abr_brush.h.

Member Data Documentation

◆ m_parent

KisAbrBrushCollection* KisAbrBrush::m_parent

private

Definition at line 61 of file kis_abr_brush.h.

The documentation for this class was generated from the following files:

libs/brush/kis_abr_brush.h
libs/brush/kis_abr_brush.cpp

Public Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ KisAbrBrush() [1/3]

◆ KisAbrBrush() [2/3]

◆ KisAbrBrush() [3/3]

Member Function Documentation

◆ brushTipImage()

◆ clone()

◆ defaultFileExtension()

◆ isSerializable()

◆ loadFromDevice()

◆ operator=()

◆ resourceType()

◆ saveToDevice()

◆ setBrushTipImage()

◆ toXML()

Friends And Related Symbol Documentation

◆ KisAbrBrushCollection

Member Data Documentation

◆ m_parent
