KisAbstractTileCompressor Class Reference

#include <kis_abstract_tile_compressor.h>

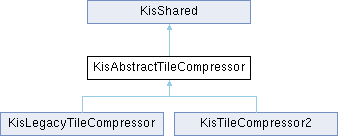

Inheritance diagram for KisAbstractTileCompressor:

Public Member Functions
virtual void	compressTileData (KisTileData *tileData, quint8 *buffer, qint32 bufferSize, qint32 &bytesWritten)=0
virtual bool	decompressTileData (quint8 *buffer, qint32 bufferSize, KisTileData *tileData)=0
	KisAbstractTileCompressor ()
virtual bool	readTile (QIODevice *stream, KisTiledDataManager *dm)=0
virtual qint32	tileDataBufferSize (KisTileData *tileData)=0
virtual bool	writeTile (KisTileSP tile, KisPaintDeviceWriter &store)=0
virtual	~KisAbstractTileCompressor ()
Public Member Functions inherited from KisShared
bool	deref ()
bool	ref ()
int	refCount ()
QAtomicInt *	sharedWeakReference ()

Protected Member Functions
qint32	pixelSize (KisTiledDataManager *dm)
qint32	xToCol (KisTiledDataManager *dm, qint32 x)
qint32	yToRow (KisTiledDataManager *dm, qint32 y)
Protected Member Functions inherited from KisShared
	KisShared ()
	~KisShared ()

Detailed Description

Definition at line 22 of file kis_abstract_tile_compressor.h.

Constructor & Destructor Documentation

KisAbstractTileCompressor()

KisAbstractTileCompressor::KisAbstractTileCompressor

(

)

Definition at line 9 of file kis_abstract_tile_compressor.cpp.

{
}

~KisAbstractTileCompressor()

KisAbstractTileCompressor::~KisAbstractTileCompressor ( )

virtual

Definition at line 13 of file kis_abstract_tile_compressor.cpp.

{
}

Member Function Documentation

compressTileData()

virtual void KisAbstractTileCompressor::compressTileData ( KisTileData * tileData, quint8 * buffer, qint32 bufferSize, qint32 & bytesWritten )

pure virtual

Compresses a tileData and writes it into the buffer. The buffer must be at least tileDataBufferSize() bytes long. Actual number of bytes written is returned using out-parameter bytesWritten

Parameters

tileData	an existing tile data. It should be created and acquired by the caller.
buffer	the buffer
bufferSize	the size of the buffer
bytesWritten	the number of written bytes

See also

tileDataBufferSize()

Implemented in KisLegacyTileCompressor, and KisTileCompressor2.

decompressTileData()

virtual bool KisAbstractTileCompressor::decompressTileData ( quint8 * buffer, qint32 bufferSize, KisTileData * tileData )

pure virtual

Decompresses a tileData from a given buffer.

Parameters

buffer	the buffer
bufferSize	the size of the buffer
tileData	an existing tile data where the result will be written to. It should be created and acquired by the caller.

Implemented in KisLegacyTileCompressor, and KisTileCompressor2.

pixelSize()

qint32 KisAbstractTileCompressor::pixelSize ( KisTiledDataManager * dm )

inlineprotected

Definition at line 90 of file kis_abstract_tile_compressor.h.

                                                     {
        return dm->pixelSize();
    }

References KisTiledDataManager::pixelSize().

readTile()

virtual bool KisAbstractTileCompressor::readTile ( QIODevice * stream, KisTiledDataManager * dm )

pure virtual

Decompresses the tile from the stream. Used by datamanager in load/save routines

See also

decompressTile()

Implemented in KisTileCompressor2, and KisLegacyTileCompressor.

tileDataBufferSize()

virtual qint32 KisAbstractTileCompressor::tileDataBufferSize ( KisTileData * tileData )

pure virtual

Return the number of bytes needed for compressing one tile

Implemented in KisLegacyTileCompressor, and KisTileCompressor2.

writeTile()

virtual bool KisAbstractTileCompressor::writeTile ( KisTileSP tile, KisPaintDeviceWriter & store )

pure virtual

Compresses the tile and writes it into the stream. Used by datamanager in load/save routines

See also

compressTile()

Implemented in KisLegacyTileCompressor, and KisTileCompressor2.

xToCol()

qint32 KisAbstractTileCompressor::xToCol ( KisTiledDataManager * dm, qint32 x )

inlineprotected

Definition at line 82 of file kis_abstract_tile_compressor.h.

                                                            {
        return dm->xToCol(x);
    }

References KisTiledDataManager::xToCol().

yToRow()

qint32 KisAbstractTileCompressor::yToRow ( KisTiledDataManager * dm, qint32 y )

inlineprotected

Definition at line 86 of file kis_abstract_tile_compressor.h.

                                                            {
        return dm->yToRow(y);
    }

References KisTiledDataManager::yToRow().

---

The documentation for this class was generated from the following files:

• libs/image/tiles3/swap/kis_abstract_tile_compressor.h
• libs/image/tiles3/swap/kis_abstract_tile_compressor.cpp
