#include <kis_auto_brush.h>

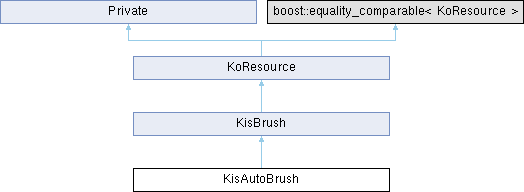

Inheritance diagram for KisAutoBrush:

Classes
struct	Private

Public Member Functions
QSizeF	characteristicSize (KisDabShape const &) const override

KoResourceSP	clone () const override

void	coldInitBrush () override

qreal	density () const

void	generateMaskAndApplyMaskOrCreateDab (KisFixedPaintDeviceSP dst, KisBrush::ColoringInformation *src, KisDabShape const &, const KisPaintInformation &info, double subPixelX=0, double subPixelY=0, qreal softnessFactor=DEFAULT_SOFTNESS_FACTOR, qreal lightnessStrength=DEFAULT_LIGHTNESS_STRENGTH) const override

bool	isEphemeral () const override

bool	isPiercedApprox () const override

	KisAutoBrush (const KisAutoBrush &rhs)

	KisAutoBrush (KisMaskGenerator *as, qreal angle, qreal randomness, qreal density=1.0)

bool	loadFromDevice (QIODevice *dev, KisResourcesInterfaceSP resourcesInterface) override

void	lodLimitations (KisPaintopLodLimitations *l) const override

const KisMaskGenerator *	maskGenerator () const

qint32	maskHeight (KisDabShape const &shape, qreal subPixelX, qreal subPixelY, const KisPaintInformation &info) const override

qint32	maskWidth (KisDabShape const &shape, qreal subPixelX, qreal subPixelY, const KisPaintInformation &info) const override

void	notifyBrushIsGoingToBeClonedForStroke () override

KisAutoBrush &	operator= (const KisAutoBrush &rhs)=delete

KisOptimizedBrushOutline	outline (bool forcePreciseOutline=false) const override

KisFixedPaintDeviceSP	outlineSourceImage () const override

KisFixedPaintDeviceSP	paintDevice (const KoColorSpace *, KisDabShape const &, const KisPaintInformation &, double=0, double=0) const override

qreal	randomness () const

bool	saveToDevice (QIODevice *dev) const override

void	setUserEffectiveSize (qreal value) override

bool	supportsCaching () const override

void	toXML (QDomDocument &, QDomElement &) const override

qreal	userEffectiveSize () const override

	~KisAutoBrush () override

Public Member Functions inherited from KisBrush
qreal	angle () const

virtual bool	applyingGradient () const

bool	autoSpacingActive () const

qreal	autoSpacingCoeff () const

virtual enumBrushApplication	brushApplication () const

virtual quint32	brushIndex () const

virtual QImage	brushTipImage () const
	brushImage the image the brush tip can paint with. Not all brush types have a single image.

virtual enumBrushType	brushType () const

virtual bool	canPaintFor (const KisPaintInformation &)

void	clearBrushPyramid ()

void	generateMaskAndApplyMaskOrCreateDab (KisFixedPaintDeviceSP dst, ColoringInformation *coloringInfo, KisDabShape const &, const KisPaintInformation &info, double subPixelX=0, double subPixelY=0, qreal softnessFactor=DEFAULT_SOFTNESS_FACTOR) const

qint32	height () const

QPointF	hotSpot (KisDabShape const &, const KisPaintInformation &info) const

	KisBrush ()

	KisBrush (const KisBrush &rhs)

	KisBrush (const QString &filename)

void	mask (KisFixedPaintDeviceSP dst, const KisPaintDeviceSP src, KisDabShape const &shape, const KisPaintInformation &info, double subPixelX=0, double subPixelY=0, qreal softnessFactor=DEFAULT_SOFTNESS_FACTOR, qreal lightnessStrength=DEFAULT_LIGHTNESS_STRENGTH) const

void	mask (KisFixedPaintDeviceSP dst, const KoColor &color, KisDabShape const &shape, const KisPaintInformation &info, double subPixelX=0, double subPixelY=0, qreal softnessFactor=DEFAULT_SOFTNESS_FACTOR, qreal lightnessStrength=DEFAULT_LIGHTNESS_STRENGTH) const

double	maskAngle (double angle=0) const

virtual void	notifyStrokeStarted ()

KisBrush &	operator= (const KisBrush &rhs)=delete

virtual void	prepareForSeqNo (const KisPaintInformation &info, int seqNo)

virtual bool	preserveLightness () const

QPair< QString, QString >	resourceType () const override

qreal	scale () const

virtual void	setAngle (qreal _angle)

void	setAutoSpacing (bool active, qreal coeff)

virtual void	setBrushApplication (enumBrushApplication brushApplication)

virtual void	setBrushTipImage (const QImage &image)

virtual void	setGradient (KoAbstractGradientSP gradient)

virtual void	setScale (qreal _scale)

virtual void	setSpacing (double spacing)

double	spacing () const

qint32	width () const

	~KisBrush () override

Public Member Functions inherited from KoResource
bool	active () const

void	addMetaData (QString key, QVariant value)
	store the given key, value pair in the resource

virtual void	clearSideLoadedResources ()

virtual QString	defaultFileExtension () const

virtual QList< KoResourceLoadResult >	embeddedResources (KisResourcesInterfaceSP globalResourcesInterface) const

QString	filename () const

QImage	image () const

bool	isDirty () const

virtual bool	isSerializable () const

	KoResource ()

	KoResource (const KoResource &rhs)

	KoResource (const QString &filename)

virtual QList< KoResourceLoadResult >	linkedResources (KisResourcesInterfaceSP globalResourcesInterface) const

bool	load (KisResourcesInterfaceSP resourcesInterface)

QString	md5Sum (bool generateIfEmpty=true) const

QMap< QString, QVariant >	metadata () const
	get a map with all the metadata

virtual QString	name () const

KoResource &	operator= (const KoResource &rhs)=delete

bool	permanent () const

virtual QList< int >	requiredCanvasResources () const

QList< KoResourceLoadResult >	requiredResources (KisResourcesInterfaceSP globalResourcesInterface) const

int	resourceId () const

bool	save ()

void	setActive (bool active)

void	setDirty (bool value)
	Mark the preset as modified but not saved.

void	setFilename (const QString &filename)

void	setImage (const QImage &image)

void	setMD5Sum (const QString &md5sum)
	Set the md5sum of this resource. It must be in hex-encoded string format.

void	setName (const QString &name)

void	setPermanent (bool permanent)

void	setResourceId (int id)

void	setStorageLocation (const QString &location)

void	setValid (bool valid)

void	setVersion (int version)

virtual QList< KoResourceLoadResult >	sideLoadedResources (KisResourcesInterfaceSP globalResourcesInterface) const

KoResourceSignature	signature () const

QString	storageLocation () const

QList< KoResourceLoadResult >	takeSideLoadedResources (KisResourcesInterfaceSP globalResourcesInterface)

virtual QImage	thumbnail () const
	thumbnail the thumbnail image to use in resource selectors

virtual QString	thumbnailPath () const
	thumbnailPath returns the path to a separate thumbnail image, outside the actual resource file itself. If the path is relative, it is supposed start in the same location as the resource itself. If it's absolute, that is, it starts with "/", it is from the root of the storage.

virtual void	updateThumbnail ()
	updateThumbnail updates the thumbnail for this resource. Reimplement if your thumbnail is something else than the image set with setImage.

bool	valid () const

int	version () const
	Get the version of the resource.

virtual	~KoResource ()

Public Member Functions inherited from Private
	Private (KisCanvas2 *c)

Private Member Functions
QImage	createBrushPreview (int maxSize=-1)

Private Attributes
const QScopedPointer< Private >	d

Additional Inherited Members
Static Public Member Functions inherited from KisBrush
static KisBrushSP	fromXML (const QDomElement &element, KisResourcesInterfaceSP resourcesInterface)

static KoResourceLoadResult	fromXMLLoadResult (const QDomElement &element, KisResourcesInterfaceSP resourcesInterface)

Public Attributes inherited from KoResource
bool	active {true}

QString	filename

QImage	image

QString	md5sum

QMap< QString, QVariant >	metadata

bool	modified {false}

QString	name

bool	permanent {false}

int	resourceId {-1}

QString	storageLocation

bool	valid {false}

int	version {-1}

Public Attributes inherited from Private
KisCanvas2 *	canvas

int	displayedFrame

int	intendedFrame

Static Public Attributes inherited from KisBrush
static const QString	brushTypeMetaDataKey = "image-based-brush"

Protected Member Functions inherited from KisBrush
void	generateOutlineCache ()

bool	outlineCacheIsValid () const

void	predefinedBrushToXML (const QString &type, QDomElement &e) const

void	resetOutlineCache ()

virtual void	setBrushType (enumBrushType type)

void	setHeight (qint32 height)

void	setHotSpot (QPointF)

void	setWidth (qint32 width)

Detailed Description

XXX: docs!

Definition at line 23 of file kis_auto_brush.h.

Constructor & Destructor Documentation

◆ KisAutoBrush() [1/2]

KisAutoBrush::KisAutoBrush	(	KisMaskGenerator *	as,
		qreal	angle,
		qreal	randomness,
		qreal	density = 1.0 )

Here is a two-stage process of initialization of the brush size. It is done so for the backward compatibility reasons when the size was set to the size of brushTipImage(), which initialization is now skipped for efficiency reasons.

Definition at line 66 of file kis_auto_brush.cpp.

    : KisBrush(),
      d(new Private)
{
    d->shape.reset(as);
    d->randomness = randomness;
    d->density = density;
    d->idealThreadCountCached = QThread::idealThreadCount();
    setBrushType(MASK);

    {
        setWidth(qMax(qreal(1.0), d->shape->width()));
        setHeight(qMax(qreal(1.0), d->shape->height()));

        const int width = maskWidth(KisDabShape(), 0.0, 0.0, KisPaintInformation());
        const int height = maskHeight(KisDabShape(), 0.0, 0.0, KisPaintInformation());

        setWidth(qMax(1, width));
        setHeight(qMax(1, height));
    }

    // We don't initialize setBrushTipImage(), because
    // auto brush doesn't use image pyramid. And generation
    // of a full-scaled QImage may cause a significant delay
    // in the beginning of the stroke

    setAngle(angle);
    setImage(createBrushPreview(128));
}

References KisBrush::angle(), createBrushPreview(), d, density(), KisBrush::height(), MASK, maskHeight(), maskWidth(), randomness(), KisBrush::setAngle(), KisBrush::setBrushType(), KisBrush::setHeight(), KoResource::setImage(), KisBrush::setWidth(), and KisBrush::width().

◆ KisAutoBrush() [2/2]

KisAutoBrush::KisAutoBrush ( const KisAutoBrush & rhs )

Definition at line 158 of file kis_auto_brush.cpp.

    : KisBrush(rhs)
    , d(new Private(*rhs.d))
{
}

◆ ~KisAutoBrush()

KisAutoBrush::~KisAutoBrush ( )

override

Definition at line 103 of file kis_auto_brush.cpp.

104{

105}

Member Function Documentation

◆ characteristicSize()

QSizeF KisAutoBrush::characteristicSize ( KisDabShape const & shape ) const

overridevirtual

Returns: the logical size of the brush, that is the size measured in floating point value.

This value should not be used for calculating future dab sizes because it doesn't take any rounding into account. The only use of this metric is calculation of brush-size derivatives like hotspots and spacing.

Reimplemented from KisBrush.

Definition at line 190 of file kis_auto_brush.cpp.

{
    return KisBrush::characteristicSize(lieAboutDabShape(shape, maskGenerator()->spikes()));
}

References KisBrush::characteristicSize(), lieAboutDabShape(), and maskGenerator().

◆ clone()

KoResourceSP KisAutoBrush::clone ( ) const

overridevirtual

Implements KoResource.

Definition at line 164 of file kis_auto_brush.cpp.

{
    return KoResourceSP(new KisAutoBrush(*this));
}

References KisAutoBrush().

◆ coldInitBrush()

void KisAutoBrush::coldInitBrush ( )

overridevirtual

Reimplemented from KisBrush.

Definition at line 356 of file kis_auto_brush.cpp.

{
    generateOutlineCache();
}

References KisBrush::generateOutlineCache().

◆ createBrushPreview()

QImage KisAutoBrush::createBrushPreview ( int maxSize = -1 )

private

Definition at line 376 of file kis_auto_brush.cpp.

{
    KisDabShape shape;

    int width = maskWidth(KisDabShape(), 0.0, 0.0, KisPaintInformation());
    int height = maskHeight(KisDabShape(), 0.0, 0.0, KisPaintInformation());

    QSize size(width, height);

    if (maxSize > 0 && KisAlgebra2D::maxDimension(size) > maxSize) {
        size.scale(128, 128, Qt::KeepAspectRatio);

        qreal scale = 1.0;

        if (width > height) {
            scale = qreal(size.width()) / width;
        } else {
            scale = qreal(size.height()) / height;
        }

        shape = KisDabShape(scale, 1.0, 0.0);
        width = maskWidth(shape, 0.0, 0.0, KisPaintInformation());
        height = maskHeight(shape, 0.0, 0.0, KisPaintInformation());
    }

    KisPaintInformation info(QPointF(width * 0.5, height * 0.5), 0.5, 0, 0, angle(), 0, 0, 0, 0);

    KisFixedPaintDeviceSP fdev = new KisFixedPaintDevice(KoColorSpaceRegistry::instance()->rgb8());
    fdev->setRect(QRect(0, 0, width, height));
    fdev->initialize();

    mask(fdev, KoColor(Qt::black, fdev->colorSpace()), shape, info);
    return fdev->convertToQImage(0);
}

References KisBrush::angle(), KisFixedPaintDevice::colorSpace(), KisFixedPaintDevice::convertToQImage(), KisBrush::height(), KisFixedPaintDevice::initialize(), KoColorSpaceRegistry::instance(), KisBrush::mask(), maskHeight(), maskWidth(), KisAlgebra2D::maxDimension(), KisBrush::scale(), KisFixedPaintDevice::setRect(), and KisBrush::width().

◆ density()

qreal KisAutoBrush::density ( ) const

Definition at line 417 of file kis_auto_brush.cpp.

{
    return d->density;
}

References d.

◆ generateMaskAndApplyMaskOrCreateDab()

void KisAutoBrush::generateMaskAndApplyMaskOrCreateDab	(	KisFixedPaintDeviceSP	dst,
		KisBrush::ColoringInformation *	coloringInfo,
		KisDabShape const &	shape,
		const KisPaintInformation &	info,
		double	subPixelX = 0,
		double	subPixelY = 0,
		qreal	softnessFactor = DEFAULT_SOFTNESS_FACTOR,
		qreal	lightnessStrength = DEFAULT_LIGHTNESS_STRENGTH ) const

overridevirtual

Create a mask and either mask dst (that is, change all alpha values of the existing pixels to those of the mask) or, if coloringInfo is present, clear dst and fill dst with pixels according to coloringInfo, masked according to the generated mask.

Parameters

dst	the destination that will be draw on the image, and this function will edit its alpha channel
coloringInfo	coloring information that will be copied on the dab, it can be null
shape	a shape applied on the alpha mask
info	the painting information (this is only and should only be used by KisImagePipeBrush and only to be backward compatible with the Gimp, KisImagePipeBrush is ignoring scale and angle information)
subPixelX	sub position of the brush (contained between 0.0 and 1.0)
subPixelY	sub position of the brush (contained between 0.0 and 1.0)
softnessFactor	softness factor of the brush

Returns: a mask computed from the grey-level values of the pixels in the brush.

Reimplemented from KisBrush.

Definition at line 281 of file kis_auto_brush.cpp.

{
    Q_UNUSED(info);
    Q_UNUSED(lightnessStrength);

    // Generate the paint device from the mask
    const KoColorSpace* cs = dst->colorSpace();
    quint32 pixelSize = cs->pixelSize();

    // mask dimension methods already includes KisBrush::angle()
    int dstWidth = maskWidth(shape, subPixelX, subPixelY, info);
    int dstHeight = maskHeight(shape, subPixelX, subPixelY, info);
    QPointF hotSpot = this->hotSpot(shape, info);

    // mask size and hotSpot function take the KisBrush rotation into account
    qreal angle = shape.rotation() + KisBrush::angle();

    // if there's coloring information, we merely change the alpha: in that case,
    // the dab should be big enough!
    if (coloringInformation) {
        // new bounds. we don't care if there is some extra memory occupied.
        dst->setRect(QRect(0, 0, dstWidth, dstHeight));
        dst->lazyGrowBufferWithoutInitialization();
    }
    else {
        KIS_SAFE_ASSERT_RECOVER_RETURN(dst->bounds().width() >= dstWidth &&
                                       dst->bounds().height() >= dstHeight);
    }

    KIS_SAFE_ASSERT_RECOVER_RETURN(coloringInformation);

    quint8* dabPointer = dst->data();

    quint8* color = 0;
    if (dynamic_cast<PlainColoringInformation*>(coloringInformation)) {
        color = const_cast<quint8*>(coloringInformation->color());
    }

    double centerX = hotSpot.x() - 0.5 + subPixelX;
    double centerY = hotSpot.y() - 0.5 + subPixelY;

    d->shape->setSoftness(softnessFactor); // softness must be set first
    d->shape->setScale(shape.scaleX(), shape.scaleY());

    if (!color) {
        for (int y = 0; y < dstHeight; y++) {
            for (int x = 0; x < dstWidth; x++) {
                memcpy(dabPointer, coloringInformation->color(), pixelSize);
                coloringInformation->nextColumn();
                dabPointer += pixelSize;
            }
            coloringInformation->nextRow();
        }
    }

    MaskProcessingData data(dst, cs, color,
                            d->randomness, d->density,
                            centerX, centerY,
                            angle);

    const QRect rect(0, 0, dstWidth, dstHeight);
    KisBrushMaskApplicatorBase *applicator = d->shape->applicator();
    applicator->initializeData(&data);
    applicator->process(rect);
}

References KisBrush::angle(), KisFixedPaintDevice::bounds(), KisBrush::ColoringInformation::color(), KisFixedPaintDevice::colorSpace(), d, KisFixedPaintDevice::data(), KisBrush::hotSpot(), KisBrushMaskApplicatorBase::initializeData(), KIS_SAFE_ASSERT_RECOVER_RETURN, KisFixedPaintDevice::lazyGrowBufferWithoutInitialization(), maskHeight(), maskWidth(), KisBrush::ColoringInformation::nextColumn(), KisBrush::ColoringInformation::nextRow(), KoColorSpace::pixelSize(), KisBrushMaskApplicatorBase::process(), KisDabShape::rotation(), KisDabShape::scaleX(), KisDabShape::scaleY(), and KisFixedPaintDevice::setRect().

◆ isEphemeral()

bool KisAutoBrush::isEphemeral ( ) const

overridevirtual

Ephemeral resource is a type of resource that has no physical representation on disk. Therefore, its load()/save() calls do nothing. Such resources will always have empty md5Sum() and, therefore, will never be stored in the resources database.

This type of resources is created directly by the corresponding factory or other object (e.g. KisAutoBrushFactory).

Ephemeral resource cannot be serializable.

Reimplemented from KoResource.

Definition at line 107 of file kis_auto_brush.cpp.

{
    return true;
}

◆ isPiercedApprox()

bool KisAutoBrush::isPiercedApprox ( ) const

overridevirtual

Returns true if the brush has a bunch of pixels almost fully transparent in the very center. If the brush is pierced, then dulling mode may not work correctly due to empty samples.

WARNING: this method is relatively expensive since it iterates up to 100 pixels of the brush.

Reimplemented from KisBrush.

Definition at line 125 of file kis_auto_brush.cpp.

{
    bool result = false;

    if (d->shape->id() == SoftId.id()) {
        result = d->shape->valueAt(0,0) > 0.05 * 255;
    }

    return result;
}

References d, KoID::id(), and SoftId().

◆ loadFromDevice()

bool KisAutoBrush::loadFromDevice	(	QIODevice *	dev,
		KisResourcesInterfaceSP	resourcesInterface )

overridevirtual

Implements KoResource.

Definition at line 112 of file kis_auto_brush.cpp.

{
    Q_UNUSED(dev);
    Q_UNUSED(resourcesInterface);
    return false;
}

◆ lodLimitations()

void KisAutoBrush::lodLimitations ( KisPaintopLodLimitations * l ) const

overridevirtual

Reimplemented from KisBrush.

Definition at line 446 of file kis_auto_brush.cpp.

{
    KisBrush::lodLimitations(l);

    if (!qFuzzyCompare(density(), 1.0)) {
        l->limitations << KoID("auto-brush-density", i18nc("PaintOp instant preview limitation", "Brush Density recommended value 100.0"));
    }

    if (!qFuzzyCompare(randomness(), 0.0)) {
        l->limitations << KoID("auto-brush-randomness", i18nc("PaintOp instant preview limitation", "Brush Randomness recommended value 0.0"));
    }
}

References density(), KisPaintopLodLimitations::limitations, KisBrush::lodLimitations(), qFuzzyCompare(), and randomness().

◆ maskGenerator()

const KisMaskGenerator * KisAutoBrush::maskGenerator ( ) const

Definition at line 412 of file kis_auto_brush.cpp.

{
    return d->shape.data();
}

References d.

◆ maskHeight()

qint32 KisAutoBrush::maskHeight	(	KisDabShape const &	shape,
		qreal	subPixelX,
		qreal	subPixelY,
		const KisPaintInformation &	info ) const

overridevirtual

Returns: the height of the mask for the given scale and angle

Reimplemented from KisBrush.

Definition at line 176 of file kis_auto_brush.cpp.

{
    return KisBrush::maskHeight(
        lieAboutDabShape(shape, maskGenerator()->spikes()), subPixelX, subPixelY, info);
}

References lieAboutDabShape(), maskGenerator(), and KisBrush::maskHeight().

◆ maskWidth()

qint32 KisAutoBrush::maskWidth	(	KisDabShape const &	shape,
		qreal	subPixelX,
		qreal	subPixelY,
		const KisPaintInformation &	info ) const

overridevirtual

Returns: the width of the mask for the given scale and angle

Reimplemented from KisBrush.

Definition at line 183 of file kis_auto_brush.cpp.

{
    return KisBrush::maskWidth(
        lieAboutDabShape(shape, maskGenerator()->spikes()), subPixelX, subPixelY, info);
}

References lieAboutDabShape(), maskGenerator(), and KisBrush::maskWidth().

◆ notifyBrushIsGoingToBeClonedForStroke()

void KisAutoBrush::notifyBrushIsGoingToBeClonedForStroke ( )

overridevirtual

Is called by the paint op before it is going to clone the brush into multiple instances to pass to different threads. During this call the brush is free to prepare some structures that may be shared by all the clones without excessive recalculation.

Default implementation for all image-based brushes: just recreate the shared pyramid

Reimplemented from KisBrush.

Definition at line 351 of file kis_auto_brush.cpp.

{
    // do nothing, since we don't use the pyramid!
}

◆ operator=()

KisAutoBrush & KisAutoBrush::operator= ( const KisAutoBrush & rhs )

delete

◆ outline()

KisOptimizedBrushOutline KisAutoBrush::outline ( bool forcePreciseOutline = false ) const

overridevirtual

Reimplemented from KisBrush.

Definition at line 427 of file kis_auto_brush.cpp.

{
    const bool requiresComplexOutline = d->shape->spikes() > 2;
    if (!requiresComplexOutline && !forcePreciseOutline) {
        QPainterPath path;
        QRectF brushBoundingbox(0, 0, width(), height());
        if (maskGenerator()->type() == KisMaskGenerator::CIRCLE) {
            path.addEllipse(brushBoundingbox);
        }
        else { // if (maskGenerator()->type() == KisMaskGenerator::RECTANGLE)
            path.addRect(brushBoundingbox);
        }

        return path;
    }

    return KisBrush::outline();
}

References KisMaskGenerator::CIRCLE, d, KisBrush::height(), maskGenerator(), KisBrush::outline(), and KisBrush::width().

◆ outlineSourceImage()

KisFixedPaintDeviceSP KisAutoBrush::outlineSourceImage ( ) const

overridevirtual

Is a paint device of the brush that should be used for generation of the brush outline. Usually, it is the same device returned by brushTipImage(), but might be different in some types of brushes, like in KisAutoBrush.

We need to generate the mask manually, skipping the construction of the image pyramid

Reimplemented from KisBrush.

Definition at line 136 of file kis_auto_brush.cpp.

{
    KisFixedPaintDeviceSP dev;
    KisDabShape inverseTransform(1.0 / scale(), 1.0, -angle());

    const KoColorSpace* cs = KoColorSpaceRegistry::instance()->rgb8();
    dev = new KisFixedPaintDevice(cs);
    mask(dev, KoColor(Qt::black, cs), inverseTransform, KisPaintInformation());

    return dev;
}

References KisBrush::angle(), KoColorSpaceRegistry::instance(), KisBrush::mask(), KoColorSpaceRegistry::rgb8(), and KisBrush::scale().

◆ paintDevice()

KisFixedPaintDeviceSP KisAutoBrush::paintDevice	(	const KoColorSpace *	colorSpace,
		KisDabShape const &	shape,
		const KisPaintInformation &	info,
		double	subPixelX = 0,
		double	subPixelY = 0 ) const

overridevirtual

Return a fixed paint device that contains a correctly scaled image dab.

Reimplemented from KisBrush.

Definition at line 195 of file kis_auto_brush.cpp.

                                                                                                                                            {
    return 0; // The autobrush does NOT support images!
}

◆ randomness()

qreal KisAutoBrush::randomness ( ) const

Definition at line 422 of file kis_auto_brush.cpp.

{
    return d->randomness;
}

References d.

◆ saveToDevice()

bool KisAutoBrush::saveToDevice ( QIODevice * dev ) const

overridevirtual

Reimplemented from KoResource.

Definition at line 119 of file kis_auto_brush.cpp.

{
    Q_UNUSED(dev);
    return false;
}

◆ setUserEffectiveSize()

void KisAutoBrush::setUserEffectiveSize ( qreal value )

overridevirtual

Implements KisBrush.

Definition at line 153 of file kis_auto_brush.cpp.

{
    d->shape->setDiameter(value);
}

References d, and value().

◆ supportsCaching()

bool KisAutoBrush::supportsCaching ( ) const

overridevirtual

Reimplemented from KisBrush.

Definition at line 459 of file kis_auto_brush.cpp.

{
    return qFuzzyCompare(density(), 1.0) && qFuzzyCompare(randomness(), 0.0);
}

References density(), qFuzzyCompare(), and randomness().

◆ toXML()

void KisAutoBrush::toXML	(	QDomDocument &	,
		QDomElement &	element ) const

overridevirtual

Serialize this brush to XML.

Reimplemented from KisBrush.

Definition at line 361 of file kis_auto_brush.cpp.

{
    QDomElement shapeElt = doc.createElement("MaskGenerator");
    d->shape->toXML(doc, shapeElt);
    e.appendChild(shapeElt);
    e.setAttribute("type", "auto_brush");
    e.setAttribute("spacing", QString::number(spacing()));
    e.setAttribute("useAutoSpacing", QString::number(autoSpacingActive()));
    e.setAttribute("autoSpacingCoeff", QString::number(autoSpacingCoeff()));
    e.setAttribute("angle", QString::number(KisBrush::angle()));
    e.setAttribute("randomness", QString::number(d->randomness));
    e.setAttribute("density", QString::number(d->density));
    KisBrush::toXML(doc, e);
}

References KisBrush::angle(), KisBrush::autoSpacingActive(), KisBrush::autoSpacingCoeff(), d, KisBrush::spacing(), and KisBrush::toXML().

◆ userEffectiveSize()

qreal KisAutoBrush::userEffectiveSize ( ) const

overridevirtual

Implements KisBrush.

Definition at line 148 of file kis_auto_brush.cpp.

{
    return d->shape->diameter();
}

References d.

Member Data Documentation

◆ d

const QScopedPointer<Private> KisAutoBrush::d

private

Definition at line 88 of file kis_auto_brush.h.

The documentation for this class was generated from the following files:

libs/brush/kis_auto_brush.h
libs/brush/kis_auto_brush.cpp

Classes

Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ KisAutoBrush() [1/2]

◆ KisAutoBrush() [2/2]

◆ ~KisAutoBrush()

Member Function Documentation

◆ characteristicSize()

◆ clone()

◆ coldInitBrush()

◆ createBrushPreview()

◆ density()

◆ generateMaskAndApplyMaskOrCreateDab()

◆ isEphemeral()

◆ isPiercedApprox()

◆ loadFromDevice()

◆ lodLimitations()

◆ maskGenerator()

◆ maskHeight()

◆ maskWidth()

◆ notifyBrushIsGoingToBeClonedForStroke()

◆ operator=()

◆ outline()

◆ outlineSourceImage()

◆ paintDevice()

◆ randomness()

◆ saveToDevice()

◆ setUserEffectiveSize()

◆ supportsCaching()

◆ toXML()

◆ userEffectiveSize()

Member Data Documentation

◆ d
