#include <kis_curve_paintop_settings.h>

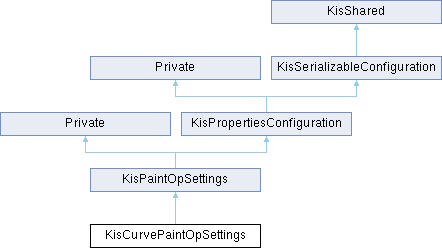

Inheritance diagram for KisCurvePaintOpSettings:

Classes
struct	Private

Public Member Functions
	KisCurvePaintOpSettings (KisResourcesInterfaceSP resourcesInterface)

bool	paintIncremental () override

qreal	paintOpAngle () const override

qreal	paintOpSize () const override

void	setPaintOpAngle (qreal value) override

void	setPaintOpSize (qreal value) override

QList< KisUniformPaintOpPropertySP >	uniformProperties (KisPaintOpSettingsSP settings, QPointer< KisPaintOpPresetUpdateProxy > updateProxy) override

	~KisCurvePaintOpSettings () override

Public Member Functions inherited from KisPaintOpSettings
virtual void	activate ()

virtual qreal	airbrushInterval () const

virtual KisOptimizedBrushOutline	brushOutline (const KisPaintInformation &info, const OutlineMode &mode, qreal alignForZoom)

KoCanvasResourcesInterfaceSP	canvasResourcesInterface () const

virtual KisPaintOpSettingsSP	clone () const

KisPaintOpSettingsSP	createMaskingSettings () const

QString	effectivePaintOpCompositeOp ()

bool	eraserMode ()

bool	hasMaskingSettings () const

virtual bool	hasPatternSettings () const

virtual QString	indirectPaintingCompositeOp () const

virtual bool	isAirbrushing () const

virtual bool	isValid () const

	KisPaintOpSettings (const KisPaintOpSettings &rhs)

	KisPaintOpSettings (KisResourcesInterfaceSP resourcesInterface)

qreal	lodSizeThreshold () const

virtual bool	lodSizeThresholdSupported () const

QString	maskingBrushCompositeOp () const

virtual QString	modelName () const

virtual bool	mousePressEvent (const KisPaintInformation &paintInformation, Qt::KeyboardModifiers modifiers, KisNodeWSP currentNode)

virtual bool	mouseReleaseEvent ()

virtual bool	needsAsynchronousUpdates () const

KisNodeSP	node () const

QString	paintOpCompositeOp ()

qreal	paintOpFade ()

qreal	paintOpFlow ()

virtual qreal	paintOpOpacity ()

virtual qreal	paintOpPatternSize ()

qreal	paintOpScatter ()

	Private ()

	Private (const Private &rhs)

virtual void	regenerateResourceCache (KoResourceCacheInterfaceSP cacheInterface)

virtual QList< int >	requiredCanvasResources () const

virtual void	resetSettings (const QStringList &preserveProperties=QStringList())

KoResourceCacheInterfaceSP	resourceCacheInterface () const

KisResourcesInterfaceSP	resourcesInterface () const

quint64	sanityVersionCookie () const

qreal	savedBrushOpacity () const

qreal	savedBrushSize () const

qreal	savedEraserOpacity () const

qreal	savedEraserSize () const

void	setCanvasResourcesInterface (KoCanvasResourcesInterfaceSP canvasResourcesInterface)

void	setEraserMode (bool value)

void	setLodSizeThreshold (qreal value)

void	setModelName (const QString &modelName)

void	setPaintOpCompositeOp (const QString &value)

void	setPaintOpFade (qreal value)

void	setPaintOpFlow (qreal value)

virtual void	setPaintOpOpacity (qreal value)

void	setPaintOpScatter (qreal value)

void	setProperty (const QString &name, const QVariant &value) override

virtual void	setRandomOffset (const KisPaintInformation &paintInformation)

virtual void	setResourceCacheInterface (KoResourceCacheInterfaceSP cacheInterface)

void	setResourcesInterface (KisResourcesInterfaceSP resourcesInterface)

void	setSavedBrushOpacity (qreal value)

void	setSavedBrushSize (qreal value)

void	setSavedEraserOpacity (qreal value)

void	setSavedEraserSize (qreal value)

void	setUpdateListener (UpdateListenerWSP listener)

UpdateListenerWSP	updateListener () const

virtual bool	useSpacingUpdates () const

	~KisPaintOpSettings () override

Public Member Functions inherited from Private
	Private (KisCanvas2 *c)

Public Member Functions inherited from KisPropertiesConfiguration
void	clearProperties ()
	Clear the map of properties.

virtual bool	compareTo (const KisPropertiesConfiguration *rhs) const

virtual void	dump () const

void	fromXML (const QDomElement &) override

bool	fromXML (const QString &xml, bool clear=true) override

bool	getBool (const QString &name, bool def=false) const

KoColor	getColor (const QString &name, const KoColor &color=KoColor()) const
	getColor fetch the given property as a KoColor.

KisCubicCurve	getCubicCurve (const QString &name, const KisCubicCurve &curve=KisCubicCurve()) const

double	getDouble (const QString &name, double def=0.0) const

float	getFloat (const QString &name, float def=0.0) const

int	getInt (const QString &name, int def=0) const

void	getPrefixedProperties (const QString &prefix, KisPropertiesConfiguration *config) const

void	getPrefixedProperties (const QString &prefix, KisPropertiesConfigurationSP config) const

virtual QMap< QString, QVariant >	getProperties () const

virtual QList< QString >	getPropertiesKeys () const

virtual QVariant	getProperty (const QString &name) const

virtual bool	getProperty (const QString &name, QVariant &value) const

QString	getPropertyLazy (const QString &name, const char *defaultValue) const

QStringList	getPropertyLazy (const QString &name, const QStringList &defaultValue) const

template<typename T >
T	getPropertyLazy (const QString &name, const T &defaultValue) const

QString	getString (const QString &name, const QString &def=QString()) const

QStringList	getStringList (const QString &name, const QStringList &defaultValue=QStringList()) const

virtual bool	hasProperty (const QString &name) const

	KisPropertiesConfiguration ()

	KisPropertiesConfiguration (const KisPropertiesConfiguration &rhs)

KisPropertiesConfiguration &	operator= (const KisPropertiesConfiguration &rhs)

void	removeProperty (const QString &name)

void	setPrefixedProperties (const QString &prefix, const KisPropertiesConfiguration *config)

void	setPrefixedProperties (const QString &prefix, const KisPropertiesConfigurationSP config)

void	setProperty (const QString &name, const QStringList &value)

void	setPropertyNotSaved (const QString &name)
	Marks a property that should not be saved by toXML.

QString	toXML () const override

void	toXML (QDomDocument &, QDomElement &) const override

	~KisPropertiesConfiguration () override

Public Member Functions inherited from KisSerializableConfiguration
	KisSerializableConfiguration ()

	KisSerializableConfiguration (const KisSerializableConfiguration &rhs)

virtual	~KisSerializableConfiguration ()

Public Member Functions inherited from KisShared
bool	deref ()

bool	ref ()

int	refCount ()

QAtomicInt *	sharedWeakReference ()

Private Attributes
const QScopedPointer< Private >	m_d

Additional Inherited Members
Public Types inherited from KisPaintOpSettings
using	UpdateListenerSP = QSharedPointer<UpdateListener>

using	UpdateListenerWSP = QWeakPointer<UpdateListener>

Static Public Member Functions inherited from KisPaintOpSettings
static KisOptimizedBrushOutline	ellipseOutline (qreal width, qreal height, qreal scale, qreal rotation)

static bool	isLodUserAllowed (const KisPropertiesConfigurationSP config)

static QPainterPath	makeTiltIndicator (KisPaintInformation const &info, QPointF const &start, qreal lengthScale, qreal angle)

static void	setLodUserAllowed (KisPropertiesConfigurationSP config, bool value)

Static Public Member Functions inherited from KisPropertiesConfiguration
static QString	escapeString (const QString &string)

static QString	extractedPrefixKey ()

static QString	unescapeString (const QString &string)

Public Attributes inherited from KisPaintOpSettings
KoCanvasResourcesInterfaceSP	canvasResourcesInterface

bool	disableDirtyNotifications

QString	modelName

KoResourceCacheInterfaceSP	resourceCacheInterface

KisResourcesInterfaceSP	resourcesInterface

QPointer< KisPaintOpConfigWidget >	settingsWidget

QList< KisUniformPaintOpPropertyWSP >	uniformProperties

UpdateListenerWSP	updateListener

quint64	versionCookie

KisRandomSource	versionRandomSource

Public Attributes inherited from Private
KisCanvas2 *	canvas

int	displayedFrame

int	intendedFrame

Public Attributes inherited from KisPropertiesConfiguration
QSet< QString >	notSavedProperties

QMap< QString, QVariant >	properties

Protected Member Functions inherited from KisPaintOpSettings
virtual void	onPropertyChanged ()

Protected Member Functions inherited from KisShared
	KisShared ()

	~KisShared ()

Detailed Description

Definition at line 13 of file kis_curve_paintop_settings.h.

Constructor & Destructor Documentation

◆ KisCurvePaintOpSettings()

KisCurvePaintOpSettings::KisCurvePaintOpSettings ( KisResourcesInterfaceSP resourcesInterface )

Definition at line 15 of file kis_curve_paintop_settings.cpp.

    : KisPaintOpSettings(resourcesInterface),
      m_d(new Private)
{
}

◆ ~KisCurvePaintOpSettings()

KisCurvePaintOpSettings::~KisCurvePaintOpSettings ( )

override

Definition at line 21 of file kis_curve_paintop_settings.cpp.

22{

23}

Member Function Documentation

◆ paintIncremental()

bool KisCurvePaintOpSettings::paintIncremental ( )

overridevirtual

XXX: Remove this after 2.0, when the paint operation (incremental/non incremental) will be completely handled in the paintop, not in the tool. This is a filthy hack to move the option to the right place, at least.

Returns: true if we paint incrementally, false if we paint like Photoshop. By default, paintops do not support non-incremental.

Reimplemented from KisPaintOpSettings.

Definition at line 50 of file kis_curve_paintop_settings.cpp.

{
    KisPaintingModeOptionData data;
    data.read(this);
    return data.paintingMode == enumPaintingMode::BUILDUP;
}

References BUILDUP, KisPaintingModeOptionData::paintingMode, and KisPaintingModeOptionData::read().

◆ paintOpAngle()

qreal KisCurvePaintOpSettings::paintOpAngle ( ) const

overridevirtual

Returns: paintop angle (in degrees) saved in the properties

Implements KisPaintOpSettings.

Definition at line 45 of file kis_curve_paintop_settings.cpp.

{
    return 0.0;
}

◆ paintOpSize()

qreal KisCurvePaintOpSettings::paintOpSize ( ) const

overridevirtual

Returns: size saved in the properties

Implements KisPaintOpSettings.

Definition at line 33 of file kis_curve_paintop_settings.cpp.

{
    KisCurveOpOptionData option;
    option.read(this);
    return option.curve_line_width;
}

References KisCurveOpOptionData::curve_line_width, and KisCurveOpOptionData::read().

◆ setPaintOpAngle()

void KisCurvePaintOpSettings::setPaintOpAngle ( qreal value )

overridevirtual

Set paintop angle (in degrees) directly in the properties. Increasing the angle corresponds to a counter-clockwise rotation.

Implements KisPaintOpSettings.

Definition at line 40 of file kis_curve_paintop_settings.cpp.

{
    Q_UNUSED(value);
}

References value().

◆ setPaintOpSize()

void KisCurvePaintOpSettings::setPaintOpSize ( qreal value )

overridevirtual

Set paintop size directly in the properties

Implements KisPaintOpSettings.

Definition at line 25 of file kis_curve_paintop_settings.cpp.

{
    KisCurveOpOptionData option;
    option.read(this);
    option.curve_line_width = value;
    option.write(this);
}

References KisCurveOpOptionData::curve_line_width, KisCurveOpOptionData::read(), value(), and KisCurveOpOptionData::write().

◆ uniformProperties()

QList< KisUniformPaintOpPropertySP > KisCurvePaintOpSettings::uniformProperties	(	KisPaintOpSettingsSP	settings,
		QPointer< KisPaintOpPresetUpdateProxy >	updateProxy )

overridevirtual

Reimplemented from KisPaintOpSettings.

Definition at line 64 of file kis_curve_paintop_settings.cpp.

{
    QList<KisUniformPaintOpPropertySP> props =
        listWeakToStrong(m_d->uniformProperties);

    if (props.isEmpty()) {
        {
            KisIntSliderBasedPaintOpPropertyCallback *prop = new KisIntSliderBasedPaintOpPropertyCallback(KisIntSliderBasedPaintOpPropertyCallback::Int,
                                                                                                          KoID("curve_linewidth", i18n("Line Width")),
                                                                                                          settings,
                                                                                                          0);

            prop->setRange(1, 100);
            prop->setSingleStep(1);
            prop->setSuffix(i18n(" px"));

            prop->setReadCallback(
                [](KisUniformPaintOpProperty *prop) {
                    KisCurveOpOptionData option;
                    option.read(prop->settings().data());

                    prop->setValue(option.curve_line_width);
                });
            prop->setWriteCallback(
                [](KisUniformPaintOpProperty *prop) {
                    KisCurveOpOptionData option;
                    option.read(prop->settings().data());
                    option.curve_line_width = prop->value().toInt();
                    option.write(prop->settings().data());
                });

            QObject::connect(updateProxy, SIGNAL(sigSettingsChanged()), prop, SLOT(requestReadValue()));
            prop->requestReadValue();
            props << toQShared(prop);
        }
        {
            KisIntSliderBasedPaintOpPropertyCallback *prop = new KisIntSliderBasedPaintOpPropertyCallback(KisIntSliderBasedPaintOpPropertyCallback::Int,
                                                                                                          KoID("curve_historysize", i18n("History Size")),
                                                                                                          settings,
                                                                                                          0);

            prop->setRange(2, 300);
            prop->setSingleStep(1);

            prop->setReadCallback(
                [](KisUniformPaintOpProperty *prop) {
                    KisCurveOpOptionData option;
                    option.read(prop->settings().data());

                    prop->setValue(option.curve_stroke_history_size);
                });
            prop->setWriteCallback(
                [](KisUniformPaintOpProperty *prop) {
                    KisCurveOpOptionData option;
                    option.read(prop->settings().data());
                    option.curve_stroke_history_size = prop->value().toInt();
                    option.write(prop->settings().data());
                });
            QObject::connect(updateProxy, SIGNAL(sigSettingsChanged()), prop, SLOT(requestReadValue()));
            prop->requestReadValue();
            props << toQShared(prop);
        }

        {
            KisDoubleSliderBasedPaintOpPropertyCallback *prop =
                new KisDoubleSliderBasedPaintOpPropertyCallback(KisDoubleSliderBasedPaintOpPropertyCallback::Double,
                                                                KoID("curve_lineopacity", i18n("Line Opacity")),
                                                                settings,
                                                                0);

            prop->setRange(0, 100.0);
            prop->setSingleStep(0.01);
            prop->setDecimals(2);
            prop->setSuffix(i18n("%"));

            prop->setReadCallback(
                [](KisUniformPaintOpProperty *prop) {
                    KisCurveOpOptionData option;
                    option.read(prop->settings().data());
                    prop->setValue(option.curve_curves_opacity * 100.0);
                });
            prop->setWriteCallback(
                [](KisUniformPaintOpProperty *prop) {
                    KisCurveOpOptionData option;
                    option.read(prop->settings().data());
                    option.curve_curves_opacity = prop->value().toReal() / 100.0;
                    option.write(prop->settings().data());
                });

            QObject::connect(updateProxy, SIGNAL(sigSettingsChanged()), prop, SLOT(requestReadValue()));
            prop->requestReadValue();
            props << toQShared(prop);
        }

        {
            KisUniformPaintOpPropertyCallback *prop = new KisUniformPaintOpPropertyCallback(KisUniformPaintOpPropertyCallback::Bool,
                                                                                            KoID("curve_connectionline", i18n("Connection Line")),
                                                                                            settings,
                                                                                            0);

            prop->setReadCallback(
                [](KisUniformPaintOpProperty *prop) {
                    KisCurveOpOptionData option;
                    option.read(prop->settings().data());

                    prop->setValue(option.curve_paint_connection_line);
                });
            prop->setWriteCallback(
                [](KisUniformPaintOpProperty *prop) {
                    KisCurveOpOptionData option;
                    option.read(prop->settings().data());
                    option.curve_paint_connection_line = prop->value().toBool();
                    option.write(prop->settings().data());
                });

            QObject::connect(updateProxy, SIGNAL(sigSettingsChanged()), prop, SLOT(requestReadValue()));
            prop->requestReadValue();
            props << toQShared(prop);
        }
    }

    {
        using namespace KisStandardUniformPropertiesFactory;

        Q_FOREACH (KisUniformPaintOpPropertySP prop, KisPaintOpSettings::uniformProperties(settings, updateProxy)) {
            if (prop->id() == opacity.id()) {
                props.prepend(prop);
            }
        }
    }

    return props;
}

References KisCurveOpOptionData::curve_curves_opacity, KisCurveOpOptionData::curve_line_width, KisCurveOpOptionData::curve_paint_connection_line, KisCurveOpOptionData::curve_stroke_history_size, listWeakToStrong(), m_d, KisCurveOpOptionData::read(), KisCallbackBasedPaintopProperty< ParentClass >::setReadCallback(), KisCallbackBasedPaintopProperty< ParentClass >::setWriteCallback(), toQShared(), KisPaintOpSettings::uniformProperties, and KisCurveOpOptionData::write().

Member Data Documentation

◆ m_d

const QScopedPointer<Private> KisCurvePaintOpSettings::m_d

private

Definition at line 32 of file kis_curve_paintop_settings.h.

The documentation for this class was generated from the following files:

plugins/paintops/curvebrush/kis_curve_paintop_settings.h
plugins/paintops/curvebrush/kis_curve_paintop_settings.cpp

Classes

Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ KisCurvePaintOpSettings()

◆ ~KisCurvePaintOpSettings()

Member Function Documentation

◆ paintIncremental()

◆ paintOpAngle()

◆ paintOpSize()

◆ setPaintOpAngle()

◆ setPaintOpSize()

◆ uniformProperties()

Member Data Documentation

◆ m_d
