KisDitherOpImpl< srcCSTraits, dstCSTraits, dType > Class Template Reference

#include <KisDitherOpImpl.h>

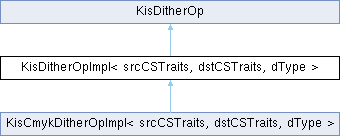

Inheritance diagram for KisDitherOpImpl< srcCSTraits, dstCSTraits, dType >:

Public Member Functions
KoID	destinationDepthId () const override
void	dither (const quint8 *src, quint8 *dst, int x, int y) const override
void	dither (const quint8 *srcRowStart, int srcRowStride, quint8 *dstRowStart, int dstRowStride, int x, int y, int columns, int rows) const override
	KisDitherOpImpl (const KoID &srcId, const KoID &dstId)
KoID	sourceDepthId () const override
DitherType	type () const override
Public Member Functions inherited from KisDitherOp
virtual	~KisDitherOp ()=default

Private Types
using	dstChannelsType = typename dstCSTraits::channels_type
using	srcChannelsType = typename srcCSTraits::channels_type

Private Member Functions
template<DitherType t = dType, typename std::enable_if< t !=DITHER_NONE, void >::type * = nullptr>
void	ditherImpl (const quint8 *src, quint8 *dst, int x, int y) const
template<DitherType t = dType, typename std::enable_if< t==DITHER_NONE &&std::is_same< srcCSTraits, dstCSTraits >::value, void >::type * = nullptr>
void	ditherImpl (const quint8 *src, quint8 *dst, int, int) const
template<DitherType t = dType, typename std::enable_if< t==DITHER_NONE &&!std::is_same< srcCSTraits, dstCSTraits >::value, void >::type * = nullptr>
void	ditherImpl (const quint8 *src, quint8 *dst, int, int) const
template<DitherType t = dType, typename std::enable_if< t !=DITHER_NONE, void >::type * = nullptr>
void	ditherImpl (const quint8 *srcRowStart, int srcRowStride, quint8 *dstRowStart, int dstRowStride, int x, int y, int columns, int rows) const
template<DitherType t = dType, typename std::enable_if< t==DITHER_NONE &&std::is_same< srcCSTraits, dstCSTraits >::value, void >::type * = nullptr>
void	ditherImpl (const quint8 *srcRowStart, int srcRowStride, quint8 *dstRowStart, int dstRowStride, int, int, int columns, int rows) const
template<DitherType t = dType, typename std::enable_if< t==DITHER_NONE &&!std::is_same< srcCSTraits, dstCSTraits >::value, void >::type * = nullptr>
void	ditherImpl (const quint8 *srcRowStart, int srcRowStride, quint8 *dstRowStart, int dstRowStride, int, int, int columns, int rows) const
template<DitherType t = dType, typename std::enable_if< t==DITHER_BAYER, void >::type * = nullptr>
float	factor (int x, int y) const
template<DitherType t = dType, typename std::enable_if< t==DITHER_BLUE_NOISE, void >::type * = nullptr>
float	factor (int x, int y) const
template<typename U = typename dstCSTraits::channels_type, typename std::enable_if<!std::numeric_limits< U >::is_integer, void >::type * = nullptr>
constexpr float	scale () const
template<typename U = typename dstCSTraits::channels_type, typename std::enable_if< std::numeric_limits< U >::is_integer, void >::type * = nullptr>
constexpr float	scale () const

Private Attributes
const KoID	m_dstDepthId
const KoID	m_srcDepthId

Detailed Description

template<typename srcCSTraits, typename dstCSTraits, DitherType dType>
class KisDitherOpImpl< srcCSTraits, dstCSTraits, dType >

Definition at line 28 of file KisDitherOpImpl.h.

Member Typedef Documentation

dstChannelsType

template<typename srcCSTraits , typename dstCSTraits , DitherType dType>

using KisDitherOpImpl< srcCSTraits, dstCSTraits, dType >::dstChannelsType = typename dstCSTraits::channels_type

private

Definition at line 31 of file KisDitherOpImpl.h.

srcChannelsType

template<typename srcCSTraits , typename dstCSTraits , DitherType dType>

using KisDitherOpImpl< srcCSTraits, dstCSTraits, dType >::srcChannelsType = typename srcCSTraits::channels_type

private

Definition at line 30 of file KisDitherOpImpl.h.

Constructor & Destructor Documentation

KisDitherOpImpl()

template<typename srcCSTraits , typename dstCSTraits , DitherType dType>

KisDitherOpImpl< srcCSTraits, dstCSTraits, dType >::KisDitherOpImpl ( const KoID & srcId, const KoID & dstId )

inline

Definition at line 34 of file KisDitherOpImpl.h.

        : m_srcDepthId(srcId)
        , m_dstDepthId(dstId)
    {
    }

Member Function Documentation

destinationDepthId()

template<typename srcCSTraits , typename dstCSTraits , DitherType dType>

KoID KisDitherOpImpl< srcCSTraits, dstCSTraits, dType >::destinationDepthId ( ) const

inlineoverridevirtual

Returns

the identifier of this op's destination depth

Implements KisDitherOp.

Definition at line 55 of file KisDitherOpImpl.h.

    {
        return m_dstDepthId;
    }

References KisDitherOpImpl< srcCSTraits, dstCSTraits, dType >::m_dstDepthId.

dither() [1/2]

template<typename srcCSTraits , typename dstCSTraits , DitherType dType>

void KisDitherOpImpl< srcCSTraits, dstCSTraits, dType >::dither ( const quint8 * src, quint8 * dst, int x, int y ) const

inlineoverridevirtual

Implements KisDitherOp.

Definition at line 40 of file KisDitherOpImpl.h.

    {
        ditherImpl(src, dst, x, y);
    }

References KisDitherOpImpl< srcCSTraits, dstCSTraits, dType >::ditherImpl().

dither() [2/2]

template<typename srcCSTraits , typename dstCSTraits , DitherType dType>

void KisDitherOpImpl< srcCSTraits, dstCSTraits, dType >::dither ( const quint8 * srcRowStart, int srcRowStride, quint8 * dstRowStart, int dstRowStride, int x, int y, int columns, int rows ) const

inlineoverridevirtual

Implements KisDitherOp.

Definition at line 45 of file KisDitherOpImpl.h.

    {
        ditherImpl(srcRowStart, srcRowStride, dstRowStart, dstRowStride, x, y, columns, rows);
    }

References KisDitherOpImpl< srcCSTraits, dstCSTraits, dType >::ditherImpl().

ditherImpl() [1/6]

template<typename srcCSTraits , typename dstCSTraits , DitherType dType>

template<DitherType t = dType, typename std::enable_if< t !=DITHER_NONE, void >::type * = nullptr>

void KisDitherOpImpl< srcCSTraits, dstCSTraits, dType >::ditherImpl ( const quint8 * src, quint8 * dst, int x, int y ) const

inlineprivate

Definition at line 84 of file KisDitherOpImpl.h.

    {
        const srcChannelsType *nativeSrc = srcCSTraits::nativeArray(src);
        dstChannelsType *nativeDst = dstCSTraits::nativeArray(dst);

        float f = factor(x, y);
        float s = scale();

        for (uint channelIndex = 0; channelIndex < srcCSTraits::channels_nb; ++channelIndex) {
            float c = KoColorSpaceMaths<srcChannelsType, float>::scaleToA(nativeSrc[channelIndex]);
            c = KisDitherMaths::apply_dither(c, f, s);
            nativeDst[channelIndex] = KoColorSpaceMaths<float, dstChannelsType>::scaleToA(c);
        }
    }

References KisDitherMaths::apply_dither(), KisDitherOpImpl< srcCSTraits, dstCSTraits, dType >::factor(), KisDitherOpImpl< srcCSTraits, dstCSTraits, dType >::scale(), and KoColorSpaceMaths< _T, _Tdst >::scaleToA().

ditherImpl() [2/6]

template<typename srcCSTraits , typename dstCSTraits , DitherType dType>

template<DitherType t = dType, typename std::enable_if< t==DITHER_NONE &&std::is_same< srcCSTraits, dstCSTraits >::value, void >::type * = nullptr>

void KisDitherOpImpl< srcCSTraits, dstCSTraits, dType >::ditherImpl ( const quint8 * src, quint8 * dst, int , int  ) const

inlineprivate

Definition at line 68 of file KisDitherOpImpl.h.

    {
        memcpy(dst, src, srcCSTraits::pixelSize);
    }

ditherImpl() [3/6]

template<typename srcCSTraits , typename dstCSTraits , DitherType dType>

template<DitherType t = dType, typename std::enable_if< t==DITHER_NONE &&!std::is_same< srcCSTraits, dstCSTraits >::value, void >::type * = nullptr>

void KisDitherOpImpl< srcCSTraits, dstCSTraits, dType >::ditherImpl ( const quint8 * src, quint8 * dst, int , int  ) const

inlineprivate

Definition at line 73 of file KisDitherOpImpl.h.

    {
        const srcChannelsType *nativeSrc = srcCSTraits::nativeArray(src);
        dstChannelsType *nativeDst = dstCSTraits::nativeArray(dst);

        for (uint channelIndex = 0; channelIndex < srcCSTraits::channels_nb; ++channelIndex) {
            nativeDst[channelIndex] = KoColorSpaceMaths<srcChannelsType, dstChannelsType>::scaleToA(nativeSrc[channelIndex]);
        }
    }

References KoColorSpaceMaths< _T, _Tdst >::scaleToA().

ditherImpl() [4/6]

template<typename srcCSTraits , typename dstCSTraits , DitherType dType>

template<DitherType t = dType, typename std::enable_if< t !=DITHER_NONE, void >::type * = nullptr>

void KisDitherOpImpl< srcCSTraits, dstCSTraits, dType >::ditherImpl ( const quint8 * srcRowStart, int srcRowStride, quint8 * dstRowStart, int dstRowStride, int x, int y, int columns, int rows ) const

inlineprivate

Definition at line 138 of file KisDitherOpImpl.h.

    {
        const quint8 *nativeSrc = srcRowStart;
        quint8 *nativeDst = dstRowStart;

        float s = scale();

        for (int a = 0; a < rows; ++a) {
            const srcChannelsType *srcPtr = srcCSTraits::nativeArray(nativeSrc);
            dstChannelsType *dstPtr = dstCSTraits::nativeArray(nativeDst);

            for (int b = 0; b < columns; ++b) {
                float f = factor(x + b, y + a);

                for (uint channelIndex = 0; channelIndex < srcCSTraits::channels_nb; ++channelIndex) {
                    float c = KoColorSpaceMaths<srcChannelsType, float>::scaleToA(srcPtr[channelIndex]);
                    c = KisDitherMaths::apply_dither(c, f, s);
                    dstPtr[channelIndex] = KoColorSpaceMaths<float, dstChannelsType>::scaleToA(c);
                }

                srcPtr += srcCSTraits::channels_nb;
                dstPtr += dstCSTraits::channels_nb;
            }

            nativeSrc += srcRowStride;
            nativeDst += dstRowStride;
        }
    }

References KisDitherMaths::apply_dither(), KisDitherOpImpl< srcCSTraits, dstCSTraits, dType >::factor(), KisDitherOpImpl< srcCSTraits, dstCSTraits, dType >::scale(), and KoColorSpaceMaths< _T, _Tdst >::scaleToA().

ditherImpl() [5/6]

template<typename srcCSTraits , typename dstCSTraits , DitherType dType>

template<DitherType t = dType, typename std::enable_if< t==DITHER_NONE &&std::is_same< srcCSTraits, dstCSTraits >::value, void >::type * = nullptr>

void KisDitherOpImpl< srcCSTraits, dstCSTraits, dType >::ditherImpl ( const quint8 * srcRowStart, int srcRowStride, quint8 * dstRowStart, int dstRowStride, int , int , int columns, int rows ) const

inlineprivate

Definition at line 100 of file KisDitherOpImpl.h.

    {
        const quint8 *nativeSrc = srcRowStart;
        quint8 *nativeDst = dstRowStart;

        for (int y = 0; y < rows; ++y) {
            memcpy(nativeDst, nativeSrc, srcCSTraits::pixelSize * columns);

            nativeSrc += srcRowStride;
            nativeDst += dstRowStride;
        }
    }

ditherImpl() [6/6]

template<typename srcCSTraits , typename dstCSTraits , DitherType dType>

template<DitherType t = dType, typename std::enable_if< t==DITHER_NONE &&!std::is_same< srcCSTraits, dstCSTraits >::value, void >::type * = nullptr>

void KisDitherOpImpl< srcCSTraits, dstCSTraits, dType >::ditherImpl ( const quint8 * srcRowStart, int srcRowStride, quint8 * dstRowStart, int dstRowStride, int , int , int columns, int rows ) const

inlineprivate

Definition at line 114 of file KisDitherOpImpl.h.

    {
        const quint8 *nativeSrc = srcRowStart;
        quint8 *nativeDst = dstRowStart;

        for (int y = 0; y < rows; ++y) {
            const srcChannelsType *srcPtr = srcCSTraits::nativeArray(nativeSrc);
            dstChannelsType *dstPtr = dstCSTraits::nativeArray(nativeDst);

            for (int x = 0; x < columns; ++x) {
                for (uint channelIndex = 0; channelIndex < srcCSTraits::channels_nb; ++channelIndex) {
                    dstPtr[channelIndex] = KoColorSpaceMaths<srcChannelsType, dstChannelsType>::scaleToA(srcPtr[channelIndex]);
                }

                srcPtr += srcCSTraits::channels_nb;
                dstPtr += dstCSTraits::channels_nb;
            }

            nativeSrc += srcRowStride;
            nativeDst += dstRowStride;
        }
    }

References KoColorSpaceMaths< _T, _Tdst >::scaleToA().

factor() [1/2]

template<typename srcCSTraits , typename dstCSTraits , DitherType dType>

template<DitherType t = dType, typename std::enable_if< t==DITHER_BAYER, void >::type * = nullptr>

float KisDitherOpImpl< srcCSTraits, dstCSTraits, dType >::factor ( int x, int y ) const

inlineprivate

Definition at line 177 of file KisDitherOpImpl.h.

    {
        return KisDitherMaths::dither_factor_bayer_8(x, y);
    }

References KisDitherMaths::dither_factor_bayer_8().

factor() [2/2]

template<typename srcCSTraits , typename dstCSTraits , DitherType dType>

template<DitherType t = dType, typename std::enable_if< t==DITHER_BLUE_NOISE, void >::type * = nullptr>

float KisDitherOpImpl< srcCSTraits, dstCSTraits, dType >::factor ( int x, int y ) const

inlineprivate

Definition at line 182 of file KisDitherOpImpl.h.

    {
        return KisDitherMaths::dither_factor_blue_noise_64(x, y);
    }

References KisDitherMaths::dither_factor_blue_noise_64().

scale() [1/2]

template<typename srcCSTraits , typename dstCSTraits , DitherType dType>

template<typename U = typename dstCSTraits::channels_type, typename std::enable_if<!std::numeric_limits< U >::is_integer, void >::type * = nullptr>

constexpr float KisDitherOpImpl< srcCSTraits, dstCSTraits, dType >::scale ( ) const

inlineconstexprprivate

Definition at line 167 of file KisDitherOpImpl.h.

    {
        return 0.f; // no dithering for floating point
    }

scale() [2/2]

template<typename srcCSTraits , typename dstCSTraits , DitherType dType>

template<typename U = typename dstCSTraits::channels_type, typename std::enable_if< std::numeric_limits< U >::is_integer, void >::type * = nullptr>

constexpr float KisDitherOpImpl< srcCSTraits, dstCSTraits, dType >::scale ( ) const

inlineconstexprprivate

Definition at line 172 of file KisDitherOpImpl.h.

    {
        return 1.f / static_cast<float>(1 << dstCSTraits::depth);
    }

sourceDepthId()

template<typename srcCSTraits , typename dstCSTraits , DitherType dType>

KoID KisDitherOpImpl< srcCSTraits, dstCSTraits, dType >::sourceDepthId ( ) const

inlineoverridevirtual

Returns

the identifier of this op's source depth

Implements KisDitherOp.

Definition at line 50 of file KisDitherOpImpl.h.

    {
        return m_srcDepthId;
    }

References KisDitherOpImpl< srcCSTraits, dstCSTraits, dType >::m_srcDepthId.

type()

template<typename srcCSTraits , typename dstCSTraits , DitherType dType>

DitherType KisDitherOpImpl< srcCSTraits, dstCSTraits, dType >::type ( ) const

inlineoverridevirtual

Returns

the identifier of this op's type

Implements KisDitherOp.

Definition at line 60 of file KisDitherOpImpl.h.

    {
        return dType;
    }

Member Data Documentation

m_dstDepthId

template<typename srcCSTraits , typename dstCSTraits , DitherType dType>

const KoID KisDitherOpImpl< srcCSTraits, dstCSTraits, dType >::m_dstDepthId

private

Definition at line 66 of file KisDitherOpImpl.h.

m_srcDepthId

template<typename srcCSTraits , typename dstCSTraits , DitherType dType>

const KoID KisDitherOpImpl< srcCSTraits, dstCSTraits, dType >::m_srcDepthId

private

Definition at line 66 of file KisDitherOpImpl.h.

---

The documentation for this class was generated from the following file:

• libs/pigment/KisDitherOpImpl.h
