KisDoubleParseSpinBox Class Reference

The KisDoubleParseSpinBox class is a cleverer doubleSpinBox, able to parse arithmetic expressions. More...

#include <kis_double_parse_spin_box.h>

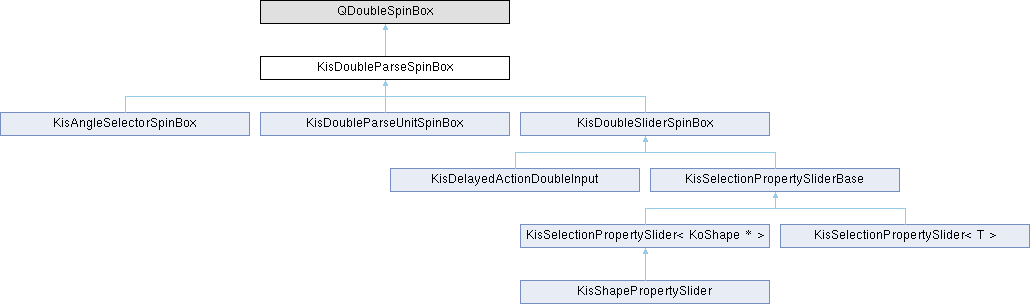

Inheritance diagram for KisDoubleParseSpinBox:

Signals
void	errorWhileParsing (const QString &expr) const
	signal emitted when the last parsed expression is not valid.
void	noMoreParsingError () const
	signal emitted when the last parsed expression is valid and the expression before was not valid.

Public Member Functions
bool	isLastValid () const
	Get if the last expression entered is a valid one.
	KisDoubleParseSpinBox (QWidget *parent=0)
void	setValue (double value, bool overwriteExpression=false)
	Set the value of the spinbox.
void	stepBy (int steps) override
	This is a reimplementation of QDoubleSpinBox::stepBy that uses setValue.
virtual QString	veryCleanText () const
	This virtual function is similar to cleanText(). But child classes may reimplement it to further process ("clean up") the expression.
	~KisDoubleParseSpinBox () override

Protected Member Functions
QString	textFromValue (double value) const override
QValidator::State	validate (QString &input, int &pos) const override
double	valueFromText (const QString &text) const override

Private Attributes
QScopedPointer< KisParseSpinBoxPrivate< KisDoubleParseSpinBox, QDoubleSpinBox > >	d

Friends
template<typename SpinBoxTypeTP , typename BaseSpinBoxTypeTP >
class	KisParseSpinBoxPrivate

Detailed Description

The KisDoubleParseSpinBox class is a cleverer doubleSpinBox, able to parse arithmetic expressions.

Use this spinbox instead of the basic one from Qt if you want it to be able to parse arithmetic expressions.

Definition at line 25 of file kis_double_parse_spin_box.h.

Constructor & Destructor Documentation

KisDoubleParseSpinBox()

KisDoubleParseSpinBox::KisDoubleParseSpinBox

(

QWidget *

parent = 0

)

Definition at line 13 of file kis_double_parse_spin_box.cpp.

                                                            :
    QDoubleSpinBox(parent),
    d(new KisParseSpinBoxPrivate<KisDoubleParseSpinBox, QDoubleSpinBox>(this))
{}

~KisDoubleParseSpinBox()

KisDoubleParseSpinBox::~KisDoubleParseSpinBox ( )

override

Definition at line 18 of file kis_double_parse_spin_box.cpp.

{}

Member Function Documentation

errorWhileParsing

void KisDoubleParseSpinBox::errorWhileParsing ( const QString & expr ) const

signal

signal emitted when the last parsed expression is not valid.

isLastValid()

bool KisDoubleParseSpinBox::isLastValid

(

)

const

Get if the last expression entered is a valid one.

Return values

true	if the last expression entered is valid
false	otherwise

Definition at line 31 of file kis_double_parse_spin_box.cpp.

{
    return d->isLastValid();
}

References d.

noMoreParsingError

void KisDoubleParseSpinBox::noMoreParsingError ( ) const

signal

signal emitted when the last parsed expression is valid and the expression before was not valid.

setValue()

void KisDoubleParseSpinBox::setValue	(	double	value,
		bool	overwriteExpression = false )

Set the value of the spinbox.

This reimplementation also tries to clear the current expression and warning message whenever possible. This will happen when the new value is different from the current one and the line edit has not the focus or it is read-only. One can force the reset also by passing true to the overwriteExpression parameter.

Parameters

value	The new value
overwriteExpression	Get if the expression in the edit field (and the warning message) should be reset to reflect the new value. The default is false so that if the user is editing the expression it won't be disrupted by any default call to this function

Definition at line 26 of file kis_double_parse_spin_box.cpp.

{
    d->setValue(value, overwriteExpression);
}

References d, and value().

stepBy()

void KisDoubleParseSpinBox::stepBy ( int steps )

override

This is a reimplementation of QDoubleSpinBox::stepBy that uses setValue.

Parameters

steps

Number of steps that the value should change

Definition at line 21 of file kis_double_parse_spin_box.cpp.

{
    d->stepBy(steps);
}

References d.

textFromValue()

QString KisDoubleParseSpinBox::textFromValue ( double value ) const

overrideprotected

Definition at line 51 of file kis_double_parse_spin_box.cpp.

{
    return d->textFromValue(value);
}

References d, and value().

validate()

QValidator::State KisDoubleParseSpinBox::validate ( QString & input, int & pos ) const

overrideprotected

Definition at line 41 of file kis_double_parse_spin_box.cpp.

{
    return d->validate(input, pos);
}

References d.

valueFromText()

double KisDoubleParseSpinBox::valueFromText ( const QString & text ) const

overrideprotected

Definition at line 46 of file kis_double_parse_spin_box.cpp.

{
    return d->valueFromText(text);
}

References d.

veryCleanText()

QString KisDoubleParseSpinBox::veryCleanText ( ) const

virtual

This virtual function is similar to cleanText(). But child classes may reimplement it to further process ("clean up") the expression.

Returns

The processed expression

Reimplemented in KisDoubleParseUnitSpinBox.

Definition at line 36 of file kis_double_parse_spin_box.cpp.

{
    return d->veryCleanText();
}

References d.

Friends And Related Symbol Documentation

KisParseSpinBoxPrivate

template<typename SpinBoxTypeTP , typename BaseSpinBoxTypeTP >

friend class KisParseSpinBoxPrivate

friend

Definition at line 85 of file kis_double_parse_spin_box.h.

Member Data Documentation

d

QScopedPointer<KisParseSpinBoxPrivate<KisDoubleParseSpinBox, QDoubleSpinBox> > KisDoubleParseSpinBox::d

private

Definition at line 86 of file kis_double_parse_spin_box.h.

---

The documentation for this class was generated from the following files:

• libs/widgetutils/kis_double_parse_spin_box.h
• libs/widgetutils/kis_double_parse_spin_box.cpp
