#include <kis_hline_iterator.h>

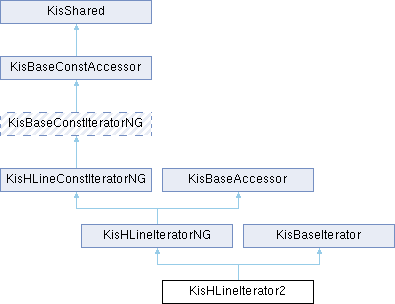

Inheritance diagram for KisHLineIterator2:

Classes
struct	KisTileInfo

Public Member Functions
	KisHLineIterator2 (KisDataManager dataManager, qint32 x, qint32 y, qint32 w, qint32 offsetX, qint32 offsetY, bool writable, KisIteratorCompleteListener listener)

qint32	nConseqPixels () const override

bool	nextPixel () override

bool	nextPixels (qint32 n) override

void	nextRow () override

const quint8 *	oldRawData () const override

quint8 *	rawData () override

const quint8 *	rawDataConst () const override

void	resetPixelPos () override

void	resetRowPos () override

qint32	x () const override

qint32	y () const override

	~KisHLineIterator2 () override

Public Member Functions inherited from KisHLineIteratorNG
	KisHLineIteratorNG ()

	~KisHLineIteratorNG () override

Public Member Functions inherited from KisHLineConstIteratorNG
	KisHLineConstIteratorNG ()

	~KisHLineConstIteratorNG () override

Public Member Functions inherited from KisBaseConstIteratorNG
	KisBaseConstIteratorNG ()

	~KisBaseConstIteratorNG () override

Public Member Functions inherited from KisBaseConstAccessor
	KisBaseConstAccessor ()

virtual	~KisBaseConstAccessor ()

Public Member Functions inherited from KisShared
bool	deref ()

bool	ref ()

int	refCount ()

QAtomicInt *	sharedWeakReference ()

Public Member Functions inherited from KisBaseAccessor
	KisBaseAccessor ()

virtual	~KisBaseAccessor ()

Private Member Functions
void	fetchTileDataForCache (KisTileInfo &kti, qint32 col, qint32 row)

	KisHLineIterator2 (const KisHLineIterator2 &)

KisHLineIterator2 &	operator= (const KisHLineIterator2 &)

void	preallocateTiles ()

void	switchToTile (qint32 xInTile)

Private Attributes
quint8 *	m_data {nullptr}

bool	m_havePixels {false}

quint32	m_index {0}

qint32	m_left {0}

qint32	m_leftCol {0}

qint32	m_leftInLeftmostTile {0}

qint32	m_offsetX {0}

qint32	m_offsetY {0}

quint8 *	m_oldData {nullptr}

qint32	m_right {0}

qint32	m_rightCol {0}

qint32	m_rightmostInTile {0}

qint32	m_row {0}

QVector< KisTileInfo >	m_tilesCache

quint32	m_tilesCacheSize {0}

quint32	m_tileWidth {0}

qint32	m_top {0}

qint32	m_x {0}

qint32	m_y {0}

qint32	m_yInTile {0}

Additional Inherited Members
Protected Member Functions inherited from KisShared
	KisShared ()

	~KisShared ()

Protected Member Functions inherited from KisBaseIterator
qint32	calcXInTile (qint32 x, qint32 col) const

qint32	calcYInTile (qint32 y, qint32 row) const

	KisBaseIterator (KisTiledDataManager _dataManager, bool _writable, KisIteratorCompleteListener listener)

void	lockOldTile (KisTileSP &tile)

void	lockTile (KisTileSP &tile)

void	unlockOldTile (KisTileSP &tile)

void	unlockTile (KisTileSP &tile)

quint32	xToCol (quint32 x) const

quint32	yToRow (quint32 y) const

	~KisBaseIterator ()

Protected Attributes inherited from KisBaseIterator
KisTiledDataManager *	m_dataManager

qint32	m_pixelSize

bool	m_writable

Detailed Description

Definition at line 14 of file kis_hline_iterator.h.

Constructor & Destructor Documentation

◆ KisHLineIterator2() [1/2]

KisHLineIterator2::KisHLineIterator2 ( const KisHLineIterator2 & )

private

◆ KisHLineIterator2() [2/2]

KisHLineIterator2::KisHLineIterator2	(	KisDataManager *	dataManager,
		qint32	x,
		qint32	y,
		qint32	w,
		qint32	offsetX,
		qint32	offsetY,
		bool	writable,
		KisIteratorCompleteListener *	listener )

Definition at line 10 of file kis_hline_iterator.cpp.

    : KisBaseIterator(dataManager, writable, completionListener),
      m_offsetX(offsetX),
      m_offsetY(offsetY)
{
    x -= m_offsetX;
    y -= m_offsetY;
    Q_ASSERT(dataManager);

    if (w < 1) w = 1;  // To make sure there's always at least one pixel read.

    m_x = x;
    m_y = y;

    m_left = x;
    m_right = x + w - 1;

    m_top = y;

    m_havePixels = (w == 0) ? false : true;
    if (m_left > m_right) {
        m_havePixels = false;
        return;
    }

    m_leftCol = xToCol(m_left);
    m_rightCol = xToCol(m_right);

    m_row = yToRow(m_y);
    m_yInTile = calcYInTile(m_y, m_row);

    m_leftInLeftmostTile = m_left - m_leftCol * KisTileData::WIDTH;

    m_tilesCacheSize = m_rightCol - m_leftCol + 1;
    m_tilesCache.resize(m_tilesCacheSize);

    m_tileWidth = m_pixelSize * KisTileData::HEIGHT;

    // let's preallocate first row
    for (quint32 i = 0; i < m_tilesCacheSize; i++){
        fetchTileDataForCache(m_tilesCache[i], m_leftCol + i, m_row);
    }
    m_index = 0;
    switchToTile(m_leftInLeftmostTile);
}

References KisBaseIterator::calcYInTile(), fetchTileDataForCache(), KisTileData::HEIGHT, m_havePixels, m_index, m_left, m_leftCol, m_leftInLeftmostTile, m_offsetX, m_offsetY, KisBaseIterator::m_pixelSize, m_right, m_rightCol, m_row, m_tilesCache, m_tilesCacheSize, m_tileWidth, m_top, m_x, m_y, m_yInTile, switchToTile(), KisTileData::WIDTH, x(), KisBaseIterator::xToCol(), y(), and KisBaseIterator::yToRow().

◆ ~KisHLineIterator2()

KisHLineIterator2::~KisHLineIterator2 ( )

override

Definition at line 149 of file kis_hline_iterator.cpp.

{
    for (uint i = 0; i < m_tilesCacheSize; i++) {
        unlockTile(m_tilesCache[i].tile);
        unlockOldTile(m_tilesCache[i].oldtile);
    }
}

References m_tilesCache, m_tilesCacheSize, KisBaseIterator::unlockOldTile(), and KisBaseIterator::unlockTile().

Member Function Documentation

◆ fetchTileDataForCache()

void KisHLineIterator2::fetchTileDataForCache	(	KisTileInfo &	kti,
		qint32	col,
		qint32	row )

private

Definition at line 191 of file kis_hline_iterator.cpp.

{
    m_dataManager->getTilesPair(col, row, m_writable, &kti.tile, &kti.oldtile);

    lockTile(kti.tile);
    kti.data = kti.tile->data();

    lockOldTile(kti.oldtile);
    kti.oldData = kti.oldtile->data();
}

References KisHLineIterator2::KisTileInfo::data, KisTile::data(), KisTiledDataManager::getTilesPair(), KisBaseIterator::lockOldTile(), KisBaseIterator::lockTile(), KisBaseIterator::m_dataManager, KisBaseIterator::m_writable, KisHLineIterator2::KisTileInfo::oldData, KisHLineIterator2::KisTileInfo::oldtile, and KisHLineIterator2::KisTileInfo::tile.

◆ nConseqPixels()

qint32 KisHLineIterator2::nConseqPixels ( ) const

overridevirtual

Returns: return number of consequential numbers of pixels, useful for optimization

Implements KisBaseConstIteratorNG.

Definition at line 118 of file kis_hline_iterator.cpp.

{
    return qMin(m_rightmostInTile, m_right) - m_x + 1;
}

References m_right, m_rightmostInTile, and m_x.

◆ nextPixel()

bool KisHLineIterator2::nextPixel ( )

overridevirtual

Move to the next pixel

Returns: false if there is no more pixel in the line

Implements KisBaseConstIteratorNG.

Definition at line 77 of file kis_hline_iterator.cpp.

{
    // We won't increment m_x here as integer can overflow here
    if (m_x >= m_right) {
        //return !m_isDoneFlag;
        return m_havePixels = false;
    } else {
        ++m_x;
        m_data += m_pixelSize;
        if (m_x <= m_rightmostInTile)
            m_oldData += m_pixelSize;
        else {
            // Switching to the beginning of the next tile
            ++m_index;
            switchToTile(0);
        }
    }

    return m_havePixels;
}

References m_data, m_havePixels, m_index, m_oldData, KisBaseIterator::m_pixelSize, m_right, m_rightmostInTile, m_x, and switchToTile().

◆ nextPixels()

bool KisHLineIterator2::nextPixels ( qint32 n )

overridevirtual

Move to the next pixels

Implements KisBaseConstIteratorNG.

Definition at line 125 of file kis_hline_iterator.cpp.

{
    Q_ASSERT_X(!(m_x > 0 && (m_x + n) < 0), "hlineIt+=", "Integer overflow");

    qint32 previousCol = xToCol(m_x);
    // We won't increment m_x here first as integer can overflow
    if (m_x >= m_right || (m_x += n) > m_right) {
        m_havePixels = false;
    } else {
        qint32 col = xToCol(m_x);
        // if we are in the same column in tiles
        if (col == previousCol) {
            m_data += n * m_pixelSize;
        } else {
            qint32 xInTile = calcXInTile(m_x, col);
            m_index += col - previousCol;
            switchToTile(xInTile);
        }
    }
    return m_havePixels;
}

References KisBaseIterator::calcXInTile(), m_data, m_havePixels, m_index, KisBaseIterator::m_pixelSize, m_right, m_x, switchToTile(), and KisBaseIterator::xToCol().

◆ nextRow()

void KisHLineIterator2::nextRow ( )

overridevirtual

Move to the next row

Implements KisHLineConstIteratorNG.

Definition at line 99 of file kis_hline_iterator.cpp.

{
    m_x = m_left;
    ++m_y;

    if (++m_yInTile < KisTileData::HEIGHT) {
        /* do nothing, usual case */
    } else {
        ++m_row;
        m_yInTile = 0;
        preallocateTiles();
    }
    m_index = 0;
    switchToTile(m_leftInLeftmostTile);

    m_havePixels = true;
}

References KisTileData::HEIGHT, m_havePixels, m_index, m_left, m_leftInLeftmostTile, m_row, m_x, m_y, m_yInTile, preallocateTiles(), and switchToTile().

◆ oldRawData()

const quint8 * KisHLineIterator2::oldRawData ( ) const

overridevirtual

Returns: a pointer to the pixel data as it was at the moment of the last memento creation.

Implements KisBaseConstAccessor.

Definition at line 164 of file kis_hline_iterator.cpp.

{
    return m_oldData;
}

References m_oldData.

◆ operator=()

KisHLineIterator2 & KisHLineIterator2::operator= ( const KisHLineIterator2 & )

private

◆ preallocateTiles()

void KisHLineIterator2::preallocateTiles ( )

private

Definition at line 202 of file kis_hline_iterator.cpp.

{
    for (quint32 i = 0; i < m_tilesCacheSize; ++i){
        unlockTile(m_tilesCache[i].tile);
        unlockOldTile(m_tilesCache[i].oldtile);
        fetchTileDataForCache(m_tilesCache[i], m_leftCol + i, m_row);
    }
}

References fetchTileDataForCache(), m_leftCol, m_row, m_tilesCache, m_tilesCacheSize, KisBaseIterator::unlockOldTile(), and KisBaseIterator::unlockTile().

◆ rawData()

quint8 * KisHLineIterator2::rawData ( )

overridevirtual

Returns: a pointer to the pixel data. Do NOT interpret the data - leave that to a colorspace

Implements KisBaseAccessor.

Definition at line 158 of file kis_hline_iterator.cpp.

{
    return m_data;
}

References m_data.

◆ rawDataConst()

const quint8 * KisHLineIterator2::rawDataConst ( ) const

overridevirtual

Returns: a pointer to the most actual pixel data, this points to the same data as rawData() method of a writable accessor.

Implements KisBaseConstAccessor.

Definition at line 169 of file kis_hline_iterator.cpp.

{
    return m_data;
}

References m_data.

◆ resetPixelPos()

void KisHLineIterator2::resetPixelPos ( )

overridevirtual

Implements KisHLineConstIteratorNG.

Definition at line 56 of file kis_hline_iterator.cpp.

{
    m_x = m_left;

    m_index = 0;
    switchToTile(m_leftInLeftmostTile);

    m_havePixels = true;
}

References m_havePixels, m_index, m_left, m_leftInLeftmostTile, m_x, and switchToTile().

◆ resetRowPos()

void KisHLineIterator2::resetRowPos ( )

overridevirtual

Implements KisHLineConstIteratorNG.

Definition at line 66 of file kis_hline_iterator.cpp.

{
    m_y = m_top;

    m_row = yToRow(m_y);
    m_yInTile = calcYInTile(m_y, m_row);
    preallocateTiles();

    resetPixelPos();
}

References KisBaseIterator::calcYInTile(), m_row, m_top, m_y, m_yInTile, preallocateTiles(), resetPixelPos(), and KisBaseIterator::yToRow().

◆ switchToTile()

void KisHLineIterator2::switchToTile ( qint32 xInTile )

private

Definition at line 174 of file kis_hline_iterator.cpp.

{
    // The caller must ensure that we are not out of bounds
    Q_ASSERT(m_index < m_tilesCacheSize);

    m_data = m_tilesCache[m_index].data;
    m_oldData = m_tilesCache[m_index].oldData;

    int offset_row = m_pixelSize * (m_yInTile * KisTileData::WIDTH);
    m_data += offset_row;
    m_rightmostInTile = (m_leftCol + m_index + 1) * KisTileData::WIDTH - 1;
    int offset_col = m_pixelSize * xInTile;
    m_data  += offset_col;
    m_oldData += offset_row + offset_col;
}

References m_data, m_index, m_leftCol, m_oldData, KisBaseIterator::m_pixelSize, m_rightmostInTile, m_tilesCache, m_tilesCacheSize, m_yInTile, and KisTileData::WIDTH.

◆ x()

qint32 KisHLineIterator2::x ( ) const

overridevirtual

Implements KisBaseConstAccessor.

Definition at line 211 of file kis_hline_iterator.cpp.

{
    return m_x + m_offsetX;
}

References m_offsetX, and m_x.

◆ y()

qint32 KisHLineIterator2::y ( ) const

overridevirtual

Implements KisBaseConstAccessor.

Definition at line 216 of file kis_hline_iterator.cpp.

{
    return m_y + m_offsetY;
}

References m_offsetY, and m_y.

Member Data Documentation

◆ m_data

quint8* KisHLineIterator2::m_data {nullptr}

private

Definition at line 53 of file kis_hline_iterator.h.

53{nullptr};

◆ m_havePixels

bool KisHLineIterator2::m_havePixels {false}

private

Definition at line 55 of file kis_hline_iterator.h.

55{false};

◆ m_index

quint32 KisHLineIterator2::m_index {0}

private

Definition at line 51 of file kis_hline_iterator.h.

51{0}; // current col in tilemgr

◆ m_left

qint32 KisHLineIterator2::m_left {0}

private

Definition at line 58 of file kis_hline_iterator.h.

58{0};

◆ m_leftCol

qint32 KisHLineIterator2::m_leftCol {0}

private

Definition at line 60 of file kis_hline_iterator.h.

60{0};

◆ m_leftInLeftmostTile

qint32 KisHLineIterator2::m_leftInLeftmostTile {0}

private

Definition at line 65 of file kis_hline_iterator.h.

65{0};

◆ m_offsetX

qint32 KisHLineIterator2::m_offsetX {0}

private

Definition at line 45 of file kis_hline_iterator.h.

45{0};

◆ m_offsetY

qint32 KisHLineIterator2::m_offsetY {0}

private

Definition at line 46 of file kis_hline_iterator.h.

46{0};

◆ m_oldData

quint8* KisHLineIterator2::m_oldData {nullptr}

private

Definition at line 54 of file kis_hline_iterator.h.

54{nullptr};

◆ m_right

qint32 KisHLineIterator2::m_right {0}

private

Definition at line 57 of file kis_hline_iterator.h.

57{0};

◆ m_rightCol

qint32 KisHLineIterator2::m_rightCol {0}

private

Definition at line 61 of file kis_hline_iterator.h.

61{0};

◆ m_rightmostInTile

qint32 KisHLineIterator2::m_rightmostInTile {0}

private

Definition at line 63 of file kis_hline_iterator.h.

63{0}; // limited by the current tile border only

◆ m_row

qint32 KisHLineIterator2::m_row {0}

private

Definition at line 50 of file kis_hline_iterator.h.

50{0}; // current row in tilemgr

◆ m_tilesCache

QVector<KisTileInfo> KisHLineIterator2::m_tilesCache

private

Definition at line 68 of file kis_hline_iterator.h.

◆ m_tilesCacheSize

quint32 KisHLineIterator2::m_tilesCacheSize {0}

private

Definition at line 69 of file kis_hline_iterator.h.

69{0};

◆ m_tileWidth

quint32 KisHLineIterator2::m_tileWidth {0}

private

Definition at line 52 of file kis_hline_iterator.h.

52{0};

◆ m_top

qint32 KisHLineIterator2::m_top {0}

private

Definition at line 59 of file kis_hline_iterator.h.

59{0};

◆ m_x

qint32 KisHLineIterator2::m_x {0}

private

Definition at line 48 of file kis_hline_iterator.h.

48{0}; // current x position

◆ m_y

qint32 KisHLineIterator2::m_y {0}

private

Definition at line 49 of file kis_hline_iterator.h.

49{0}; // current y position

◆ m_yInTile

qint32 KisHLineIterator2::m_yInTile {0}

private

Definition at line 66 of file kis_hline_iterator.h.

66{0};

The documentation for this class was generated from the following files:

libs/image/tiles3/kis_hline_iterator.h
libs/image/tiles3/kis_hline_iterator.cpp

Classes

Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ KisHLineIterator2() [1/2]

◆ KisHLineIterator2() [2/2]

◆ ~KisHLineIterator2()

Member Function Documentation

◆ fetchTileDataForCache()

◆ nConseqPixels()

◆ nextPixel()

◆ nextPixels()

◆ nextRow()

◆ oldRawData()

◆ operator=()

◆ preallocateTiles()

◆ rawData()

◆ rawDataConst()

◆ resetPixelPos()

◆ resetRowPos()

◆ switchToTile()

◆ x()

◆ y()

Member Data Documentation

◆ m_data

◆ m_havePixels

◆ m_index

◆ m_left

◆ m_leftCol

◆ m_leftInLeftmostTile

◆ m_offsetX

◆ m_offsetY

◆ m_oldData

◆ m_right

◆ m_rightCol

◆ m_rightmostInTile

◆ m_row

◆ m_tilesCache

◆ m_tilesCacheSize

◆ m_tileWidth

◆ m_top

◆ m_x

◆ m_y

◆ m_yInTile
