#include <kis_hatching_paintop_settings.h>

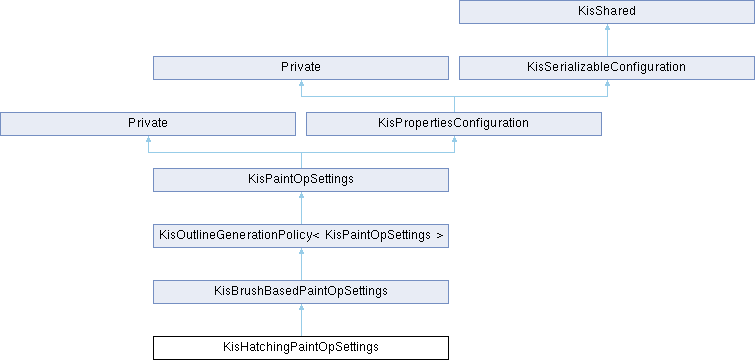

Inheritance diagram for KisHatchingPaintOpSettings:

Classes
struct	Private

Public Member Functions
void	initializeTwin (KisPaintOpSettingsSP convenienttwin) const

	KisHatchingPaintOpSettings (KisResourcesInterfaceSP resourcesInterface)

QList< KisUniformPaintOpPropertySP >	uniformProperties (KisPaintOpSettingsSP settings, QPointer< KisPaintOpPresetUpdateProxy > updateProxy) override

	~KisHatchingPaintOpSettings () override

Public Member Functions inherited from KisBrushBasedPaintOpSettings
bool	autoSpacingActive ()

qreal	autoSpacingCoeff ()

KisBrushSP	brush () const

virtual KisOptimizedBrushOutline	brushOutline (const KisPaintInformation &info, const OutlineMode &mode, qreal alignForZoom)

KisOptimizedBrushOutline	brushOutline (const KisPaintInformation &info, const OutlineMode &mode, qreal alignForZoom) override

KisPaintOpSettingsSP	clone () const override

virtual bool	hasPatternSettings () const override

	KisBrushBasedPaintOpSettings (KisResourcesInterfaceSP resourcesInterface)

bool	paintIncremental () override
	Reimplemented.

qreal	paintOpAngle () const override

qreal	paintOpSize () const override

void	regenerateResourceCache (KoResourceCacheInterfaceSP cacheInterface) override

QList< int >	requiredCanvasResources () const override

void	setAutoSpacing (bool active, qreal coeff)

void	setPaintOpAngle (qreal value) override

void	setPaintOpSize (qreal value) override

void	setResourceCacheInterface (KoResourceCacheInterfaceSP cacheInterface) override

void	setSpacing (qreal spacing)

qreal	spacing ()

	~KisBrushBasedPaintOpSettings () override

Public Member Functions inherited from KisOutlineGenerationPolicy< KisPaintOpSettings >
	KisOutlineGenerationPolicy (KisCurrentOutlineFetcher::Options options, KisResourcesInterfaceSP resourcesInterface)

void	onPropertyChanged () override

const KisCurrentOutlineFetcher *	outlineFetcher () const

	~KisOutlineGenerationPolicy () override

Public Member Functions inherited from KisPaintOpSettings
virtual void	activate ()

virtual qreal	airbrushInterval () const

KoCanvasResourcesInterfaceSP	canvasResourcesInterface () const

KisPaintOpSettingsSP	createMaskingSettings () const

QString	effectivePaintOpCompositeOp ()

bool	eraserMode ()

bool	hasMaskingSettings () const

virtual QString	indirectPaintingCompositeOp () const

virtual bool	isAirbrushing () const

virtual bool	isValid () const

	KisPaintOpSettings (const KisPaintOpSettings &rhs)

	KisPaintOpSettings (KisResourcesInterfaceSP resourcesInterface)

qreal	lodSizeThreshold () const

virtual bool	lodSizeThresholdSupported () const

QString	maskingBrushCompositeOp () const

virtual QString	modelName () const

virtual bool	mousePressEvent (const KisPaintInformation &paintInformation, Qt::KeyboardModifiers modifiers, KisNodeWSP currentNode)

virtual bool	mouseReleaseEvent ()

virtual bool	needsAsynchronousUpdates () const

KisNodeSP	node () const

QString	paintOpCompositeOp ()

qreal	paintOpFade ()

qreal	paintOpFlow ()

virtual qreal	paintOpOpacity ()

virtual qreal	paintOpPatternSize ()

qreal	paintOpScatter ()

	Private ()

	Private (const Private &rhs)

virtual void	resetSettings (const QStringList &preserveProperties=QStringList())

KoResourceCacheInterfaceSP	resourceCacheInterface () const

KisResourcesInterfaceSP	resourcesInterface () const

quint64	sanityVersionCookie () const

qreal	savedBrushOpacity () const

qreal	savedBrushSize () const

qreal	savedEraserOpacity () const

qreal	savedEraserSize () const

void	setCanvasResourcesInterface (KoCanvasResourcesInterfaceSP canvasResourcesInterface)

void	setEraserMode (bool value)

void	setLodSizeThreshold (qreal value)

void	setModelName (const QString &modelName)

void	setPaintOpCompositeOp (const QString &value)

void	setPaintOpFade (qreal value)

void	setPaintOpFlow (qreal value)

virtual void	setPaintOpOpacity (qreal value)

void	setPaintOpScatter (qreal value)

void	setProperty (const QString &name, const QVariant &value) override

virtual void	setRandomOffset (const KisPaintInformation &paintInformation)

void	setResourcesInterface (KisResourcesInterfaceSP resourcesInterface)

void	setSavedBrushOpacity (qreal value)

void	setSavedBrushSize (qreal value)

void	setSavedEraserOpacity (qreal value)

void	setSavedEraserSize (qreal value)

void	setUpdateListener (UpdateListenerWSP listener)

UpdateListenerWSP	updateListener () const

virtual bool	useSpacingUpdates () const

	~KisPaintOpSettings () override

Public Member Functions inherited from Private
	Private (KisCanvas2 *c)

Public Member Functions inherited from KisPropertiesConfiguration
void	clearProperties ()
	Clear the map of properties.

virtual bool	compareTo (const KisPropertiesConfiguration *rhs) const

virtual void	dump () const

void	fromXML (const QDomElement &) override

bool	fromXML (const QString &xml, bool clear=true) override

bool	getBool (const QString &name, bool def=false) const

KoColor	getColor (const QString &name, const KoColor &color=KoColor()) const
	getColor fetch the given property as a KoColor.

KisCubicCurve	getCubicCurve (const QString &name, const KisCubicCurve &curve=KisCubicCurve()) const

double	getDouble (const QString &name, double def=0.0) const

float	getFloat (const QString &name, float def=0.0) const

int	getInt (const QString &name, int def=0) const

void	getPrefixedProperties (const QString &prefix, KisPropertiesConfiguration *config) const

void	getPrefixedProperties (const QString &prefix, KisPropertiesConfigurationSP config) const

virtual QMap< QString, QVariant >	getProperties () const

virtual QList< QString >	getPropertiesKeys () const

virtual QVariant	getProperty (const QString &name) const

virtual bool	getProperty (const QString &name, QVariant &value) const

QString	getPropertyLazy (const QString &name, const char *defaultValue) const

QStringList	getPropertyLazy (const QString &name, const QStringList &defaultValue) const

template<typename T >
T	getPropertyLazy (const QString &name, const T &defaultValue) const

QString	getString (const QString &name, const QString &def=QString()) const

QStringList	getStringList (const QString &name, const QStringList &defaultValue=QStringList()) const

virtual bool	hasProperty (const QString &name) const

	KisPropertiesConfiguration ()

	KisPropertiesConfiguration (const KisPropertiesConfiguration &rhs)

KisPropertiesConfiguration &	operator= (const KisPropertiesConfiguration &rhs)

void	removeProperty (const QString &name)

void	setPrefixedProperties (const QString &prefix, const KisPropertiesConfiguration *config)

void	setPrefixedProperties (const QString &prefix, const KisPropertiesConfigurationSP config)

void	setProperty (const QString &name, const QStringList &value)

void	setPropertyNotSaved (const QString &name)
	Marks a property that should not be saved by toXML.

QString	toXML () const override

void	toXML (QDomDocument &, QDomElement &) const override

	~KisPropertiesConfiguration () override

Public Member Functions inherited from KisSerializableConfiguration
	KisSerializableConfiguration ()

	KisSerializableConfiguration (const KisSerializableConfiguration &rhs)

virtual	~KisSerializableConfiguration ()

Public Member Functions inherited from KisShared
bool	deref ()

bool	ref ()

int	refCount ()

QAtomicInt *	sharedWeakReference ()

Public Attributes
double	angle {0.0}

double	anglesensorvalue {0.0}

bool	antialias {false}

double	crosshatchingsensorvalue {0.0}

int	crosshatchingstyle {0}

bool	enabledcurveangle {false}

bool	enabledcurvecrosshatching {false}

bool	enabledcurveopacity {false}

bool	enabledcurveseparation {false}

bool	enabledcurvesize {false}

bool	enabledcurvethickness {false}

bool	minusthenplus {false}

bool	moirepattern {false}

bool	nocrosshatching {false}

bool	opaquebackground {false}

double	origin_x {0.0}

double	origin_y {0.0}

bool	perpendicular {false}

bool	plusthenminus {false}

double	separation {0.0}

int	separationintervals {0}

double	separationsensorvalue {0.0}

bool	subpixelprecision {false}

double	thickness {0.0}

double	thicknesssensorvalue {0.0}

Public Attributes inherited from KisPaintOpSettings
KoCanvasResourcesInterfaceSP	canvasResourcesInterface

bool	disableDirtyNotifications

QString	modelName

KoResourceCacheInterfaceSP	resourceCacheInterface

KisResourcesInterfaceSP	resourcesInterface

QPointer< KisPaintOpConfigWidget >	settingsWidget

QList< KisUniformPaintOpPropertyWSP >	uniformProperties

UpdateListenerWSP	updateListener

quint64	versionCookie

KisRandomSource	versionRandomSource

Public Attributes inherited from Private
KisCanvas2 *	canvas

int	displayedFrame

int	intendedFrame

Public Attributes inherited from KisPropertiesConfiguration
QSet< QString >	notSavedProperties

QMap< QString, QVariant >	properties

Private Attributes
const QScopedPointer< Private >	m_d

Additional Inherited Members
Public Types inherited from KisPaintOpSettings
using	UpdateListenerSP = QSharedPointer<UpdateListener>

using	UpdateListenerWSP = QWeakPointer<UpdateListener>

Static Public Member Functions inherited from KisPaintOpSettings
static KisOptimizedBrushOutline	ellipseOutline (qreal width, qreal height, qreal scale, qreal rotation)

static bool	isLodUserAllowed (const KisPropertiesConfigurationSP config)

static QPainterPath	makeTiltIndicator (KisPaintInformation const &info, QPointF const &start, qreal lengthScale, qreal angle)

static void	setLodUserAllowed (KisPropertiesConfigurationSP config, bool value)

Static Public Member Functions inherited from KisPropertiesConfiguration
static QString	escapeString (const QString &string)

static QString	extractedPrefixKey ()

static QString	unescapeString (const QString &string)

Protected Member Functions inherited from KisBrushBasedPaintOpSettings
KisOptimizedBrushOutline	brushOutlineImpl (const KisPaintInformation &info, const OutlineMode &mode, qreal alignForZoom, qreal additionalScale)

void	onPropertyChanged () override

Protected Member Functions inherited from KisShared
	KisShared ()

	~KisShared ()

Protected Attributes inherited from KisBrushBasedPaintOpSettings
KisBrushSP	m_savedBrush

QList< KisUniformPaintOpPropertyWSP >	m_uniformProperties

Detailed Description

Definition at line 19 of file kis_hatching_paintop_settings.h.

Constructor & Destructor Documentation

◆ KisHatchingPaintOpSettings()

KisHatchingPaintOpSettings::KisHatchingPaintOpSettings ( KisResourcesInterfaceSP resourcesInterface )

Definition at line 16 of file kis_hatching_paintop_settings.cpp.

    : KisBrushBasedPaintOpSettings(resourcesInterface),
      m_d(new Private)
{
}

◆ ~KisHatchingPaintOpSettings()

KisHatchingPaintOpSettings::~KisHatchingPaintOpSettings ( )

override

Definition at line 22 of file kis_hatching_paintop_settings.cpp.

23{

24}

Member Function Documentation

◆ initializeTwin()

void KisHatchingPaintOpSettings::initializeTwin ( KisPaintOpSettingsSP convenienttwin ) const

Definition at line 26 of file kis_hatching_paintop_settings.cpp.

{
    // XXX: this is a nice way to reinvent the copy constructor?

    /*--------DO NOT REMOVE please, use this to review the XML config tree
    QMap<QString, QVariant> rofl = QMap<QString, QVariant>(getProperties());

    QMap<QString, QVariant>::const_iterator i;
    for (i = rofl.constBegin(); i != rofl.constEnd(); ++i)
        dbgKrita << i.key() << ":" << i.value();
    /----------DO NOT REMOVE----------------*/

    KisHatchingPaintOpSettings *convenienttwin = static_cast<KisHatchingPaintOpSettings*>(settings.data());

    convenienttwin->enabledcurveangle = getBool("PressureAngle");
    convenienttwin->enabledcurvecrosshatching = getBool("PressureCrosshatching");
    convenienttwin->enabledcurveopacity = getBool("PressureOpacity");
    convenienttwin->enabledcurveseparation = getBool("PressureSeparation");
    convenienttwin->enabledcurvesize = getBool("PressureSize");
    convenienttwin->enabledcurvethickness = getBool("PressureThickness");

    convenienttwin->angle = getDouble("Hatching/angle");
    convenienttwin->separation = getDouble("Hatching/separation");
    convenienttwin->thickness = getDouble("Hatching/thickness");
    convenienttwin->origin_x = getDouble("Hatching/origin_x");
    convenienttwin->origin_y = getDouble("Hatching/origin_y");

    convenienttwin->nocrosshatching = getBool("Hatching/bool_nocrosshatching");
    convenienttwin->perpendicular = getBool("Hatching/bool_perpendicular");
    convenienttwin->minusthenplus = getBool("Hatching/bool_minusthenplus");
    convenienttwin->plusthenminus = getBool("Hatching/bool_plusthenminus");
    convenienttwin->moirepattern = getBool("Hatching/bool_moirepattern");

    convenienttwin->separationintervals = getInt("Hatching/separationintervals");

    //convenienttwin->trigonometryalgebra = getBool("Hatching/bool_trigonometryalgebra");
    //convenienttwin->scratchoff = getBool("Hatching/bool_scratchoff");
    convenienttwin->antialias = getBool("Hatching/bool_antialias");
    convenienttwin->opaquebackground = getBool("Hatching/bool_opaquebackground");
    convenienttwin->subpixelprecision = getBool("Hatching/bool_subpixelprecision");

    if (getBool("Hatching/bool_nocrosshatching"))
        convenienttwin->crosshatchingstyle = 0;
    else if (getBool("Hatching/bool_perpendicular"))
        convenienttwin->crosshatchingstyle = 1;
    else if (getBool("Hatching/bool_minusthenplus"))
        convenienttwin->crosshatchingstyle = 2;
    else if (getBool("Hatching/bool_plusthenminus"))
        convenienttwin->crosshatchingstyle = 3;
    if (getBool("Hatching/bool_moirepattern"))
        convenienttwin->crosshatchingstyle = 4;

}

References angle, antialias, crosshatchingstyle, KisSharedPtr< T >::data(), enabledcurveangle, enabledcurvecrosshatching, enabledcurveopacity, enabledcurveseparation, enabledcurvesize, enabledcurvethickness, KisPropertiesConfiguration::getBool(), KisPropertiesConfiguration::getDouble(), KisPropertiesConfiguration::getInt(), minusthenplus, moirepattern, nocrosshatching, opaquebackground, origin_x, origin_y, perpendicular, plusthenminus, separation, separationintervals, subpixelprecision, and thickness.

◆ uniformProperties()

QList< KisUniformPaintOpPropertySP > KisHatchingPaintOpSettings::uniformProperties	(	KisPaintOpSettingsSP	settings,
		QPointer< KisPaintOpPresetUpdateProxy >	updateProxy )

overridevirtual

Reimplemented from KisBrushBasedPaintOpSettings.

Definition at line 87 of file kis_hatching_paintop_settings.cpp.

{
    QList<KisUniformPaintOpPropertySP> props =
        listWeakToStrong(m_d->uniformProperties);

    if (props.isEmpty()) {
        {
            KisDoubleSliderBasedPaintOpPropertyCallback *prop =
                new KisDoubleSliderBasedPaintOpPropertyCallback(KisDoubleSliderBasedPaintOpPropertyCallback::Double,
                                                                KisDoubleSliderBasedPaintOpPropertyCallback::SubType_Angle,
                                                                KoID("hatching_angle", i18n("Hatching Angle")),
                                                                settings,
                                                                0);

            prop->setRange(-90, 90);
            prop->setSingleStep(0.01);
            prop->setDecimals(2);
            prop->setSuffix(QStringLiteral("°"));

            prop->setReadCallback(
                [](KisUniformPaintOpProperty *prop) {
                    KisHatchingOptionsData option;
                    option.read(prop->settings().data());
                    prop->setValue(option.angle);
                });
            prop->setWriteCallback(
                [](KisUniformPaintOpProperty *prop) {
                    KisHatchingOptionsData option;
                    option.read(prop->settings().data());
                    option.angle = prop->value().toReal();
                    option.write(prop->settings().data());
                });

            QObject::connect(updateProxy, SIGNAL(sigSettingsChanged()), prop, SLOT(requestReadValue()));
            prop->requestReadValue();
            props << toQShared(prop);
        }
        {
            KisDoubleSliderBasedPaintOpPropertyCallback *prop =
                new KisDoubleSliderBasedPaintOpPropertyCallback(KisDoubleSliderBasedPaintOpPropertyCallback::Double,
                                                                KoID("hatching_separation", i18n("Separation")),
                                                                settings,
                                                                0);

            prop->setRange(1.0, 30);
            prop->setSingleStep(0.01);
            prop->setDecimals(2);
            prop->setSuffix(i18n(" px"));

            prop->setReadCallback(
                [](KisUniformPaintOpProperty *prop) {
                    KisHatchingOptionsData option;
                    option.read(prop->settings().data());
                    prop->setValue(option.separation);
                });
            prop->setWriteCallback(
                [](KisUniformPaintOpProperty *prop) {
                    KisHatchingOptionsData option;
                    option.read(prop->settings().data());
                    option.separation = prop->value().toReal();
                    option.write(prop->settings().data());
                });

            QObject::connect(updateProxy, SIGNAL(sigSettingsChanged()), prop, SLOT(requestReadValue()));
            prop->requestReadValue();
            props << toQShared(prop);
        }
        {
            KisDoubleSliderBasedPaintOpPropertyCallback *prop =
                new KisDoubleSliderBasedPaintOpPropertyCallback(KisDoubleSliderBasedPaintOpPropertyCallback::Double,
                                                                KoID("hatching_thickness", i18n("Thickness")),
                                                                settings,
                                                                0);

            prop->setRange(1.0, 30);
            prop->setSingleStep(0.01);
            prop->setDecimals(2);
            prop->setSuffix(i18n(" px"));

            prop->setReadCallback(
                [](KisUniformPaintOpProperty *prop) {
                    KisHatchingOptionsData option;
                    option.read(prop->settings().data());
                    prop->setValue(option.thickness);
                });
            prop->setWriteCallback(
                [](KisUniformPaintOpProperty *prop) {
                    KisHatchingOptionsData option;
                    option.read(prop->settings().data());
                    option.thickness = prop->value().toReal();
                    option.write(prop->settings().data());
                });

            QObject::connect(updateProxy, SIGNAL(sigSettingsChanged()), prop, SLOT(requestReadValue()));
            prop->requestReadValue();
            props << toQShared(prop);
        }
    }

    return KisPaintOpSettings::uniformProperties(settings, updateProxy) + props;
}
