KisInputLevelsSlider Class Reference

This is a simple input levels slider that has no gamma handle. Use it if you want to show a simple mapping or contrast adjustment. The handles are constrained so that the black point handle can not pass the white point handle and vice-versa. More...

#include <KisLevelsSlider.h>

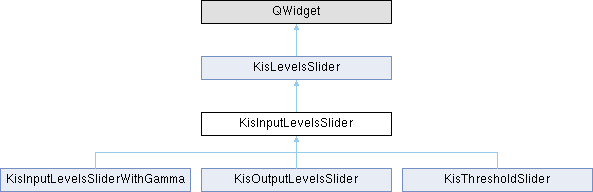

Inheritance diagram for KisInputLevelsSlider:

Public Slots
virtual void	reset (qreal newBlackPoint, qreal newWhitePoint)
	Sometimes you want to set the range to a totally different place, but the new black point can be greater than the old white point so the new black point position will be constrained to the old white position. This function allows to set both values at once to prevent that undesirable effect. Use it when the widget has to show new values, for a different set of levels parameters for example.
virtual void	setBlackPoint (qreal newBlackPoint)
	Sets the black point.
virtual void	setWhitePoint (qreal newWhitePoint)
	Sets the white point.
Public Slots inherited from KisLevelsSlider
virtual void	setHandleColor (int handleIndex, const QColor &newColor)
	Sets the color associated with the given handle.
virtual void	setHandlePosition (int handleIndex, qreal newPosition)
	Sets the normalized position of the given handle.

Signals
void	blackPointChanged (qreal newBlackPoint)
	Signal emitted when the black point changes.
void	whitePointChanged (qreal newWhitePoint)
	Signal emitted when the white point changes.
Signals inherited from KisLevelsSlider
void	handleColorChanged (int handleIndex, const QColor &color)
	Signal emitted when the color associated with a handle changes.
void	handlePositionChanged (int handleIndex, qreal position)
	Signal emitted when the position of a handle changes.

Public Member Functions
qreal	blackPoint () const
	Get the normalized black point.
	KisInputLevelsSlider (QWidget *parent=nullptr)
qreal	whitePoint () const
	Get the normalized white point.
	~KisInputLevelsSlider ()
Public Member Functions inherited from KisLevelsSlider
virtual QRect	gradientRect () const
	Gets the rect where the gradient will be painted.
QColor	handleColor (int handleIndex) const
	Gets the color associated with a given handle.
qreal	handlePosition (int handleIndex) const
	Gets the normalized position of a given handle.
	KisLevelsSlider (QWidget *parent)
QSize	minimumSizeHint () const override
QSize	sizeHint () const override
	~KisLevelsSlider ()

Protected Member Functions
virtual void	paintBottomGradientMiddleSection (QImage &gradientImage, const QVector< Handle > &sortedHandles_)
	This is used to fill the space between the tho handles in the bottom bar of the "gradient". It just paints a linear gradient that goes from black (first handle's color) to white (last handle's color). Derived classes can override this function if they only want to change that area. "gradientImage" is a 256x1px image.
void	paintGradient (QPainter &painter, const QRect &rect) override
	Custom gradient painter. This paints two bars in the gradient rect, one on top of the other. The top one shows a simple black to white (more exactly, color of the first handle to color of the last handle) linear gradient. The bottom one shows black (first handle's color) from the right side of the rect to the black point, and white (last handle's color) from the white point to the left side of the rect. In the middle of the two handles, the "paintBottomGradientMiddleSection" is used to fill the bar.
Protected Member Functions inherited from KisLevelsSlider
int	closestHandleToPosition (qreal position) const
	Given a normalized position, this function returns the closest handle to that position.
int	closestHandleToX (int x) const
	Given a widget-relative x position, this function returns the closest handle to that position.
void	handleIncrementInput (int direction, Qt::KeyboardModifiers modifiers)
void	keyPressEvent (QKeyEvent *e) override
void	leaveEvent (QEvent *e) override
void	mouseMoveEvent (QMouseEvent *e) override
void	mousePressEvent (QMouseEvent *e) override
void	paintEvent (QPaintEvent *e) override
virtual void	paintHandle (QPainter &painter, const QRect &rect, const Handle &handle)
	Override this function to paint custom handles.
qreal	positionFromX (int x) const
	Given a widget-relative x position in pixels, this function returns the normalized position relative to the gradient rect.
QVector< Handle >	sortedHandles () const
	Regardless the index of a handle, they can be unordered in terms of the position. This returns a sorted vector with the handles that have a smaller position first. If two handles have the same position then the index is used for sorting.
void	wheelEvent (QWheelEvent *e) override
int	xFromPosition (qreal position) const
	Given a gradient rect relative position, this function returns the x position in pixels relative to the widget.

Additional Inherited Members
Protected Attributes inherited from KisLevelsSlider
int	m_constrainPositions
	This variable indicates if the handles can have unordered positions. If it is set to true then the user won't be able to move a handle pass another one. If it is set to false then the ser will be able to move the handles freely.
QVector< Handle >	m_handles
	The collection of handles.
int	m_hoveredHandle
int	m_selectedHandle
Static Protected Attributes inherited from KisLevelsSlider
static constexpr int	handleHeight {11}
static constexpr int	handleWidth {11}
static constexpr qreal	minimumSpaceBetweenHandles {0.001}
static constexpr qreal	normalPositionIncrement {0.01}
static constexpr qreal	slowPositionIncrement {0.001}

Detailed Description

This is a simple input levels slider that has no gamma handle. Use it if you want to show a simple mapping or contrast adjustment. The handles are constrained so that the black point handle can not pass the white point handle and vice-versa.

Definition at line 147 of file KisLevelsSlider.h.

Constructor & Destructor Documentation

KisInputLevelsSlider()

KisInputLevelsSlider::KisInputLevelsSlider

(

QWidget *

parent = nullptr

)

Definition at line 319 of file KisLevelsSlider.cpp.

    : KisLevelsSlider(parent)
{
    m_handles.resize(2);
    m_handles[0].index = 0;
    m_handles[0].position = 0.0;
    m_handles[0].color = Qt::black;
    m_handles[1].index = 1;
    m_handles[1].position = 1.0;
    m_handles[1].color = Qt::white;
    m_selectedHandle = 0;
    connect(this, &KisInputLevelsSlider::handlePositionChanged,
        [this](int handleIndex, qreal position)
        {
            if (handleIndex == m_handles.first().index) {
                Q_EMIT blackPointChanged(position);
            } else if (handleIndex == m_handles.last().index) {
                Q_EMIT whitePointChanged(position);
            }
        }
    );
}

References connect(), KisLevelsSlider::handlePositionChanged(), KisLevelsSlider::m_handles, and KisLevelsSlider::m_selectedHandle.

~KisInputLevelsSlider()

KisInputLevelsSlider::~KisInputLevelsSlider

(

)

Definition at line 342 of file KisLevelsSlider.cpp.

{}

Member Function Documentation

blackPoint()

qreal KisInputLevelsSlider::blackPoint

(

)

const

Get the normalized black point.

Definition at line 345 of file KisLevelsSlider.cpp.

{
    return m_handles.first().position;
}

References KisLevelsSlider::m_handles.

blackPointChanged

void KisInputLevelsSlider::blackPointChanged ( qreal newBlackPoint )

signal

Signal emitted when the black point changes.

paintBottomGradientMiddleSection()

void KisInputLevelsSlider::paintBottomGradientMiddleSection ( QImage & gradientImage, const QVector< Handle > & sortedHandles_ )

protectedvirtual

This is used to fill the space between the tho handles in the bottom bar of the "gradient". It just paints a linear gradient that goes from black (first handle's color) to white (last handle's color). Derived classes can override this function if they only want to change that area. "gradientImage" is a 256x1px image.

Reimplemented in KisInputLevelsSliderWithGamma, and KisThresholdSlider.

Definition at line 391 of file KisLevelsSlider.cpp.

{
    if (m_handles.size() < 2) {
        return;
    }

    const int startPos = static_cast<int>(qRound(sortedHandles_.first().position * static_cast<qreal>(gradientImage.width() - 1))) + 1;
    const int endPos = static_cast<int>(qRound(sortedHandles_.last().position * static_cast<qreal>(gradientImage.width() - 1))) + 1;
    QRgb *pixel = reinterpret_cast<QRgb*>(gradientImage.bits()) + startPos;
    for (int x = startPos; x < endPos; ++x, ++pixel) {
        const qreal t = static_cast<qreal>(x - startPos) / static_cast<qreal>(endPos - startPos);
        *pixel =KisPaintingTweaks::blendColors(
                    sortedHandles_.last().color,
                    sortedHandles_.first().color,
                    t
                ).rgba();
    }
}

References KisPaintingTweaks::blendColors(), and KisLevelsSlider::m_handles.

paintGradient()

void KisInputLevelsSlider::paintGradient ( QPainter & painter, const QRect & rect )

overrideprotectedvirtual

Custom gradient painter. This paints two bars in the gradient rect, one on top of the other. The top one shows a simple black to white (more exactly, color of the first handle to color of the last handle) linear gradient. The bottom one shows black (first handle's color) from the right side of the rect to the black point, and white (last handle's color) from the white point to the left side of the rect. In the middle of the two handles, the "paintBottomGradientMiddleSection" is used to fill the bar.

Implements KisLevelsSlider.

Definition at line 410 of file KisLevelsSlider.cpp.

{
    if (m_handles.size() == 0) {
        return;
    }

    painter.setRenderHint(QPainter::SmoothPixmapTransform);
    if (!isEnabled()) {
        painter.setOpacity(0.5);
    }
    QImage gradientImage(rect.width(), 1, QImage::Format_ARGB32);
    const int halfGradientHeight = rect.height() / 2;

    // Top gradient
    {
        QRgb *pixel = reinterpret_cast<QRgb*>(gradientImage.bits());
        for (int x = 0; x < gradientImage.width(); ++x, ++pixel) {
            const qreal t = static_cast<qreal>(x) / static_cast<qreal>(gradientImage.width() - 1);
            *pixel =KisPaintingTweaks::blendColors(m_handles.last().color, m_handles.first().color, t).rgba();
        }
    }
    painter.drawImage(rect.adjusted(0, 0, 0, -(halfGradientHeight + (rect.height() & 1 ? 1 : 0))), gradientImage);

    // Bottom gradient
    QVector<Handle> sortedHandles_ = sortedHandles();
    {
        const int endPos = static_cast<int>(qRound(sortedHandles_.first().position * static_cast<qreal>(gradientImage.width() - 1)) + 1);
        QRgb *pixel = reinterpret_cast<QRgb*>(gradientImage.bits());
        for (int x = 0; x < endPos; ++x, ++pixel) {
            *pixel = sortedHandles_.first().color.rgba();
        }
    }
    paintBottomGradientMiddleSection(gradientImage, sortedHandles_);
    {
        const int startPos = static_cast<int>(qRound(sortedHandles_.last().position * static_cast<qreal>(gradientImage.width() - 1)) + 1);
        QRgb *pixel = reinterpret_cast<QRgb*>(gradientImage.bits()) + startPos;
        for (int x = startPos; x < rect.width(); ++x, ++pixel) {
            *pixel = sortedHandles_.last().color.rgba();
        }
    }
    painter.drawImage(rect.adjusted(0, halfGradientHeight, 0, 0), gradientImage);
}

References KisPaintingTweaks::blendColors(), KisLevelsSlider::m_handles, paintBottomGradientMiddleSection(), and KisLevelsSlider::sortedHandles().

reset

void KisInputLevelsSlider::reset ( qreal newBlackPoint, qreal newWhitePoint )

virtualslot

Sometimes you want to set the range to a totally different place, but the new black point can be greater than the old white point so the new black point position will be constrained to the old white position. This function allows to set both values at once to prevent that undesirable effect. Use it when the widget has to show new values, for a different set of levels parameters for example.

Definition at line 365 of file KisLevelsSlider.cpp.

{
    newBlackPoint = qBound(0.0, newBlackPoint, 1.0);
    newWhitePoint = qBound(0.0, newWhitePoint, 1.0);

    if (m_constrainPositions) {
        if (newWhitePoint < newBlackPoint + minimumSpaceBetweenHandles) {
            newWhitePoint = newBlackPoint + minimumSpaceBetweenHandles;
            if (newWhitePoint < 1.0) {
                newWhitePoint = 1.0;
                newBlackPoint = 1.0 - minimumSpaceBetweenHandles;
            }
        }
        if (newBlackPoint <= whitePoint() - minimumSpaceBetweenHandles) {
            setBlackPoint(newBlackPoint);
            setWhitePoint(newWhitePoint);
        } else {
            setWhitePoint(newWhitePoint);
            setBlackPoint(newBlackPoint);
        }
    } else {
        setBlackPoint(newBlackPoint);
        setWhitePoint(newWhitePoint);
    }
}

References KisLevelsSlider::m_constrainPositions, KisLevelsSlider::minimumSpaceBetweenHandles, setBlackPoint(), setWhitePoint(), and whitePoint().

setBlackPoint

void KisInputLevelsSlider::setBlackPoint ( qreal newBlackPoint )

virtualslot

Sets the black point.

Definition at line 355 of file KisLevelsSlider.cpp.

{
    setHandlePosition(m_handles.first().index, newBlackPoint);
}

References KisLevelsSlider::m_handles, and KisLevelsSlider::setHandlePosition().

setWhitePoint

void KisInputLevelsSlider::setWhitePoint ( qreal newWhitePoint )

virtualslot

Sets the white point.

Definition at line 360 of file KisLevelsSlider.cpp.

{
    setHandlePosition(m_handles.last().index, newWhitePoint);
}

References KisLevelsSlider::m_handles, and KisLevelsSlider::setHandlePosition().

whitePoint()

qreal KisInputLevelsSlider::whitePoint

(

)

const

Get the normalized white point.

Definition at line 350 of file KisLevelsSlider.cpp.

{
    return m_handles.last().position;
}

References KisLevelsSlider::m_handles.

whitePointChanged

void KisInputLevelsSlider::whitePointChanged ( qreal newWhitePoint )

signal

Signal emitted when the white point changes.

---

The documentation for this class was generated from the following files:

• libs/widgets/KisLevelsSlider.h
• libs/widgets/KisLevelsSlider.cpp
