KisPaintOpFactory Class Reference

#include <kis_paintop_factory.h>

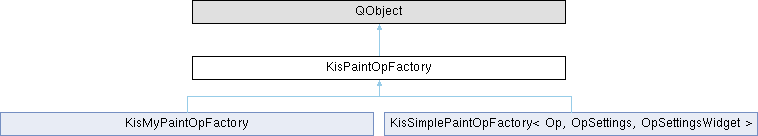

Inheritance diagram for KisPaintOpFactory:

Public Types
enum	PaintopVisibility { AUTO , ALWAYS , NEVER }

Public Member Functions
virtual QString	category () const =0
virtual KisPaintOpConfigWidget *	createConfigWidget (QWidget *parent, KisResourcesInterfaceSP resourcesInterface, KoCanvasResourcesInterfaceSP canvasResourcesInterface)=0
virtual KisInterstrokeDataFactory *	createInterstrokeDataFactory (const KisPaintOpSettingsSP settings, KisResourcesInterfaceSP resourcesInterface) const
virtual KisPaintOp *	createOp (const KisPaintOpSettingsSP settings, KisPainter *painter, KisNodeSP node, KisImageSP image)=0
virtual KisPaintOpSettingsSP	createSettings (KisResourcesInterfaceSP resourcesInterface)=0
virtual QIcon	icon ()
	icon
virtual QString	id () const =0
	KisPaintOpFactory (const QStringList &whiteListedCompositeOps=QStringList())
virtual bool	lodSizeThresholdSupported () const =0
virtual QString	name () const =0
virtual QList< KoResourceLoadResult >	prepareEmbeddedResources (const KisPaintOpSettingsSP settings, KisResourcesInterfaceSP resourcesInterface)=0
virtual QList< KoResourceLoadResult >	prepareLinkedResources (const KisPaintOpSettingsSP settings, KisResourcesInterfaceSP resourcesInterface)=0
int	priority () const
void	setPriority (int newPriority)
QStringList	whiteListedCompositeOps () const
	~KisPaintOpFactory () override

Static Public Member Functions
static QString	categoryStable ()

Private Attributes
int	m_priority
PaintopVisibility	m_visibility
QStringList	m_whiteListedCompositeOps

Detailed Description

The paintop factory is responsible for creating paintops of the specified class. If there is an optionWidget, the derived paintop itself must support settings, and it's up to the factory to do that.

Definition at line 38 of file kis_paintop_factory.h.

Member Enumeration Documentation

PaintopVisibility

enum KisPaintOpFactory::PaintopVisibility

Enumerator
AUTO
ALWAYS
NEVER

Definition at line 44 of file kis_paintop_factory.h.

                           {
        AUTO,
        ALWAYS,
        NEVER
    };

Constructor & Destructor Documentation

KisPaintOpFactory()

KisPaintOpFactory::KisPaintOpFactory

(

const QStringList &

whiteListedCompositeOps = QStringList()

)

Parameters

whiteListedCompositeOps

list of compositeops that don't work with this paintop

Definition at line 11 of file kis_paintop_factory.cpp.

    : m_whiteListedCompositeOps(whiteListedCompositeOps), m_priority(100)
    , m_visibility(AUTO)
{
}

~KisPaintOpFactory()

KisPaintOpFactory::~KisPaintOpFactory ( )

inlineoverride

Definition at line 54 of file kis_paintop_factory.h.

{}

Member Function Documentation

category()

virtual QString KisPaintOpFactory::category ( ) const

pure virtual

Implemented in KisSimplePaintOpFactory< Op, OpSettings, OpSettingsWidget >, and KisMyPaintOpFactory.

categoryStable()

QString KisPaintOpFactory::categoryStable ( )

static

Definition at line 36 of file kis_paintop_factory.cpp.

{
    return i18nc("Category of brush engines", "Brush engines");
}

createConfigWidget()

virtual KisPaintOpConfigWidget * KisPaintOpFactory::createConfigWidget ( QWidget * parent, KisResourcesInterfaceSP resourcesInterface, KoCanvasResourcesInterfaceSP canvasResourcesInterface )

pure virtual

create a widget that can display paintop settings

Implemented in KisSimplePaintOpFactory< Op, OpSettings, OpSettingsWidget >, and KisMyPaintOpFactory.

createInterstrokeDataFactory()

KisInterstrokeDataFactory * KisPaintOpFactory::createInterstrokeDataFactory ( const KisPaintOpSettingsSP settings, KisResourcesInterfaceSP resourcesInterface ) const

virtual

Reimplemented in KisSimplePaintOpFactory< Op, OpSettings, OpSettingsWidget >.

Definition at line 41 of file kis_paintop_factory.cpp.

{
    return 0;
}

createOp()

virtual KisPaintOp * KisPaintOpFactory::createOp ( const KisPaintOpSettingsSP settings, KisPainter * painter, KisNodeSP node, KisImageSP image )

pure virtual

Create a KisPaintOp with the given settings and painter.

Parameters

settings	the settings associated with the input device
painter	the painter used to draw
node	the node used to draw
image	the image used to draw

Implemented in KisSimplePaintOpFactory< Op, OpSettings, OpSettingsWidget >, and KisMyPaintOpFactory.

createSettings()

virtual KisPaintOpSettingsSP KisPaintOpFactory::createSettings ( KisResourcesInterfaceSP resourcesInterface )

pure virtual

Create and return an settings object for this paintop.

Implemented in KisSimplePaintOpFactory< Op, OpSettings, OpSettingsWidget >, and KisMyPaintOpFactory.

icon()

QIcon KisPaintOpFactory::icon ( )

virtual

icon

Returns

the icon to represent this paintop.

Reimplemented in KisSimplePaintOpFactory< Op, OpSettings, OpSettingsWidget >, and KisMyPaintOpFactory.

Definition at line 29 of file kis_paintop_factory.cpp.

{
    QPixmap p = QPixmap(22, 22);
    p.fill(Qt::transparent);
    return QIcon(p);
}

References p.

id()

virtual QString KisPaintOpFactory::id ( ) const

pure virtual

Implemented in KisSimplePaintOpFactory< Op, OpSettings, OpSettingsWidget >, and KisMyPaintOpFactory.

lodSizeThresholdSupported()

virtual bool KisPaintOpFactory::lodSizeThresholdSupported ( ) const

pure virtual

Implemented in KisSimplePaintOpFactory< Op, OpSettings, OpSettingsWidget >, and KisMyPaintOpFactory.

name()

virtual QString KisPaintOpFactory::name ( ) const

pure virtual

Implemented in KisSimplePaintOpFactory< Op, OpSettings, OpSettingsWidget >, and KisMyPaintOpFactory.

prepareEmbeddedResources()

virtual QList< KoResourceLoadResult > KisPaintOpFactory::prepareEmbeddedResources ( const KisPaintOpSettingsSP settings, KisResourcesInterfaceSP resourcesInterface )

pure virtual

Returns

all the resources embedded into settings. The resources are first tried to be loaded from resourcesInterface, and, if it fails, loaded from the embedded data.

Implemented in KisSimplePaintOpFactory< Op, OpSettings, OpSettingsWidget >, and KisMyPaintOpFactory.

prepareLinkedResources()

virtual QList< KoResourceLoadResult > KisPaintOpFactory::prepareLinkedResources ( const KisPaintOpSettingsSP settings, KisResourcesInterfaceSP resourcesInterface )

pure virtual

Returns

all the resources linked to settings.

Implemented in KisSimplePaintOpFactory< Op, OpSettings, OpSettingsWidget >, and KisMyPaintOpFactory.

priority()

int KisPaintOpFactory::priority

(

)

const

Definition at line 52 of file kis_paintop_factory.cpp.

{
    return m_priority;
}

References m_priority.

setPriority()

void KisPaintOpFactory::setPriority

(

int

newPriority

)

Set the priority of this paintop, as it is shown in the UI; lower number means it will be show more to the front of the list.

Parameters

newPriority

the priority

Definition at line 46 of file kis_paintop_factory.cpp.

{
    m_priority = newPriority;
}

References m_priority.

whiteListedCompositeOps()

QStringList KisPaintOpFactory::whiteListedCompositeOps

(

)

const

List of usually hidden compositeops that are useful for this paintop.

Definition at line 17 of file kis_paintop_factory.cpp.

{
    return m_whiteListedCompositeOps;
}

References m_whiteListedCompositeOps.

Member Data Documentation

m_priority

int KisPaintOpFactory::m_priority

private

Definition at line 120 of file kis_paintop_factory.h.

m_visibility

PaintopVisibility KisPaintOpFactory::m_visibility

private

Definition at line 121 of file kis_paintop_factory.h.

m_whiteListedCompositeOps

QStringList KisPaintOpFactory::m_whiteListedCompositeOps

private

Definition at line 119 of file kis_paintop_factory.h.

---

The documentation for this class was generated from the following files:

• libs/image/brushengine/kis_paintop_factory.h
• libs/image/brushengine/kis_paintop_factory.cpp
