KisSvgBrush Class Reference

#include <kis_svg_brush.h>

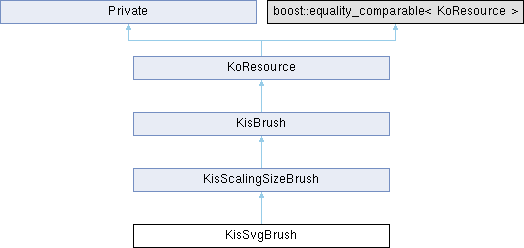

Inheritance diagram for KisSvgBrush:

Public Member Functions
KoResourceSP	clone () const override
QString	defaultFileExtension () const override
	KisSvgBrush (const KisSvgBrush &rhs)
	KisSvgBrush (const QString &filename)
	Construct brush to load filename later as brush.
bool	loadFromDevice (QIODevice *dev, KisResourcesInterfaceSP resourcesInterface) override
KisSvgBrush &	operator= (const KisSvgBrush &rhs)=delete
QPair< QString, QString >	resourceType () const override
bool	saveToDevice (QIODevice *dev) const override
void	toXML (QDomDocument &d, QDomElement &e) const override
Public Member Functions inherited from KisScalingSizeBrush
	KisScalingSizeBrush ()
	KisScalingSizeBrush (const KisScalingSizeBrush &rhs)
	KisScalingSizeBrush (const QString &filename)
void	setUserEffectiveSize (qreal value) override
qreal	userEffectiveSize () const override
Public Member Functions inherited from KisBrush
qreal	angle () const
virtual bool	applyingGradient () const
bool	autoSpacingActive () const
qreal	autoSpacingCoeff () const
virtual enumBrushApplication	brushApplication () const
virtual quint32	brushIndex () const
virtual QImage	brushTipImage () const
	brushImage the image the brush tip can paint with. Not all brush types have a single image.
virtual enumBrushType	brushType () const
virtual bool	canPaintFor (const KisPaintInformation &)
virtual QSizeF	characteristicSize (KisDabShape const &) const
void	clearBrushPyramid ()
virtual void	coldInitBrush ()
virtual void	generateMaskAndApplyMaskOrCreateDab (KisFixedPaintDeviceSP dst, ColoringInformation *coloringInfo, KisDabShape const &, const KisPaintInformation &info, double subPixelX, double subPixelY, qreal softnessFactor, qreal lightnessStrength) const
void	generateMaskAndApplyMaskOrCreateDab (KisFixedPaintDeviceSP dst, ColoringInformation *coloringInfo, KisDabShape const &, const KisPaintInformation &info, double subPixelX=0, double subPixelY=0, qreal softnessFactor=DEFAULT_SOFTNESS_FACTOR) const
qint32	height () const
QPointF	hotSpot (KisDabShape const &, const KisPaintInformation &info) const
virtual bool	isPiercedApprox () const
	KisBrush ()
	KisBrush (const KisBrush &rhs)
	KisBrush (const QString &filename)
virtual void	lodLimitations (KisPaintopLodLimitations *l) const
void	mask (KisFixedPaintDeviceSP dst, const KisPaintDeviceSP src, KisDabShape const &shape, const KisPaintInformation &info, double subPixelX=0, double subPixelY=0, qreal softnessFactor=DEFAULT_SOFTNESS_FACTOR, qreal lightnessStrength=DEFAULT_LIGHTNESS_STRENGTH) const
void	mask (KisFixedPaintDeviceSP dst, const KoColor &color, KisDabShape const &shape, const KisPaintInformation &info, double subPixelX=0, double subPixelY=0, qreal softnessFactor=DEFAULT_SOFTNESS_FACTOR, qreal lightnessStrength=DEFAULT_LIGHTNESS_STRENGTH) const
double	maskAngle (double angle=0) const
virtual qint32	maskHeight (KisDabShape const &, qreal subPixelX, qreal subPixelY, const KisPaintInformation &info) const
virtual qint32	maskWidth (KisDabShape const &, qreal subPixelX, qreal subPixelY, const KisPaintInformation &info) const
virtual void	notifyBrushIsGoingToBeClonedForStroke ()
virtual void	notifyStrokeStarted ()
KisBrush &	operator= (const KisBrush &rhs)=delete
virtual KisOptimizedBrushOutline	outline (bool forcePreciseOutline=false) const
virtual KisFixedPaintDeviceSP	outlineSourceImage () const
virtual KisFixedPaintDeviceSP	paintDevice (const KoColorSpace *colorSpace, KisDabShape const &, const KisPaintInformation &info, double subPixelX=0, double subPixelY=0) const
virtual void	prepareForSeqNo (const KisPaintInformation &info, int seqNo)
virtual bool	preserveLightness () const
qreal	scale () const
virtual void	setAngle (qreal _angle)
void	setAutoSpacing (bool active, qreal coeff)
virtual void	setBrushApplication (enumBrushApplication brushApplication)
virtual void	setBrushTipImage (const QImage &image)
virtual void	setGradient (KoAbstractGradientSP gradient)
virtual void	setScale (qreal _scale)
virtual void	setSpacing (double spacing)
double	spacing () const
virtual bool	supportsCaching () const
qint32	width () const
	~KisBrush () override
Public Member Functions inherited from KoResource
bool	active () const
void	addMetaData (QString key, QVariant value)
	store the given key, value pair in the resource
virtual void	clearSideLoadedResources ()
virtual QList< KoResourceLoadResult >	embeddedResources (KisResourcesInterfaceSP globalResourcesInterface) const
QString	filename () const
QImage	image () const
bool	isDirty () const
virtual bool	isEphemeral () const
virtual bool	isSerializable () const
	KoResource ()
	KoResource (const KoResource &rhs)
	KoResource (const QString &filename)
virtual QList< KoResourceLoadResult >	linkedResources (KisResourcesInterfaceSP globalResourcesInterface) const
bool	load (KisResourcesInterfaceSP resourcesInterface)
QString	md5Sum (bool generateIfEmpty=true) const
QMap< QString, QVariant >	metadata () const
	get a map with all the metadata
virtual QString	name () const
KoResource &	operator= (const KoResource &rhs)=delete
bool	permanent () const
virtual QList< int >	requiredCanvasResources () const
QList< KoResourceLoadResult >	requiredResources (KisResourcesInterfaceSP globalResourcesInterface) const
int	resourceId () const
bool	save ()
void	setActive (bool active)
void	setDirty (bool value)
	Mark the preset as modified but not saved.
void	setFilename (const QString &filename)
void	setImage (const QImage &image)
void	setMD5Sum (const QString &md5sum)
	Set the md5sum of this resource. It must be in hex-encoded string format.
void	setName (const QString &name)
void	setPermanent (bool permanent)
void	setResourceId (int id)
void	setStorageLocation (const QString &location)
void	setValid (bool valid)
void	setVersion (int version)
virtual QList< KoResourceLoadResult >	sideLoadedResources (KisResourcesInterfaceSP globalResourcesInterface) const
KoResourceSignature	signature () const
QString	storageLocation () const
QList< KoResourceLoadResult >	takeSideLoadedResources (KisResourcesInterfaceSP globalResourcesInterface)
virtual QImage	thumbnail () const
	thumbnail the thumbnail image to use in resource selectors
virtual QString	thumbnailPath () const
	thumbnailPath returns the path to a separate thumbnail image, outside the actual resource file itself. If the path is relative, it is supposed start in the same location as the resource itself. If it's absolute, that is, it starts with "/", it is from the root of the storage.
virtual void	updateThumbnail ()
	updateThumbnail updates the thumbnail for this resource. Reimplement if your thumbnail is something else than the image set with setImage.
bool	valid () const
int	version () const
	Get the version of the resource.
virtual	~KoResource ()
Public Member Functions inherited from Private
	Private (KisCanvas2 *c)

Private Attributes
QByteArray	m_svg

Additional Inherited Members
Static Public Member Functions inherited from KisBrush
static KisBrushSP	fromXML (const QDomElement &element, KisResourcesInterfaceSP resourcesInterface)
static KoResourceLoadResult	fromXMLLoadResult (const QDomElement &element, KisResourcesInterfaceSP resourcesInterface)
Public Attributes inherited from KoResource
bool	active {true}
QString	filename
QImage	image
QString	md5sum
QMap< QString, QVariant >	metadata
bool	modified {false}
QString	name
bool	permanent {false}
int	resourceId {-1}
QString	storageLocation
bool	valid {false}
int	version {-1}
Public Attributes inherited from Private
KisCanvas2 *	canvas
int	displayedFrame
int	intendedFrame
Static Public Attributes inherited from KisBrush
static const QString	brushTypeMetaDataKey = "image-based-brush"
Protected Member Functions inherited from KisBrush
void	generateOutlineCache ()
bool	outlineCacheIsValid () const
void	predefinedBrushToXML (const QString &type, QDomElement &e) const
void	resetOutlineCache ()
virtual void	setBrushType (enumBrushType type)
void	setHeight (qint32 height)
void	setHotSpot (QPointF)
void	setWidth (qint32 width)

Detailed Description

Definition at line 12 of file kis_svg_brush.h.

Constructor & Destructor Documentation

KisSvgBrush() [1/2]

KisSvgBrush::KisSvgBrush

(

const QString &

filename

)

Construct brush to load filename later as brush.

Definition at line 15 of file kis_svg_brush.cpp.

    : KisScalingSizeBrush(filename)
{
    setBrushType(INVALID);
    setSpacing(0.25);
}

References INVALID, KisBrush::setBrushType(), and KisBrush::setSpacing().

KisSvgBrush() [2/2]

KisSvgBrush::KisSvgBrush

(

const KisSvgBrush &

rhs

)

Definition at line 22 of file kis_svg_brush.cpp.

    : KisScalingSizeBrush(rhs)
    , m_svg(rhs.m_svg)
{
}

Member Function Documentation

clone()

KoResourceSP KisSvgBrush::clone ( ) const

overridevirtual

Implements KoResource.

Definition at line 28 of file kis_svg_brush.cpp.

{
    return KoResourceSP(new KisSvgBrush(*this));
}

References KisSvgBrush().

defaultFileExtension()

QString KisSvgBrush::defaultFileExtension ( ) const

overridevirtual

Returns

the default file extension which should be used when saving the resource

Reimplemented from KoResource.

Definition at line 75 of file kis_svg_brush.cpp.

{
    return QString(".svg");
}

loadFromDevice()

bool KisSvgBrush::loadFromDevice ( QIODevice * dev, KisResourcesInterfaceSP resourcesInterface )

overridevirtual

Implements KoResource.

Definition at line 33 of file kis_svg_brush.cpp.

{
    Q_UNUSED(resourcesInterface);

    m_svg = dev->readAll();

    QSvgRenderer renderer(m_svg);

    QRect box = renderer.viewBox();
    if (box.isEmpty()) return false;

    QImage image_(1000, (1000 * box.height()) / box.width(), QImage::Format_ARGB32);
    {
        QPainter p(&image_);
        p.fillRect(0, 0, image_.width(), image_.height(), Qt::white);
        renderer.render(&p);
    }

    QVector<QRgb> table;
    for (int i = 0; i < 256; ++i) table.push_back(qRgb(i, i, i));
    image_ = image_.convertToFormat(QImage::Format_Indexed8, table);

    setBrushTipImage(image_);

    setValid(true);

    setBrushType(MASK);

    setWidth(brushTipImage().width());
    setHeight(brushTipImage().height());

    QFileInfo fi(filename());
    setName(fi.completeBaseName());

    return !brushTipImage().isNull() && valid();
}

References KisBrush::brushTipImage(), KoResource::filename, KisBrush::height(), m_svg, MASK, p, KisBrush::setBrushTipImage(), KisBrush::setBrushType(), KisBrush::setHeight(), KoResource::setName(), KoResource::setValid(), KisBrush::setWidth(), KoResource::valid, and KisBrush::width().

operator=()

KisSvgBrush & KisSvgBrush::operator= ( const KisSvgBrush & rhs )

delete

resourceType()

QPair< QString, QString > KisSvgBrush::resourceType ( ) const

inlineoverridevirtual

Returns

the resource type

Reimplemented from KisBrush.

Definition at line 25 of file kis_svg_brush.h.

                                                          {
        return QPair<QString, QString>(ResourceType::Brushes, ResourceSubType::SvgBrushes);
    }

References ResourceType::Brushes, and ResourceSubType::SvgBrushes.

saveToDevice()

bool KisSvgBrush::saveToDevice ( QIODevice * dev ) const

overridevirtual

Reimplemented from KoResource.

Definition at line 70 of file kis_svg_brush.cpp.

{
    return dev->write(m_svg.constData(), m_svg.size()) == m_svg.size();
}

References m_svg.

toXML()

void KisSvgBrush::toXML ( QDomDocument & , QDomElement & element ) const

overridevirtual

Serialize this brush to XML.

Reimplemented from KisBrush.

Definition at line 80 of file kis_svg_brush.cpp.

{
    predefinedBrushToXML("svg_brush", e);
    KisBrush::toXML(d, e);
}

References KisBrush::d, KisBrush::predefinedBrushToXML(), and KisBrush::toXML().

Member Data Documentation

m_svg

QByteArray KisSvgBrush::m_svg

private

Definition at line 32 of file kis_svg_brush.h.

---

The documentation for this class was generated from the following files:

• libs/brush/kis_svg_brush.h
• libs/brush/kis_svg_brush.cpp
