#include <kis_text_brush.h>

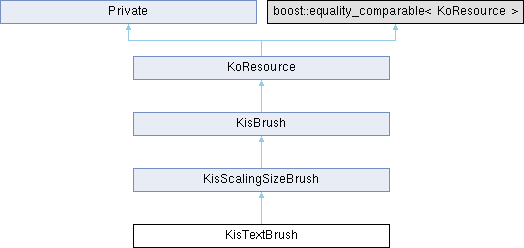

Inheritance diagram for KisTextBrush:

Public Member Functions
quint32	brushIndex () const override

KoResourceSP	clone () const override

QFont	font ()

void	generateMaskAndApplyMaskOrCreateDab (KisFixedPaintDeviceSP dst, KisBrush::ColoringInformation *coloringInformation, KisDabShape const &, const KisPaintInformation &info, double subPixelX=0, double subPixelY=0, qreal softnessFactor=DEFAULT_SOFTNESS_FACTOR, qreal lightnessStrength=1.0) const override

bool	isEphemeral () const override

	KisTextBrush ()

	KisTextBrush (const KisTextBrush &rhs)

bool	loadFromDevice (QIODevice *dev, KisResourcesInterfaceSP resourcesInterface) override

qint32	maskHeight (KisDabShape const &, double subPixelX, double subPixelY, const KisPaintInformation &info) const override

qint32	maskWidth (KisDabShape const &, double subPixelX, double subPixelY, const KisPaintInformation &info) const override

void	notifyStrokeStarted () override

KisTextBrush &	operator= (const KisTextBrush &rhs)=delete

KisFixedPaintDeviceSP	paintDevice (const KoColorSpace *colorSpace, KisDabShape const &, const KisPaintInformation &info, double subPixelX, double subPixelY) const override

bool	pipeMode () const

void	prepareForSeqNo (const KisPaintInformation &info, int seqNo) override

bool	saveToDevice (QIODevice *dev) const override

void	setAngle (qreal _angle) override

void	setFont (const QFont &font)

void	setPipeMode (bool pipe)

void	setScale (qreal _scale) override

void	setSpacing (double _spacing) override

void	setText (const QString &txt)

QString	text (void) const

void	toXML (QDomDocument &, QDomElement &) const override

void	updateBrush ()

	~KisTextBrush () override

Public Member Functions inherited from KisScalingSizeBrush
	KisScalingSizeBrush ()

	KisScalingSizeBrush (const KisScalingSizeBrush &rhs)

	KisScalingSizeBrush (const QString &filename)

void	setUserEffectiveSize (qreal value) override

qreal	userEffectiveSize () const override

Public Member Functions inherited from KisBrush
qreal	angle () const

virtual bool	applyingGradient () const

bool	autoSpacingActive () const

qreal	autoSpacingCoeff () const

virtual enumBrushApplication	brushApplication () const

virtual QImage	brushTipImage () const
	brushImage the image the brush tip can paint with. Not all brush types have a single image.

virtual enumBrushType	brushType () const

virtual bool	canPaintFor (const KisPaintInformation &)

virtual QSizeF	characteristicSize (KisDabShape const &) const

void	clearBrushPyramid ()

virtual void	coldInitBrush ()

void	generateMaskAndApplyMaskOrCreateDab (KisFixedPaintDeviceSP dst, ColoringInformation *coloringInfo, KisDabShape const &, const KisPaintInformation &info, double subPixelX=0, double subPixelY=0, qreal softnessFactor=DEFAULT_SOFTNESS_FACTOR) const

qint32	height () const

QPointF	hotSpot (KisDabShape const &, const KisPaintInformation &info) const

virtual bool	isPiercedApprox () const

	KisBrush ()

	KisBrush (const KisBrush &rhs)

	KisBrush (const QString &filename)

virtual void	lodLimitations (KisPaintopLodLimitations *l) const

void	mask (KisFixedPaintDeviceSP dst, const KisPaintDeviceSP src, KisDabShape const &shape, const KisPaintInformation &info, double subPixelX=0, double subPixelY=0, qreal softnessFactor=DEFAULT_SOFTNESS_FACTOR, qreal lightnessStrength=DEFAULT_LIGHTNESS_STRENGTH) const

void	mask (KisFixedPaintDeviceSP dst, const KoColor &color, KisDabShape const &shape, const KisPaintInformation &info, double subPixelX=0, double subPixelY=0, qreal softnessFactor=DEFAULT_SOFTNESS_FACTOR, qreal lightnessStrength=DEFAULT_LIGHTNESS_STRENGTH) const

double	maskAngle (double angle=0) const

virtual qint32	maskHeight (KisDabShape const &, qreal subPixelX, qreal subPixelY, const KisPaintInformation &info) const

virtual qint32	maskWidth (KisDabShape const &, qreal subPixelX, qreal subPixelY, const KisPaintInformation &info) const

virtual void	notifyBrushIsGoingToBeClonedForStroke ()

KisBrush &	operator= (const KisBrush &rhs)=delete

virtual KisOptimizedBrushOutline	outline (bool forcePreciseOutline=false) const

virtual KisFixedPaintDeviceSP	outlineSourceImage () const

virtual bool	preserveLightness () const

QPair< QString, QString >	resourceType () const override

qreal	scale () const

void	setAutoSpacing (bool active, qreal coeff)

virtual void	setBrushApplication (enumBrushApplication brushApplication)

virtual void	setBrushTipImage (const QImage &image)

virtual void	setGradient (KoAbstractGradientSP gradient)

double	spacing () const

virtual bool	supportsCaching () const

qint32	width () const

	~KisBrush () override

Public Member Functions inherited from KoResource
bool	active () const

void	addMetaData (QString key, QVariant value)
	store the given key, value pair in the resource

virtual void	clearSideLoadedResources ()

virtual QString	defaultFileExtension () const

virtual QList< KoResourceLoadResult >	embeddedResources (KisResourcesInterfaceSP globalResourcesInterface) const

QString	filename () const

QImage	image () const

bool	isDirty () const

virtual bool	isSerializable () const

	KoResource ()

	KoResource (const KoResource &rhs)

	KoResource (const QString &filename)

virtual QList< KoResourceLoadResult >	linkedResources (KisResourcesInterfaceSP globalResourcesInterface) const

bool	load (KisResourcesInterfaceSP resourcesInterface)

QString	md5Sum (bool generateIfEmpty=true) const

QMap< QString, QVariant >	metadata () const
	get a map with all the metadata

virtual QString	name () const

KoResource &	operator= (const KoResource &rhs)=delete

bool	permanent () const

virtual QList< int >	requiredCanvasResources () const

QList< KoResourceLoadResult >	requiredResources (KisResourcesInterfaceSP globalResourcesInterface) const

int	resourceId () const

bool	save ()

void	setActive (bool active)

void	setDirty (bool value)
	Mark the preset as modified but not saved.

void	setFilename (const QString &filename)

void	setImage (const QImage &image)

void	setMD5Sum (const QString &md5sum)
	Set the md5sum of this resource. It must be in hex-encoded string format.

void	setName (const QString &name)

void	setPermanent (bool permanent)

void	setResourceId (int id)

void	setStorageLocation (const QString &location)

void	setValid (bool valid)

void	setVersion (int version)

virtual QList< KoResourceLoadResult >	sideLoadedResources (KisResourcesInterfaceSP globalResourcesInterface) const

KoResourceSignature	signature () const

QString	storageLocation () const

QList< KoResourceLoadResult >	takeSideLoadedResources (KisResourcesInterfaceSP globalResourcesInterface)

virtual QImage	thumbnail () const
	thumbnail the thumbnail image to use in resource selectors

virtual QString	thumbnailPath () const
	thumbnailPath returns the path to a separate thumbnail image, outside the actual resource file itself. If the path is relative, it is supposed start in the same location as the resource itself. If it's absolute, that is, it starts with "/", it is from the root of the storage.

virtual void	updateThumbnail ()
	updateThumbnail updates the thumbnail for this resource. Reimplement if your thumbnail is something else than the image set with setImage.

bool	valid () const

int	version () const
	Get the version of the resource.

virtual	~KoResource ()

Public Member Functions inherited from Private
	Private (KisCanvas2 *c)

Private Attributes
KisTextBrushesPipe *	m_brushesPipe

QFont	m_font

QString	m_text

Additional Inherited Members
Static Public Member Functions inherited from KisBrush
static KisBrushSP	fromXML (const QDomElement &element, KisResourcesInterfaceSP resourcesInterface)

static KoResourceLoadResult	fromXMLLoadResult (const QDomElement &element, KisResourcesInterfaceSP resourcesInterface)

Public Attributes inherited from KoResource
bool	active {true}

QString	filename

QImage	image

QString	md5sum

QMap< QString, QVariant >	metadata

bool	modified {false}

QString	name

bool	permanent {false}

int	resourceId {-1}

QString	storageLocation

bool	valid {false}

int	version {-1}

Public Attributes inherited from Private
KisCanvas2 *	canvas

int	displayedFrame

int	intendedFrame

Static Public Attributes inherited from KisBrush
static const QString	brushTypeMetaDataKey = "image-based-brush"

Protected Member Functions inherited from KisBrush
void	generateOutlineCache ()

bool	outlineCacheIsValid () const

void	predefinedBrushToXML (const QString &type, QDomElement &e) const

void	resetOutlineCache ()

virtual void	setBrushType (enumBrushType type)

void	setHeight (qint32 height)

void	setHotSpot (QPointF)

void	setWidth (qint32 width)

Detailed Description

Definition at line 19 of file kis_text_brush.h.

Constructor & Destructor Documentation

◆ KisTextBrush() [1/2]

KisTextBrush::KisTextBrush ( )

Definition at line 170 of file kis_text_brush.cpp.

    : m_brushesPipe(new KisTextBrushesPipe())
{
    setPipeMode(false);
}

References setPipeMode().

◆ KisTextBrush() [2/2]

KisTextBrush::KisTextBrush ( const KisTextBrush & rhs )

Definition at line 176 of file kis_text_brush.cpp.

    : KisScalingSizeBrush(rhs),
      m_font(rhs.m_font),
      m_text(rhs.m_text),
      m_brushesPipe(new KisTextBrushesPipe(*rhs.m_brushesPipe))
{
}

◆ ~KisTextBrush()

KisTextBrush::~KisTextBrush ( )

override

Definition at line 184 of file kis_text_brush.cpp.

{
    delete m_brushesPipe;
}

References m_brushesPipe.

Member Function Documentation

◆ brushIndex()

quint32 KisTextBrush::brushIndex ( ) const

overridevirtual

Returns: the currently selected index of the brush if the brush consists of multiple images

See also: prepareForSeqNo()

Reimplemented from KisBrush.

Definition at line 312 of file kis_text_brush.cpp.

{
    return brushType() == MASK ? 0 : 1 + m_brushesPipe->currentBrushIndex();
}

References KisBrush::brushType(), KisTextBrushesPipe::currentBrushIndex(), m_brushesPipe, and MASK.

◆ clone()

KoResourceSP KisTextBrush::clone ( ) const

overridevirtual

Implements KoResource.

Definition at line 189 of file kis_text_brush.cpp.

{
    return KisBrushSP(new KisTextBrush(*this));
}

References KisTextBrush().

◆ font()

QFont KisTextBrush::font ( )

Definition at line 237 of file kis_text_brush.cpp.

{
    return m_font;
}

References m_font.

◆ generateMaskAndApplyMaskOrCreateDab()

void KisTextBrush::generateMaskAndApplyMaskOrCreateDab	(	KisFixedPaintDeviceSP	dst,
		KisBrush::ColoringInformation *	coloringInfo,
		KisDabShape const &	shape,
		const KisPaintInformation &	info,
		double	subPixelX = 0,
		double	subPixelY = 0,
		qreal	softnessFactor = DEFAULT_SOFTNESS_FACTOR,
		qreal	lightnessStrength = 1.0 ) const

overridevirtual

Create a mask and either mask dst (that is, change all alpha values of the existing pixels to those of the mask) or, if coloringInfo is present, clear dst and fill dst with pixels according to coloringInfo, masked according to the generated mask.

Parameters

dst	the destination that will be draw on the image, and this function will edit its alpha channel
coloringInfo	coloring information that will be copied on the dab, it can be null
shape	a shape applied on the alpha mask
info	the painting information (this is only and should only be used by KisImagePipeBrush and only to be backward compatible with the Gimp, KisImagePipeBrush is ignoring scale and angle information)
subPixelX	sub position of the brush (contained between 0.0 and 1.0)
subPixelY	sub position of the brush (contained between 0.0 and 1.0)
softnessFactor	softness factor of the brush

Returns: a mask computed from the grey-level values of the pixels in the brush.

Reimplemented from KisBrush.

Definition at line 252 of file kis_text_brush.cpp.

{
    if (brushType() == MASK) {
        KisBrush::generateMaskAndApplyMaskOrCreateDab(dst, coloringInformation, shape, info, subPixelX, subPixelY, softnessFactor, lightnessStrength);
    }
    else { /* if (brushType() == PIPE_MASK)*/
        m_brushesPipe->generateMaskAndApplyMaskOrCreateDab(dst, coloringInformation, shape, info, subPixelX, subPixelY, softnessFactor, lightnessStrength);
    }
}

References KisBrush::brushType(), KisBrush::generateMaskAndApplyMaskOrCreateDab(), KisBrushesPipe< BrushType >::generateMaskAndApplyMaskOrCreateDab(), m_brushesPipe, and MASK.

◆ isEphemeral()

bool KisTextBrush::isEphemeral ( ) const

overridevirtual

Ephemeral resource is a type of resource that has no physical representation on disk. Therefore, its load()/save() calls do nothing. Such resources will always have empty md5Sum() and, therefore, will never be stored in the resources database.

This type of resources is created directly by the corresponding factory or other object (e.g. KisAutoBrushFactory).

Ephemeral resource cannot be serializable.

Reimplemented from KoResource.

Definition at line 194 of file kis_text_brush.cpp.

{
    return true;
}

◆ loadFromDevice()

bool KisTextBrush::loadFromDevice	(	QIODevice *	dev,
		KisResourcesInterfaceSP	resourcesInterface )

overridevirtual

Implements KoResource.

Definition at line 199 of file kis_text_brush.cpp.

{
    Q_UNUSED(dev);
    Q_UNUSED(resourcesInterface);
    return false;
}

◆ maskHeight()

qint32 KisTextBrush::maskHeight	(	KisDabShape const &	shape,
		double	subPixelX,
		double	subPixelY,
		const KisPaintInformation &	info ) const

override

Definition at line 324 of file kis_text_brush.cpp.

{
    return brushType() == MASK ?
           KisBrush::maskHeight(shape, subPixelX, subPixelY, info) :
           m_brushesPipe->maskHeight(shape, subPixelX, subPixelY, info);
}

References KisBrush::brushType(), m_brushesPipe, MASK, KisBrush::maskHeight(), and KisBrushesPipe< BrushType >::maskHeight().

◆ maskWidth()

qint32 KisTextBrush::maskWidth	(	KisDabShape const &	shape,
		double	subPixelX,
		double	subPixelY,
		const KisPaintInformation &	info ) const

override

Definition at line 317 of file kis_text_brush.cpp.

{
    return brushType() == MASK ?
           KisBrush::maskWidth(shape, subPixelX, subPixelY, info) :
           m_brushesPipe->maskWidth(shape, subPixelX, subPixelY, info);
}

References KisBrush::brushType(), m_brushesPipe, MASK, KisBrush::maskWidth(), and KisBrushesPipe< BrushType >::maskWidth().

◆ notifyStrokeStarted()

void KisTextBrush::notifyStrokeStarted ( )

overridevirtual

Is called by the paint op when a paintop starts a stroke. The point is that we store brushes a server while the paint ops are are recreated all the time. Is means that upon a stroke start the brushes may need to clear its state.

Reimplemented from KisBrush.

Definition at line 242 of file kis_text_brush.cpp.

{
    m_brushesPipe->notifyStrokeStarted();
}

References m_brushesPipe, and KisTextBrushesPipe::notifyStrokeStarted().

◆ operator=()

KisTextBrush & KisTextBrush::operator= ( const KisTextBrush & rhs )

delete

◆ paintDevice()

KisFixedPaintDeviceSP KisTextBrush::paintDevice	(	const KoColorSpace *	colorSpace,
		KisDabShape const &	shape,
		const KisPaintInformation &	info,
		double	subPixelX,
		double	subPixelY ) const

overridevirtual

Return a fixed paint device that contains a correctly scaled image dab.

Reimplemented from KisBrush.

Definition at line 264 of file kis_text_brush.cpp.

{
    if (brushType() == MASK) {
        return KisBrush::paintDevice(colorSpace, shape, info, subPixelX, subPixelY);
    }
    else { /* if (brushType() == PIPE_MASK)*/
        return m_brushesPipe->paintDevice(colorSpace, shape, info, subPixelX, subPixelY);
    }
}

References KisBrush::brushType(), m_brushesPipe, MASK, KisBrush::paintDevice(), and KisBrushesPipe< BrushType >::paintDevice().

◆ pipeMode()

bool KisTextBrush::pipeMode ( ) const

Definition at line 217 of file kis_text_brush.cpp.

{
    return brushType() == PIPE_MASK;
}

References KisBrush::brushType(), and PIPE_MASK.

◆ prepareForSeqNo()

void KisTextBrush::prepareForSeqNo	(	const KisPaintInformation &	info,
		int	seqNo )

overridevirtual

Is called by the multithreaded queue to prepare a specific brush tip for the particular seqNo.

NOTE: one should use always call prepareForSeqNo() before using the brush

Currently, this is used by pipe'd brushes to implement incremental and random parasites

Reimplemented from KisBrush.

Definition at line 247 of file kis_text_brush.cpp.

{
    m_brushesPipe->prepareForSeqNo(info, seqNo);
}

References m_brushesPipe, and KisBrushesPipe< BrushType >::prepareForSeqNo().

◆ saveToDevice()

bool KisTextBrush::saveToDevice ( QIODevice * dev ) const

overridevirtual

Reimplemented from KoResource.

Definition at line 206 of file kis_text_brush.cpp.

{
    Q_UNUSED(dev);
    return false;
}

◆ setAngle()

void KisTextBrush::setAngle ( qreal _angle )

overridevirtual

Reimplemented from KisBrush.

Definition at line 331 of file kis_text_brush.cpp.

{
    KisBrush::setAngle(_angle);
    m_brushesPipe->setAngle(_angle);
}

References m_brushesPipe, KisBrush::setAngle(), and KisBrushesPipe< BrushType >::setAngle().

◆ setFont()

void KisTextBrush::setFont ( const QFont & font )

Definition at line 232 of file kis_text_brush.cpp.

{
    m_font = font;
}

References font(), and m_font.

◆ setPipeMode()

void KisTextBrush::setPipeMode ( bool pipe )

Definition at line 212 of file kis_text_brush.cpp.

{
    setBrushType(pipe ? PIPE_MASK : MASK);
}

References MASK, PIPE_MASK, and KisBrush::setBrushType().

◆ setScale()

void KisTextBrush::setScale ( qreal _scale )

overridevirtual

Reimplemented from KisBrush.

Definition at line 337 of file kis_text_brush.cpp.

{
    KisBrush::setScale(_scale);
    m_brushesPipe->setScale(_scale);
}

References m_brushesPipe, KisBrush::setScale(), and KisBrushesPipe< BrushType >::setScale().

◆ setSpacing()

void KisTextBrush::setSpacing ( double spacing )

overridevirtual

Change the spacing of the brush.

Parameters

spacing a spacing of 1.0 means that strokes will be separated from one time the size of the brush.

Reimplemented from KisBrush.

Definition at line 343 of file kis_text_brush.cpp.

{
    KisBrush::setSpacing(_spacing);
    m_brushesPipe->setSpacing(_spacing);
}

References m_brushesPipe, KisBrush::setSpacing(), and KisBrushesPipe< BrushType >::setSpacing().

◆ setText()

void KisTextBrush::setText ( const QString & txt )

Definition at line 222 of file kis_text_brush.cpp.

{
    m_text = txt;
}

References m_text.

◆ text()

QString KisTextBrush::text ( void ) const

Definition at line 227 of file kis_text_brush.cpp.

{
    return m_text;
}

References m_text.

◆ toXML()

void KisTextBrush::toXML	(	QDomDocument &	,
		QDomElement &	element ) const

overridevirtual

Serialize this brush to XML.

Reimplemented from KisBrush.

Definition at line 277 of file kis_text_brush.cpp.

{
    Q_UNUSED(doc);

    e.setAttribute("type", "kis_text_brush");
    e.setAttribute("spacing", KisDomUtils::toString(spacing()));
    e.setAttribute("text", m_text);
    e.setAttribute("font", m_font.toString());
    e.setAttribute("pipe", (brushType() == PIPE_MASK) ? "true" : "false");
    KisBrush::toXML(doc, e);
}

References KisBrush::brushType(), m_font, m_text, PIPE_MASK, KisBrush::spacing(), KisDomUtils::toString(), and KisBrush::toXML().

◆ updateBrush()

void KisTextBrush::updateBrush ( )

Definition at line 289 of file kis_text_brush.cpp.

{
    KIS_ASSERT_RECOVER((brushType() == PIPE_MASK) || (brushType() == MASK)) {
        setBrushType(MASK);
    }

    if (brushType() == PIPE_MASK) {
        m_brushesPipe->setText(m_text, m_font);
        if (m_text.isEmpty()) {
            // Dummy brushtip to avoid a crash...
            setBrushTipImage(KisTextBrushesPipe::renderChar(m_text, m_font));
            return;
        }
        setBrushTipImage(m_brushesPipe->firstBrush()->brushTipImage());
    }
    else { /* if (brushType() == MASK)*/
        setBrushTipImage(KisTextBrushesPipe::renderChar(m_text, m_font));
    }

    resetOutlineCache();
    setValid(true);
}

References KisBrush::brushType(), KisTextBrushesPipe::firstBrush(), KIS_ASSERT_RECOVER, m_brushesPipe, m_font, m_text, MASK, PIPE_MASK, KisTextBrushesPipe::renderChar(), KisBrush::resetOutlineCache(), KisBrush::setBrushTipImage(), KisBrush::setBrushType(), KisTextBrushesPipe::setText(), and KoResource::setValid().

Member Data Documentation

◆ m_brushesPipe

KisTextBrushesPipe* KisTextBrush::m_brushesPipe

private

Definition at line 70 of file kis_text_brush.h.

◆ m_font

QFont KisTextBrush::m_font

private

Definition at line 66 of file kis_text_brush.h.

◆ m_text

QString KisTextBrush::m_text

private

Definition at line 67 of file kis_text_brush.h.

The documentation for this class was generated from the following files:

libs/brush/kis_text_brush.h
libs/brush/kis_text_brush.cpp

Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ KisTextBrush() [1/2]

◆ KisTextBrush() [2/2]

◆ ~KisTextBrush()

Member Function Documentation

◆ brushIndex()

◆ clone()

◆ font()

◆ generateMaskAndApplyMaskOrCreateDab()

◆ isEphemeral()

◆ loadFromDevice()

◆ maskHeight()

◆ maskWidth()

◆ notifyStrokeStarted()

◆ operator=()

◆ paintDevice()

◆ pipeMode()

◆ prepareForSeqNo()

◆ saveToDevice()

◆ setAngle()

◆ setFont()

◆ setPipeMode()

◆ setScale()

◆ setSpacing()

◆ setText()

◆ text()

◆ toXML()

◆ updateBrush()

Member Data Documentation

◆ m_brushesPipe

◆ m_font

◆ m_text
