KisToolPolyLineFactoryBase Class Reference

#include <KisSelectionToolFactoryBase.h>

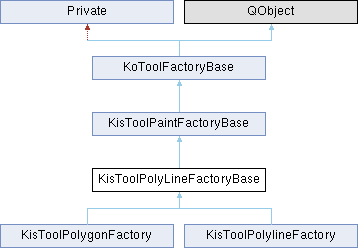

Inheritance diagram for KisToolPolyLineFactoryBase:

Public Member Functions
	KisToolPolyLineFactoryBase (const QString &id)
	~KisToolPolyLineFactoryBase () override
Public Member Functions inherited from KisToolPaintFactoryBase
	KisToolPaintFactoryBase (const QString &id)
	~KisToolPaintFactoryBase () override
Public Member Functions inherited from KoToolFactoryBase
QString	activationShapeId () const
QList< QAction * >	createActions (KisKActionCollection *actionCollection)
virtual KoToolBase *	createTool (KoCanvasBase *canvas)=0
QString	iconName () const
QString	id () const
	KoToolFactoryBase (const QString &id)
int	priority () const
	Private (const QString &i)
QString	section () const
QKeySequence	shortcut () const
QString	toolTip () const
virtual	~KoToolFactoryBase ()

Protected Member Functions
QList< QAction * >	createActionsImpl () override
	createActionsImpl should be reimplemented if the tool needs any actions. The actions should have a valid objectName().
Protected Member Functions inherited from KoToolFactoryBase
void	setActivationShapeId (const QString &activationShapeId)
void	setIconName (const char *iconName)
void	setIconName (const QString &iconName)
void	setPriority (int newPriority)
void	setSection (const QString &section)
void	setShortcut (const QKeySequence &shortcut)
void	setToolTip (const QString &tooltip)

Additional Inherited Members
Public Attributes inherited from KoToolFactoryBase
QString	activationId
QString	iconName
const QString	id
int	priority
QString	section
QKeySequence	shortcut
QString	tooltip

Detailed Description

Definition at line 22 of file KisSelectionToolFactoryBase.h.

Constructor & Destructor Documentation

KisToolPolyLineFactoryBase()

KisToolPolyLineFactoryBase::KisToolPolyLineFactoryBase ( const QString & id )

explicit

Definition at line 32 of file KisSelectionToolFactoryBase.cpp.

    : KisToolPaintFactoryBase(id)
{
}

~KisToolPolyLineFactoryBase()

KisToolPolyLineFactoryBase::~KisToolPolyLineFactoryBase ( )

override

Definition at line 37 of file KisSelectionToolFactoryBase.cpp.

{

}

Member Function Documentation

createActionsImpl()

QList< QAction * > KisToolPolyLineFactoryBase::createActionsImpl ( )

overrideprotectedvirtual

createActionsImpl should be reimplemented if the tool needs any actions. The actions should have a valid objectName().

Returns

the list of actions this tool wishes to be available.

Reimplemented from KisToolPaintFactoryBase.

Definition at line 42 of file KisSelectionToolFactoryBase.cpp.

{
    KisActionRegistry *actionRegistry = KisActionRegistry::instance();
    QList<QAction *> actions = KisToolPaintFactoryBase::createActionsImpl();

    actions << actionRegistry->makeQAction("undo_polygon_selection", this);
    actions << actionRegistry->makeQAction("selection_tool_mode_add", this);

    return actions;
}

References KisToolPaintFactoryBase::createActionsImpl(), KisActionRegistry::instance(), and KisActionRegistry::makeQAction().

---

The documentation for this class was generated from the following files:

• libs/ui/tool/KisSelectionToolFactoryBase.h
• libs/ui/tool/KisSelectionToolFactoryBase.cpp
