#include <KoBasicHistogramProducers.h>

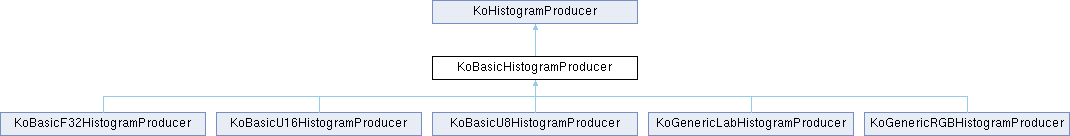

Inheritance diagram for KoBasicHistogramProducer:

Public Member Functions
QList< KoChannelInfo * >	channels () override

void	clear () override

qint32	count () override

qint32	getBinAt (int channel, int position) override

const KoID &	id () const override

	KoBasicHistogramProducer (const KoID &id, int channelCount, int nrOfBins)

	KoBasicHistogramProducer (const KoID &id, int nrOfBins, const KoColorSpace *colorSpace)

qint32	numberOfBins () override

qint32	outOfViewLeft (int channel) override

qint32	outOfViewRight (int channel) override

void	setView (qreal from, qreal size) override

qreal	viewFrom () const override

qreal	viewWidth () const override

	~KoBasicHistogramProducer () override

Public Member Functions inherited from KoHistogramProducer
virtual void	addRegionToBin (const quint8 pixels, const quint8 selectionMask, quint32 nPixels, const KoColorSpace *colorSpace)=0

virtual qint32	getBinAt (qint32 channel, qint32 position)=0

	KoHistogramProducer ()

virtual qreal	maximalZoom () const =0

virtual qint32	outOfViewLeft (qint32 channel)=0

virtual qint32	outOfViewRight (qint32 channel)=0

virtual QString	positionToString (qreal pos) const =0

virtual void	setSkipTransparent (bool set)

virtual void	setSkipUnselected (bool set)

virtual	~KoHistogramProducer ()

Protected Types
typedef QVector< quint32 >	vBins

Protected Member Functions
virtual int	externalToInternal (int ext)

void	makeExternalToInternal ()

Protected Attributes
QVector< vBins >	m_bins

int	m_channels

const KoColorSpace *	m_colorSpace

qint32	m_count

QVector< qint32 >	m_external

qreal	m_from

KoID	m_id

int	m_nrOfBins

vBins	m_outLeft

vBins	m_outRight

qreal	m_width

Protected Attributes inherited from KoHistogramProducer
bool	m_skipTransparent

bool	m_skipUnselected

Detailed Description

Definition at line 21 of file KoBasicHistogramProducers.h.

Member Typedef Documentation

◆ vBins

typedef QVector<quint32> KoBasicHistogramProducer::vBins

protected

Definition at line 81 of file KoBasicHistogramProducers.h.

Constructor & Destructor Documentation

◆ KoBasicHistogramProducer() [1/2]

KoBasicHistogramProducer::KoBasicHistogramProducer	(	const KoID &	id,
		int	channelCount,
		int	nrOfBins )

explicit

Definition at line 24 of file KoBasicHistogramProducers.cpp.

    : m_channels(channelCount)
    , m_nrOfBins(nrOfBins)
    , m_colorSpace(0)
    , m_id(id)
{
    m_bins.resize(m_channels);
    for (int i = 0; i < m_channels; i++)
        m_bins[i].resize(m_nrOfBins);
    m_outLeft.resize(m_channels);
    m_outRight.resize(m_channels);
    m_count = 0;
    m_from = 0.0;
    m_width = 1.0;
}

References m_bins, m_channels, m_count, m_from, m_nrOfBins, m_outLeft, m_outRight, and m_width.

◆ KoBasicHistogramProducer() [2/2]

KoBasicHistogramProducer::KoBasicHistogramProducer	(	const KoID &	id,
		int	nrOfBins,
		const KoColorSpace *	colorSpace )

explicit

Definition at line 40 of file KoBasicHistogramProducers.cpp.

    : m_nrOfBins(nrOfBins),
      m_colorSpace(cs),
      m_id(id)
{
    Q_ASSERT(cs);
    m_channels = cs->channelCount();

    m_bins.resize(m_channels);
    for (int i = 0; i < m_channels; i++)
        m_bins[i].resize(m_nrOfBins);
    m_outLeft.resize(m_channels);
    m_outRight.resize(m_channels);
    m_count = 0;
    m_from = 0.0;
    m_width = 1.0;
}

References KoColorSpace::channelCount(), m_bins, m_channels, m_count, m_from, m_nrOfBins, m_outLeft, m_outRight, and m_width.

◆ ~KoBasicHistogramProducer()

KoBasicHistogramProducer::~KoBasicHistogramProducer ( )

inlineoverride

Definition at line 26 of file KoBasicHistogramProducers.h.

26{}

Member Function Documentation

◆ channels()

QList< KoChannelInfo * > KoBasicHistogramProducer::channels ( )

inlineoverridevirtual

Implements KoHistogramProducer.

Reimplemented in KoGenericRGBHistogramProducer, and KoGenericLabHistogramProducer.

Definition at line 37 of file KoBasicHistogramProducers.h.

                                               {
        return m_colorSpace->channels();
    }

◆ clear()

void KoBasicHistogramProducer::clear ( )

overridevirtual

Clears the data in this producer, but keeps its other settings

Implements KoHistogramProducer.

Definition at line 59 of file KoBasicHistogramProducers.cpp.

{
    m_count = 0;
    for (int i = 0; i < m_channels; i++) {
        for (int j = 0; j < m_nrOfBins; j++) {
            m_bins[i][j] = 0;
        }
        m_outRight[i] = 0;
        m_outLeft[i] = 0;
    }
}

References m_bins, m_channels, m_count, m_nrOfBins, m_outLeft, and m_outRight.

◆ count()

qint32 KoBasicHistogramProducer::count ( )

inlineoverridevirtual

Implements KoHistogramProducer.

Definition at line 50 of file KoBasicHistogramProducers.h.

                            {
        return m_count;
    }

◆ externalToInternal()

virtual int KoBasicHistogramProducer::externalToInternal ( int ext )

inlineprotectedvirtual

The order in which channels() returns is not the same as the internal representation, that of the pixel internally. This method converts external usage to internal usage. This method uses some basic assumptions about the layout of the pixel, so extremely exotic spaces might want to override this (see makeExternalToInternal source for those assumptions)

Definition at line 74 of file KoBasicHistogramProducers.h.

                                            {
        if (channels().count() > 0 && m_external.count() == 0) // Set up the translation table
            makeExternalToInternal();
        return m_external.at(ext);
    }

References KoHistogramProducer::channels(), and KoHistogramProducer::count().

◆ getBinAt()

qint32 KoBasicHistogramProducer::getBinAt	(	int	channel,
		int	position )

inlineoverride

Definition at line 54 of file KoBasicHistogramProducers.h.

                                                        {
        return m_bins.at(externalToInternal(channel)).at(position);
    }

◆ id()

const KoID & KoBasicHistogramProducer::id ( ) const

inlineoverridevirtual

Implements KoHistogramProducer.

Definition at line 34 of file KoBasicHistogramProducers.h.

                                    {
        return m_id;
    }

◆ makeExternalToInternal()

void KoBasicHistogramProducer::makeExternalToInternal ( )

protected

Definition at line 71 of file KoBasicHistogramProducers.cpp.

{
    // This function assumes that the pixel is has no 'gaps'. That is to say: if we start
    // at byte 0, we can get to the end of the pixel by adding consecutive size()s of
    // the channels
    QList<KoChannelInfo *> c = channels();
    uint count = c.count();
    int currentPos = 0;

    for (uint i = 0; i < count; i++) {
        for (uint j = 0; j < count; j++) {
            if (c[j]->pos() == currentPos) {
                m_external.append(j);
                break;
            }
        }
        currentPos += c.at(m_external.at(m_external.count() - 1))->size();
    }
}

References channels(), count(), and m_external.

◆ numberOfBins()

qint32 KoBasicHistogramProducer::numberOfBins ( )

inlineoverridevirtual

Implements KoHistogramProducer.

Definition at line 40 of file KoBasicHistogramProducers.h.

                                   {
        return m_nrOfBins;
    }

◆ outOfViewLeft()

qint32 KoBasicHistogramProducer::outOfViewLeft ( int channel )

inlineoverride

Definition at line 58 of file KoBasicHistogramProducers.h.

                                               {
        return m_outLeft.at(externalToInternal(channel));
    }

◆ outOfViewRight()

qint32 KoBasicHistogramProducer::outOfViewRight ( int channel )

inlineoverride

Definition at line 62 of file KoBasicHistogramProducers.h.

                                                {
        return m_outRight.at(externalToInternal(channel));
    }

◆ setView()

void KoBasicHistogramProducer::setView	(	qreal	from,
		qreal	size )

inlineoverridevirtual

Implements KoHistogramProducer.

Definition at line 30 of file KoBasicHistogramProducers.h.

                                                  {
        m_from = from; m_width = size;
    }

◆ viewFrom()

qreal KoBasicHistogramProducer::viewFrom ( ) const

inlineoverridevirtual

Implements KoHistogramProducer.

Definition at line 43 of file KoBasicHistogramProducers.h.

                                    {
        return m_from;
    }

◆ viewWidth()

qreal KoBasicHistogramProducer::viewWidth ( ) const

inlineoverridevirtual

Implements KoHistogramProducer.

Definition at line 46 of file KoBasicHistogramProducers.h.

                                     {
        return m_width;
    }

Member Data Documentation

◆ m_bins

QVector<vBins> KoBasicHistogramProducer::m_bins

protected

Definition at line 82 of file KoBasicHistogramProducers.h.

◆ m_channels

int KoBasicHistogramProducer::m_channels

protected

Definition at line 86 of file KoBasicHistogramProducers.h.

◆ m_colorSpace

const KoColorSpace* KoBasicHistogramProducer::m_colorSpace

protected

Definition at line 87 of file KoBasicHistogramProducers.h.

◆ m_count

qint32 KoBasicHistogramProducer::m_count

protected

Definition at line 85 of file KoBasicHistogramProducers.h.

◆ m_external

QVector<qint32> KoBasicHistogramProducer::m_external

protected

Definition at line 89 of file KoBasicHistogramProducers.h.

◆ m_from

qreal KoBasicHistogramProducer::m_from

protected

Definition at line 84 of file KoBasicHistogramProducers.h.

◆ m_id

KoID KoBasicHistogramProducer::m_id

protected

Definition at line 88 of file KoBasicHistogramProducers.h.

◆ m_nrOfBins

int KoBasicHistogramProducer::m_nrOfBins

protected

Definition at line 86 of file KoBasicHistogramProducers.h.

◆ m_outLeft

vBins KoBasicHistogramProducer::m_outLeft

protected

Definition at line 83 of file KoBasicHistogramProducers.h.

◆ m_outRight

vBins KoBasicHistogramProducer::m_outRight

protected

Definition at line 83 of file KoBasicHistogramProducers.h.

◆ m_width

qreal KoBasicHistogramProducer::m_width

protected

Definition at line 84 of file KoBasicHistogramProducers.h.

The documentation for this class was generated from the following files:

libs/pigment/KoBasicHistogramProducers.h
libs/pigment/KoBasicHistogramProducers.cpp
