KoColorConversionGrayAToAlphaTransformation< gray_channel_type, alpha_channel_type > Class Template Reference

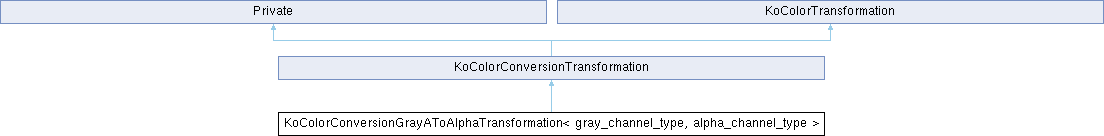

Inheritance diagram for KoColorConversionGrayAToAlphaTransformation< gray_channel_type, alpha_channel_type >:

Public Member Functions
	KoColorConversionGrayAToAlphaTransformation (const KoColorSpace *srcCs, const KoColorSpace *dstCs, Intent renderingIntent, ConversionFlags conversionFlags)
void	transform (const quint8 *src, quint8 *dst, qint32 nPixels) const override
Public Member Functions inherited from KoColorConversionTransformation
ConversionFlags	conversionFlags () const
const KoColorSpace *	dstColorSpace () const
bool	isValid () const override
	KoColorConversionTransformation (const KoColorSpace *srcCs, const KoColorSpace *dstCs, Intent renderingIntent, ConversionFlags conversionFlags)
Intent	renderingIntent () const
const KoColorSpace *	srcColorSpace () const
void	transformInPlace (const quint8 *src, quint8 *dst, qint32 nPixels) const
	~KoColorConversionTransformation () override
Public Member Functions inherited from Private
	Private (KisCanvas2 *c)
Public Member Functions inherited from KoColorTransformation
virtual int	parameterId (const QString &name) const
virtual QList< QString >	parameters () const
virtual void	setParameter (int id, const QVariant &parameter)
void	setParameters (const QHash< QString, QVariant > &parameters)
virtual	~KoColorTransformation ()

Additional Inherited Members
Public Types inherited from KoColorConversionTransformation
enum	ConversionFlag {   Empty = 0x0 , NoOptimization = 0x0100 , GamutCheck = 0x1000 , SoftProofing = 0x4000 ,   BlackpointCompensation = 0x2000 , NoWhiteOnWhiteFixup = 0x0004 , HighQuality = 0x0400 , LowQuality = 0x0800 ,   CopyAlpha = 0x04000000 , NoAdaptationAbsoluteIntent = 01000000 }
enum	Intent { IntentPerceptual = 0 , IntentRelativeColorimetric = 1 , IntentSaturation = 2 , IntentAbsoluteColorimetric = 3 }
Static Public Member Functions inherited from KoColorConversionTransformation
static ConversionFlags	adjustmentConversionFlags ()
static Intent	adjustmentRenderingIntent ()
static ConversionFlags	internalConversionFlags ()
static Intent	internalRenderingIntent ()
Public Attributes inherited from KoColorConversionTransformation
ConversionFlags	conversionFlags
const KoColorSpace *	dstColorSpace
Intent	renderingIntent
const KoColorSpace *	srcColorSpace
Public Attributes inherited from Private
KisCanvas2 *	canvas
int	displayedFrame
int	intendedFrame

Detailed Description

template<typename gray_channel_type, typename alpha_channel_type>
class KoColorConversionGrayAToAlphaTransformation< gray_channel_type, alpha_channel_type >

Definition at line 226 of file KoColorConversionAlphaTransformation.cpp.

Constructor & Destructor Documentation

KoColorConversionGrayAToAlphaTransformation()

template<typename gray_channel_type , typename alpha_channel_type >

KoColorConversionGrayAToAlphaTransformation< gray_channel_type, alpha_channel_type >::KoColorConversionGrayAToAlphaTransformation ( const KoColorSpace * srcCs, const KoColorSpace * dstCs, Intent renderingIntent, ConversionFlags conversionFlags )

inline

Definition at line 229 of file KoColorConversionAlphaTransformation.cpp.

        : KoColorConversionTransformation(srcCs, dstCs, renderingIntent, conversionFlags)
    {
    }

Member Function Documentation

transform()

template<typename gray_channel_type , typename alpha_channel_type >

void KoColorConversionGrayAToAlphaTransformation< gray_channel_type, alpha_channel_type >::transform ( const quint8 * src, quint8 * dst, qint32 nPixels ) const

inlineoverridevirtual

perform the color conversion between two buffers. Make sure that src is not the same as dst!

Parameters

nPixels

the number of pixels in the buffers.

Implements KoColorConversionTransformation.

Definition at line 237 of file KoColorConversionAlphaTransformation.cpp.

    {
        const gray_channel_type *srcPtr = reinterpret_cast<const gray_channel_type*>(src);
        alpha_channel_type *dstPtr = reinterpret_cast<alpha_channel_type*>(dst);

        while (nPixels > 0) {
            *dstPtr = KoColorSpaceMaths<gray_channel_type, alpha_channel_type>::scaleToA(
                        KoColorSpaceMaths<gray_channel_type>::multiply(srcPtr[0], srcPtr[1]));

            srcPtr += 2;
            dstPtr++;
            nPixels --;
        }
    }

References KoColorSpaceMaths< _T, _Tdst >::scaleToA().

---

The documentation for this class was generated from the following file:

• libs/pigment/KoColorConversionAlphaTransformation.cpp
