KoColorDisplayRendererInterface Class Reference

#include <KoColorDisplayRendererInterface.h>

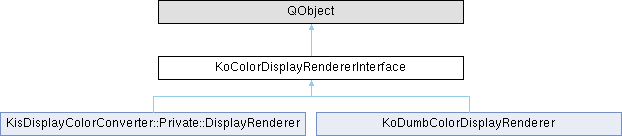

Inheritance diagram for KoColorDisplayRendererInterface:

Signals
void	displayConfigurationChanged ()

Public Member Functions
virtual KoColor	approximateFromRenderedQColor (const QColor &c) const =0
virtual KoColor	fromHsv (int h, int s, int v, int a=255) const =0
virtual void	getHsv (const KoColor &srcColor, int *h, int *s, int *v, int *a=0) const =0
virtual const KoColorSpace *	getPaintingColorSpace () const =0
	getColorSpace
	KoColorDisplayRendererInterface ()
virtual qreal	maxVisibleFloatValue (const KoChannelInfo *chaninfo) const =0
virtual qreal	minVisibleFloatValue (const KoChannelInfo *chaninfo) const =0
virtual QColor	toQColor (const KoColor &c, bool proofToPaintColors=false) const =0
virtual QImage	toQImage (const KoColorSpace *srcColorSpace, const quint8 *data, QSize size, bool proofPaintColors=false) const =0
	Convert a consecutive block of pixel data to an ARGB32 QImage.
	~KoColorDisplayRendererInterface () override

Detailed Description

A special interface class provided by pigment to let widgets render a KoColor on screen using custom profiling provided by the user.

If you want to provide your own rendering of the KoColor on screen, reimplement this class and provide its instance to a supporting widget.

Definition at line 26 of file KoColorDisplayRendererInterface.h.

Constructor & Destructor Documentation

KoColorDisplayRendererInterface()

KoColorDisplayRendererInterface::KoColorDisplayRendererInterface

(

)

Definition at line 18 of file KoColorDisplayRendererInterface.cpp.

{
}

~KoColorDisplayRendererInterface()

KoColorDisplayRendererInterface::~KoColorDisplayRendererInterface ( )

override

Definition at line 22 of file KoColorDisplayRendererInterface.cpp.

{
}

Member Function Documentation

approximateFromRenderedQColor()

virtual KoColor KoColorDisplayRendererInterface::approximateFromRenderedQColor ( const QColor & c ) const

pure virtual

This tries to approximate a rendered QColor into the KoColor of the painting color space. Please note, that in most of the cases the exact reverse transformation does not exist, so the resulting color will be only a rough approximation. Never try to do a round trip like that:

// r will never be equal to c! r = approximateFromRenderedQColor(toQColor(c));

Implemented in KoDumbColorDisplayRenderer, and KisDisplayColorConverter::Private::DisplayRenderer.

displayConfigurationChanged

void KoColorDisplayRendererInterface::displayConfigurationChanged ( )

signal

fromHsv()

virtual KoColor KoColorDisplayRendererInterface::fromHsv ( int h, int s, int v, int a = 255 ) const

pure virtual

Implemented in KisDisplayColorConverter::Private::DisplayRenderer, and KoDumbColorDisplayRenderer.

getHsv()

virtual void KoColorDisplayRendererInterface::getHsv ( const KoColor & srcColor, int * h, int * s, int * v, int * a = 0 ) const

pure virtual

Implemented in KisDisplayColorConverter::Private::DisplayRenderer, and KoDumbColorDisplayRenderer.

getPaintingColorSpace()

virtual const KoColorSpace * KoColorDisplayRendererInterface::getPaintingColorSpace ( ) const

pure virtual

getColorSpace

Returns

the painting color space, this is useful for determining the transform.

Implemented in KoDumbColorDisplayRenderer, and KisDisplayColorConverter::Private::DisplayRenderer.

maxVisibleFloatValue()

virtual qreal KoColorDisplayRendererInterface::maxVisibleFloatValue ( const KoChannelInfo * chaninfo ) const

pure virtual

Returns

the maximum value of a floating point channel that can be seen on screen. In normal situation it is 1.0. When the user changes exposure the value varies.

Implemented in KoDumbColorDisplayRenderer, and KisDisplayColorConverter::Private::DisplayRenderer.

minVisibleFloatValue()

virtual qreal KoColorDisplayRendererInterface::minVisibleFloatValue ( const KoChannelInfo * chaninfo ) const

pure virtual

Returns

the minimum value of a floating point channel that can be seen on screen

Implemented in KoDumbColorDisplayRenderer, and KisDisplayColorConverter::Private::DisplayRenderer.

toQColor()

virtual QColor KoColorDisplayRendererInterface::toQColor ( const KoColor & c, bool proofToPaintColors = false ) const

pure virtual

Convert the color c to a custom QColor that will be displayed by the widget on screen. Please note, that the reverse conversion may simply not exist.

Parameters

proofPaintColors

optionally adjust the color data to painting gamut first

Implemented in KoDumbColorDisplayRenderer, and KisDisplayColorConverter::Private::DisplayRenderer.

toQImage()

virtual QImage KoColorDisplayRendererInterface::toQImage ( const KoColorSpace * srcColorSpace, const quint8 * data, QSize size, bool proofPaintColors = false ) const

pure virtual

Convert a consecutive block of pixel data to an ARGB32 QImage.

Parameters

srcColorSpace	the colorspace the pixel data is in
data	a pointer to a byte array with color data; must cover the requested image size
size	defines the dimensions of the resulting image
proofPaintColors	optionally adjust the color data to painting gamut first

Returns

a QImage that can be displayed

Implemented in KoDumbColorDisplayRenderer, and KisDisplayColorConverter::Private::DisplayRenderer.

---

The documentation for this class was generated from the following files:

• libs/pigment/KoColorDisplayRendererInterface.h
• libs/pigment/KoColorDisplayRendererInterface.cpp
