#include <KoDerivedResourceConverter.h>

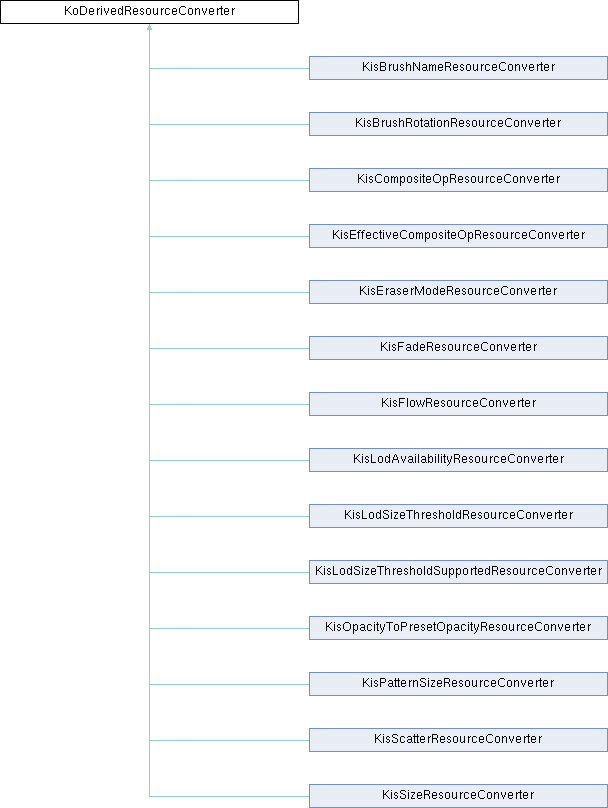

Inheritance diagram for KoDerivedResourceConverter:

Classes
struct	Private

Public Member Functions
int	key () const

	KoDerivedResourceConverter (int key, int sourceKey)

virtual bool	notifySourceChanged (const QVariant &sourceValue)

QVariant	readFromSource (const QVariant &value)

int	sourceKey () const

QVariant	writeToSource (const QVariant &value, const QVariant &sourceValue, bool *changed)

virtual	~KoDerivedResourceConverter ()

Protected Member Functions
virtual QVariant	fromSource (const QVariant &value)=0

virtual QVariant	toSource (const QVariant &value, const QVariant &sourceValue)=0

Private Attributes
const QScopedPointer< Private >	m_d

Detailed Description

Defines the abstraction of a derived resource. It should be uploaded to the KoResourceManager during the loading phase. The manager will use it to convert values to/from the source resource.

"Derived" resources are the resources that do not exist themselves. Instead they are contained in some other resources and are updated synchronously with the parent resources as well.

E.g. we store opacity and composite op and opacity in the current paintop preset, which is also a resource. So composite op and opacity are "derived" resources.

The main goal of this class is to make our resources comply with a general Model-View-Controller architecture:

Model: KisPaintOpPreset. It stores opacity, composite op, eraser mode and other "global" properties.

Controller: KoCanvasResourceManager. It controls access to the resources and emits notification signals when they are changed.

View: KisPaintOpBox and other classes that show the resources on screen

Please take into account that according to the MVC design all the access to the model resources should be performed through the controller.

Definition at line 47 of file KoDerivedResourceConverter.h.

Constructor & Destructor Documentation

◆ KoDerivedResourceConverter()

KoDerivedResourceConverter::KoDerivedResourceConverter	(	int	key,
		int	sourceKey )

Parameters

key	the unique id of the resource defined by this converter
sourceKey	the id of the parent resource, i.e. where the values are really loaded/saved.

Definition at line 25 of file KoDerivedResourceConverter.cpp.

    : m_d(new Private(key, sourceKey))
{
}

◆ ~KoDerivedResourceConverter()

KoDerivedResourceConverter::~KoDerivedResourceConverter ( )

virtual

Definition at line 30 of file KoDerivedResourceConverter.cpp.

31{

32}

Member Function Documentation

◆ fromSource()

virtual QVariant KoDerivedResourceConverter::fromSource ( const QVariant & value )

protectedpure virtual

Converts the value of the source resource into the space of the "derived" resource. E.g. preset -> opacity.

Implemented in KisCompositeOpResourceConverter, KisEffectiveCompositeOpResourceConverter, KisOpacityToPresetOpacityResourceConverter, KisFlowResourceConverter, KisFadeResourceConverter, KisScatterResourceConverter, KisSizeResourceConverter, KisBrushRotationResourceConverter, KisPatternSizeResourceConverter, KisLodAvailabilityResourceConverter, KisLodSizeThresholdResourceConverter, KisLodSizeThresholdSupportedResourceConverter, KisEraserModeResourceConverter, and KisBrushNameResourceConverter.

◆ key()

int KoDerivedResourceConverter::key ( ) const

Definition at line 34 of file KoDerivedResourceConverter.cpp.

{
    return m_d->key;
}

References m_d.

◆ notifySourceChanged()

bool KoDerivedResourceConverter::notifySourceChanged ( const QVariant & sourceValue )

virtual

Definition at line 44 of file KoDerivedResourceConverter.cpp.

{
    const QVariant newValue = fromSource(sourceValue);

    const bool valueChanged = m_d->lastKnownValue != newValue || m_d->invisibleChangeHappened;
    m_d->lastKnownValue = newValue;
    m_d->invisibleChangeHappened = false;

    return valueChanged;
}

References fromSource(), and m_d.

◆ readFromSource()

QVariant KoDerivedResourceConverter::readFromSource ( const QVariant & value )

Definition at line 55 of file KoDerivedResourceConverter.cpp.

{
    const QVariant result = fromSource(sourceValue);
    m_d->invisibleChangeHappened |= result != m_d->lastKnownValue;
    m_d->lastKnownValue = result;
    return m_d->lastKnownValue;
}

References fromSource(), and m_d.

◆ sourceKey()

int KoDerivedResourceConverter::sourceKey ( ) const

Definition at line 39 of file KoDerivedResourceConverter.cpp.

{
    return m_d->sourceKey;
}

References m_d.

◆ toSource()

virtual QVariant KoDerivedResourceConverter::toSource	(	const QVariant &	value,
		const QVariant &	sourceValue )

protectedpure virtual

Converts the value of the "derived" resource into the space of the original ("source") resource. E.g. opacity -> preset.

Implemented in KisCompositeOpResourceConverter, KisEffectiveCompositeOpResourceConverter, KisOpacityToPresetOpacityResourceConverter, KisFlowResourceConverter, KisFadeResourceConverter, KisScatterResourceConverter, KisSizeResourceConverter, KisBrushRotationResourceConverter, KisPatternSizeResourceConverter, KisLodAvailabilityResourceConverter, KisLodSizeThresholdResourceConverter, KisLodSizeThresholdSupportedResourceConverter, KisEraserModeResourceConverter, and KisBrushNameResourceConverter.

◆ writeToSource()

QVariant KoDerivedResourceConverter::writeToSource	(	const QVariant &	value,
		const QVariant &	sourceValue,
		bool *	changed )

Some resources may be immutable, that is, writing to them will not alter the value. Example: size property of the Shape Brush (always 1.0)

Definition at line 63 of file KoDerivedResourceConverter.cpp.

{
    QVariant newSourceValue = sourceValue;
    const bool hasChanged = m_d->lastKnownValue != value || m_d->invisibleChangeHappened;
    m_d->invisibleChangeHappened = false;

    if (hasChanged || value != fromSource(sourceValue)) {
        newSourceValue = toSource(value, sourceValue);
        m_d->lastKnownValue = fromSource(newSourceValue);
    }
    if (changed) {
        *changed = hasChanged;
    }
    return newSourceValue;
}

References fromSource(), m_d, toSource(), and value().

Member Data Documentation

◆ m_d

const QScopedPointer<Private> KoDerivedResourceConverter::m_d

private

Definition at line 85 of file KoDerivedResourceConverter.h.

The documentation for this class was generated from the following files:

libs/flake/KoDerivedResourceConverter.h
libs/flake/KoDerivedResourceConverter.cpp
