KoDockFactoryBase Class Reference

#include <KoDockFactoryBase.h>

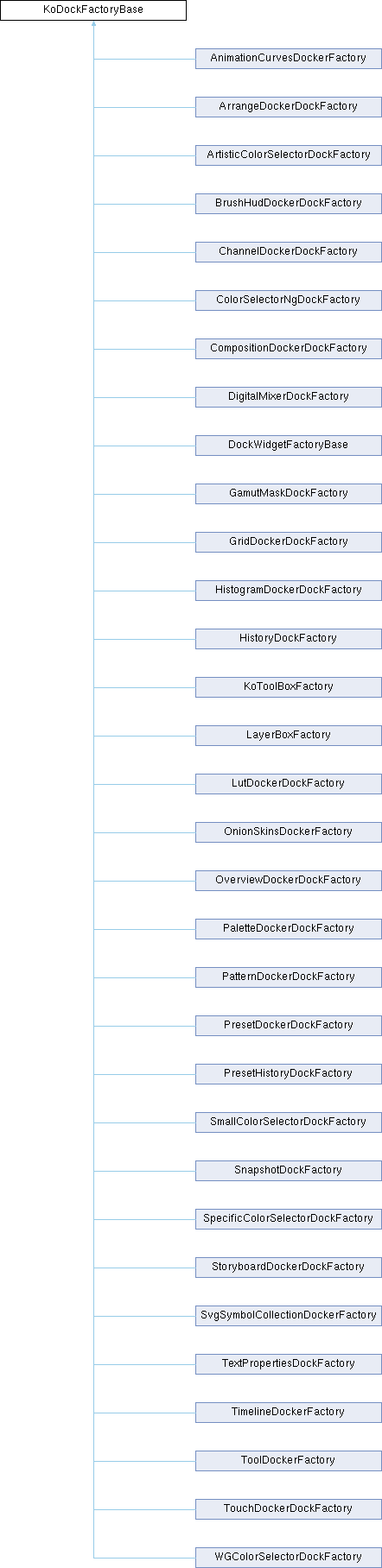

Inheritance diagram for KoDockFactoryBase:

Public Types
enum	DockPosition {   DockTornOff , DockTop , DockBottom , DockRight ,   DockLeft , DockMinimized }

Public Member Functions
virtual QDockWidget *	createDockWidget ()=0
virtual DockPosition	defaultDockPosition () const =0
virtual QString	id () const =0
	KoDockFactoryBase ()
virtual int	priority () const
virtual	~KoDockFactoryBase ()

Static Public Attributes
static constexpr int	DEFAULT_PRIORITY = 100
static constexpr int	HIGHEST_PRIORITY = 0

Detailed Description

Base class for factories used to create new dock widgets.

See also

KoDockRegistry

KoCanvasObserverBase

Definition at line 21 of file KoDockFactoryBase.h.

Member Enumeration Documentation

DockPosition

enum KoDockFactoryBase::DockPosition

Enumerator
DockTornOff	Floating as its own top level window.
DockTop	Above the central widget.
DockBottom	Below the central widget.
DockRight	Right of the centra widget.
DockLeft	Left of the centra widget.
DockMinimized	Not docked, but reachable via the menu.

Definition at line 27 of file KoDockFactoryBase.h.

                      {
        DockTornOff,
        DockTop,
        DockBottom,
        DockRight,
        DockLeft,
        DockMinimized
    };

Constructor & Destructor Documentation

KoDockFactoryBase()

KoDockFactoryBase::KoDockFactoryBase

(

)

Definition at line 9 of file KoDockFactoryBase.cpp.

{
}

~KoDockFactoryBase()

KoDockFactoryBase::~KoDockFactoryBase ( )

virtual

Definition at line 13 of file KoDockFactoryBase.cpp.

{
}

Member Function Documentation

createDockWidget()

virtual QDockWidget * KoDockFactoryBase::createDockWidget ( )

pure virtual

Creates the dock widget

Returns

the created dock widget

Implemented in ToolDockerFactory, KoToolBoxFactory, ColorSelectorNgDockFactory, TimelineDockerFactory, OnionSkinsDockerFactory, AnimationCurvesDockerFactory, ArrangeDockerDockFactory, ArtisticColorSelectorDockFactory, BrushHudDockerDockFactory, ChannelDockerDockFactory, CompositionDockerDockFactory, DigitalMixerDockFactory, GamutMaskDockFactory, GridDockerDockFactory, HistogramDockerDockFactory, HistoryDockFactory, LayerBoxFactory, LutDockerDockFactory, OverviewDockerDockFactory, PaletteDockerDockFactory, PatternDockerDockFactory, PresetDockerDockFactory, PresetHistoryDockFactory, SmallColorSelectorDockFactory, SnapshotDockFactory, SpecificColorSelectorDockFactory, StoryboardDockerDockFactory, SvgSymbolCollectionDockerFactory, TextPropertiesDockFactory, TouchDockerDockFactory, and WGColorSelectorDockFactory.

defaultDockPosition()

virtual DockPosition KoDockFactoryBase::defaultDockPosition ( ) const

pure virtual

Returns

the dock widget area the widget should appear in by default

Implemented in DockWidgetFactoryBase, ToolDockerFactory, KoToolBoxFactory, ColorSelectorNgDockFactory, TimelineDockerFactory, OnionSkinsDockerFactory, AnimationCurvesDockerFactory, ArrangeDockerDockFactory, ArtisticColorSelectorDockFactory, BrushHudDockerDockFactory, ChannelDockerDockFactory, CompositionDockerDockFactory, DigitalMixerDockFactory, GamutMaskDockFactory, GridDockerDockFactory, HistogramDockerDockFactory, HistoryDockFactory, LayerBoxFactory, LutDockerDockFactory, OverviewDockerDockFactory, PaletteDockerDockFactory, PatternDockerDockFactory, PresetDockerDockFactory, PresetHistoryDockFactory, SmallColorSelectorDockFactory, SnapshotDockFactory, SpecificColorSelectorDockFactory, StoryboardDockerDockFactory, SvgSymbolCollectionDockerFactory, TextPropertiesDockFactory, TouchDockerDockFactory, and WGColorSelectorDockFactory.

id()

virtual QString KoDockFactoryBase::id ( ) const

pure virtual

Returns

the id of the dock widget

Implemented in DockWidgetFactoryBase, ToolDockerFactory, KoToolBoxFactory, ColorSelectorNgDockFactory, TimelineDockerFactory, OnionSkinsDockerFactory, AnimationCurvesDockerFactory, ArrangeDockerDockFactory, ArtisticColorSelectorDockFactory, BrushHudDockerDockFactory, ChannelDockerDockFactory, CompositionDockerDockFactory, DigitalMixerDockFactory, GamutMaskDockFactory, GridDockerDockFactory, HistogramDockerDockFactory, HistoryDockFactory, LayerBoxFactory, LutDockerDockFactory, OverviewDockerDockFactory, PaletteDockerDockFactory, PatternDockerDockFactory, PresetDockerDockFactory, PresetHistoryDockFactory, SmallColorSelectorDockFactory, SnapshotDockFactory, SpecificColorSelectorDockFactory, StoryboardDockerDockFactory, SvgSymbolCollectionDockerFactory, TextPropertiesDockFactory, TouchDockerDockFactory, and WGColorSelectorDockFactory.

priority()

virtual int KoDockFactoryBase::priority ( ) const

inlinevirtual

Returns

the priority of the dock widget, lower numbers have higher

Definition at line 45 of file KoDockFactoryBase.h.

    {
        return DEFAULT_PRIORITY;
    }

Member Data Documentation

DEFAULT_PRIORITY

constexpr int KoDockFactoryBase::DEFAULT_PRIORITY = 100

staticconstexpr

Definition at line 24 of file KoDockFactoryBase.h.

HIGHEST_PRIORITY

constexpr int KoDockFactoryBase::HIGHEST_PRIORITY = 0

staticconstexpr

Definition at line 25 of file KoDockFactoryBase.h.

---

The documentation for this class was generated from the following files:

• libs/flake/KoDockFactoryBase.h
• libs/flake/KoDockFactoryBase.cpp
