KoInteractionStrategy Class Reference

#include <KoInteractionStrategy.h>

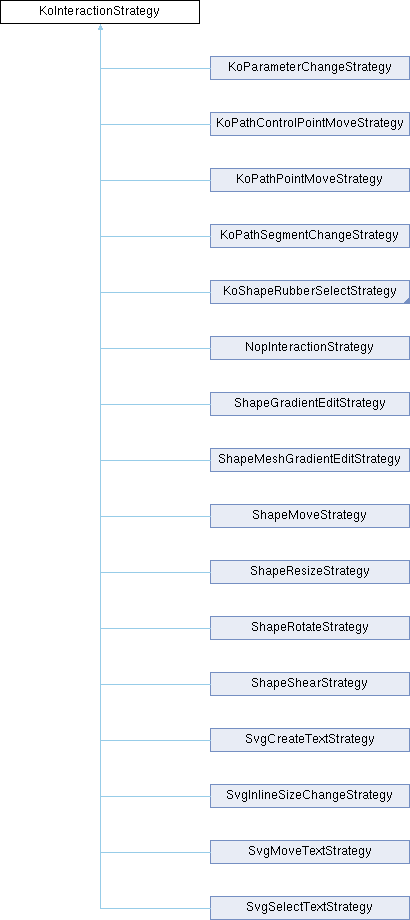

Inheritance diagram for KoInteractionStrategy:

Public Member Functions
virtual void	cancelInteraction ()
virtual KUndo2Command *	createCommand ()=0
virtual void	finishInteraction (Qt::KeyboardModifiers modifiers)=0
virtual void	handleMouseMove (const QPointF &mouseLocation, Qt::KeyboardModifiers modifiers)=0
	KoInteractionStrategy (KoToolBase *parent)
	constructor
virtual void	paint (QPainter &painter, const KoViewConverter &converter)
KoToolBase *	tool () const
virtual	~KoInteractionStrategy ()
	Destructor.

Protected Member Functions
uint	decorationThickness () const
uint	grabSensitivity () const
	Convenience function to get the global grab sensitivity.
uint	handleRadius () const
	Convenience function to get the global handle radius.
	KoInteractionStrategy (KoInteractionStrategyPrivate &)
	constructor

Protected Attributes
KoInteractionStrategyPrivate *	d_ptr

Detailed Description

Abstract interface to define what actions a KoInteractionTool can do based on the Strategy design pattern. e.g, move, select, transform.

KoInteractionStrategy is a Strategy baseclass for the KoInteractionTool and it defines the behavior in case the user clicks or drags the input device. The strategy is created in the createPolicy() function which defines the resulting behavior and initiates a move or a resize, for example. The mouseMove events are forwarded to the handleMouseMove() method and the interaction is either finished with finishInteraction() or cancelInteraction() (never both).

Definition at line 37 of file KoInteractionStrategy.h.

Constructor & Destructor Documentation

KoInteractionStrategy() [1/2]

KoInteractionStrategy::KoInteractionStrategy ( KoToolBase * parent )

explicit

constructor

Definition at line 17 of file KoInteractionStrategy.cpp.

    : d_ptr(new KoInteractionStrategyPrivate(parent))
{
}

~KoInteractionStrategy()

KoInteractionStrategy::~KoInteractionStrategy ( )

virtual

Destructor.

Definition at line 37 of file KoInteractionStrategy.cpp.

{
    delete d_ptr;
}

References d_ptr.

KoInteractionStrategy() [2/2]

KoInteractionStrategy::KoInteractionStrategy ( KoInteractionStrategyPrivate & dd )

protected

constructor

Definition at line 32 of file KoInteractionStrategy.cpp.

    : d_ptr(&dd)
{
}

Member Function Documentation

cancelInteraction()

void KoInteractionStrategy::cancelInteraction ( )

virtual

This method will undo frames based interactions by calling createCommand() and unexecuting that.

Reimplemented in KoPathPointRubberSelectStrategy, KoZoomStrategy, SelectionInteractionStrategy, SvgCreateTextStrategy, SvgInlineSizeChangeStrategy, SvgMoveTextStrategy, and SvgSelectTextStrategy.

Definition at line 22 of file KoInteractionStrategy.cpp.

{
    KUndo2Command *cmd = createCommand();
    if (cmd) {
        cmd->redo(); //some applications rely an redo being called here
        cmd->undo();
        delete cmd;
    }
}

References createCommand(), KUndo2Command::redo(), and KUndo2Command::undo().

createCommand()

virtual KUndo2Command * KoInteractionStrategy::createCommand ( )

pure virtual

For interactions that are undo-able this method should be implemented to return such a command. Implementations should return 0 otherwise.

Returns

a command, or 0.

Implemented in KoParameterChangeStrategy, KoPathControlPointMoveStrategy, KoPathPointMoveStrategy, KoPathSegmentChangeStrategy, KoShapeRubberSelectStrategy, NopInteractionStrategy, ShapeGradientEditStrategy, ShapeMeshGradientEditStrategy, ShapeMoveStrategy, ShapeResizeStrategy, ShapeRotateStrategy, ShapeShearStrategy, SvgCreateTextStrategy, SvgInlineSizeChangeStrategy, SvgMoveTextStrategy, and SvgSelectTextStrategy.

decorationThickness()

uint KoInteractionStrategy::decorationThickness ( ) const

protected

Definition at line 57 of file KoInteractionStrategy.cpp.

{
    return tool()->canvas()->resourceManager()->decorationThickness();
}

References KoToolBase::canvas(), KoCanvasBase::resourceManager, and tool().

finishInteraction()

virtual void KoInteractionStrategy::finishInteraction ( Qt::KeyboardModifiers modifiers )

pure virtual

Override to make final changes to the data on the end of an interaction.

Implemented in KoParameterChangeStrategy, KoPathControlPointMoveStrategy, KoPathPointMoveStrategy, KoPathPointRubberSelectStrategy, KoPathSegmentChangeStrategy, KoZoomStrategy, ShapeGradientEditStrategy, ShapeMeshGradientEditStrategy, ShapeMoveStrategy, ShapeResizeStrategy, ShapeRotateStrategy, ShapeShearStrategy, SvgCreateTextStrategy, SvgInlineSizeChangeStrategy, SvgMoveTextStrategy, SvgSelectTextStrategy, SelectionInteractionStrategy, and NopInteractionStrategy.

grabSensitivity()

uint KoInteractionStrategy::grabSensitivity ( ) const

protected

Convenience function to get the global grab sensitivity.

Definition at line 62 of file KoInteractionStrategy.cpp.

{
    return tool()->canvas()->shapeController()->resourceManager()->grabSensitivity();
}

References KoToolBase::canvas(), KoCanvasBase::shapeController, and tool().

handleMouseMove()

virtual void KoInteractionStrategy::handleMouseMove ( const QPointF & mouseLocation, Qt::KeyboardModifiers modifiers )

pure virtual

Extending classes should implement this method to update the selectedShapes based on the new mouse position.

Parameters

mouseLocation	the new location in pt
modifiers	OR-ed set of keys pressed.

Implemented in NopInteractionStrategy, KoParameterChangeStrategy, KoPathControlPointMoveStrategy, KoPathPointMoveStrategy, KoPathSegmentChangeStrategy, KoShapeRubberSelectStrategy, ShapeGradientEditStrategy, ShapeMeshGradientEditStrategy, ShapeMoveStrategy, ShapeResizeStrategy, ShapeRotateStrategy, ShapeShearStrategy, SvgCreateTextStrategy, SvgInlineSizeChangeStrategy, SvgMoveTextStrategy, SvgSelectTextStrategy, and KoPathPointRubberSelectStrategy.

handleRadius()

uint KoInteractionStrategy::handleRadius ( ) const

protected

Convenience function to get the global handle radius.

Definition at line 52 of file KoInteractionStrategy.cpp.

{
    return tool()->canvas()->resourceManager()->handleRadius();
}

References KoToolBase::canvas(), KoCanvasBase::resourceManager, and tool().

paint()

void KoInteractionStrategy::paint ( QPainter & painter, const KoViewConverter & converter )

virtual

Reimplement this if the action needs to draw a "blob" on the canvas; that is, a transient decoration like a rubber band.

Reimplemented in KoShapeRubberSelectStrategy, NopInteractionStrategy, SelectionInteractionStrategy, ShapeGradientEditStrategy, ShapeMoveStrategy, ShapeResizeStrategy, ShapeRotateStrategy, ShapeShearStrategy, and SvgCreateTextStrategy.

Definition at line 42 of file KoInteractionStrategy.cpp.

{
}

tool()

KoToolBase * KoInteractionStrategy::tool

(

)

const

Definition at line 46 of file KoInteractionStrategy.cpp.

{
    Q_D(const KoInteractionStrategy);
    return d->tool;
}

Member Data Documentation

d_ptr

KoInteractionStrategyPrivate* KoInteractionStrategy::d_ptr

protected

Definition at line 80 of file KoInteractionStrategy.h.

---

The documentation for this class was generated from the following files:

• libs/flake/tools/KoInteractionStrategy.h
• libs/flake/tools/KoInteractionStrategy.cpp
