#include <KoSvgTextShape.h>

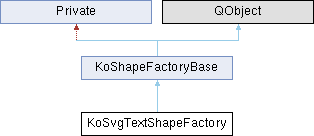

Inheritance diagram for KoSvgTextShapeFactory:

Public Member Functions
KoShape *	createDefaultShape (KoDocumentResourceManager *documentResources=0) const override

KoShape *	createShape (const KoProperties params, KoDocumentResourceManager documentResources=0) const override

	KoSvgTextShapeFactory ()
	constructor

bool	supports (const QDomElement &e, KoShapeLoadingContext &context) const override
	Reimplemented.

	~KoSvgTextShapeFactory ()

Public Member Functions inherited from KoShapeFactoryBase
virtual QList< KoShapeConfigWidgetBase * >	createShapeOptionPanels ()

QString	family () const

bool	hidden () const

QString	iconName () const

QString	id () const

	KoShapeFactoryBase (const QString &id, const QString &name, const QString &deferredPluginName=QString())

int	loadingPriority () const
	lower prio means the shape is more generic and will be checked later

QString	name () const

virtual void	newDocumentResourceManager (KoDocumentResourceManager *manager) const

QList< QPair< QString, QStringList > >	odfElements () const

	Private (const QString &_id, const QString &_name, const QString &_deferredPluginName)

QList< KoShapeTemplate >	templates () const

QString	toolTip () const

	~KoShapeFactoryBase () override

	~Private ()

Additional Inherited Members
Public Attributes inherited from KoShapeFactoryBase
KoDeferredShapeFactoryBase *	deferredFactory

QString	deferredPluginName

QString	family

bool	hidden

QString	iconName

const QString	id

int	loadingPriority

const QString	name

QMutex	pluginLoadingMutex

QList< QPointer< KoDocumentResourceManager > >	resourceManagers

QList< KoShapeTemplate >	templates

QString	tooltip

QList< QPair< QString, QStringList > >	xmlElements

Protected Member Functions inherited from KoShapeFactoryBase
void	addTemplate (const KoShapeTemplate &params)

void	setFamily (const QString &family)

void	setHidden (bool hidden)

void	setIconName (const char *iconName)

void	setLoadingPriority (int priority)

void	setToolTip (const QString &tooltip)

void	setXmlElementNames (const QString &nameSpace, const QStringList &elementNames)

void	setXmlElements (const QList< QPair< QString, QStringList > > &elementNamesList)

Detailed Description

Definition at line 804 of file KoSvgTextShape.h.

Constructor & Destructor Documentation

◆ KoSvgTextShapeFactory()

KoSvgTextShapeFactory::KoSvgTextShapeFactory ( )

constructor

Definition at line 2614 of file KoSvgTextShape.cpp.

    : KoShapeFactoryBase(KoSvgTextShape_SHAPEID, i18nc("Text label in SVG Text Tool", "Text"))
{
    setToolTip(i18n("SVG Text Shape"));
    setIconName(koIconNameCStr("x-shape-text"));
    setLoadingPriority(5);
    setXmlElementNames(KoXmlNS::svg, QStringList("text"));

    KoShapeTemplate t;
    t.name = i18n("SVG Text");
    t.iconName = koIconName("x-shape-text");
    t.toolTip = i18n("SVG Text Shape");
    addTemplate(t);
}

References KoShapeFactoryBase::addTemplate(), KoShapeTemplate::iconName, koIconName, koIconNameCStr, KoShapeTemplate::name, KoShapeFactoryBase::setIconName(), KoShapeFactoryBase::setLoadingPriority(), KoShapeFactoryBase::setToolTip(), KoShapeFactoryBase::setXmlElementNames(), KoXmlNS::svg, and KoShapeTemplate::toolTip.

◆ ~KoSvgTextShapeFactory()

KoSvgTextShapeFactory::~KoSvgTextShapeFactory ( )

inline

Definition at line 810 of file KoSvgTextShape.h.

810{}

Member Function Documentation

◆ createDefaultShape()

KoShape * KoSvgTextShapeFactory::createDefaultShape ( KoDocumentResourceManager * documentResources = 0 ) const

overridevirtual

This method should be implemented by factories to create a shape that the user gets when doing a base insert. For example from a script. The created shape should have its values set to good defaults that the user can then adjust further if needed. Including the KoShape:setShapeId(), with the Id from this factory The default shape position is not relevant, it will be moved by the caller.

Parameters

documentResources the resources manager that has all the document wide resources which can be used to create the object.

Returns: a new shape

See also: createShape() newDocumentResourceManager()

Reimplemented from KoShapeFactoryBase.

Definition at line 2629 of file KoSvgTextShape.cpp.

{
    Q_UNUSED(documentResources);
    debugFlake << "Create default svg text shape";

    KoSvgTextShape *shape = new KoSvgTextShape();
    shape->setShapeId(KoSvgTextShape_SHAPEID);
    shape->insertText(0, i18nc("Default text for the text shape", "Placeholder Text"));

    return shape;
}

References debugFlake, KoSvgTextShape::insertText(), KoSvgTextShape_SHAPEID, and KoShape::setShapeId().

◆ createShape()

KoShape * KoSvgTextShapeFactory::createShape	(	const KoProperties *	params,
		KoDocumentResourceManager *	documentResources = 0 ) const

overridevirtual

This method should be implemented by factories to create a shape based on a set of properties that are specifically made for this shape-type. This method should also set this factories shapeId on the shape using KoShape::setShapeId() The default implementation just ignores 'params' and calls createDefaultShape()

Returns: a new shape

Parameters

params	the parameters to use when creating the shape
documentResources	the resources manager that has all the document wide resources which can be used to create the object.

See also: createDefaultShape() newDocumentResourceManager() addTemplate(); KoShapeTemplate::properties

Reimplemented from KoShapeFactoryBase.

Definition at line 2641 of file KoSvgTextShape.cpp.

{
    KoSvgTextShape *shape = new KoSvgTextShape();
    shape->setShapeId(KoSvgTextShape_SHAPEID);

    QString svgText = params->stringProperty("svgText", i18nc("Default text for the text shape", "<text>Placeholder Text</text>"));
    QString defs = params->stringProperty("defs" , "<defs/>");
    QRectF shapeRect = QRectF(0, 0, 200, 60);
    QVariant rect = params->property("shapeRect");
    QVariant origin = params->property("origin");

#if QT_VERSION < QT_VERSION_CHECK(6, 0, 0)
    if (rect.type()==QVariant::RectF) {
#else
    if (rect.typeId() == QMetaType::QRectF) {
#endif
        shapeRect = rect.toRectF();
    }

    KoSvgTextShapeMarkupConverter converter(shape);
    converter.convertFromSvg(svgText,
                             defs,
                             shapeRect,
                             documentResources->documentResolution());
#if QT_VERSION < QT_VERSION_CHECK(6, 0, 0)
    if (origin.type() == QVariant::PointF) {
#else
    if (origin.typeId() == QMetaType::QPointF) {
#endif
        shape->setPosition(origin.toPointF());
    } else {
        shape->setPosition(shapeRect.topLeft());
    }
    shape->setPaintOrder(KoShape::Stroke, KoShape::Fill);

    return shape;
}
