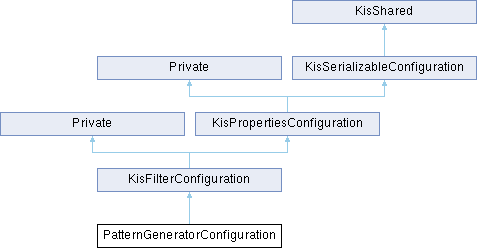

Inheritance diagram for PatternGeneratorConfiguration:

Public Member Functions
virtual KisFilterConfigurationSP	clone () const override

QList< KoResourceLoadResult >	linkedResources (KisResourcesInterfaceSP globalResourcesInterface) const override

KoPatternSP	pattern () const

KoResourceLoadResult	pattern (KisResourcesInterfaceSP resourcesInterface) const

	PatternGeneratorConfiguration (const PatternGeneratorConfiguration &rhs)

	PatternGeneratorConfiguration (const QString &name, qint32 version, KisResourcesInterfaceSP resourcesInterface)

QTransform	transform () const

Public Member Functions inherited from KisFilterConfiguration
QBitArray	channelFlags () const

KisFilterConfigurationSP	cloneWithResourcesSnapshot (KisResourcesInterfaceSP globalResourcesInterface=nullptr) const

virtual bool	compareTo (const KisPropertiesConfiguration *rhs) const override

void	createLocalResourcesSnapshot (KisResourcesInterfaceSP globalResourcesInterface=nullptr)

virtual QList< KoResourceLoadResult >	embeddedResources (KisResourcesInterfaceSP globalResourcesInterface) const

virtual void	fromLegacyXML (const QDomElement &)

void	fromXML (const QDomElement &) override

void	fromXML (const QDomElement &) override

bool	fromXML (const QString &xml, bool clear=true) override

bool	hasLocalResourcesSnapshot () const

virtual bool	isCompatible (const KisPaintDeviceSP) const

	KisFilterConfiguration (const QString &name, qint32 version, KisResourcesInterfaceSP resourcesInterface)

const QString &	name () const

	Private (const Private &rhs)

	Private (const QString &_name, qint32 _version, KisResourcesInterfaceSP _resourcesInterface)

QList< KoResourceLoadResult >	requiredResources (KisResourcesInterfaceSP globalResourcesInterface) const

KisResourcesInterfaceSP	resourcesInterface () const

void	setChannelFlags (QBitArray channelFlags)

virtual void	setResourcesInterface (KisResourcesInterfaceSP resourcesInterface)

QString	toXML () const override

void	toXML (QDomDocument &, QDomElement &) const override

void	toXML (QDomDocument &, QDomElement &) const override

qint32	version () const

	~KisFilterConfiguration () override

Public Member Functions inherited from Private
	Private (KisCanvas2 *c)

Public Member Functions inherited from KisPropertiesConfiguration
void	clearProperties ()
	Clear the map of properties.

virtual void	dump () const

void	fromXML (const QDomElement &) override

bool	fromXML (const QString &xml, bool clear=true) override

bool	getBool (const QString &name, bool def=false) const

KoColor	getColor (const QString &name, const KoColor &color=KoColor()) const
	getColor fetch the given property as a KoColor.

KisCubicCurve	getCubicCurve (const QString &name, const KisCubicCurve &curve=KisCubicCurve()) const

double	getDouble (const QString &name, double def=0.0) const

float	getFloat (const QString &name, float def=0.0) const

int	getInt (const QString &name, int def=0) const

void	getPrefixedProperties (const QString &prefix, KisPropertiesConfiguration *config) const

void	getPrefixedProperties (const QString &prefix, KisPropertiesConfigurationSP config) const

virtual QMap< QString, QVariant >	getProperties () const

virtual QList< QString >	getPropertiesKeys () const

virtual QVariant	getProperty (const QString &name) const

virtual bool	getProperty (const QString &name, QVariant &value) const

QString	getPropertyLazy (const QString &name, const char *defaultValue) const

QStringList	getPropertyLazy (const QString &name, const QStringList &defaultValue) const

template<typename T >
T	getPropertyLazy (const QString &name, const T &defaultValue) const

QString	getString (const QString &name, const QString &def=QString()) const

QStringList	getStringList (const QString &name, const QStringList &defaultValue=QStringList()) const

virtual bool	hasProperty (const QString &name) const

	KisPropertiesConfiguration ()

	KisPropertiesConfiguration (const KisPropertiesConfiguration &rhs)

KisPropertiesConfiguration &	operator= (const KisPropertiesConfiguration &rhs)

void	removeProperty (const QString &name)

void	setPrefixedProperties (const QString &prefix, const KisPropertiesConfiguration *config)

void	setPrefixedProperties (const QString &prefix, const KisPropertiesConfigurationSP config)

void	setProperty (const QString &name, const QStringList &value)

virtual void	setProperty (const QString &name, const QVariant &value)

void	setPropertyNotSaved (const QString &name)
	Marks a property that should not be saved by toXML.

QString	toXML () const override

void	toXML (QDomDocument &, QDomElement &) const override

	~KisPropertiesConfiguration () override

Public Member Functions inherited from KisSerializableConfiguration
	KisSerializableConfiguration ()

	KisSerializableConfiguration (const KisSerializableConfiguration &rhs)

virtual	~KisSerializableConfiguration ()

Public Member Functions inherited from KisShared
bool	deref ()

bool	ref ()

int	refCount ()

QAtomicInt *	sharedWeakReference ()

Additional Inherited Members
Static Public Member Functions inherited from KisPropertiesConfiguration
static QString	escapeString (const QString &string)

static QString	extractedPrefixKey ()

static QString	unescapeString (const QString &string)

Public Attributes inherited from KisFilterConfiguration
QBitArray	channelFlags

QString	name

KisResourcesInterfaceSP	resourcesInterface = 0

qint32	version

Public Attributes inherited from Private
KisCanvas2 *	canvas

int	displayedFrame

int	intendedFrame

Public Attributes inherited from KisPropertiesConfiguration
QSet< QString >	notSavedProperties

QMap< QString, QVariant >	properties

Protected Member Functions inherited from KisFilterConfiguration
	KisFilterConfiguration (const KisFilterConfiguration &rhs)

void	setVersion (qint32 version)

Protected Member Functions inherited from KisShared
	KisShared ()

	~KisShared ()

Detailed Description

Definition at line 55 of file patterngenerator.cpp.

Constructor & Destructor Documentation

◆ PatternGeneratorConfiguration() [1/2]

PatternGeneratorConfiguration::PatternGeneratorConfiguration	(	const QString &	name,
		qint32	version,
		KisResourcesInterfaceSP	resourcesInterface )

inline

Definition at line 58 of file patterngenerator.cpp.

        : KisFilterConfiguration(name, version, resourcesInterface)
    {
    }

◆ PatternGeneratorConfiguration() [2/2]

PatternGeneratorConfiguration::PatternGeneratorConfiguration ( const PatternGeneratorConfiguration & rhs )

inline

Definition at line 63 of file patterngenerator.cpp.

        : KisFilterConfiguration(rhs)
    {
    }

Member Function Documentation

◆ clone()

virtual KisFilterConfigurationSP PatternGeneratorConfiguration::clone ( ) const

inlineoverridevirtual

Returns: an exact copy of the filter configuration. Resources interface is becomes shared between two configuration objects.

Reimplemented from KisFilterConfiguration.

Definition at line 68 of file patterngenerator.cpp.

                                                            {
        return new PatternGeneratorConfiguration(*this);
    }

References PatternGeneratorConfiguration().

◆ linkedResources()

QList< KoResourceLoadResult > PatternGeneratorConfiguration::linkedResources ( KisResourcesInterfaceSP globalResourcesInterface ) const

inlineoverridevirtual

Returns: all the resources that are needed but (*this) filter and are not embedded into it. The resources are fetched from globalResourcesInterface. If fetching of some resources is failed, then (*this) filter is invalid.

Reimplemented from KisFilterConfiguration.

Definition at line 185 of file patterngenerator.cpp.

    {
        return {pattern(globalResourcesInterface)};
    }

References pattern().

◆ pattern() [1/2]

KoPatternSP PatternGeneratorConfiguration::pattern ( ) const

inline

Definition at line 82 of file patterngenerator.cpp.

                                {
        return pattern(resourcesInterface()).resource<KoPattern>();
    }

References pattern(), and KisFilterConfiguration::resourcesInterface.

◆ pattern() [2/2]

KoResourceLoadResult PatternGeneratorConfiguration::pattern ( KisResourcesInterfaceSP resourcesInterface ) const

inline

Definition at line 72 of file patterngenerator.cpp.

    {
        const QString patternMD5 = getString("md5sum", "");
        const QString patternName = getString("pattern", "Grid01.pat");
        const QString patternFileName = getString("fileName", "");
        auto source = resourcesInterface->source<KoPattern>(ResourceType::Patterns);
        KoResourceLoadResult res = source.bestMatchLoadResult(patternMD5, patternFileName, patternName);
        return res;
    }

References KisPropertiesConfiguration::getString(), ResourceType::Patterns, KisFilterConfiguration::resourcesInterface, and source().

◆ transform()

QTransform PatternGeneratorConfiguration::transform ( ) const

inline

Definition at line 86 of file patterngenerator.cpp.

                                 {
        const bool constrainScale = getBool("transform_keep_scale_aspect", true);
        const qreal scaleX = getDouble("transform_scale_x", 1.0);
        // Ensure that the size y component is equal to the x component if keepSizeSquare is true
        const qreal scaleY = constrainScale ? scaleX : getDouble("transform_scale_y", 1.0);
        const qreal positionX = getInt("transform_offset_x", 0);
        const qreal positionY = getInt("transform_offset_y", 0);
        const qreal shearX = getDouble("transform_shear_x", 0.0);
        const qreal shearY = getDouble("transform_shear_y", 0.0);
        const qreal rotationX = getDouble("transform_rotation_x", 0.0);
        const qreal rotationY = getDouble("transform_rotation_y", 0.0);
        const qreal rotationZ = getDouble("transform_rotation_z", 0.0);
        const bool align = getBool("transform_align_to_pixel_grid", false);
        const qint32 alignX = getInt("transform_align_to_pixel_grid_x", 1);
        const qint32 alignY = getInt("transform_align_to_pixel_grid_y", 1);

        QTransform transform;

        if (align && qFuzzyIsNull(rotationX) && qFuzzyIsNull(rotationY) && pattern()) {
            // STEP 1: compose the transformation
            transform.shear(shearX, shearY);
            transform.scale(scaleX, scaleY);
            transform.rotate(rotationZ);
            // STEP 2: transform the horizontal and vertical vectors of the
            //         "repetition rect" (which size is some multiple of the
            //         pattern size)
            const QSizeF repetitionRectSize(
                static_cast<qreal>(alignX * pattern()->width()),
                static_cast<qreal>(alignY * pattern()->height())
            );
            // u1 is the unaligned vector that goes from the origin to the top-right
            // corner of the repetition rect. u2 is the unaligned vector that
            // goes from the origin to the bottom-left corner of the repetition rect
            const QPointF u1 = transform.map(QPointF(repetitionRectSize.width(), 0.0));
            const QPointF u2 = transform.map(QPointF(0.0, repetitionRectSize.height()));
            // STEP 3: align the transformed vectors to the pixel grid. v1 is
            //         the aligned version of u1 and v2 is the aligned version of u2
            QPointF v1(qRound(u1.x()), qRound(u1.y()));
            QPointF v2(qRound(u2.x()), qRound(u2.y()));
            // If the following condition is met, that means that the pattern is
            // transformed in such a way that the repetition rect corners are
            // colinear so we move v1 or v2 to a neighbor position
            if (qFuzzyCompare(v1.y() * v2.x(), v2.y() * v1.x()) &&
                !qFuzzyIsNull(v1.x() * v2.x() + v1.y() * v2.y())) {
                // Choose point to move based on distance from non aligned point to
                // aligned point
                const qreal dist1 = kisSquareDistance(u1, v1);
                const qreal dist2 = kisSquareDistance(u2, v2);
                const QPointF *p_u = dist1 > dist2 ? &u1 : &u2;
                QPointF *p_v = dist1 > dist2 ? &v1 : &v2;
                // Then we get the closest pixel aligned point to the current,
                // colinear, point
                QPair<int, qreal> dists[4]{
                    {1, kisSquareDistance(*p_u, *p_v + QPointF(0.0, -1.0))},
                    {2, kisSquareDistance(*p_u, *p_v + QPointF(1.0, 0.0))},
                    {3, kisSquareDistance(*p_u, *p_v + QPointF(0.0, 1.0))},
                    {4, kisSquareDistance(*p_u, *p_v + QPointF(-1.0, 0.0))}
                };
                std::sort(
                    std::begin(dists), std::end(dists),
                    [](const QPair<int, qreal> &a, const QPair<int, qreal> &b)
                    {
                        return a.second < b.second;
                    }
                );
                // Move the point
                if (dists[0].first == 1) {
                    p_v->setY(p_v->y() - 1.0);
                } else if (dists[0].first == 2) {
                    p_v->setX(p_v->x() + 1.0);
                } else if (dists[0].first == 3) {
                    p_v->setY(p_v->y() + 1.0);
                } else {
                    p_v->setX(p_v->x() - 1.0);
                }
            }
            // STEP 4: get the transform that maps the aligned vectors to the
            //         untransformed rect (this is in fact the inverse transform)
            QPolygonF quad;
            quad.append(QPointF(0, 0));
            quad.append(v1 / repetitionRectSize.width());
            quad.append(v1 / repetitionRectSize.width() + v2 / repetitionRectSize.height());
            quad.append(v2 / repetitionRectSize.height());
            QTransform::quadToSquare(quad, transform);
            // STEP 5: get the forward transform
            transform = transform.inverted();
            transform.translate(qRound(positionX), qRound(positionY));
        } else {
            transform.shear(shearX, shearY);
            transform.scale(scaleX, scaleY);
            transform.rotate(rotationX, Qt::XAxis);
            transform.rotate(rotationY, Qt::YAxis);
            transform.rotate(rotationZ, Qt::ZAxis);
            transform.translate(positionX, positionY);
        }

        return transform;
    }

References KisPropertiesConfiguration::getBool(), KisPropertiesConfiguration::getDouble(), KisPropertiesConfiguration::getInt(), kisSquareDistance(), pattern(), qFuzzyCompare(), qFuzzyIsNull(), and transform().

The documentation for this class was generated from the following file:

plugins/generators/pattern/patterngenerator.cpp

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ PatternGeneratorConfiguration() [1/2]

◆ PatternGeneratorConfiguration() [2/2]

Member Function Documentation

◆ clone()

◆ linkedResources()

◆ pattern() [1/2]

◆ pattern() [2/2]

◆ transform()
