WGSelectorWidgetBase Class Reference

#include <WGSelectorWidgetBase.h>

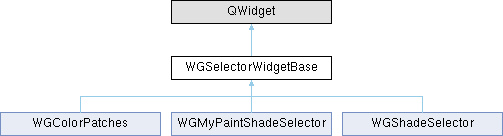

Inheritance diagram for WGSelectorWidgetBase:

Public Types
enum	UiMode { DockerMode , PopupMode }

Signals
void	sigChannelValuesChanged (const QVector4D &values)
void	sigColorInteraction (bool active)

Public Member Functions
WGSelectorDisplayConfigSP	displayConfiguration () const
const KisDisplayColorConverter *	displayConverter () const
virtual QPoint	popupOffset () const
	The position, relative to the top left corner, where the cursor of the cursor shall be when showing the popup.
virtual void	setModel (KisVisualColorModelSP model)
void	setUiMode (UiMode mode)
UiMode	uiMode () const
virtual void	updateSettings ()
	WGSelectorWidgetBase (WGSelectorDisplayConfigSP displayConfig, QWidget *parent=nullptr, UiMode uiMode=UiMode::DockerMode)

Private Attributes
QPointer< const KisDisplayColorConverter >	m_converter
WGSelectorDisplayConfigSP	m_displayConfig
UiMode	m_uiMode {DockerMode}

Detailed Description

Definition at line 36 of file WGSelectorWidgetBase.h.

Member Enumeration Documentation

UiMode

enum WGSelectorWidgetBase::UiMode

Enumerator
DockerMode
PopupMode

Definition at line 40 of file WGSelectorWidgetBase.h.

                {
        DockerMode,
        PopupMode
    };

Constructor & Destructor Documentation

WGSelectorWidgetBase()

WGSelectorWidgetBase::WGSelectorWidgetBase ( WGSelectorDisplayConfigSP displayConfig, QWidget * parent = nullptr, WGSelectorWidgetBase::UiMode uiMode = UiMode::DockerMode )

explicit

Definition at line 41 of file WGSelectorWidgetBase.cpp.

    : QWidget(parent)
    , m_displayConfig(displayConfig)
    , m_uiMode(uiMode)
{

}

Member Function Documentation

displayConfiguration()

WGSelectorDisplayConfigSP WGSelectorWidgetBase::displayConfiguration

(

)

const

Definition at line 59 of file WGSelectorWidgetBase.cpp.

{
    return m_displayConfig;
}

References m_displayConfig.

displayConverter()

const KisDisplayColorConverter * WGSelectorWidgetBase::displayConverter

(

)

const

Definition at line 64 of file WGSelectorWidgetBase.cpp.

{
    return m_displayConfig ? m_displayConfig->displayConverter() : KisDisplayColorConverter::dumbConverterInstance();
}

References KisDisplayColorConverter::dumbConverterInstance(), and m_displayConfig.

popupOffset()

QPoint WGSelectorWidgetBase::popupOffset ( ) const

virtual

The position, relative to the top left corner, where the cursor of the cursor shall be when showing the popup.

The default implementation returns the widget center.

Returns

desired cursor position relative to the top left corner

Reimplemented in WGColorPatches.

Definition at line 69 of file WGSelectorWidgetBase.cpp.

{
    return QPoint(width()/2, height()/2);
}

setModel()

void WGSelectorWidgetBase::setModel ( KisVisualColorModelSP model )

virtual

Reimplemented in WGShadeSelector, and WGMyPaintShadeSelector.

Definition at line 74 of file WGSelectorWidgetBase.cpp.

{
    Q_UNUSED(model);
}

setUiMode()

void WGSelectorWidgetBase::setUiMode

(

WGSelectorWidgetBase::UiMode

mode

)

Definition at line 54 of file WGSelectorWidgetBase.cpp.

{
    m_uiMode = mode;
}

References m_uiMode.

sigChannelValuesChanged

void WGSelectorWidgetBase::sigChannelValuesChanged ( const QVector4D & values )

signal

sigColorInteraction

void WGSelectorWidgetBase::sigColorInteraction ( bool active )

signal

uiMode()

WGSelectorWidgetBase::UiMode WGSelectorWidgetBase::uiMode

(

)

const

Definition at line 49 of file WGSelectorWidgetBase.cpp.

{
    return m_uiMode;
}

References m_uiMode.

updateSettings()

void WGSelectorWidgetBase::updateSettings ( )

virtual

Reimplemented in WGColorPatches, and WGShadeSelector.

Definition at line 79 of file WGSelectorWidgetBase.cpp.

{

}

Member Data Documentation

m_converter

QPointer<const KisDisplayColorConverter> WGSelectorWidgetBase::m_converter

private

Definition at line 65 of file WGSelectorWidgetBase.h.

m_displayConfig

WGSelectorDisplayConfigSP WGSelectorWidgetBase::m_displayConfig

private

Definition at line 66 of file WGSelectorWidgetBase.h.

m_uiMode

UiMode WGSelectorWidgetBase::m_uiMode {DockerMode}

private

Definition at line 67 of file WGSelectorWidgetBase.h.

{DockerMode};

---

The documentation for this class was generated from the following files:

• plugins/dockers/widegamutcolorselector/WGSelectorWidgetBase.h
• plugins/dockers/widegamutcolorselector/WGSelectorWidgetBase.cpp
