#include <kis_color_transformation_configuration.h>

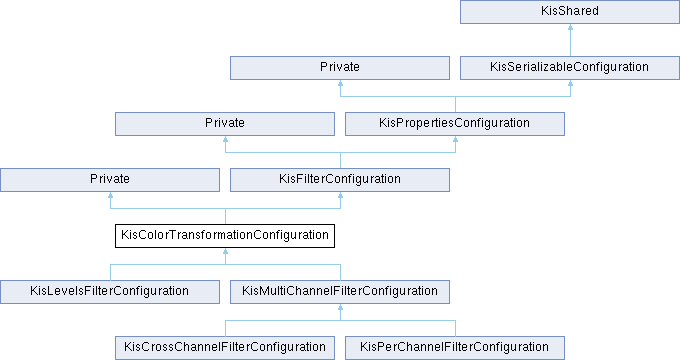

Inheritance diagram for KisColorTransformationConfiguration:

Public Member Functions
KisFilterConfigurationSP	clone () const override

KoColorTransformation *	colorTransformation (const KoColorSpace cs, const KisColorTransformationFilter filter) const

void	destroyCache ()

void	invalidateColorTransformationCache ()
	Manually invalidate the cache. By default setProperty invalidates the cache but this method can be used in subclasses when setProperty is not used to set options. This forces the regeneration of the color transforms.

	KisColorTransformationConfiguration (const KisColorTransformationConfiguration &rhs)

	KisColorTransformationConfiguration (const QString &name, qint32 version, KisResourcesInterfaceSP resourcesInterface)

	Private ()

void	setProperty (const QString &name, const QVariant &value) override

	~KisColorTransformationConfiguration () override

	~Private ()

Public Member Functions inherited from Private
	Private (KisCanvas2 *c)

Public Member Functions inherited from KisFilterConfiguration
QBitArray	channelFlags () const

KisFilterConfigurationSP	cloneWithResourcesSnapshot (KisResourcesInterfaceSP globalResourcesInterface=nullptr) const

virtual bool	compareTo (const KisPropertiesConfiguration *rhs) const override

void	createLocalResourcesSnapshot (KisResourcesInterfaceSP globalResourcesInterface=nullptr)

virtual QList< KoResourceLoadResult >	embeddedResources (KisResourcesInterfaceSP globalResourcesInterface) const

virtual void	fromLegacyXML (const QDomElement &)

void	fromXML (const QDomElement &) override

void	fromXML (const QDomElement &) override

bool	fromXML (const QString &xml, bool clear=true) override

bool	hasLocalResourcesSnapshot () const

virtual bool	isCompatible (const KisPaintDeviceSP) const

	KisFilterConfiguration (const QString &name, qint32 version, KisResourcesInterfaceSP resourcesInterface)

virtual QList< KoResourceLoadResult >	linkedResources (KisResourcesInterfaceSP globalResourcesInterface) const

const QString &	name () const

	Private (const Private &rhs)

	Private (const QString &_name, qint32 _version, KisResourcesInterfaceSP _resourcesInterface)

QList< KoResourceLoadResult >	requiredResources (KisResourcesInterfaceSP globalResourcesInterface) const

KisResourcesInterfaceSP	resourcesInterface () const

void	setChannelFlags (QBitArray channelFlags)

virtual void	setResourcesInterface (KisResourcesInterfaceSP resourcesInterface)

QString	toXML () const override

void	toXML (QDomDocument &, QDomElement &) const override

void	toXML (QDomDocument &, QDomElement &) const override

qint32	version () const

	~KisFilterConfiguration () override

Public Member Functions inherited from KisPropertiesConfiguration
void	clearProperties ()
	Clear the map of properties.

virtual void	dump () const

void	fromXML (const QDomElement &) override

bool	fromXML (const QString &xml, bool clear=true) override

bool	getBool (const QString &name, bool def=false) const

KoColor	getColor (const QString &name, const KoColor &color=KoColor()) const
	getColor fetch the given property as a KoColor.

KisCubicCurve	getCubicCurve (const QString &name, const KisCubicCurve &curve=KisCubicCurve()) const

double	getDouble (const QString &name, double def=0.0) const

float	getFloat (const QString &name, float def=0.0) const

int	getInt (const QString &name, int def=0) const

void	getPrefixedProperties (const QString &prefix, KisPropertiesConfiguration *config) const

void	getPrefixedProperties (const QString &prefix, KisPropertiesConfigurationSP config) const

virtual QMap< QString, QVariant >	getProperties () const

virtual QList< QString >	getPropertiesKeys () const

virtual QVariant	getProperty (const QString &name) const

virtual bool	getProperty (const QString &name, QVariant &value) const

QString	getPropertyLazy (const QString &name, const char *defaultValue) const

QStringList	getPropertyLazy (const QString &name, const QStringList &defaultValue) const

template<typename T >
T	getPropertyLazy (const QString &name, const T &defaultValue) const

QString	getString (const QString &name, const QString &def=QString()) const

QStringList	getStringList (const QString &name, const QStringList &defaultValue=QStringList()) const

virtual bool	hasProperty (const QString &name) const

	KisPropertiesConfiguration ()

	KisPropertiesConfiguration (const KisPropertiesConfiguration &rhs)

KisPropertiesConfiguration &	operator= (const KisPropertiesConfiguration &rhs)

void	removeProperty (const QString &name)

void	setPrefixedProperties (const QString &prefix, const KisPropertiesConfiguration *config)

void	setPrefixedProperties (const QString &prefix, const KisPropertiesConfigurationSP config)

void	setProperty (const QString &name, const QStringList &value)

void	setPropertyNotSaved (const QString &name)
	Marks a property that should not be saved by toXML.

QString	toXML () const override

void	toXML (QDomDocument &, QDomElement &) const override

	~KisPropertiesConfiguration () override

Public Member Functions inherited from KisSerializableConfiguration
	KisSerializableConfiguration ()

	KisSerializableConfiguration (const KisSerializableConfiguration &rhs)

virtual	~KisSerializableConfiguration ()

Public Member Functions inherited from KisShared
bool	deref ()

bool	ref ()

int	refCount ()

QAtomicInt *	sharedWeakReference ()

Public Attributes
QMap< QThread , KoColorTransformation >	colorTransformation

QMutex	mutex

Public Attributes inherited from Private
KisCanvas2 *	canvas

int	displayedFrame

int	intendedFrame

Public Attributes inherited from KisFilterConfiguration
QBitArray	channelFlags

QString	name

KisResourcesInterfaceSP	resourcesInterface = 0

qint32	version

Public Attributes inherited from KisPropertiesConfiguration
QSet< QString >	notSavedProperties

QMap< QString, QVariant >	properties

Private Attributes
Private *const	d

Additional Inherited Members
Static Public Member Functions inherited from KisPropertiesConfiguration
static QString	escapeString (const QString &string)

static QString	extractedPrefixKey ()

static QString	unescapeString (const QString &string)

Protected Member Functions inherited from KisFilterConfiguration
	KisFilterConfiguration (const KisFilterConfiguration &rhs)

void	setVersion (qint32 version)

Protected Member Functions inherited from KisShared
	KisShared ()

	~KisShared ()

Detailed Description

Definition at line 15 of file kis_color_transformation_configuration.cc.

Constructor & Destructor Documentation

◆ ~Private()

KisColorTransformationConfiguration::~Private ( )

inline

Definition at line 19 of file kis_color_transformation_configuration.cc.

    {
        destroyCache();
    }

◆ KisColorTransformationConfiguration() [1/2]

KisColorTransformationConfiguration::KisColorTransformationConfiguration	(	const QString &	name,
		qint32	version,
		KisResourcesInterfaceSP	resourcesInterface )

Definition at line 36 of file kis_color_transformation_configuration.cc.

    : KisFilterConfiguration(name, version, resourcesInterface)
    , d(new Private())
{
}

◆ KisColorTransformationConfiguration() [2/2]

KisColorTransformationConfiguration::KisColorTransformationConfiguration ( const KisColorTransformationConfiguration & rhs )

Definition at line 42 of file kis_color_transformation_configuration.cc.

    : KisFilterConfiguration(rhs)
    , d(new Private())
{
}

◆ ~KisColorTransformationConfiguration()

KisColorTransformationConfiguration::~KisColorTransformationConfiguration ( )

override

Definition at line 48 of file kis_color_transformation_configuration.cc.

{
    delete d;
}

References d.

Member Function Documentation

◆ clone()

KisFilterConfigurationSP KisColorTransformationConfiguration::clone ( ) const

overridevirtual

Returns: an exact copy of the filter configuration. Resources interface is becomes shared between two configuration objects.

Reimplemented from KisFilterConfiguration.

Reimplemented in KisCrossChannelFilterConfiguration, KisPerChannelFilterConfiguration, and KisLevelsFilterConfiguration.

Definition at line 53 of file kis_color_transformation_configuration.cc.

{
    return new KisColorTransformationConfiguration(*this);
}

References KisColorTransformationConfiguration().

◆ colorTransformation()

KoColorTransformation * KisColorTransformationConfiguration::colorTransformation	(	const KoColorSpace *	cs,
		const KisColorTransformationFilter *	filter ) const

◆ destroyCache()

void KisColorTransformationConfiguration::destroyCache ( )

inline

Definition at line 24 of file kis_color_transformation_configuration.cc.

    {
        QMutexLocker locker(&mutex);
        qDeleteAll(colorTransformation);
        colorTransformation.clear();
    }

References mutex.

◆ invalidateColorTransformationCache()

void KisColorTransformationConfiguration::invalidateColorTransformationCache ( )

Manually invalidate the cache. By default setProperty invalidates the cache but this method can be used in subclasses when setProperty is not used to set options. This forces the regeneration of the color transforms.

Definition at line 82 of file kis_color_transformation_configuration.cc.

{
    d->destroyCache();
}

References d.

◆ Private()

KisColorTransformationConfiguration::Private ( )

inline

Definition at line 16 of file kis_color_transformation_configuration.cc.

17 {}

◆ setProperty()

void KisColorTransformationConfiguration::setProperty	(	const QString &	name,
		const QVariant &	value )

overridevirtual

Invalidate the cache by default when setProperty is called. This forces regenerating the color transforms also when a property of this object changes, not only when the object is copied

Reimplemented from KisPropertiesConfiguration.

Reimplemented in KisCrossChannelFilterConfiguration, KisMultiChannelFilterConfiguration, and KisLevelsFilterConfiguration.

Definition at line 63 of file kis_color_transformation_configuration.cc.

{
    KisFilterConfiguration::setProperty(name, value);
    invalidateColorTransformationCache();
}

References invalidateColorTransformationCache(), KisFilterConfiguration::name, KisPropertiesConfiguration::setProperty(), and value().

Member Data Documentation

◆ colorTransformation

KoColorTransformation * KisColorTransformationConfiguration::colorTransformation

Definition at line 32 of file kis_color_transformation_configuration.cc.

◆ d

Private* const KisColorTransformationConfiguration::d

private

Definition at line 42 of file kis_color_transformation_configuration.h.

◆ mutex

QMutex KisColorTransformationConfiguration::mutex

Definition at line 33 of file kis_color_transformation_configuration.cc.

The documentation for this class was generated from the following files:

libs/image/filter/kis_color_transformation_configuration.cc
libs/image/filter/kis_color_transformation_configuration.h
