#include <KisCurveOptionData.h>

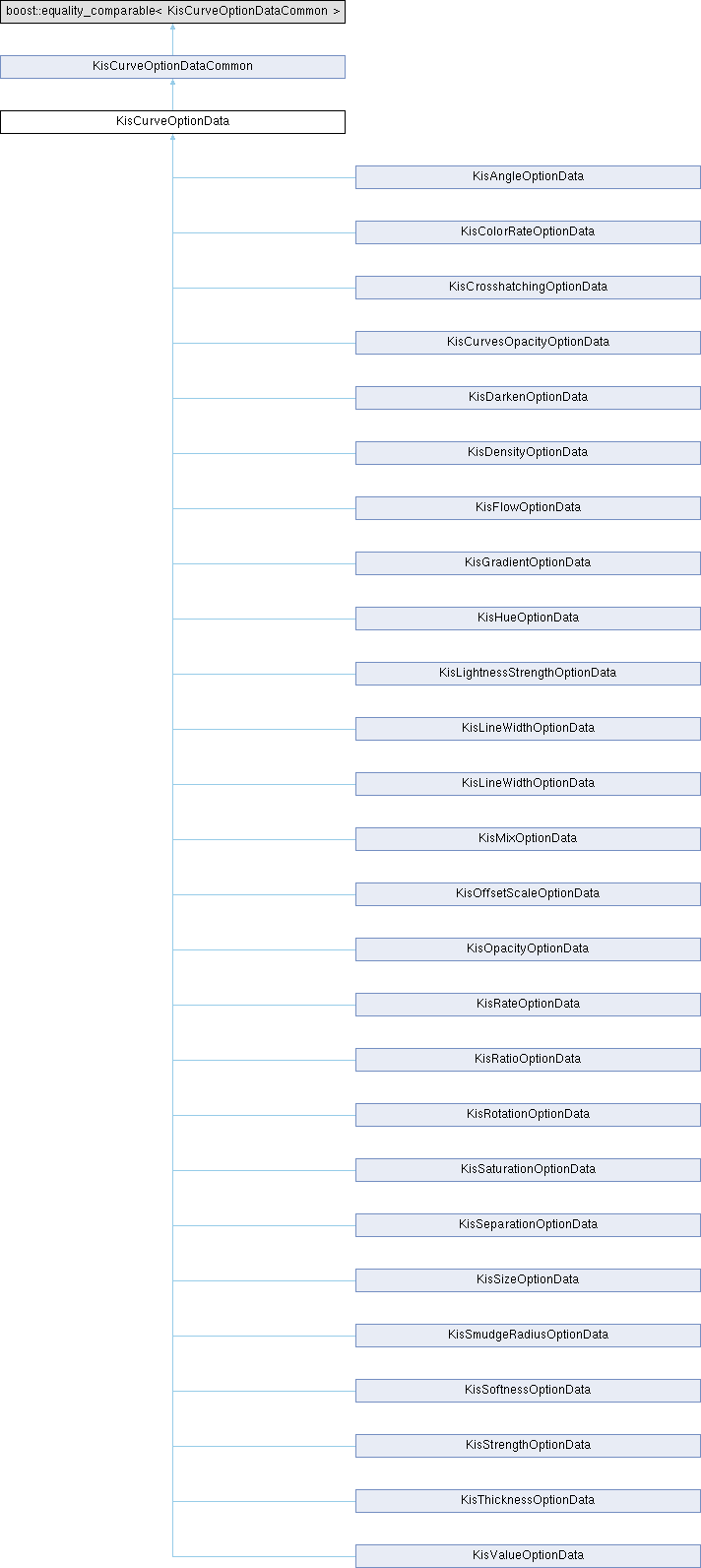

Inheritance diagram for KisCurveOptionData:

Public Types
using	Checkability = KisKritaSensorPack::Checkability

Public Types inherited from KisCurveOptionDataCommon
using	ValueFixUpReadCallback = std::function<void (KisCurveOptionDataCommon , const KisPropertiesConfiguration )>

using	ValueFixUpWriteCallback = std::function<void (qreal, KisPropertiesConfiguration *)>

Public Member Functions
	KisCurveOptionData (const KoID &id, Checkability checkability=Checkability::Checkable, std::optional< bool > isChecked=std::nullopt, const std::pair< qreal, qreal > &valueRange={0.0, 1.0})

	KisCurveOptionData (const QString &prefix, const KoID &id, Checkability checkability=Checkability::Checkable, std::optional< bool > isChecked=std::nullopt, const std::pair< qreal, qreal > &valueRange={0.0, 1.0})

KisKritaSensorData &	sensorStruct ()

const KisKritaSensorData &	sensorStruct () const

Public Member Functions inherited from KisCurveOptionDataCommon
	KisCurveOptionDataCommon (const KoID &id, bool isCheckable, bool isChecked, qreal minValue, qreal maxValue, KisSensorPackInterface *sensorInterface)

	KisCurveOptionDataCommon (const QString &prefix, const KoID &id, bool isCheckable, bool isChecked, qreal minValue, qreal maxValue, KisSensorPackInterface *sensorInterface)

bool	read (const KisPropertiesConfiguration *setting)

std::vector< KisSensorData * >	sensors ()

std::vector< const KisSensorData * >	sensors () const

void	write (KisPropertiesConfiguration *setting) const

Additional Inherited Members
Public Attributes inherited from KisCurveOptionDataCommon
QString	commonCurve = DEFAULT_CURVE_STRING

int	curveMode = 0

KoID	id

bool	isCheckable = true

bool	isChecked = true

QString	prefix

QSharedDataPointer< KisSensorPackInterface >	sensorData

qreal	strengthMaxValue = 1.0

qreal	strengthMinValue = 0.0

qreal	strengthValue = 1.0

bool	useCurve = true

bool	useSameCurve = true

ValueFixUpReadCallback	valueFixUpReadCallback

ValueFixUpWriteCallback	valueFixUpWriteCallback

Static Public Attributes inherited from KisCurveOptionDataCommon
static constexpr bool	supports_prefix = true

Detailed Description

Definition at line 14 of file KisCurveOptionData.h.

Member Typedef Documentation

◆ Checkability

using KisCurveOptionData::Checkability = KisKritaSensorPack::Checkability

Definition at line 16 of file KisCurveOptionData.h.

Constructor & Destructor Documentation

◆ KisCurveOptionData() [1/2]

KisCurveOptionData::KisCurveOptionData	(	const QString &	prefix,
		const KoID &	id,
		Checkability	checkability = Checkability::Checkable,
		std::optional< bool >	isChecked = std::nullopt,
		const std::pair< qreal, qreal > &	valueRange = {0.0, 1.0} )

When isChecked is std::nullopt, then the initial checked state is deduced from the checkability property. Non-checkable options will always be checked, checkable — unchecked

Definition at line 9 of file KisCurveOptionData.cpp.

    : KisCurveOptionDataCommon(prefix,
                               id,
                               checkability == Checkability::Checkable ||
                                   (checkability == Checkability::CheckableIfHasPrefix && !prefix.isEmpty()),
                               isChecked ? *isChecked : checkability == Checkability::NotCheckable,
                               valueRange.first,
                               valueRange.second,
                               new KisKritaSensorPack(checkability))
{
}

◆ KisCurveOptionData() [2/2]

KisCurveOptionData::KisCurveOptionData	(	const KoID &	id,
		Checkability	checkability = Checkability::Checkable,
		std::optional< bool >	isChecked = std::nullopt,
		const std::pair< qreal, qreal > &	valueRange = {0.0, 1.0} )

Definition at line 25 of file KisCurveOptionData.cpp.

    : KisCurveOptionData("", id, checkability, isChecked, valueRange)
{
}

Member Function Documentation

◆ sensorStruct() [1/2]

KisKritaSensorData & KisCurveOptionData::sensorStruct ( )

Definition at line 33 of file KisCurveOptionData.cpp.

{
    return dynamic_cast<KisKritaSensorPack *>(sensorData.data())->sensorsStruct();
}

References KisCurveOptionDataCommon::sensorData.

◆ sensorStruct() [2/2]

const KisKritaSensorData & KisCurveOptionData::sensorStruct ( ) const

Definition at line 38 of file KisCurveOptionData.cpp.

{
    return dynamic_cast<const KisKritaSensorPack*>(sensorData.constData())->constSensorsStruct();
}
