KisSuspendProjectionUpdatesStrokeStrategy::Private::StartBatchUIUpdatesCommand Struct Reference

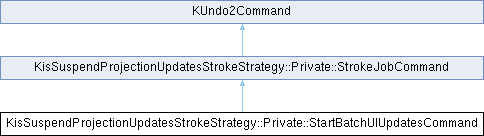

Inheritance diagram for KisSuspendProjectionUpdatesStrokeStrategy::Private::StartBatchUIUpdatesCommand:

Public Member Functions
void	redo () override
	StartBatchUIUpdatesCommand (KisSuspendProjectionUpdatesStrokeStrategy *strategy)
void	undo () override
Public Member Functions inherited from KisSuspendProjectionUpdatesStrokeStrategy::Private::StrokeJobCommand
	StrokeJobCommand (KisStrokeJobData::Sequentiality sequentiality=KisStrokeJobData::SEQUENTIAL, KisStrokeJobData::Exclusivity exclusivity=KisStrokeJobData::NORMAL)
Public Member Functions inherited from KUndo2Command
QString	actionText () const
virtual bool	canAnnihilateWith (const KUndo2Command *other) const
const KUndo2Command *	child (int index) const
int	childCount () const
virtual QTime	endTime () const
KUndo2CommandExtraData *	extraData () const
bool	hasParent () const
virtual int	id () const
virtual bool	isMerged () const
	KUndo2Command (const KUndo2MagicString &text, KUndo2Command *parent=0)
	KUndo2Command (KUndo2Command *parent=0)
virtual QVector< KUndo2Command * >	mergeCommandsVector () const
virtual bool	mergeWith (const KUndo2Command *other)
virtual void	redoMergedCommands ()
void	setEndTime ()
virtual void	setEndTime (const QTime &time)
void	setExtraData (KUndo2CommandExtraData *data)
void	setText (const KUndo2MagicString &text)
void	setTime ()
virtual void	setTime (const QTime &time)
virtual void	setTimedID (int timedID)
KUndo2MagicString	text () const
virtual QTime	time () const
virtual int	timedId () const
virtual bool	timedMergeWith (KUndo2Command *other)
virtual void	undoMergedCommands ()
virtual	~KUndo2Command ()

Public Attributes
KisSuspendProjectionUpdatesStrokeStrategy *	m_strategy
Public Attributes inherited from KisSuspendProjectionUpdatesStrokeStrategy::Private::StrokeJobCommand
KisStrokeJobData::Exclusivity	m_exclusivity
KisStrokeJobData::Sequentiality	m_sequentiality

Detailed Description

Definition at line 329 of file kis_suspend_projection_updates_stroke_strategy.cpp.

Constructor & Destructor Documentation

StartBatchUIUpdatesCommand()

KisSuspendProjectionUpdatesStrokeStrategy::Private::StartBatchUIUpdatesCommand::StartBatchUIUpdatesCommand ( KisSuspendProjectionUpdatesStrokeStrategy * strategy )

inline

Definition at line 331 of file kis_suspend_projection_updates_stroke_strategy.cpp.

            : StrokeJobCommand(KisStrokeJobData::BARRIER),
              m_strategy(strategy) {}

Member Function Documentation

redo()

void KisSuspendProjectionUpdatesStrokeStrategy::Private::StartBatchUIUpdatesCommand::redo ( )

inlineoverridevirtual

Applies a change to the document. This function must be implemented in the derived class. Calling KUndo2QStack::push(), KUndo2QStack::undo() or KUndo2QStack::redo() from this function leads to undefined behavior.

The default implementation calls redo() on all child commands.

See also

undo()

We accumulate dirty rects from all(!) epochs, because some updates of the previous epochs might have been cancelled without doing any real work.

Reimplemented from KUndo2Command.

Definition at line 335 of file kis_suspend_projection_updates_stroke_strategy.cpp.

                             {
            KisImageSP image = m_strategy->m_d->image.toStrongRef();
            KIS_SAFE_ASSERT_RECOVER_RETURN(image);

            const QVector<QRect> totalDirtyRects =
                image->enableUIUpdates() + m_strategy->m_d->accumulatedDirtyRects;

            const QRect totalRect =
                image->bounds() &
                std::accumulate(totalDirtyRects.begin(), totalDirtyRects.end(), QRect(), std::bit_or<QRect>());

            m_strategy->m_d->accumulatedDirtyRects =
                KisPaintOpUtils::splitAndFilterDabRect(totalRect,
                                                       totalDirtyRects,
                                                       KritaUtils::optimalPatchSize().width());

            image->signalRouter()->emitNotifyBatchUpdateStarted();

            QVector<KisRunnableStrokeJobDataBase*> jobsData;
            Q_FOREACH (const QRect &rc, m_strategy->m_d->accumulatedDirtyRects) {
                jobsData << new Private::UploadDataToUIData(rc, m_strategy->m_d->updatesEpoch, m_strategy);
            }

            m_strategy->runnableJobsInterface()->addRunnableJobs(jobsData);

        }

References KisRunnableStrokeJobsInterface::addRunnableJobs(), KisImage::bounds(), KisImageSignalRouter::emitNotifyBatchUpdateStarted(), KisImage::enableUIUpdates(), KisSuspendProjectionUpdatesStrokeStrategy::Private::image, KIS_SAFE_ASSERT_RECOVER_RETURN, KisSuspendProjectionUpdatesStrokeStrategy::m_d, m_strategy, KritaUtils::optimalPatchSize(), KisRunnableBasedStrokeStrategy::runnableJobsInterface(), KisImage::signalRouter(), and KisPaintOpUtils::splitAndFilterDabRect().

undo()

void KisSuspendProjectionUpdatesStrokeStrategy::Private::StartBatchUIUpdatesCommand::undo ( )

inlineoverridevirtual

Reverts a change to the document. After undo() is called, the state of the document should be the same as before redo() was called. This function must be implemented in the derived class. Calling KUndo2QStack::push(), KUndo2QStack::undo() or KUndo2QStack::redo() from this function leads to undefined behavior.

The default implementation calls undo() on all child commands in reverse order.

See also

redo()

Reimplemented from KUndo2Command.

Definition at line 366 of file kis_suspend_projection_updates_stroke_strategy.cpp.

                             {
            KisImageSP image = m_strategy->m_d->image.toStrongRef();
            KIS_SAFE_ASSERT_RECOVER_RETURN(image);

            image->signalRouter()->emitNotifyBatchUpdateEnded();
            image->disableUIUpdates();
        }

References KisImage::disableUIUpdates(), KisImageSignalRouter::emitNotifyBatchUpdateEnded(), KisSuspendProjectionUpdatesStrokeStrategy::Private::image, KIS_SAFE_ASSERT_RECOVER_RETURN, KisSuspendProjectionUpdatesStrokeStrategy::m_d, m_strategy, and KisImage::signalRouter().

Member Data Documentation

m_strategy

KisSuspendProjectionUpdatesStrokeStrategy* KisSuspendProjectionUpdatesStrokeStrategy::Private::StartBatchUIUpdatesCommand::m_strategy

Definition at line 374 of file kis_suspend_projection_updates_stroke_strategy.cpp.

---

The documentation for this struct was generated from the following file:

• libs/image/kis_suspend_projection_updates_stroke_strategy.cpp
