KisWrapAroundBoundsWrapper Class Reference

The KisWrapAroundBoundsWrapper class wrapper around a KisDefaultBoundsBaseSP to enable wraparound. Used for patterns. More...

#include <kis_default_bounds.h>

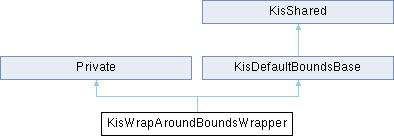

Inheritance diagram for KisWrapAroundBoundsWrapper:

Public Member Functions
QRect	bounds () const override
int	currentLevelOfDetail () const override
int	currentTime () const override
bool	externalFrameActive () const override
	KisWrapAroundBoundsWrapper (KisDefaultBoundsBaseSP base, QRect bounds)
void *	sourceCookie () const override
bool	wrapAroundMode () const override
WrapAroundAxis	wrapAroundModeAxis () const override
	~KisWrapAroundBoundsWrapper () override
Public Member Functions inherited from Private
	Private (KisCanvas2 *c)
Public Member Functions inherited from KisDefaultBoundsBase
virtual QRect	imageBorderRect () const
virtual	~KisDefaultBoundsBase ()
Public Member Functions inherited from KisShared
bool	deref ()
bool	ref ()
int	refCount ()
QAtomicInt *	sharedWeakReference ()

Public Attributes
KisDefaultBoundsBaseSP	base
QRect	bounds
Public Attributes inherited from Private
KisCanvas2 *	canvas
int	displayedFrame
int	intendedFrame

Private Attributes
const QScopedPointer< Private >	m_d

Friends
class	KisPaintDeviceTest

Additional Inherited Members
Protected Member Functions inherited from KisShared
	KisShared ()
	~KisShared ()

Detailed Description

The KisWrapAroundBoundsWrapper class wrapper around a KisDefaultBoundsBaseSP to enable wraparound. Used for patterns.

Definition at line 180 of file kis_default_bounds.cpp.

Constructor & Destructor Documentation

KisWrapAroundBoundsWrapper()

KisWrapAroundBoundsWrapper::KisWrapAroundBoundsWrapper	(	KisDefaultBoundsBaseSP	base,
		QRect	bounds )

Definition at line 186 of file kis_default_bounds.cpp.

: m_d(new Private())
{
    m_d->base = base;
    m_d->bounds = bounds;
}

References base, bounds, KisDefaultBoundsBase::bounds(), and m_d.

~KisWrapAroundBoundsWrapper()

KisWrapAroundBoundsWrapper::~KisWrapAroundBoundsWrapper ( )

override

Definition at line 193 of file kis_default_bounds.cpp.

{
}

Member Function Documentation

bounds()

QRect KisWrapAroundBoundsWrapper::bounds ( ) const

overridevirtual

Returns a virtual bounding rect of a paint device. E.g. when a paint device has non-transparent default pixel, its virtual bounds extend much wider than the actual data it contains.

This bounds rectangle should be used in all the cases when one wants to process all the non-existing pixels with default value, which may still be visible to the user.

The returned rect usually equals to the bounds of the image, except of a few special cases for selections.

Example:

KisPaintDevice adds defaultBounds->bounds() to its extent() and exactBounds() when its default pixel is non-transparent.

Implements KisDefaultBoundsBase.

currentLevelOfDetail()

int KisWrapAroundBoundsWrapper::currentLevelOfDetail ( ) const

overridevirtual

Implements KisDefaultBoundsBase.

Definition at line 212 of file kis_default_bounds.cpp.

{
    return m_d->base->currentLevelOfDetail();
}

References m_d.

currentTime()

int KisWrapAroundBoundsWrapper::currentTime ( ) const

overridevirtual

Implements KisDefaultBoundsBase.

Definition at line 217 of file kis_default_bounds.cpp.

{
    return m_d->base->currentTime();
}

References m_d.

externalFrameActive()

bool KisWrapAroundBoundsWrapper::externalFrameActive ( ) const

overridevirtual

Implements KisDefaultBoundsBase.

Definition at line 222 of file kis_default_bounds.cpp.

{
    return m_d->base->externalFrameActive();
}

References m_d.

sourceCookie()

void * KisWrapAroundBoundsWrapper::sourceCookie ( ) const

overridevirtual

Return an abstract pointer to the source object, where default bounds takes its data from. It the cookie is nullptr, then the default bounds is not connected to anything. One can also compare if two default bounds are connected to the same source by comparing two pointers.

NOTE: It is intended to be used for debugging purposes only!

Implements KisDefaultBoundsBase.

Definition at line 227 of file kis_default_bounds.cpp.

{
    return m_d->base->sourceCookie();
}

References m_d.

wrapAroundMode()

bool KisWrapAroundBoundsWrapper::wrapAroundMode ( ) const

overridevirtual

Implements KisDefaultBoundsBase.

Definition at line 202 of file kis_default_bounds.cpp.

{
    return true;
}

wrapAroundModeAxis()

WrapAroundAxis KisWrapAroundBoundsWrapper::wrapAroundModeAxis ( ) const

overridevirtual

Implements KisDefaultBoundsBase.

Definition at line 207 of file kis_default_bounds.cpp.

{
    return m_d->base->wrapAroundModeAxis();
}

References m_d.

Friends And Related Symbol Documentation

KisPaintDeviceTest

friend class KisPaintDeviceTest

friend

Definition at line 100 of file kis_default_bounds.h.

Member Data Documentation

base

KisDefaultBoundsBaseSP KisWrapAroundBoundsWrapper::base

Definition at line 182 of file kis_default_bounds.cpp.

bounds

QRect KisWrapAroundBoundsWrapper::bounds

Definition at line 183 of file kis_default_bounds.cpp.

m_d

const QScopedPointer<Private> KisWrapAroundBoundsWrapper::m_d

private

Definition at line 106 of file kis_default_bounds.h.

---

The documentation for this class was generated from the following files:

• libs/image/kis_default_bounds.cpp
• libs/image/kis_default_bounds.h
