KoCompositeOp Class Reference

#include <KoCompositeOp.h>

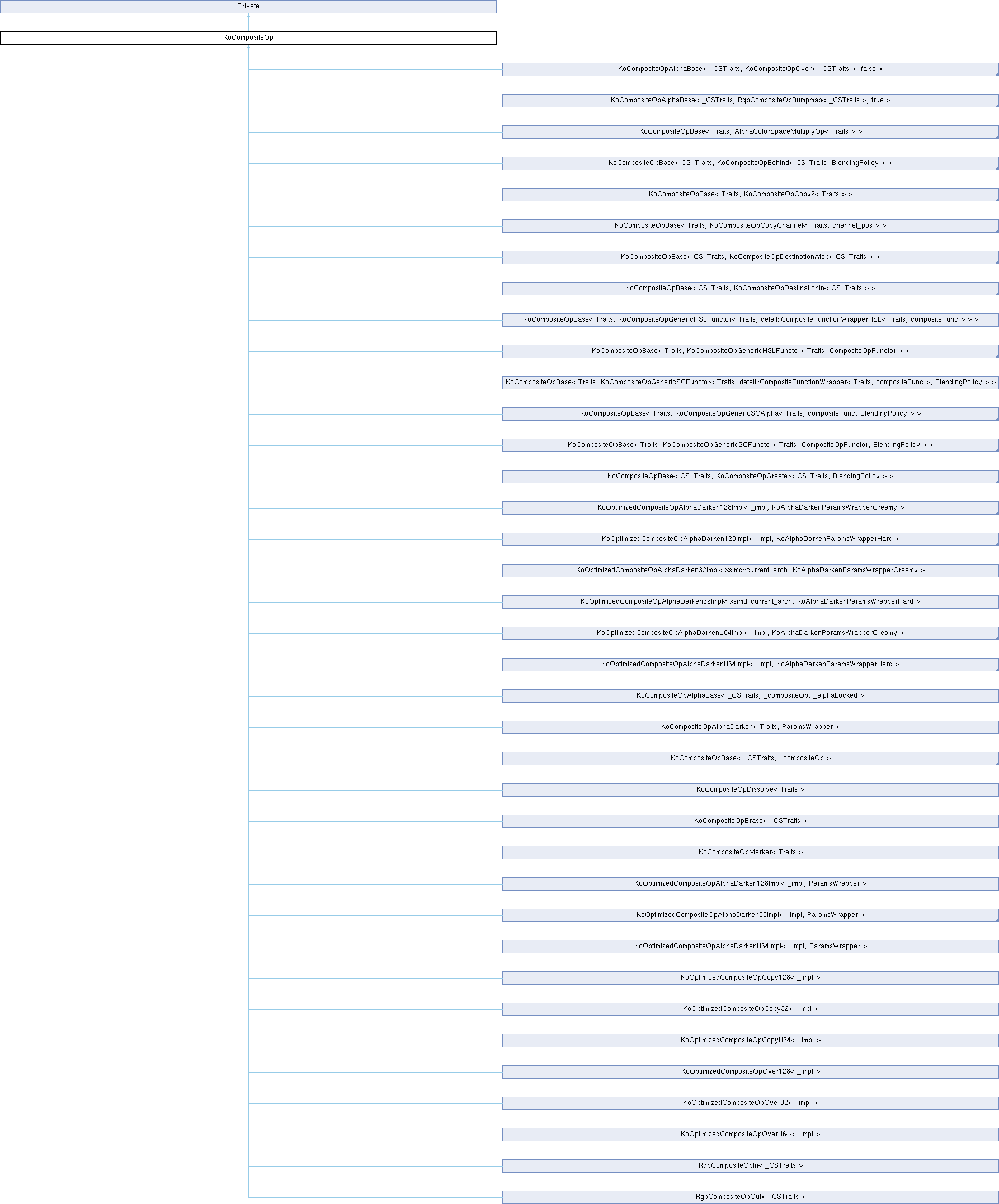

Inheritance diagram for KoCompositeOp:

Classes
struct	ParameterInfo

Public Member Functions
QString	category () const
const KoColorSpace *	colorSpace () const
virtual void	composite (const ParameterInfo &params) const
void	composite (quint8 *dstRowStart, qint32 dstRowStride, const quint8 *srcRowStart, qint32 srcRowStride, const quint8 *maskRowStart, qint32 maskRowStride, qint32 rows, qint32 numColumns, float opacity, const QBitArray &channelFlags=QBitArray()) const
QString	description () const
QString	id () const
	KoCompositeOp (const KoColorSpace *cs, const QString &id, const QString &category=KoCompositeOp::categoryMisc())
virtual	~KoCompositeOp ()
Public Member Functions inherited from Private
	Private (KisCanvas2 *c)

Static Public Member Functions
static QString	categoryArithmetic ()
static QString	categoryBinary ()
static QString	categoryDark ()
static QString	categoryHSI ()
static QString	categoryHSL ()
static QString	categoryHSV ()
static QString	categoryHSY ()
static QString	categoryLight ()
static QString	categoryMisc ()
static QString	categoryMix ()
static QString	categoryModulo ()
static QString	categoryNegative ()
static QString	categoryQuadratic ()

Public Attributes
QString	category
const KoColorSpace *	colorSpace
QBitArray	defaultChannelFlags
QString	description
QString	id
Public Attributes inherited from Private
KisCanvas2 *	canvas
int	displayedFrame
int	intendedFrame

Private Member Functions
	KoCompositeOp ()

Private Attributes
Private *const	d

Detailed Description

Base for colorspace-specific blending modes.

Definition at line 107 of file KoCompositeOp.cpp.

Constructor & Destructor Documentation

KoCompositeOp() [1/2]

KoCompositeOp::KoCompositeOp	(	const KoColorSpace *	cs,
		const QString &	id,
		const QString &	category = KoCompositeOp::categoryMisc() )

Parameters

cs	a pointer to the color space that can be used with this composite op
id	the identifier for this composite op (not user visible)
category	the name of the category where to put that composite op when displayed
userVisible	define whether or not that composite op should be visible in a user interface

Definition at line 125 of file KoCompositeOp.cpp.

        : d(new Private)
{
    d->colorSpace = cs;
    d->id = id;
    d->description = compositeOpDisplayName(id);
    d->category = category;
    if (d->category.isEmpty()) {
        d->category = categoryMisc();
    }
}

References category, categoryMisc(), compositeOpDisplayName(), d, and id.

~KoCompositeOp()

KoCompositeOp::~KoCompositeOp ( )

virtual

Definition at line 120 of file KoCompositeOp.cpp.

{
    delete d;
}

References d.

KoCompositeOp() [2/2]

KoCompositeOp::KoCompositeOp ( )

private

Definition at line 115 of file KoCompositeOp.cpp.

                             : d(new Private)
{

}

Member Function Documentation

category()

QString KoCompositeOp::category

(

)

const

Returns

the category associated with the composite op

categoryArithmetic()

QString KoCompositeOp::categoryArithmetic ( )

static

Definition at line 31 of file KoCompositeOp.cpp.

{ return LAZY_STATIC_CATEGORY_DISPLAY_NAME("arithmetic"); }

References LAZY_STATIC_CATEGORY_DISPLAY_NAME.

categoryBinary()

QString KoCompositeOp::categoryBinary ( )

static

Definition at line 32 of file KoCompositeOp.cpp.

{ return LAZY_STATIC_CATEGORY_DISPLAY_NAME("binary");     }

References LAZY_STATIC_CATEGORY_DISPLAY_NAME.

categoryDark()

QString KoCompositeOp::categoryDark ( )

static

Definition at line 36 of file KoCompositeOp.cpp.

{ return LAZY_STATIC_CATEGORY_DISPLAY_NAME("dark");       }

References LAZY_STATIC_CATEGORY_DISPLAY_NAME.

categoryHSI()

QString KoCompositeOp::categoryHSI ( )

static

Definition at line 38 of file KoCompositeOp.cpp.

{ return LAZY_STATIC_CATEGORY_DISPLAY_NAME("hsi");        }

References LAZY_STATIC_CATEGORY_DISPLAY_NAME.

categoryHSL()

QString KoCompositeOp::categoryHSL ( )

static

Definition at line 39 of file KoCompositeOp.cpp.

{ return LAZY_STATIC_CATEGORY_DISPLAY_NAME("hsl");        }

References LAZY_STATIC_CATEGORY_DISPLAY_NAME.

categoryHSV()

QString KoCompositeOp::categoryHSV ( )

static

Definition at line 40 of file KoCompositeOp.cpp.

{ return LAZY_STATIC_CATEGORY_DISPLAY_NAME("hsv");        }

References LAZY_STATIC_CATEGORY_DISPLAY_NAME.

categoryHSY()

QString KoCompositeOp::categoryHSY ( )

static

Definition at line 37 of file KoCompositeOp.cpp.

{ return LAZY_STATIC_CATEGORY_DISPLAY_NAME("hsy");        }

References LAZY_STATIC_CATEGORY_DISPLAY_NAME.

categoryLight()

QString KoCompositeOp::categoryLight ( )

static

Definition at line 35 of file KoCompositeOp.cpp.

{ return LAZY_STATIC_CATEGORY_DISPLAY_NAME("light");      }

References LAZY_STATIC_CATEGORY_DISPLAY_NAME.

categoryMisc()

QString KoCompositeOp::categoryMisc ( )

static

Definition at line 42 of file KoCompositeOp.cpp.

{ return LAZY_STATIC_CATEGORY_DISPLAY_NAME("misc");       }

References LAZY_STATIC_CATEGORY_DISPLAY_NAME.

categoryMix()

QString KoCompositeOp::categoryMix ( )

static

Definition at line 41 of file KoCompositeOp.cpp.

{ return LAZY_STATIC_CATEGORY_DISPLAY_NAME("mix");        }

References LAZY_STATIC_CATEGORY_DISPLAY_NAME.

categoryModulo()

QString KoCompositeOp::categoryModulo ( )

static

Definition at line 33 of file KoCompositeOp.cpp.

{ return LAZY_STATIC_CATEGORY_DISPLAY_NAME("modulo");     }

References LAZY_STATIC_CATEGORY_DISPLAY_NAME.

categoryNegative()

QString KoCompositeOp::categoryNegative ( )

static

Definition at line 34 of file KoCompositeOp.cpp.

{ return LAZY_STATIC_CATEGORY_DISPLAY_NAME("negative");   }

References LAZY_STATIC_CATEGORY_DISPLAY_NAME.

categoryQuadratic()

QString KoCompositeOp::categoryQuadratic ( )

static

Definition at line 43 of file KoCompositeOp.cpp.

{ return LAZY_STATIC_CATEGORY_DISPLAY_NAME("quadratic");  }

References LAZY_STATIC_CATEGORY_DISPLAY_NAME.

colorSpace()

const KoColorSpace * KoCompositeOp::colorSpace

(

)

const

Returns

the color space that can use and own this composite op

composite() [1/2]

void KoCompositeOp::composite ( const ParameterInfo & params ) const

virtual

Same as previous, but uses a parameter structure

Reimplemented in KoCompositeOpAlphaBase< _CSTraits, _compositeOp, _alphaLocked >, KoCompositeOpAlphaBase< _CSTraits, KoCompositeOpOver< _CSTraits >, false >, KoCompositeOpAlphaBase< _CSTraits, RgbCompositeOpBumpmap< _CSTraits >, true >, KoCompositeOpAlphaBase< _CSTraits, _compositeOp, _alphaLocked >, KoCompositeOpAlphaBase< _CSTraits, KoCompositeOpOver< _CSTraits >, false >, KoCompositeOpAlphaBase< _CSTraits, RgbCompositeOpBumpmap< _CSTraits >, true >, KoOptimizedCompositeOpCopy128< _impl >, KoOptimizedCompositeOpCopyU64< _impl >, KoOptimizedCompositeOpCopy32< _impl >, KoOptimizedCompositeOpOver128< _impl >, KoOptimizedCompositeOpOverU64< _impl >, KoOptimizedCompositeOpOver32< _impl >, KoCompositeOpAlphaBase< _CSTraits, _compositeOp, _alphaLocked >, KoCompositeOpAlphaBase< _CSTraits, KoCompositeOpOver< _CSTraits >, false >, KoCompositeOpAlphaBase< _CSTraits, RgbCompositeOpBumpmap< _CSTraits >, true >, KoCompositeOpAlphaDarken< Traits, ParamsWrapper >, KoCompositeOpBase< _CSTraits, _compositeOp >, KoCompositeOpBase< CS_Traits, KoCompositeOpBehind< CS_Traits, BlendingPolicy > >, KoCompositeOpBase< CS_Traits, KoCompositeOpDestinationAtop< CS_Traits > >, KoCompositeOpBase< CS_Traits, KoCompositeOpDestinationIn< CS_Traits > >, KoCompositeOpBase< CS_Traits, KoCompositeOpGreater< CS_Traits, BlendingPolicy > >, KoCompositeOpBase< Traits, AlphaColorSpaceMultiplyOp< Traits > >, KoCompositeOpBase< Traits, KoCompositeOpCopy2< Traits > >, KoCompositeOpBase< Traits, KoCompositeOpCopyChannel< Traits, channel_pos > >, KoCompositeOpBase< Traits, KoCompositeOpGenericHSLFunctor< Traits, CompositeOpFunctor > >, KoCompositeOpBase< Traits, KoCompositeOpGenericHSLFunctor< Traits, detail::CompositeFunctionWrapperHSL< Traits, compositeFunc > > >, KoCompositeOpBase< Traits, KoCompositeOpGenericSCAlpha< Traits, compositeFunc, BlendingPolicy > >, KoCompositeOpBase< Traits, KoCompositeOpGenericSCFunctor< Traits, CompositeOpFunctor, BlendingPolicy > >, KoCompositeOpBase< Traits, KoCompositeOpGenericSCFunctor< Traits, detail::CompositeFunctionWrapper< Traits, compositeFunc >, BlendingPolicy > >, KoCompositeOpDissolve< Traits >, KoCompositeOpErase< _CSTraits >, KoCompositeOpMarker< Traits >, KoOptimizedCompositeOpAlphaDarken128Impl< _impl, ParamsWrapper >, KoOptimizedCompositeOpAlphaDarken128Impl< _impl, KoAlphaDarkenParamsWrapperCreamy >, KoOptimizedCompositeOpAlphaDarken128Impl< _impl, KoAlphaDarkenParamsWrapperHard >, KoOptimizedCompositeOpAlphaDarkenU64Impl< _impl, ParamsWrapper >, KoOptimizedCompositeOpAlphaDarkenU64Impl< _impl, KoAlphaDarkenParamsWrapperCreamy >, KoOptimizedCompositeOpAlphaDarkenU64Impl< _impl, KoAlphaDarkenParamsWrapperHard >, KoOptimizedCompositeOpAlphaDarken32Impl< _impl, ParamsWrapper >, KoOptimizedCompositeOpAlphaDarken32Impl< xsimd::current_arch, KoAlphaDarkenParamsWrapperCreamy >, KoOptimizedCompositeOpAlphaDarken32Impl< xsimd::current_arch, KoAlphaDarkenParamsWrapperHard >, KoOptimizedCompositeOpCopy128< _impl >, KoOptimizedCompositeOpCopyU64< _impl >, KoOptimizedCompositeOpCopy32< _impl >, KoOptimizedCompositeOpOver128< _impl >, KoOptimizedCompositeOpOverU64< _impl >, KoOptimizedCompositeOpOver32< _impl >, RgbCompositeOpIn< _CSTraits >, RgbCompositeOpOut< _CSTraits >, KoCompositeOpAlphaBase< _CSTraits, _compositeOp, _alphaLocked >, KoCompositeOpAlphaBase< _CSTraits, KoCompositeOpOver< _CSTraits >, false >, KoCompositeOpAlphaBase< _CSTraits, RgbCompositeOpBumpmap< _CSTraits >, true >, KoCompositeOpAlphaDarken< Traits, ParamsWrapper >, KoCompositeOpBase< _CSTraits, _compositeOp >, KoCompositeOpBase< CS_Traits, KoCompositeOpBehind< CS_Traits, BlendingPolicy > >, KoCompositeOpBase< CS_Traits, KoCompositeOpDestinationAtop< CS_Traits > >, KoCompositeOpBase< CS_Traits, KoCompositeOpDestinationIn< CS_Traits > >, KoCompositeOpBase< CS_Traits, KoCompositeOpGreater< CS_Traits, BlendingPolicy > >, KoCompositeOpBase< Traits, AlphaColorSpaceMultiplyOp< Traits > >, KoCompositeOpBase< Traits, KoCompositeOpCopy2< Traits > >, KoCompositeOpBase< Traits, KoCompositeOpCopyChannel< Traits, channel_pos > >, KoCompositeOpBase< Traits, KoCompositeOpGenericHSLFunctor< Traits, CompositeOpFunctor > >, KoCompositeOpBase< Traits, KoCompositeOpGenericHSLFunctor< Traits, detail::CompositeFunctionWrapperHSL< Traits, compositeFunc > > >, KoCompositeOpBase< Traits, KoCompositeOpGenericSCAlpha< Traits, compositeFunc, BlendingPolicy > >, KoCompositeOpBase< Traits, KoCompositeOpGenericSCFunctor< Traits, CompositeOpFunctor, BlendingPolicy > >, KoCompositeOpBase< Traits, KoCompositeOpGenericSCFunctor< Traits, detail::CompositeFunctionWrapper< Traits, compositeFunc >, BlendingPolicy > >, KoCompositeOpDissolve< Traits >, KoCompositeOpErase< _CSTraits >, KoCompositeOpMarker< Traits >, KoOptimizedCompositeOpAlphaDarken128Impl< _impl, ParamsWrapper >, KoOptimizedCompositeOpAlphaDarken128Impl< _impl, KoAlphaDarkenParamsWrapperCreamy >, KoOptimizedCompositeOpAlphaDarken128Impl< _impl, KoAlphaDarkenParamsWrapperHard >, KoOptimizedCompositeOpAlphaDarkenU64Impl< _impl, ParamsWrapper >, KoOptimizedCompositeOpAlphaDarkenU64Impl< _impl, KoAlphaDarkenParamsWrapperCreamy >, KoOptimizedCompositeOpAlphaDarkenU64Impl< _impl, KoAlphaDarkenParamsWrapperHard >, KoOptimizedCompositeOpAlphaDarken32Impl< _impl, ParamsWrapper >, KoOptimizedCompositeOpAlphaDarken32Impl< xsimd::current_arch, KoAlphaDarkenParamsWrapperCreamy >, KoOptimizedCompositeOpAlphaDarken32Impl< xsimd::current_arch, KoAlphaDarkenParamsWrapperHard >, KoOptimizedCompositeOpCopy128< _impl >, KoOptimizedCompositeOpCopyU64< _impl >, KoOptimizedCompositeOpCopy32< _impl >, KoOptimizedCompositeOpOver128< _impl >, KoOptimizedCompositeOpOverU64< _impl >, KoOptimizedCompositeOpOver32< _impl >, RgbCompositeOpIn< _CSTraits >, and RgbCompositeOpOut< _CSTraits >.

Definition at line 159 of file KoCompositeOp.cpp.

{
    composite(params.dstRowStart           , params.dstRowStride ,
              params.srcRowStart           , params.srcRowStride ,
              params.maskRowStart          , params.maskRowStride,
              params.rows                  , params.cols         ,
              params.opacity, params.channelFlags );
}

References KoCompositeOp::ParameterInfo::channelFlags, KoCompositeOp::ParameterInfo::cols, composite(), KoCompositeOp::ParameterInfo::dstRowStart, KoCompositeOp::ParameterInfo::dstRowStride, KoCompositeOp::ParameterInfo::maskRowStart, KoCompositeOp::ParameterInfo::maskRowStride, KoCompositeOp::ParameterInfo::opacity, KoCompositeOp::ParameterInfo::rows, KoCompositeOp::ParameterInfo::srcRowStart, and KoCompositeOp::ParameterInfo::srcRowStride.

composite() [2/2]

void KoCompositeOp::composite	(	quint8 *	dstRowStart,
		qint32	dstRowStride,
		const quint8 *	srcRowStart,
		qint32	srcRowStride,
		const quint8 *	maskRowStart,
		qint32	maskRowStride,
		qint32	rows,
		qint32	numColumns,
		float	opacity,
		const QBitArray &	channelFlags = QBitArray() ) const

Parameters

dstRowStart	pointer to the start of the byte array we will composite the source on
dstRowStride	length of the rows of the block of destination pixels in bytes
srcRowStart	pointer to the start of the byte array we will mix with dest
srcRowStride	length of the rows of the block of src in bytes pixels (may be different from the rowstride of the dst pixels, in which case the smaller value is used). If srcRowStride is null it is assumed that the source is a constant color.
maskRowStart	start of the byte mask that determines whether and if so, then how much of src is used for blending
maskRowStride	length of the mask scanlines in bytes
rows	number of scanlines to blend
numColumns	length of the row of pixels in pixels
opacity	transparency with which to blend
channelFlags	a bit array that determines which channels should be processed (channels are in the order of the channels in the colorspace)

Definition at line 137 of file KoCompositeOp.cpp.

{
    KoCompositeOp::ParameterInfo params;
    params.dstRowStart   = dstRowStart;
    params.dstRowStride  = dstRowStride;
    params.srcRowStart   = srcRowStart;
    params.srcRowStride  = srcRowStride;
    params.maskRowStart  = maskRowStart;
    params.maskRowStride = maskRowStride;
    params.rows          = rows;
    params.cols          = numColumns;
    params.opacity       = opacity;
    params.flow          = 1.0f;
    params.channelFlags  = channelFlags;
    composite(params);
}

References KoCompositeOp::ParameterInfo::channelFlags, KoCompositeOp::ParameterInfo::cols, composite(), KoCompositeOp::ParameterInfo::dstRowStart, KoCompositeOp::ParameterInfo::dstRowStride, KoCompositeOp::ParameterInfo::flow, KoCompositeOp::ParameterInfo::maskRowStart, KoCompositeOp::ParameterInfo::maskRowStride, KoCompositeOp::ParameterInfo::opacity, KoCompositeOp::ParameterInfo::rows, KoCompositeOp::ParameterInfo::srcRowStart, and KoCompositeOp::ParameterInfo::srcRowStride.

description()

QString KoCompositeOp::description

(

)

const

Returns

the user visible string for this composite op

id()

QString KoCompositeOp::id

(

)

const

Returns

the identifier of this composite op

Member Data Documentation

category

QString KoCompositeOp::category

Definition at line 111 of file KoCompositeOp.cpp.

colorSpace

const KoColorSpace * KoCompositeOp::colorSpace

Definition at line 108 of file KoCompositeOp.cpp.

d

Private* const KoCompositeOp::d

private

Definition at line 128 of file KoCompositeOp.h.

defaultChannelFlags

QBitArray KoCompositeOp::defaultChannelFlags

Definition at line 112 of file KoCompositeOp.cpp.

description

QString KoCompositeOp::description

Definition at line 110 of file KoCompositeOp.cpp.

id

QString KoCompositeOp::id

Definition at line 109 of file KoCompositeOp.cpp.

---

The documentation for this class was generated from the following files:

• libs/pigment/KoCompositeOp.cpp
• libs/pigment/KoCompositeOp.h
