CmykF32ColorSpaceFactory Class Reference

#include <CmykF32ColorSpace.h>

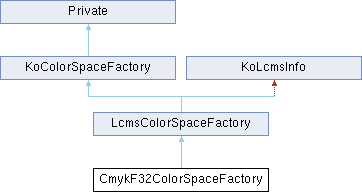

Inheritance diagram for CmykF32ColorSpaceFactory:

Public Member Functions
	CmykF32ColorSpaceFactory ()
KoID	colorDepthId () const override
KoID	colorModelId () const override
KoColorSpace *	createColorSpace (const KoColorProfile *p) const override
QString	defaultProfile () const override
QString	id () const override
bool	isHdr () const override
QString	name () const override
int	referenceDepth () const override
bool	userVisible () const override
Public Member Functions inherited from LcmsColorSpaceFactory
QList< KoColorConversionTransformationFactory * >	colorConversionLinks () const override
QString	colorSpaceEngine () const override
KoColorProfile *	createColorProfile (const QByteArray &rawData) const override
int	crossingCost () const override
bool	isHdr () const override
	LcmsColorSpaceFactory (cmsUInt32Number cmType, cmsColorSpaceSignature colorSpaceSignature)
bool	profileIsCompatible (const KoColorProfile *profile) const override
Public Member Functions inherited from KoColorSpaceFactory
virtual QList< KoColorConversionTransformationFactory * >	colorConversionLinksFromProfile (const KoColorProfile *profile) const
	colorConversionLinksFromProfile Sometimes, we need to generate special color conversion links based on the properties of the profile. The Perceptual Quantizer profiles are an example of this. This function is called inside the color conversion system.
const KoColorProfile *	colorProfile (const QByteArray &rawData, ProfileRegistrationInterface *registrationInterface, const CustomProfileNameAlias &customProfileNameAlias) const
const KoColorSpace *	grabColorSpace (const KoColorProfile *profile)
virtual	~KoColorSpaceFactory ()
Public Member Functions inherited from Private
	Private (KisCanvas2 *c)

Additional Inherited Members
Public Types inherited from KoColorSpaceFactory
using	CustomProfileNameAlias = QHash<QString, QString>
Public Attributes inherited from KoColorSpaceFactory
QHash< QString, KoColorSpace * >	availableColorspaces
QList< KoColorProfile * >	colorprofiles
QMutex	mutex
QHash< KoColorSpace *, QString >	stackInformation
Public Attributes inherited from Private
KisCanvas2 *	canvas
int	displayedFrame
int	intendedFrame
Protected Member Functions inherited from KoColorSpaceFactory
	KoColorSpaceFactory ()

Detailed Description

Definition at line 57 of file CmykF32ColorSpace.h.

Constructor & Destructor Documentation

CmykF32ColorSpaceFactory()

CmykF32ColorSpaceFactory::CmykF32ColorSpaceFactory ( )

inline

Definition at line 61 of file CmykF32ColorSpace.h.

        : LcmsColorSpaceFactory(TYPE_CMYKA_FLT, cmsSigCmykData)
    {
    }

Member Function Documentation

colorDepthId()

KoID CmykF32ColorSpaceFactory::colorDepthId ( ) const

inlineoverridevirtual

Returns

a string that identify the bit depth (for instance "U8" or "F16" ...)

See also

KoColorModelStandardIds.h

Implements KoColorSpaceFactory.

Definition at line 86 of file CmykF32ColorSpace.h.

    {
        return Float32BitsColorDepthID;
    }

References Float32BitsColorDepthID.

colorModelId()

KoID CmykF32ColorSpaceFactory::colorModelId ( ) const

inlineoverridevirtual

Returns

a string that identify the color model (for instance "RGB" or "CMYK" ...)

See also

KoColorModelStandardIds.h

Implements KoColorSpaceFactory.

Definition at line 81 of file CmykF32ColorSpace.h.

    {
        return CMYKAColorModelID;
    }

References CMYKAColorModelID.

createColorSpace()

KoColorSpace * CmykF32ColorSpaceFactory::createColorSpace ( const KoColorProfile * ) const

inlineoverridevirtual

creates a color space using the given profile.

Implements KoColorSpaceFactory.

Definition at line 96 of file CmykF32ColorSpace.h.

    {
        return new CmykF32ColorSpace(name(), p->clone());
    }

References name(), and p.

defaultProfile()

QString CmykF32ColorSpaceFactory::defaultProfile ( ) const

inlineoverridevirtual

Returns the default icc profile for use with this colorspace. This may be ""

Returns

the default icc profile name

Implements KoColorSpaceFactory.

Definition at line 101 of file CmykF32ColorSpace.h.

    {
        return "Chemical proof";
    }

id()

QString CmykF32ColorSpaceFactory::id ( ) const

inlineoverridevirtual

Return the unchanging name of this color space

Implements KoColorSpaceFactory.

Definition at line 71 of file CmykF32ColorSpace.h.

    {
        return CmykF32ColorSpace::colorSpaceId();
    }

References CmykF32ColorSpace::colorSpaceId().

isHdr()

bool CmykF32ColorSpaceFactory::isHdr ( ) const

inlineoverridevirtual

Returns

true if the color space supports High-Dynamic Range.

Implements KoColorSpaceFactory.

Definition at line 106 of file CmykF32ColorSpace.h.

    {
        return true;
    }

name()

QString CmykF32ColorSpaceFactory::name ( ) const

inlineoverridevirtual

return the i18n'able description.

Implements KoColorSpaceFactory.

Definition at line 76 of file CmykF32ColorSpace.h.

    {
        return QString("%1 (%2)").arg(CMYKAColorModelID.name()).arg(Float32BitsColorDepthID.name());
    }

References CMYKAColorModelID, Float32BitsColorDepthID, and KoID::name().

referenceDepth()

int CmykF32ColorSpaceFactory::referenceDepth ( ) const

inlineoverridevirtual

Returns

the reference depth, that is for a color space where all channels have the same depth, this is the depth of one channel, for a color space with different bit depth for each channel, it's usually the highest bit depth. This value is used by the Color Conversion System to check if a lost of bit depth during a color conversion is acceptable, for instance when converting from RGB32bit to XYZ16bit, it's acceptable to go through a conversion to RGB16bit, while it's not the case for RGB32bit to XYZ32bit.

Implements KoColorSpaceFactory.

Definition at line 91 of file CmykF32ColorSpace.h.

    {
        return 32;
    }

userVisible()

bool CmykF32ColorSpaceFactory::userVisible ( ) const

inlineoverridevirtual

Returns

true if the color space should be shown in a User Interface, or false otherwise.

Implements KoColorSpaceFactory.

Definition at line 66 of file CmykF32ColorSpace.h.

    {
        return true;
    }

---

The documentation for this class was generated from the following file:

• plugins/color/lcms2engine/colorspaces/cmyk_f32/CmykF32ColorSpace.h
