#include <KoColorSpaceFactory.h>

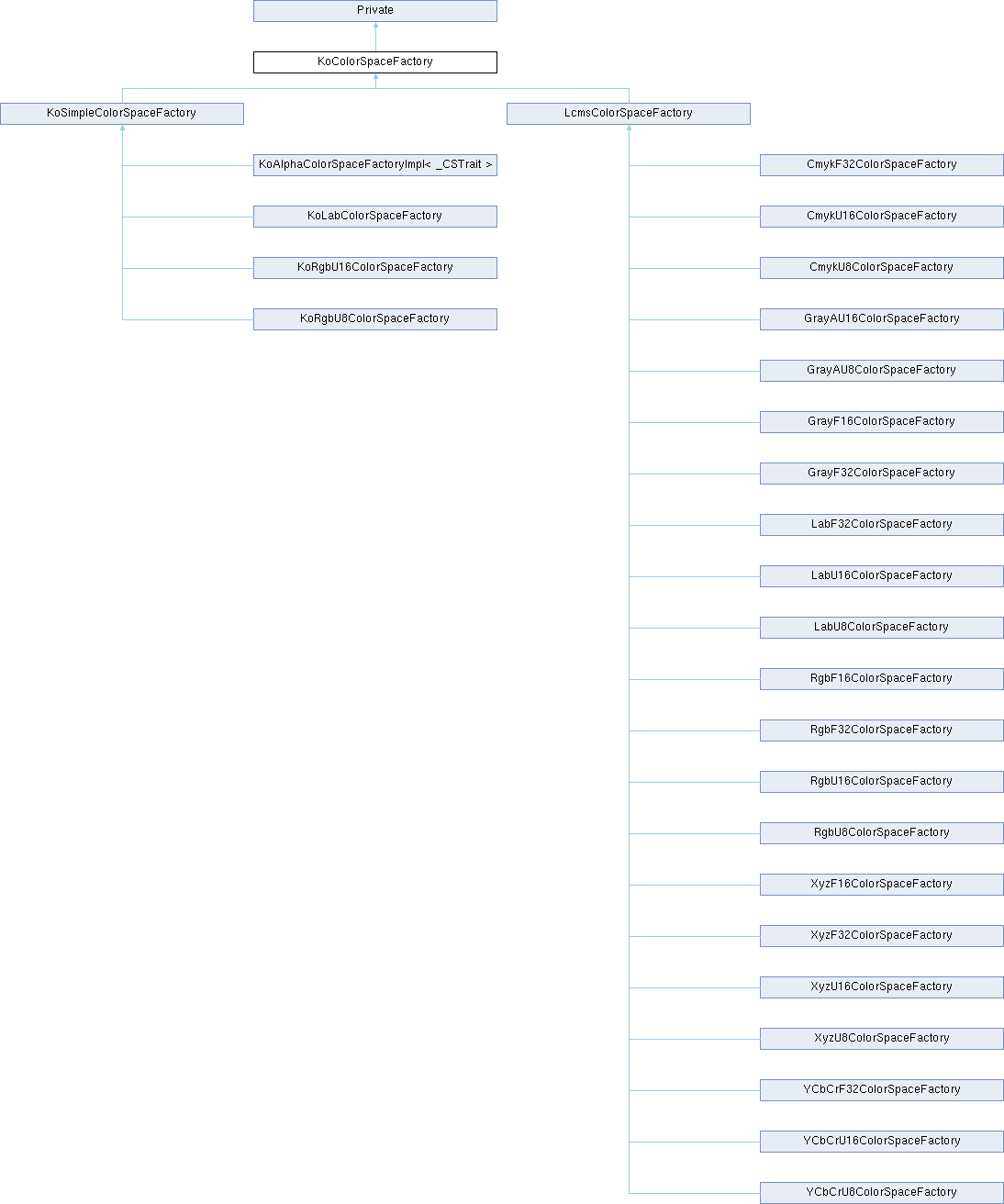

Inheritance diagram for KoColorSpaceFactory:

Classes
struct	ProfileRegistrationInterface

Public Types
using	CustomProfileNameAlias = QHash<QString, QString>

Public Member Functions
virtual QList< KoColorConversionTransformationFactory * >	colorConversionLinks () const =0

virtual QList< KoColorConversionTransformationFactory * >	colorConversionLinksFromProfile (const KoColorProfile *profile) const
	colorConversionLinksFromProfile Sometimes, we need to generate special color conversion links based on the properties of the profile. The Perceptual Quantizer profiles are an example of this. This function is called inside the color conversion system.

virtual KoID	colorDepthId () const =0

virtual KoID	colorModelId () const =0

const KoColorProfile *	colorProfile (const QByteArray &rawData, ProfileRegistrationInterface *registrationInterface, const CustomProfileNameAlias &customProfileNameAlias) const

virtual QString	colorSpaceEngine () const =0

virtual int	crossingCost () const =0

virtual QString	defaultProfile () const =0

const KoColorSpace *	grabColorSpace (const KoColorProfile *profile)

virtual QString	id () const =0

virtual bool	isHdr () const =0

virtual QString	name () const =0

virtual bool	profileIsCompatible (const KoColorProfile *profile) const =0

virtual int	referenceDepth () const =0

virtual bool	userVisible () const =0

virtual	~KoColorSpaceFactory ()

Public Member Functions inherited from Private
	Private (KisCanvas2 *c)

Public Attributes
QHash< QString, KoColorSpace * >	availableColorspaces

QList< KoColorProfile * >	colorprofiles

QMutex	mutex

QHash< KoColorSpace *, QString >	stackInformation

Public Attributes inherited from Private
KisCanvas2 *	canvas

int	displayedFrame

int	intendedFrame

Protected Member Functions
virtual KoColorProfile *	createColorProfile (const QByteArray &rawData) const =0

virtual KoColorSpace *	createColorSpace (const KoColorProfile *) const =0

	KoColorSpaceFactory ()

Private Attributes
Private *const	d

Detailed Description

This class is used to create color spaces.

Definition at line 20 of file KoColorSpaceFactory.cpp.

Member Typedef Documentation

◆ CustomProfileNameAlias

using KoColorSpaceFactory::CustomProfileNameAlias = QHash<QString, QString>

Create a color profile from a memory array, if possible, otherwise return 0. If there is an existing profile with the same name, it will be used instead, and the binary data from rawData will be ignored

This will call the descendant's createColorProfile()

Definition at line 115 of file KoColorSpaceFactory.h.

Constructor & Destructor Documentation

◆ KoColorSpaceFactory()

KoColorSpaceFactory::KoColorSpaceFactory ( )

protected

Definition at line 29 of file KoColorSpaceFactory.cpp.

                                         : d(new Private)
{
}

◆ ~KoColorSpaceFactory()

KoColorSpaceFactory::~KoColorSpaceFactory ( )

virtual

Definition at line 33 of file KoColorSpaceFactory.cpp.

{
#ifndef NDEBUG
    // Check that all color spaces have been released
    int count = 0;
    count += d->availableColorspaces.size();

    for(QHash<KoColorSpace*, QString>::const_iterator it = d->stackInformation.constBegin();
        it != d->stackInformation.constEnd(); ++it)
    {
        errorPigment << "*******************************************";
        errorPigment << it.key()->id() << " still in used, and grabbed in: ";
        errorPigment << it.value();
    }
#endif
    Q_FOREACH (KoColorProfile* profile, d->colorprofiles) {
        KoColorSpaceRegistry::instance()->removeProfile(profile);
        delete profile;
    }
    delete d;
}

References d, errorPigment, KoColorSpaceRegistry::instance(), and KoColorSpaceRegistry::removeProfile().

Member Function Documentation

◆ colorConversionLinks()

virtual QList< KoColorConversionTransformationFactory * > KoColorSpaceFactory::colorConversionLinks ( ) const

pure virtual

Returns: the list of color conversion provided by this colorspace, the factories constructed by this functions are owned by the caller of the function

Implemented in KoAlphaColorSpaceFactoryImpl< _CSTrait >, KoSimpleColorSpaceFactory, and LcmsColorSpaceFactory.

◆ colorConversionLinksFromProfile()

virtual QList< KoColorConversionTransformationFactory * > KoColorSpaceFactory::colorConversionLinksFromProfile ( const KoColorProfile * profile ) const

inlinevirtual

colorConversionLinksFromProfile Sometimes, we need to generate special color conversion links based on the properties of the profile. The Perceptual Quantizer profiles are an example of this. This function is called inside the color conversion system.

Parameters

profile – the profile for which to create the links for.

Reimplemented in RgbF16ColorSpaceFactory, RgbF32ColorSpaceFactory, RgbU16ColorSpaceFactory, and RgbU8ColorSpaceFactory.

Definition at line 132 of file KoColorSpaceFactory.h.

                                                                                                                                {
        Q_UNUSED(profile)
        return QList<KoColorConversionTransformationFactory*>();
    }

◆ colorDepthId()

virtual KoID KoColorSpaceFactory::colorDepthId ( ) const

pure virtual

Returns: a string that identify the bit depth (for instance "U8" or "F16" ...)

See also: KoColorModelStandardIds.h

Implemented in KoSimpleColorSpaceFactory, CmykF32ColorSpaceFactory, CmykU16ColorSpaceFactory, CmykU8ColorSpaceFactory, GrayF16ColorSpaceFactory, GrayF32ColorSpaceFactory, GrayAU16ColorSpaceFactory, GrayAU8ColorSpaceFactory, LabF32ColorSpaceFactory, LabU16ColorSpaceFactory, LabU8ColorSpaceFactory, RgbF16ColorSpaceFactory, RgbF32ColorSpaceFactory, RgbU16ColorSpaceFactory, RgbU8ColorSpaceFactory, XyzF16ColorSpaceFactory, XyzF32ColorSpaceFactory, XyzU16ColorSpaceFactory, XyzU8ColorSpaceFactory, YCbCrF32ColorSpaceFactory, YCbCrU16ColorSpaceFactory, and YCbCrU8ColorSpaceFactory.

◆ colorModelId()

virtual KoID KoColorSpaceFactory::colorModelId ( ) const

pure virtual

Returns: a string that identify the color model (for instance "RGB" or "CMYK" ...)

See also: KoColorModelStandardIds.h

Implemented in KoSimpleColorSpaceFactory, CmykF32ColorSpaceFactory, CmykU16ColorSpaceFactory, CmykU8ColorSpaceFactory, GrayF16ColorSpaceFactory, GrayF32ColorSpaceFactory, GrayAU16ColorSpaceFactory, GrayAU8ColorSpaceFactory, LabF32ColorSpaceFactory, LabU16ColorSpaceFactory, LabU8ColorSpaceFactory, RgbF16ColorSpaceFactory, RgbF32ColorSpaceFactory, RgbU16ColorSpaceFactory, RgbU8ColorSpaceFactory, XyzF16ColorSpaceFactory, XyzF32ColorSpaceFactory, XyzU16ColorSpaceFactory, XyzU8ColorSpaceFactory, YCbCrF32ColorSpaceFactory, YCbCrU16ColorSpaceFactory, and YCbCrU8ColorSpaceFactory.

◆ colorProfile()

const KoColorProfile * KoColorSpaceFactory::colorProfile	(	const QByteArray &	rawData,
		ProfileRegistrationInterface *	registrationInterface,
		const CustomProfileNameAlias &	customProfileNameAlias ) const

Definition at line 55 of file KoColorSpaceFactory.cpp.

{
    KoColorProfile* colorProfile = createColorProfile(rawData);
    if (colorProfile && colorProfile->valid()) {
        const QString effectiveProfileName = customProfileNameAlias.value(colorProfile->name(), colorProfile->name());
        if (const KoColorProfile* existingProfile = registrationInterface->profileByName(effectiveProfileName)) {
            delete colorProfile;
            return existingProfile;
        }
        registrationInterface->registerNewProfile(colorProfile);
        d->colorprofiles.append(colorProfile);
    }
    return colorProfile;
}

References colorProfile(), createColorProfile(), d, KoColorProfile::name, KoColorSpaceFactory::ProfileRegistrationInterface::profileByName(), KoColorSpaceFactory::ProfileRegistrationInterface::registerNewProfile(), and KoColorProfile::valid().

◆ colorSpaceEngine()

virtual QString KoColorSpaceFactory::colorSpaceEngine ( ) const

pure virtual

Returns: the name of the color space engine for this color space, or "" if none

Implemented in KoSimpleColorSpaceFactory, and LcmsColorSpaceFactory.

◆ createColorProfile()

virtual KoColorProfile * KoColorSpaceFactory::createColorProfile ( const QByteArray & rawData ) const

protectedpure virtual

Implemented in KoSimpleColorSpaceFactory, and LcmsColorSpaceFactory.

◆ createColorSpace()

virtual KoColorSpace * KoColorSpaceFactory::createColorSpace ( const KoColorProfile * ) const

protectedpure virtual

◆ crossingCost()

virtual int KoColorSpaceFactory::crossingCost ( ) const

pure virtual

Returns: the cost of the usage of the colorspace in the conversion graph. The higher the cost, the less probably the color space will be chosen for the conversion.

Implemented in KoSimpleColorSpaceFactory, and LcmsColorSpaceFactory.

◆ defaultProfile()

virtual QString KoColorSpaceFactory::defaultProfile ( ) const

pure virtual

Returns the default icc profile for use with this colorspace. This may be ""

Returns: the default icc profile name

Implemented in KoSimpleColorSpaceFactory, CmykF32ColorSpaceFactory, CmykU16ColorSpaceFactory, CmykU8ColorSpaceFactory, GrayF16ColorSpaceFactory, GrayF32ColorSpaceFactory, GrayAU16ColorSpaceFactory, GrayAU8ColorSpaceFactory, LabF32ColorSpaceFactory, LabU16ColorSpaceFactory, LabU8ColorSpaceFactory, RgbF16ColorSpaceFactory, RgbF32ColorSpaceFactory, RgbU16ColorSpaceFactory, RgbU8ColorSpaceFactory, XyzF16ColorSpaceFactory, XyzF32ColorSpaceFactory, XyzU16ColorSpaceFactory, XyzU8ColorSpaceFactory, YCbCrF32ColorSpaceFactory, YCbCrU16ColorSpaceFactory, and YCbCrU8ColorSpaceFactory.

◆ grabColorSpace()

const KoColorSpace * KoColorSpaceFactory::grabColorSpace ( const KoColorProfile * profile )

Create or reuse the existing colorspace for the given profile.

This will call the descendant's createColorSpace

Definition at line 70 of file KoColorSpaceFactory.cpp.

{
    QMutexLocker l(&d->mutex);
    Q_ASSERT(profile);
    auto it = d->availableColorspaces.find(profile->name());
    KoColorSpace* cs;

    if (it == d->availableColorspaces.end()) {
        cs = createColorSpace(profile);
        KIS_ASSERT_X(cs != nullptr, "KoColorSpaceFactory::grabColorSpace", "createColorSpace returned nullptr.");
        if (cs) {
            d->availableColorspaces[profile->name()] = cs;
        }
    }
    else {
        cs = it.value();
    }

    return cs;
}

References createColorSpace(), d, KIS_ASSERT_X, and KoColorProfile::name.

◆ id()

virtual QString KoColorSpaceFactory::id ( ) const

pure virtual

◆ isHdr()

virtual bool KoColorSpaceFactory::isHdr ( ) const

pure virtual

Returns: true if the color space supports High-Dynamic Range.

Implemented in KoSimpleColorSpaceFactory, CmykF32ColorSpaceFactory, GrayF16ColorSpaceFactory, GrayF32ColorSpaceFactory, LabF32ColorSpaceFactory, RgbF16ColorSpaceFactory, RgbF32ColorSpaceFactory, XyzF16ColorSpaceFactory, XyzF32ColorSpaceFactory, YCbCrF32ColorSpaceFactory, and LcmsColorSpaceFactory.

◆ name()

virtual QString KoColorSpaceFactory::name ( ) const

pure virtual

◆ profileIsCompatible()

virtual bool KoColorSpaceFactory::profileIsCompatible ( const KoColorProfile * profile ) const

pure virtual

Parameters

profile a pointer to a color profile

Returns: true if the color profile can be used by a color space created by this factory

Implemented in KoSimpleColorSpaceFactory, and LcmsColorSpaceFactory.

◆ referenceDepth()

virtual int KoColorSpaceFactory::referenceDepth ( ) const

pure virtual

Returns: the reference depth, that is for a color space where all channels have the same depth, this is the depth of one channel, for a color space with different bit depth for each channel, it's usually the highest bit depth. This value is used by the Color Conversion System to check if a lost of bit depth during a color conversion is acceptable, for instance when converting from RGB32bit to XYZ16bit, it's acceptable to go through a conversion to RGB16bit, while it's not the case for RGB32bit to XYZ32bit.

Implemented in KoSimpleColorSpaceFactory, CmykF32ColorSpaceFactory, CmykU16ColorSpaceFactory, CmykU8ColorSpaceFactory, GrayF16ColorSpaceFactory, GrayF32ColorSpaceFactory, GrayAU16ColorSpaceFactory, GrayAU8ColorSpaceFactory, LabF32ColorSpaceFactory, LabU16ColorSpaceFactory, LabU8ColorSpaceFactory, RgbF16ColorSpaceFactory, RgbF32ColorSpaceFactory, RgbU16ColorSpaceFactory, RgbU8ColorSpaceFactory, XyzF16ColorSpaceFactory, XyzF32ColorSpaceFactory, XyzU16ColorSpaceFactory, XyzU8ColorSpaceFactory, YCbCrF32ColorSpaceFactory, YCbCrU16ColorSpaceFactory, and YCbCrU8ColorSpaceFactory.

◆ userVisible()

virtual bool KoColorSpaceFactory::userVisible ( ) const

pure virtual

Returns: true if the color space should be shown in a User Interface, or false otherwise.

Implemented in KoSimpleColorSpaceFactory, CmykF32ColorSpaceFactory, CmykU16ColorSpaceFactory, CmykU8ColorSpaceFactory, GrayF16ColorSpaceFactory, GrayF32ColorSpaceFactory, GrayAU16ColorSpaceFactory, GrayAU8ColorSpaceFactory, LabF32ColorSpaceFactory, LabU16ColorSpaceFactory, LabU8ColorSpaceFactory, RgbF16ColorSpaceFactory, RgbF32ColorSpaceFactory, RgbU16ColorSpaceFactory, RgbU8ColorSpaceFactory, XyzF16ColorSpaceFactory, XyzF32ColorSpaceFactory, XyzU16ColorSpaceFactory, XyzU8ColorSpaceFactory, YCbCrF32ColorSpaceFactory, YCbCrU16ColorSpaceFactory, and YCbCrU8ColorSpaceFactory.

Member Data Documentation

◆ availableColorspaces

QHash<QString, KoColorSpace* > KoColorSpaceFactory::availableColorspaces

Definition at line 22 of file KoColorSpaceFactory.cpp.

◆ colorprofiles

QList<KoColorProfile*> KoColorSpaceFactory::colorprofiles

Definition at line 21 of file KoColorSpaceFactory.cpp.

◆ d

Private* const KoColorSpaceFactory::d

private

Definition at line 145 of file KoColorSpaceFactory.h.

◆ mutex

QMutex KoColorSpaceFactory::mutex

Definition at line 23 of file KoColorSpaceFactory.cpp.

◆ stackInformation

QHash<KoColorSpace*, QString> KoColorSpaceFactory::stackInformation

Definition at line 25 of file KoColorSpaceFactory.cpp.

The documentation for this class was generated from the following files:

libs/pigment/KoColorSpaceFactory.cpp
libs/pigment/KoColorSpaceFactory.h
