RgbU16ColorSpaceFactory Class Reference

#include <RgbU16ColorSpace.h>

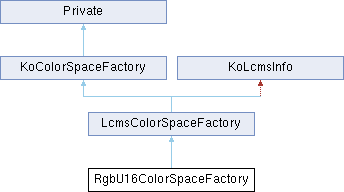

Inheritance diagram for RgbU16ColorSpaceFactory:

Public Member Functions
QList< KoColorConversionTransformationFactory * >	colorConversionLinksFromProfile (const KoColorProfile *profile) const override
	colorConversionLinksFromProfile Sometimes, we need to generate special color conversion links based on the properties of the profile. The Perceptual Quantizer profiles are an example of this. This function is called inside the color conversion system.
KoID	colorDepthId () const override
KoID	colorModelId () const override
KoColorSpace *	createColorSpace (const KoColorProfile *p) const override
QString	defaultProfile () const override
QString	id () const override
QString	name () const override
int	referenceDepth () const override
QList< KoColorProfileQuery >	requiredConnectionProfiles (const KoColorProfile *profile) const override
	RgbU16ColorSpaceFactory ()
bool	userVisible () const override
Public Member Functions inherited from LcmsColorSpaceFactory
QList< KoColorConversionTransformationFactory * >	colorConversionLinks () const override
QString	colorSpaceEngine () const override
KoColorProfile *	createColorProfile (const QByteArray &rawData) const override
int	crossingCost () const override
bool	isHdr () const override
	LcmsColorSpaceFactory (cmsUInt32Number cmType, cmsColorSpaceSignature colorSpaceSignature)
bool	profileIsCompatible (const KoColorProfile *profile) const override
Public Member Functions inherited from KoColorSpaceFactory
const KoColorSpace *	grabColorSpace (const KoColorProfile *profile)
virtual	~KoColorSpaceFactory ()
Public Member Functions inherited from Private
	Private (KisCanvas2 *c)

Additional Inherited Members
Public Attributes inherited from KoColorSpaceFactory
QHash< QString, KoColorSpace * >	availableColorspaces
QMutex	mutex
QHash< KoColorSpace *, QString >	stackInformation
Public Attributes inherited from Private
KisCanvas2 *	canvas
int	displayedFrame
int	intendedFrame
Protected Member Functions inherited from KoColorSpaceFactory
	KoColorSpaceFactory ()

Detailed Description

Definition at line 52 of file RgbU16ColorSpace.h.

Constructor & Destructor Documentation

RgbU16ColorSpaceFactory()

RgbU16ColorSpaceFactory::RgbU16ColorSpaceFactory ( )

inline

Definition at line 55 of file RgbU16ColorSpace.h.

                              : LcmsColorSpaceFactory(TYPE_BGRA_16, cmsSigRgbData)
    {
    }

Member Function Documentation

colorConversionLinksFromProfile()

QList< KoColorConversionTransformationFactory * > RgbU16ColorSpaceFactory::colorConversionLinksFromProfile ( const KoColorProfile * profile ) const

overridevirtual

colorConversionLinksFromProfile Sometimes, we need to generate special color conversion links based on the properties of the profile. The Perceptual Quantizer profiles are an example of this. This function is called inside the color conversion system.

Parameters

profile

– the profile for which to create the links for.

we cannot generate a profile at this stage, it should have been generated by the registry thanks to the call to requiredConnectionProfiles()

Reimplemented from KoColorSpaceFactory.

Definition at line 127 of file RgbU16ColorSpace.cpp.

{
    if (profile->getTransferCharacteristics() == TRC_ITU_R_BT_2100_0_PQ
        && profile->getColorPrimaries() != PRIMARIES_UNSPECIFIED) {

        KoColorSpaceRegistry *registry = KoColorSpaceRegistry::instance();
        KoColorProfileQuery query(profile->getColorPrimaries(), TRC_LINEAR);

        const KoColorProfile *connectionProfile = registry->profileFor(query, false);
        KIS_SAFE_ASSERT_RECOVER_RETURN_VALUE(connectionProfile, QList<KoColorConversionTransformationFactory *>());

        LcmsRGBP2020PQColorSpaceFactoryWrapper<RgbU16ColorSpaceFactory> factory(profile->name(), connectionProfile->name());
        return factory.colorConversionLinks();
    } else if (profile->name() == "High Dynamic Range UHDTV Wide Color Gamut Display (Rec. 2020) - SMPTE ST 2084 PQ EOTF") {
        KoColorSpaceRegistry *registry = KoColorSpaceRegistry::instance();
        LcmsRGBP2020PQColorSpaceFactoryWrapper<RgbU16ColorSpaceFactory> factory(profile->name(), registry->p2020G10Profile()->name());
        return factory.colorConversionLinks();
    }
    return QList<KoColorConversionTransformationFactory*>();
}

References LcmsRGBP2020PQColorSpaceFactoryWrapper< BaseColorSpaceFactory >::colorConversionLinks(), KoColorProfile::getColorPrimaries(), KoColorProfile::getTransferCharacteristics(), KoColorSpaceRegistry::instance(), KIS_SAFE_ASSERT_RECOVER_RETURN_VALUE, KoColorProfile::name, KoColorSpaceRegistry::p2020G10Profile(), PRIMARIES_UNSPECIFIED, KoColorSpaceRegistry::profileFor(), TRC_ITU_R_BT_2100_0_PQ, and TRC_LINEAR.

colorDepthId()

KoID RgbU16ColorSpaceFactory::colorDepthId ( ) const

inlineoverridevirtual

Returns

a string that identify the bit depth (for instance "U8" or "F16" ...)

See also

KoColorModelStandardIds.h

Implements KoColorSpaceFactory.

Definition at line 75 of file RgbU16ColorSpace.h.

    {
        return Integer16BitsColorDepthID;
    }

References Integer16BitsColorDepthID.

colorModelId()

KoID RgbU16ColorSpaceFactory::colorModelId ( ) const

inlineoverridevirtual

Returns

a string that identify the color model (for instance "RGB" or "CMYK" ...)

See also

KoColorModelStandardIds.h

Implements KoColorSpaceFactory.

Definition at line 71 of file RgbU16ColorSpace.h.

    {
        return RGBAColorModelID;
    }

References RGBAColorModelID.

createColorSpace()

KoColorSpace * RgbU16ColorSpaceFactory::createColorSpace ( const KoColorProfile * ) const

inlineoverridevirtual

creates a color space using the given profile.

Implements KoColorSpaceFactory.

Definition at line 84 of file RgbU16ColorSpace.h.

    {
        return new RgbU16ColorSpace(name(), p->clone());
    }

References name(), and p.

defaultProfile()

QString RgbU16ColorSpaceFactory::defaultProfile ( ) const

inlineoverridevirtual

Returns the default icc profile for use with this colorspace. This may be ""

Returns

the default icc profile name

Implements KoColorSpaceFactory.

Definition at line 89 of file RgbU16ColorSpace.h.

    {
        return "sRGB-elle-V2-g10.icc";//this is a linear space, because 16bit is enough to only enjoy advantages of linear space
    }

id()

QString RgbU16ColorSpaceFactory::id ( ) const

inlineoverridevirtual

Return the unchanging name of this color space

Implements KoColorSpaceFactory.

Definition at line 58 of file RgbU16ColorSpace.h.

    {
        return RgbU16ColorSpace::colorSpaceId();
    }

References RgbU16ColorSpace::colorSpaceId().

name()

QString RgbU16ColorSpaceFactory::name ( ) const

inlineoverridevirtual

return the i18n'able description.

Implements KoColorSpaceFactory.

Definition at line 62 of file RgbU16ColorSpace.h.

    {
        return QString("%1 (%2)").arg(RGBAColorModelID.name()).arg(Integer16BitsColorDepthID.name());
    }

References Integer16BitsColorDepthID, KoID::name(), and RGBAColorModelID.

referenceDepth()

int RgbU16ColorSpaceFactory::referenceDepth ( ) const

inlineoverridevirtual

Returns

the reference depth, that is for a color space where all channels have the same depth, this is the depth of one channel, for a color space with different bit depth for each channel, it's usually the highest bit depth. This value is used by the Color Conversion System to check if a lost of bit depth during a color conversion is acceptable, for instance when converting from RGB32bit to XYZ16bit, it's acceptable to go through a conversion to RGB16bit, while it's not the case for RGB32bit to XYZ32bit.

Implements KoColorSpaceFactory.

Definition at line 79 of file RgbU16ColorSpace.h.

    {
        return 16;
    }

requiredConnectionProfiles()

QList< KoColorProfileQuery > RgbU16ColorSpaceFactory::requiredConnectionProfiles ( const KoColorProfile * profile ) const

overridevirtual

Reimplemented from KoColorSpaceFactory.

Definition at line 118 of file RgbU16ColorSpace.cpp.

{
    if (profile->getTransferCharacteristics() == TRC_ITU_R_BT_2100_0_PQ
        && profile->getColorPrimaries() != PRIMARIES_UNSPECIFIED) {
        return {KoColorProfileQuery(profile->getColorPrimaries(), TRC_LINEAR)};
    }
    return {};
}

References KoColorProfile::getColorPrimaries(), KoColorProfile::getTransferCharacteristics(), PRIMARIES_UNSPECIFIED, TRC_ITU_R_BT_2100_0_PQ, and TRC_LINEAR.

userVisible()

bool RgbU16ColorSpaceFactory::userVisible ( ) const

inlineoverridevirtual

Returns

true if the color space should be shown in a User Interface, or false otherwise.

Implements KoColorSpaceFactory.

Definition at line 67 of file RgbU16ColorSpace.h.

    {
        return true;
    }

---

The documentation for this class was generated from the following files:

• plugins/color/lcms2engine/colorspaces/rgb_u16/RgbU16ColorSpace.h
• plugins/color/lcms2engine/colorspaces/rgb_u16/RgbU16ColorSpace.cpp
