#include <GrayF32ColorSpace.h>

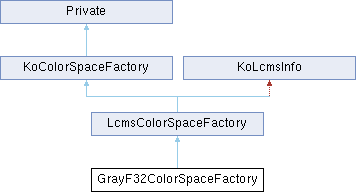

Inheritance diagram for GrayF32ColorSpaceFactory:

Public Member Functions
KoID	colorDepthId () const override

KoID	colorModelId () const override

KoColorSpace *	createColorSpace (const KoColorProfile *p) const override

QString	defaultProfile () const override

	GrayF32ColorSpaceFactory ()

QString	id () const override

bool	isHdr () const override

QString	name () const override

int	referenceDepth () const override

bool	userVisible () const override

Public Member Functions inherited from LcmsColorSpaceFactory
QList< KoColorConversionTransformationFactory * >	colorConversionLinks () const override

QString	colorSpaceEngine () const override

KoColorProfile *	createColorProfile (const QByteArray &rawData) const override

int	crossingCost () const override

bool	isHdr () const override

	LcmsColorSpaceFactory (cmsUInt32Number cmType, cmsColorSpaceSignature colorSpaceSignature)

bool	profileIsCompatible (const KoColorProfile *profile) const override

Public Member Functions inherited from KoColorSpaceFactory
virtual QList< KoColorConversionTransformationFactory * >	colorConversionLinksFromProfile (const KoColorProfile *profile) const
	colorConversionLinksFromProfile Sometimes, we need to generate special color conversion links based on the properties of the profile. The Perceptual Quantizer profiles are an example of this. This function is called inside the color conversion system.

const KoColorProfile *	colorProfile (const QByteArray &rawData, ProfileRegistrationInterface *registrationInterface, const CustomProfileNameAlias &customProfileNameAlias) const

const KoColorSpace *	grabColorSpace (const KoColorProfile *profile)

virtual	~KoColorSpaceFactory ()

Public Member Functions inherited from Private
	Private (KisCanvas2 *c)

Additional Inherited Members
Public Types inherited from KoColorSpaceFactory
using	CustomProfileNameAlias = QHash<QString, QString>

Public Attributes inherited from KoColorSpaceFactory
QHash< QString, KoColorSpace * >	availableColorspaces

QList< KoColorProfile * >	colorprofiles

QMutex	mutex

QHash< KoColorSpace *, QString >	stackInformation

Public Attributes inherited from Private
KisCanvas2 *	canvas

int	displayedFrame

int	intendedFrame

Protected Member Functions inherited from KoColorSpaceFactory
	KoColorSpaceFactory ()

Detailed Description

Definition at line 61 of file GrayF32ColorSpace.h.

Constructor & Destructor Documentation

◆ GrayF32ColorSpaceFactory()

GrayF32ColorSpaceFactory::GrayF32ColorSpaceFactory ( )

inline

Definition at line 64 of file GrayF32ColorSpace.h.

        : LcmsColorSpaceFactory(TYPE_GRAYA_FLT, cmsSigGrayData)
    {
    }

Member Function Documentation

◆ colorDepthId()

KoID GrayF32ColorSpaceFactory::colorDepthId ( ) const

inlineoverridevirtual

Returns: a string that identify the bit depth (for instance "U8" or "F16" ...)

See also: KoColorModelStandardIds.h

Implements KoColorSpaceFactory.

Definition at line 84 of file GrayF32ColorSpace.h.

    {
        return Float32BitsColorDepthID;
    }

References Float32BitsColorDepthID.

◆ colorModelId()

KoID GrayF32ColorSpaceFactory::colorModelId ( ) const

inlineoverridevirtual

Returns: a string that identify the color model (for instance "RGB" or "CMYK" ...)

See also: KoColorModelStandardIds.h

Implements KoColorSpaceFactory.

Definition at line 79 of file GrayF32ColorSpace.h.

    {
        return GrayAColorModelID;
    }

References GrayAColorModelID.

◆ createColorSpace()

KoColorSpace * GrayF32ColorSpaceFactory::createColorSpace ( const KoColorProfile * ) const

inlineoverridevirtual

creates a color space using the given profile.

Implements KoColorSpaceFactory.

Definition at line 99 of file GrayF32ColorSpace.h.

    {
        return new GrayF32ColorSpace(name(), p->clone());
    }

References name(), and p.

◆ defaultProfile()

QString GrayF32ColorSpaceFactory::defaultProfile ( ) const

inlineoverridevirtual

Returns the default icc profile for use with this colorspace. This may be ""

Returns: the default icc profile name

Implements KoColorSpaceFactory.

Definition at line 104 of file GrayF32ColorSpace.h.

    {
        return "Gray-D50-elle-V2-g10.icc";
    }

◆ id()

QString GrayF32ColorSpaceFactory::id ( ) const

inlineoverridevirtual

Return the unchanging name of this color space

Implements KoColorSpaceFactory.

Definition at line 69 of file GrayF32ColorSpace.h.

    {
        return GrayF32ColorSpace::colorSpaceId();
    }

References GrayF32ColorSpace::colorSpaceId().

◆ isHdr()

bool GrayF32ColorSpaceFactory::isHdr ( ) const

inlineoverridevirtual

Returns: true if the color space supports High-Dynamic Range.

Implements KoColorSpaceFactory.

Definition at line 109 of file GrayF32ColorSpace.h.

    {
        return true;
    }

◆ name()

QString GrayF32ColorSpaceFactory::name ( ) const

inlineoverridevirtual

return the i18n'able description.

Implements KoColorSpaceFactory.

Definition at line 74 of file GrayF32ColorSpace.h.

    {
        return QString("%1 (%2)").arg(GrayAColorModelID.name()).arg(Float32BitsColorDepthID.name());
    }

References Float32BitsColorDepthID, GrayAColorModelID, and KoID::name().

◆ referenceDepth()

int GrayF32ColorSpaceFactory::referenceDepth ( ) const

inlineoverridevirtual

Returns: the reference depth, that is for a color space where all channels have the same depth, this is the depth of one channel, for a color space with different bit depth for each channel, it's usually the highest bit depth. This value is used by the Color Conversion System to check if a lost of bit depth during a color conversion is acceptable, for instance when converting from RGB32bit to XYZ16bit, it's acceptable to go through a conversion to RGB16bit, while it's not the case for RGB32bit to XYZ32bit.

Implements KoColorSpaceFactory.

Definition at line 89 of file GrayF32ColorSpace.h.

    {
        return 32;
    }

◆ userVisible()

bool GrayF32ColorSpaceFactory::userVisible ( ) const

inlineoverridevirtual

Returns: true if the color space should be shown in a User Interface, or false otherwise.

Implements KoColorSpaceFactory.

Definition at line 94 of file GrayF32ColorSpace.h.

    {
        return true;
    }

The documentation for this class was generated from the following file:

plugins/color/lcms2engine/colorspaces/gray_f32/GrayF32ColorSpace.h
