RgbU8ColorSpaceFactory Class Reference

#include <RgbU8ColorSpace.h>

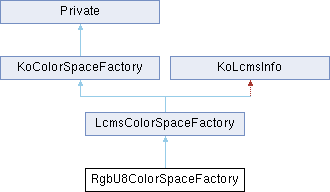

Inheritance diagram for RgbU8ColorSpaceFactory:

Public Member Functions
QList< KoColorConversionTransformationFactory * >	colorConversionLinksFromProfile (const KoColorProfile *profile) const override
	colorConversionLinksFromProfile Sometimes, we need to generate special color conversion links based on the properties of the profile. The Perceptual Quantizer profiles are an example of this. This function is called inside the color conversion system.
KoID	colorDepthId () const override
KoID	colorModelId () const override
KoColorSpace *	createColorSpace (const KoColorProfile *p) const override
QString	defaultProfile () const override
QString	id () const override
QString	name () const override
int	referenceDepth () const override
	RgbU8ColorSpaceFactory ()
bool	userVisible () const override
Public Member Functions inherited from LcmsColorSpaceFactory
QList< KoColorConversionTransformationFactory * >	colorConversionLinks () const override
QString	colorSpaceEngine () const override
KoColorProfile *	createColorProfile (const QByteArray &rawData) const override
int	crossingCost () const override
bool	isHdr () const override
	LcmsColorSpaceFactory (cmsUInt32Number cmType, cmsColorSpaceSignature colorSpaceSignature)
bool	profileIsCompatible (const KoColorProfile *profile) const override
Public Member Functions inherited from KoColorSpaceFactory
const KoColorProfile *	colorProfile (const QByteArray &rawData, ProfileRegistrationInterface *registrationInterface, const CustomProfileNameAlias &customProfileNameAlias) const
const KoColorSpace *	grabColorSpace (const KoColorProfile *profile)
virtual	~KoColorSpaceFactory ()
Public Member Functions inherited from Private
	Private (KisCanvas2 *c)

Additional Inherited Members
Public Types inherited from KoColorSpaceFactory
using	CustomProfileNameAlias = QHash<QString, QString>
Public Attributes inherited from KoColorSpaceFactory
QHash< QString, KoColorSpace * >	availableColorspaces
QList< KoColorProfile * >	colorprofiles
QMutex	mutex
QHash< KoColorSpace *, QString >	stackInformation
Public Attributes inherited from Private
KisCanvas2 *	canvas
int	displayedFrame
int	intendedFrame
Protected Member Functions inherited from KoColorSpaceFactory
	KoColorSpaceFactory ()

Detailed Description

Definition at line 61 of file RgbU8ColorSpace.h.

Constructor & Destructor Documentation

RgbU8ColorSpaceFactory()

RgbU8ColorSpaceFactory::RgbU8ColorSpaceFactory ( )

inline

Definition at line 66 of file RgbU8ColorSpace.h.

: LcmsColorSpaceFactory(TYPE_BGRA_8, cmsSigRgbData) {}

Member Function Documentation

colorConversionLinksFromProfile()

QList< KoColorConversionTransformationFactory * > RgbU8ColorSpaceFactory::colorConversionLinksFromProfile ( const KoColorProfile * profile ) const

overridevirtual

colorConversionLinksFromProfile Sometimes, we need to generate special color conversion links based on the properties of the profile. The Perceptual Quantizer profiles are an example of this. This function is called inside the color conversion system.

Parameters

profile

– the profile for which to create the links for.

Reimplemented from KoColorSpaceFactory.

Definition at line 133 of file RgbU8ColorSpace.cpp.

{
    if (profile->getTransferCharacteristics() == TRC_ITU_R_BT_2100_0_PQ
        && profile->getColorPrimaries() != PRIMARIES_UNSPECIFIED) {

        KoColorSpaceRegistry *registry = KoColorSpaceRegistry::instance();
        KoColorProfileQuery query(profile->getColorPrimaries(), TRC_LINEAR);
        QString linear = registry->profileFor(query)->name();

        LcmsRGBP2020PQColorSpaceFactoryWrapper<RgbU8ColorSpaceFactory> factory(profile->name(), linear);
        return factory.colorConversionLinks();
    } else if (profile->name() == "High Dynamic Range UHDTV Wide Color Gamut Display (Rec. 2020) - SMPTE ST 2084 PQ EOTF") {
        KoColorSpaceRegistry *registry = KoColorSpaceRegistry::instance();
        LcmsRGBP2020PQColorSpaceFactoryWrapper<RgbU8ColorSpaceFactory> factory(profile->name(), registry->p2020G10Profile()->name());
        return factory.colorConversionLinks();
    }
    return QList<KoColorConversionTransformationFactory*>();
}

References LcmsRGBP2020PQColorSpaceFactoryWrapper< BaseColorSpaceFactory >::colorConversionLinks(), KoColorProfile::getColorPrimaries(), KoColorProfile::getTransferCharacteristics(), KoColorSpaceRegistry::instance(), KoColorProfile::name, KoColorSpaceRegistry::p2020G10Profile(), PRIMARIES_UNSPECIFIED, KoColorSpaceRegistry::profileFor(), TRC_ITU_R_BT_2100_0_PQ, and TRC_LINEAR.

colorDepthId()

KoID RgbU8ColorSpaceFactory::colorDepthId ( ) const

inlineoverridevirtual

Returns

a string that identify the bit depth (for instance "U8" or "F16" ...)

See also

KoColorModelStandardIds.h

Implements KoColorSpaceFactory.

Definition at line 88 of file RgbU8ColorSpace.h.

    {
        return Integer8BitsColorDepthID;
    }

References Integer8BitsColorDepthID.

colorModelId()

KoID RgbU8ColorSpaceFactory::colorModelId ( ) const

inlineoverridevirtual

Returns

a string that identify the color model (for instance "RGB" or "CMYK" ...)

See also

KoColorModelStandardIds.h

Implements KoColorSpaceFactory.

Definition at line 83 of file RgbU8ColorSpace.h.

    {
        return RGBAColorModelID;
    }

References RGBAColorModelID.

createColorSpace()

KoColorSpace * RgbU8ColorSpaceFactory::createColorSpace ( const KoColorProfile * ) const

inlineoverridevirtual

creates a color space using the given profile.

Implements KoColorSpaceFactory.

Definition at line 98 of file RgbU8ColorSpace.h.

    {
        return new RgbU8ColorSpace(name(), p->clone());
    }

References name(), and p.

defaultProfile()

QString RgbU8ColorSpaceFactory::defaultProfile ( ) const

inlineoverridevirtual

Returns the default icc profile for use with this colorspace. This may be ""

Returns

the default icc profile name

Implements KoColorSpaceFactory.

Definition at line 103 of file RgbU8ColorSpace.h.

    {
        return "sRGB-elle-V2-srgbtrc.icc";
    }

id()

QString RgbU8ColorSpaceFactory::id ( ) const

inlineoverridevirtual

Return the unchanging name of this color space

Implements KoColorSpaceFactory.

Definition at line 73 of file RgbU8ColorSpace.h.

    {
        return RgbU8ColorSpace::colorSpaceId();
    }

References RgbU8ColorSpace::colorSpaceId().

name()

QString RgbU8ColorSpaceFactory::name ( ) const

inlineoverridevirtual

return the i18n'able description.

Implements KoColorSpaceFactory.

Definition at line 78 of file RgbU8ColorSpace.h.

    {
        return QString("%1 (%2)").arg(RGBAColorModelID.name()).arg(Integer8BitsColorDepthID.name());
    }

References Integer8BitsColorDepthID, KoID::name(), and RGBAColorModelID.

referenceDepth()

int RgbU8ColorSpaceFactory::referenceDepth ( ) const

inlineoverridevirtual

Returns

the reference depth, that is for a color space where all channels have the same depth, this is the depth of one channel, for a color space with different bit depth for each channel, it's usually the highest bit depth. This value is used by the Color Conversion System to check if a lost of bit depth during a color conversion is acceptable, for instance when converting from RGB32bit to XYZ16bit, it's acceptable to go through a conversion to RGB16bit, while it's not the case for RGB32bit to XYZ32bit.

Implements KoColorSpaceFactory.

Definition at line 93 of file RgbU8ColorSpace.h.

    {
        return 8;
    }

userVisible()

bool RgbU8ColorSpaceFactory::userVisible ( ) const

inlineoverridevirtual

Returns

true if the color space should be shown in a User Interface, or false otherwise.

Implements KoColorSpaceFactory.

Definition at line 68 of file RgbU8ColorSpace.h.

    {
        return true;
    }

---

The documentation for this class was generated from the following files:

• plugins/color/lcms2engine/colorspaces/rgb_u8/RgbU8ColorSpace.h
• plugins/color/lcms2engine/colorspaces/rgb_u8/RgbU8ColorSpace.cpp
