#include <KoSimpleColorSpaceFactory.h>

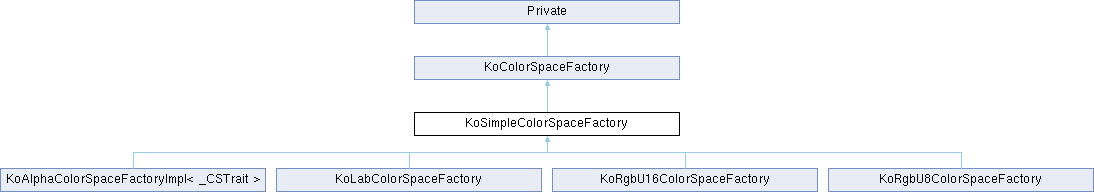

Inheritance diagram for KoSimpleColorSpaceFactory:

Public Member Functions
QList< KoColorConversionTransformationFactory * >	colorConversionLinks () const override

KoID	colorDepthId () const override

KoID	colorModelId () const override

QString	colorSpaceEngine () const override

int	crossingCost () const override

QString	defaultProfile () const override

QString	id () const override

bool	isHdr () const override

	KoSimpleColorSpaceFactory (const QString &id, const QString &name, bool userVisible, const KoID &colorModelId, const KoID &colorDepthId, int referenceDepth=-1, int crossingCost=1)

QString	name () const override

bool	profileIsCompatible (const KoColorProfile *profile) const override

int	referenceDepth () const override

bool	userVisible () const override

Public Member Functions inherited from KoColorSpaceFactory
virtual QList< KoColorConversionTransformationFactory * >	colorConversionLinksFromProfile (const KoColorProfile *profile) const
	colorConversionLinksFromProfile Sometimes, we need to generate special color conversion links based on the properties of the profile. The Perceptual Quantizer profiles are an example of this. This function is called inside the color conversion system.

const KoColorProfile *	colorProfile (const QByteArray &rawData, ProfileRegistrationInterface *registrationInterface, const CustomProfileNameAlias &customProfileNameAlias) const

const KoColorSpace *	grabColorSpace (const KoColorProfile *profile)

virtual	~KoColorSpaceFactory ()

Public Member Functions inherited from Private
	Private (KisCanvas2 *c)

Protected Member Functions
KoColorProfile *	createColorProfile (const QByteArray &) const override

Protected Member Functions inherited from KoColorSpaceFactory
virtual KoColorSpace *	createColorSpace (const KoColorProfile *) const =0

	KoColorSpaceFactory ()

Private Attributes
KoID	m_colorDepthId

KoID	m_colorModelId

int	m_crossingCost

QString	m_id

QString	m_name

int	m_referenceDepth

bool	m_userVisible

Additional Inherited Members
Public Types inherited from KoColorSpaceFactory
using	CustomProfileNameAlias = QHash<QString, QString>

Public Attributes inherited from KoColorSpaceFactory
QHash< QString, KoColorSpace * >	availableColorspaces

QList< KoColorProfile * >	colorprofiles

QMutex	mutex

QHash< KoColorSpace *, QString >	stackInformation

Public Attributes inherited from Private
KisCanvas2 *	canvas

int	displayedFrame

int	intendedFrame

Detailed Description

Definition at line 17 of file KoSimpleColorSpaceFactory.h.

Constructor & Destructor Documentation

◆ KoSimpleColorSpaceFactory()

KoSimpleColorSpaceFactory::KoSimpleColorSpaceFactory	(	const QString &	id,
		const QString &	name,
		bool	userVisible,
		const KoID &	colorModelId,
		const KoID &	colorDepthId,
		int	referenceDepth = -1,
		int	crossingCost = 1 )

inline

Definition at line 22 of file KoSimpleColorSpaceFactory.h.

        : m_id(id)
        , m_name(name)
        , m_userVisible(userVisible)
        , m_colorModelId(colorModelId)
        , m_colorDepthId(colorDepthId)
        , m_referenceDepth(referenceDepth)
        , m_crossingCost(crossingCost)
    {
        if (m_referenceDepth >= 0) {
            // noop, already initialized!
        } else if (colorDepthId == Integer8BitsColorDepthID) {
            m_referenceDepth = 1 * 8;
        } else if (colorDepthId == Integer16BitsColorDepthID) {
            m_referenceDepth = 2 * 8;
        } else if (colorDepthId == Float16BitsColorDepthID) {
            m_referenceDepth = 2 * 8;
        } else if (colorDepthId == Float32BitsColorDepthID) {
            m_referenceDepth = 4 * 8;
        } else if (colorDepthId == Float64BitsColorDepthID) {
            m_referenceDepth = 8 * 8;
        }
    }

References colorDepthId(), Float16BitsColorDepthID, Float32BitsColorDepthID, Float64BitsColorDepthID, Integer16BitsColorDepthID, Integer8BitsColorDepthID, and m_referenceDepth.

Member Function Documentation

◆ colorConversionLinks()

QList< KoColorConversionTransformationFactory * > KoSimpleColorSpaceFactory::colorConversionLinks ( ) const

inlineoverridevirtual

Returns: the list of color conversion provided by this colorspace, the factories constructed by this functions are owned by the caller of the function

Implements KoColorSpaceFactory.

Definition at line 93 of file KoSimpleColorSpaceFactory.h.

                                                                                         {
        return QList<KoColorConversionTransformationFactory*>();
    }

◆ colorDepthId()

KoID KoSimpleColorSpaceFactory::colorDepthId ( ) const

inlineoverridevirtual

Returns: a string that identify the bit depth (for instance "U8" or "F16" ...)

See also: KoColorModelStandardIds.h

Implements KoColorSpaceFactory.

Definition at line 69 of file KoSimpleColorSpaceFactory.h.

                                       {
        return m_colorDepthId;
    }

References m_colorDepthId.

◆ colorModelId()

KoID KoSimpleColorSpaceFactory::colorModelId ( ) const

inlineoverridevirtual

Returns: a string that identify the color model (for instance "RGB" or "CMYK" ...)

See also: KoColorModelStandardIds.h

Implements KoColorSpaceFactory.

Definition at line 65 of file KoSimpleColorSpaceFactory.h.

                                       {
        return m_colorModelId;
    }

References m_colorModelId.

◆ colorSpaceEngine()

QString KoSimpleColorSpaceFactory::colorSpaceEngine ( ) const

inlineoverridevirtual

Returns: the name of the color space engine for this color space, or "" if none

Implements KoColorSpaceFactory.

Definition at line 77 of file KoSimpleColorSpaceFactory.h.

                                              {
        return "simple";
    }

◆ createColorProfile()

KoColorProfile * KoSimpleColorSpaceFactory::createColorProfile ( const QByteArray & ) const

inlineoverrideprotectedvirtual

Implements KoColorSpaceFactory.

Definition at line 101 of file KoSimpleColorSpaceFactory.h.

                                                                           {
        return 0;
    }

◆ crossingCost()

int KoSimpleColorSpaceFactory::crossingCost ( ) const

inlineoverridevirtual

Returns: the cost of the usage of the colorspace in the conversion graph. The higher the cost, the less probably the color space will be chosen for the conversion.

Implements KoColorSpaceFactory.

Definition at line 89 of file KoSimpleColorSpaceFactory.h.

                                      {
        return m_crossingCost;
    }

References m_crossingCost.

◆ defaultProfile()

QString KoSimpleColorSpaceFactory::defaultProfile ( ) const

inlineoverridevirtual

Returns the default icc profile for use with this colorspace. This may be ""

Returns: the default icc profile name

Implements KoColorSpaceFactory.

Definition at line 97 of file KoSimpleColorSpaceFactory.h.

                                            {
        return QString("default");
    }

◆ id()

QString KoSimpleColorSpaceFactory::id ( ) const

inlineoverridevirtual

Return the unchanging name of this color space

Implements KoColorSpaceFactory.

Definition at line 53 of file KoSimpleColorSpaceFactory.h.

                                {
        return m_id;
    }

References m_id.

◆ isHdr()

bool KoSimpleColorSpaceFactory::isHdr ( ) const

inlineoverridevirtual

Returns: true if the color space supports High-Dynamic Range.

Implements KoColorSpaceFactory.

Definition at line 81 of file KoSimpleColorSpaceFactory.h.

                                {
        return false;
    }

◆ name()

QString KoSimpleColorSpaceFactory::name ( ) const

inlineoverridevirtual

return the i18n'able description.

Implements KoColorSpaceFactory.

Definition at line 57 of file KoSimpleColorSpaceFactory.h.

                                  {
        return m_name;
    }

References m_name.

◆ profileIsCompatible()

bool KoSimpleColorSpaceFactory::profileIsCompatible ( const KoColorProfile * profile ) const

inlineoverridevirtual

Parameters

profile a pointer to a color profile

Returns: true if the color profile can be used by a color space created by this factory

Implements KoColorSpaceFactory.

Definition at line 73 of file KoSimpleColorSpaceFactory.h.

                                                                           {
        return dynamic_cast<const KoDummyColorProfile*>(profile);
    }

◆ referenceDepth()

int KoSimpleColorSpaceFactory::referenceDepth ( ) const

inlineoverridevirtual

Returns: the reference depth, that is for a color space where all channels have the same depth, this is the depth of one channel, for a color space with different bit depth for each channel, it's usually the highest bit depth. This value is used by the Color Conversion System to check if a lost of bit depth during a color conversion is acceptable, for instance when converting from RGB32bit to XYZ16bit, it's acceptable to go through a conversion to RGB16bit, while it's not the case for RGB32bit to XYZ32bit.

Implements KoColorSpaceFactory.

Definition at line 85 of file KoSimpleColorSpaceFactory.h.

                                        {
        return m_referenceDepth;
    }

References m_referenceDepth.

◆ userVisible()

bool KoSimpleColorSpaceFactory::userVisible ( ) const

inlineoverridevirtual

Returns: true if the color space should be shown in a User Interface, or false otherwise.

Implements KoColorSpaceFactory.

Definition at line 61 of file KoSimpleColorSpaceFactory.h.

                                      {
        return m_userVisible;
    }

References m_userVisible.

Member Data Documentation

◆ m_colorDepthId

KoID KoSimpleColorSpaceFactory::m_colorDepthId

private

Definition at line 110 of file KoSimpleColorSpaceFactory.h.

◆ m_colorModelId

KoID KoSimpleColorSpaceFactory::m_colorModelId

private

Definition at line 109 of file KoSimpleColorSpaceFactory.h.

◆ m_crossingCost

int KoSimpleColorSpaceFactory::m_crossingCost

private

Definition at line 112 of file KoSimpleColorSpaceFactory.h.

◆ m_id

QString KoSimpleColorSpaceFactory::m_id

private

Definition at line 106 of file KoSimpleColorSpaceFactory.h.

◆ m_name

QString KoSimpleColorSpaceFactory::m_name

private

Definition at line 107 of file KoSimpleColorSpaceFactory.h.

◆ m_referenceDepth

int KoSimpleColorSpaceFactory::m_referenceDepth

private

Definition at line 111 of file KoSimpleColorSpaceFactory.h.

◆ m_userVisible

bool KoSimpleColorSpaceFactory::m_userVisible

private

Definition at line 108 of file KoSimpleColorSpaceFactory.h.

The documentation for this class was generated from the following file:

libs/pigment/colorspaces/KoSimpleColorSpaceFactory.h
