#include <EnhancedPathShape.h>

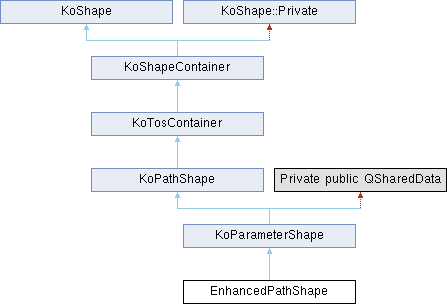

Inheritance diagram for EnhancedPathShape:

Public Member Functions
void	addCommand (const QString &command)
	Add command for instance "M 0 0".

void	addFormula (const QString &name, const QString &formula)
	Add formula with given name and textual representation.

void	addHandle (const QMap< QString, QVariant > &handle)
	Add a single handle with format: x y minX maxX minY maxY.

void	addModifiers (const QString &modifiers)
	Add modifiers with format: modifier0 modifier1 modifier2 ...

KoShape *	cloneShape () const override
	creates a deep copy of the shape or shape's subtree

	EnhancedPathShape (const QRect &viewBox)

qreal	evaluateConstantOrReference (const QString &val)

qreal	evaluateReference (const QString &reference)

void	modifyReference (const QString &reference, qreal value)

QPointF	normalize () override
	Normalizes the path data.

EnhancedPathParameter *	parameter (const QString &text)
	Returns parameter from given textual representation.

void	setMirrorHorizontally (bool mirrorHorizontally)
	Sets if the shape is to be mirrored horizontally before applying any other transformations.

void	setMirrorVertically (bool mirrorVertically)
	Sets if the shape is to be mirrored vertically before applying any other transformations.

void	setPathStretchPointX (qreal pathStretchPointX)

void	setPathStretchPointY (qreal pathStretchPointY)

void	setSize (const QSizeF &newSize) override
	Resize the shape.

QPointF	shapeToViewbox (const QPointF &point) const
	Converts from shape coordinates to viewbox coordinates.

QRect	viewBox () const
	Returns the viewbox of the enhanced path shape.

	~EnhancedPathShape () override

Public Member Functions inherited from KoParameterShape
int	handleCount () const
	return the number of handles set on the shape

int	handleIdAt (const QRectF &rect) const
	Get the id of the handle within the given rect.

QPointF	handlePosition (int handleId) const
	Get the handle position.

bool	isParametricShape () const
	Check if object is a parametric shape.

	KoParameterShape ()

void	moveHandle (int handleId, const QPointF &point, Qt::KeyboardModifiers modifiers=Qt::NoModifier)
	Move handle to point.

QPointF	normalize () override
	Normalizes the path data.

void	paintHandle (KisHandlePainterHelper &handlesHelper, int handleId)
	Paint the given handles.

void	paintHandles (KisHandlePainterHelper &handlesHelper)
	Paint the handles.

	Private ()

	Private (const KoParameterShape::Private &rhs)

void	setParametricShape (bool parametric)
	Set if the shape can be modified using parameters.

void	setSize (const QSizeF &size) override
	reimplemented from KoShape

	~KoParameterShape () override

virtual	~Private ()=default

Public Member Functions inherited from KoPathShape
bool	addSubpath (KoSubpath *subpath, int subpathIndex)
	Adds a subpath at the given index to the path.

KoPathPoint *	arcTo (qreal rx, qreal ry, qreal startAngle, qreal sweepAngle)
	Add an arc.

bool	autoFillMarkers () const

QRectF	boundingRect () const override
	reimplemented

bool	breakAfter (const KoPathPointIndex &pointIndex)
	Breaks the path after the point index.

void	clear ()
	Removes all subpaths and their points from the path.

KoShape *	cloneShape () const override
	creates a deep copy of the shape or shape's subtree

void	close ()
	Closes the current subpath.

void	closeMerge ()
	Closes the current subpath.

KoPathPointIndex	closeSubpath (const KoPathPointIndex &pointIndex)
	Close a open subpath.

int	combine (KoPathShape *path)
	Combines two path shapes by appending the data of the specified path.

KoPathPoint *	curveTo (const QPointF &c, const QPointF &p)
	Adds a new quadratic Bezier curve segment.

KoPathPoint *	curveTo (const QPointF &c1, const QPointF &c2, const QPointF &p)
	Adds a new cubic Bezier curve segment.

Qt::FillRule	fillRule () const
	Returns the fill rule for the path object.

bool	hasMarkers () const

bool	hitTest (const QPointF &position) const override
	reimplemented

bool	insertPoint (KoPathPoint *point, const KoPathPointIndex &pointIndex)
	Inserts a new point into the given subpath at the specified position.

bool	isClosedSubpath (int subpathIndex) const
	Checks if a subpath is closed.

bool	join (int subpathIndex)
	Joins the given subpath with the following one.

	KoPathShape ()
	constructor

KoPathPoint *	lineTo (const QPointF &p)
	Adds a new line segment.

void	loadNodeTypes (const QString &nodeTypes)
	Loads node types.

KoMarker *	marker (KoFlake::MarkerPosition pos) const

bool	moveSubpath (int oldSubpathIndex, int newSubpathIndex)
	Moves the position of a subpath within a path.

KoPathPoint *	moveTo (const QPointF &p)
	Starts a new Subpath.

QString	nodeTypes () const
	Saves the node types.

KoPathPointIndex	openSubpath (const KoPathPointIndex &pointIndex)
	Opens a closed subpath.

QPainterPath	outline () const override
	reimplemented

QRectF	outlineRect () const override
	reimplemented

void	paint (QPainter &painter) const override
	reimplemented

virtual void	paintPoints (KisHandlePainterHelper &handlesHelper)

KoPathPointIndex	pathPointIndex (const KoPathPoint *point) const
	Returns the path point index of a given path point.

virtual QString	pathShapeId () const

QPainterPath	pathStroke (const QPen &pen) const

KoPathPoint *	pointByIndex (const KoPathPointIndex &pointIndex) const
	Returns the path point specified by a path point index.

int	pointCount () const
	Returns the number of points in the path.

QList< KoPathPoint * >	pointsAt (const QRectF &rect, const bool useControlPoints=false) const
	Returns the path points within the given rectangle.

void	recommendPointSelectionChange (const QList< KoPathPointIndex > &newSelection)

KoPathPoint *	removePoint (const KoPathPointIndex &pointIndex)
	Removes a point from the path.

KoSubpath *	removeSubpath (int subpathIndex)
	Removes subpath from the path.

bool	reverseSubpath (int subpathIndex)
	Reverse subpath.

KoPathSegment	segmentByIndex (const KoPathPointIndex &pointIndex) const
	Returns the segment specified by a path point index.

QList< KoPathSegment >	segmentsAt (const QRectF &rect) const
	Returns the list of path segments within the given rectangle.

bool	separate (QList< KoPathShape * > &separatedPaths)
	Creates separate path shapes, one for each existing subpath.

void	setAutoFillMarkers (bool value)

void	setFillRule (Qt::FillRule fillRule)
	Sets the fill rule to be used for painting the background.

void	setMarker (KoMarker *marker, KoFlake::MarkerPosition pos)

void	setSize (const QSizeF &size) override

QSizeF	size () const override
	reimplemented

int	subpathCount () const
	Returns the number of subpaths in the path.

int	subpathPointCount (int subpathIndex) const
	Returns the number of points in a subpath.

QString	toString (const QTransform &matrix=QTransform()) const
	Returns a odf/svg string representation of the path data with the given matrix applied.

	~KoPathShape () override

Public Member Functions inherited from KoTosContainer
KoShape *	createTextShape (KoDocumentResourceManager *documentResources=0)

	KoTosContainer ()

virtual bool	loadText (const QDomElement &element)

void	paintComponent (QPainter &painter) const override
	Paint the component Implement this method to allow the shape to paint itself, just like the KoShape::paint() method does.

ResizeBehavior	resizeBehavior () const

void	setPlainText (const QString &text)

void	setResizeBehavior (ResizeBehavior resizeBehavior)

void	setRunThrough (short int runThrough) override

void	setTextAlignment (Qt::Alignment alignment)

Qt::Alignment	textAlignment () const

	~KoTosContainer () override

Public Member Functions inherited from KoShapeContainer
void	addShape (KoShape *shape)

bool	inheritsTransform (const KoShape *shape) const

bool	isClipped (const KoShape *child) const

	KoShapeContainer (KoShapeContainerModel *model=0)

KoShapeContainerModel *	model () const

void	paint (QPainter &painter) const override
	reimplemented

	Private (const Private &rhs, KoShapeContainer *q)

	Private (KoShapeContainer *q)

void	removeShape (KoShape *shape)

void	setClipped (const KoShape *child, bool clipping)

void	setInheritsTransform (const KoShape *shape, bool inherit)

int	shapeCount () const

ShapeInterface *	shapeInterface ()

QList< KoShape * >	shapes () const

virtual void	update () const

void	update () const override
	reimplemented

	~KoShapeContainer () override

Public Member Functions inherited from KoShape
QRectF	absoluteOutlineRect () const

QPointF	absolutePosition (KoFlake::AnchorPosition anchor=KoFlake::Center) const

QTransform	absoluteTransformation () const

bool	addDependee (KoShape *shape)

QString	additionalAttribute (const QString &name) const

void	addShapeChangeListener (ShapeChangeListener *listener)

KoShapeAnchor *	anchor () const

void	applyAbsoluteTransformation (const QTransform &matrix)

void	applyTransformation (const QTransform &matrix)

virtual QSharedPointer< KoShapeBackground >	background () const

virtual ChildZOrderPolicy	childZOrderPolicy ()

KoClipMask *	clipMask () const
	Returns the currently set clip mask or 0 if there is no clip mask set.

KoClipPath *	clipPath () const
	Returns the currently set clip path or 0 if there is no clip path set.

KoShape *	cloneShapeAndBakeAbsoluteTransform () const
	creates a deep copy of the shape/shapes tree and bakes the absolute transform of `this` into the resulting shape.

void	copySettings (const KoShape *shape)

QList< KoShape * >	dependees () const
	Returns list of shapes depending on this shape.

QPointF	documentToShape (const QPointF &point) const
	Transforms point from document coordinates to shape coordinates.

QRectF	documentToShape (const QRectF &rect) const
	Transform rect from document coordinates to shape coordinates.

KoFilterEffectStack *	filterEffectStack () const

bool	hasAdditionalAttribute (const QString &name) const

bool	hasCommonParent (const KoShape *shape) const

bool	hasDependee (KoShape *shape) const
	Returns if the given shape is dependent on this shape.

virtual bool	hasTransparency () const

QString	hyperLink () const

bool	inheritBackground () const
	inheritBackground shows if the shape inherits background from its parent

bool	inheritPaintOrder () const
	inheritPaintOrder

bool	inheritsTransformFromAny (const QList< KoShape * > ancestorsInQuestion) const
	inheritsTransformFromAny checks if the shape inherits transformation from any of the shapes listed in `ancestorsInQuestion`. The inheritance is checked in recursive way.

bool	inheritStroke () const
	inheritStroke shows if the shape inherits the stroke from its parent

bool	isContentProtected () const

bool	isGeometryProtected () const

bool	isPrintable () const

bool	isSelectable () const

virtual bool	isShapeEditable (bool recursive=true) const
	checks recursively if the shape or one of its parents is not visible or locked

bool	isVisible (bool recursive=true) const

bool	keepAspectRatio () const

	KoShape ()
	Constructor.

qreal	minimumHeight () const

QString	name () const

void	notifyChanged ()

virtual void	paintMarkers (QPainter &painter) const
	paintStroke paints the shape's markers

virtual QVector< PaintOrder >	paintOrder () const
	paintOrder

virtual void	paintStroke (QPainter &painter) const
	paintStroke paints the shape's stroked outline

KoShapeContainer *	parent () const

QPointF	position () const
	Get the position of the shape in pt.

void	removeAdditionalAttribute (const QString &name)

void	removeAdditionalStyleAttribute (const char *name)

void	removeDependee (KoShape *shape)

void	removeShapeChangeListener (ShapeChangeListener *listener)

void	rotate (qreal angle)
	Rotate the shape (relative)

qreal	rotation () const

int	runThrough () const

void	scale (qreal sx, qreal sy)
	Scale the shape using the zero-point which is the top-left corner.

void	setAbsolutePosition (const QPointF &newPosition, KoFlake::AnchorPosition anchor=KoFlake::Center)

void	setAdditionalAttribute (const QString &name, const QString &value)

void	setAdditionalStyleAttribute (const char *name, const QString &value)

void	setAnchor (KoShapeAnchor *anchor)

virtual void	setBackground (QSharedPointer< KoShapeBackground > background)

void	setClipMask (KoClipMask *clipMask)
	Sets a new clip mask, removing the old one. The mask is owned by the shape.

void	setClipPath (KoClipPath *clipPath)
	Sets a new clip path, removing the old one.

void	setContentProtected (bool protect)

void	setFilterEffectStack (KoFilterEffectStack *filterEffectStack)
	Sets the new filter effect stack, removing the old one.

void	setGeometryProtected (bool on)

void	setHyperLink (const QString &hyperLink)

void	setInheritBackground (bool value)
	setInheritBackground marks a shape as inheriting the background from the parent shape. NOTE: The currently selected background is destroyed.

void	setInheritPaintOrder (bool value)
	setInheritPaintOrder set inherit paint order.

void	setInheritStroke (bool value)
	setInheritStroke marks a shape as inheriting the stroke from the parent shape. NOTE: The currently selected stroke is destroyed.

void	setKeepAspectRatio (bool keepAspect)

void	setMinimumHeight (qreal height)

void	setName (const QString &name)

virtual void	setPaintOrder (PaintOrder first, PaintOrder second)
	setPaintOrder set the paint order. As there's only three entries in any given paintorder, you only need to have the first and second entry to set it.

void	setParent (KoShapeContainer *parent)

virtual void	setPosition (const QPointF &position)
	Set the position of the shape in pt.

void	setPrintable (bool on)

virtual void	setResolution (qreal xRes, qreal yRes)

void	setSelectable (bool selectable)

void	setShadow (KoShapeShadow *shadow)
	Sets the new shadow, removing the old one.

void	setShapeId (const QString &id)

virtual void	setStroke (KoShapeStrokeModelSP stroke)

void	setTextRunAroundContour (TextRunAroundContour contour)

void	setTextRunAroundDistanceBottom (qreal distance)

void	setTextRunAroundDistanceLeft (qreal distance)

void	setTextRunAroundDistanceRight (qreal distance)

void	setTextRunAroundDistanceTop (qreal distance)

void	setTextRunAroundSide (TextRunAroundSide side, RunThroughLevel runThrough=Background)

void	setTextRunAroundThreshold (qreal threshold)

void	setToolDelegates (const QSet< KoShape * > &delegates)

void	setTransformation (const QTransform &matrix)

void	setTransparency (qreal transparency)

void	setUserData (KoShapeUserData *userData)

void	setVisible (bool on)

void	setZIndex (qint16 zIndex)

KoShapeShadow *	shadow () const
	Returns the currently set shadow or 0 if there is no shadow set.

virtual QPainterPath	shadowOutline () const

QString	shapeId () const

QPointF	shapeToDocument (const QPointF &point) const
	Transforms point from shape coordinates to document coordinates.

QRectF	shapeToDocument (const QRectF &rect) const
	Transforms rect from shape coordinates to document coordinates.

void	shear (qreal sx, qreal sy)
	Shear the shape The shape will be sheared using the zero-point which is the top-left corner.

virtual KoSnapData	snapData () const
	Returns additional snap data the shape wants to have snapping to.

virtual KoShapeStrokeModelSP	stroke () const

KoInsets	strokeInsets () const

TextRunAroundContour	textRunAroundContour () const

qreal	textRunAroundDistanceBottom () const

qreal	textRunAroundDistanceLeft () const

qreal	textRunAroundDistanceRight () const

qreal	textRunAroundDistanceTop () const

TextRunAroundSide	textRunAroundSide () const

qreal	textRunAroundThreshold () const

QSet< KoShape * >	toolDelegates () const

QTransform	transformation () const
	Returns the shapes local transformation matrix.

qreal	transparency (bool recursive=false) const

virtual void	updateAbsolute (const QRectF &rect) const

KoShapeUserData *	userData () const

virtual void	waitUntilReady (bool asynchronous=true) const

qint16	zIndex () const

virtual	~KoShape ()
	Destructor.

Protected Member Functions
void	moveHandleAction (int handleId, const QPointF &point, Qt::KeyboardModifiers modifiers=Qt::NoModifier) override
	Updates the internal state of a KoParameterShape.

void	shapeChanged (ChangeType type, KoShape *shape=0) override

void	updatePath (const QSizeF &size) override
	Update the path of the parameter shape.

Protected Member Functions inherited from KoParameterShape
QList< QPointF >	handles () const

	KoParameterShape (const KoParameterShape &rhs)
	constructor

void	setHandles (const QList< QPointF > &handles)

Protected Member Functions inherited from KoPathShape
int	arcToCurve (qreal rx, qreal ry, qreal startAngle, qreal sweepAngle, const QPointF &offset, QPointF *curvePoints) const
	Add an arc.

	KoPathShape (const KoPathShape &rhs)

void	map (const QTransform &matrix)

void	notifyPointsChanged ()

QTransform	resizeMatrix (const QSizeF &newSize) const

KoSubpathList &	subpaths ()
	XXX: refactor this using setter?

const KoSubpathList &	subpaths () const

Protected Member Functions inherited from KoTosContainer
	KoTosContainer (const KoTosContainer &rhs)

QRectF	preferredTextRect () const

void	setPreferredTextRect (const QRectF &rect)

void	shapeChanged (ChangeType type, KoShape *shape=0) override

KoShape *	textShape () const

Protected Member Functions inherited from KoShapeContainer
	KoShapeContainer (const KoShapeContainer &rhs)

void	setModel (KoShapeContainerModel *model)

void	setModelInit (KoShapeContainerModel *model)

virtual void	shapeCountChanged ()

Protected Member Functions inherited from KoShape
	KoShape (const KoShape &rhs)

QList< ShapeChangeListener * >	listeners () const

void	setSizeImpl (const QSizeF &size) const

void	shapeChangedPriv (KoShape::ChangeType type)

QTransform	transform () const
	return the current matrix that contains the rotation/scale/position of this shape

Private Types
typedef QMap< QString, EnhancedPathFormula * >	FormulaStore

typedef QList< qreal >	ModifierStore

typedef QMap< QString, EnhancedPathParameter * >	ParameterStore

Private Member Functions
void	addCommand (const QString &command, bool triggerUpdate)
	Adds a new command.

void	enableResultCache (bool enable)
	Enables caching results.

	EnhancedPathShape (const EnhancedPathShape &rhs)

void	evaluateHandles ()

void	parsePathData (const QString &data)
	parses the enhanced path data

void	reset ()

void	updateTextArea ()
	Updates the size and position of an optionally existing text-on-shape text area.

bool	useStretchPoints (const QSizeF &size, qreal &scale)

Private Attributes
bool	m_cacheResults
	indicates if result cache is enabled

QList< EnhancedPathCommand * >	m_commands
	the commands creating the outline

QList< EnhancedPathHandle * >	m_enhancedHandles
	the handles for modifying the shape

FormulaStore	m_formulae
	the formulae

bool	m_mirrorHorizontally
	whether or not the shape is to be mirrored horizontally before transforming it

QTransform	m_mirrorMatrix
	matrix to used for mirroring

bool	m_mirrorVertically
	whether or not the shape is to be mirrored vertically before transforming it

ModifierStore	m_modifiers
	the modifier values

ParameterStore	m_parameters
	the shared parameters

qreal	m_pathStretchPointX
	draw:path-stretchpoint-x attribute

qreal	m_pathStretchPointY
	draw:path-stretchpoint-y attribute

QHash< QString, qreal >	m_resultCache
	cache for intermediate results used when evaluating path

QStringList	m_textArea

QRectF	m_viewBound
	the bounding box of the path in viewbox coordinates

QRect	m_viewBox
	the viewbox rectangle

QPointF	m_viewBoxOffset

QTransform	m_viewMatrix
	matrix to convert from viewbox coordinates to shape coordinates

Additional Inherited Members
Public Types inherited from KoTosContainer
enum	ResizeBehavior { TextFollowsSize , FollowTextSize , IndependentSizes , TextFollowsPreferredTextRect }
	different kinds of resizing behavior to determine how to treat text overflow More...

Public Types inherited from KoShape
enum	ChangeType { PositionChanged , RotationChanged , ScaleChanged , ShearChanged , SizeChanged , GenericMatrixChange , KeepAspectRatioChange , ParentChanged , Deleted , StrokeChanged , BackgroundChanged , ShadowChanged , BorderChanged , ParameterChanged , ContentChanged , TextRunAroundChanged , ChildChanged , ConnectionPointChanged , ClipPathChanged , ClipMaskChanged , TransparencyChanged }
	Used by shapeChanged() to select which change was made. More...

enum	ChildZOrderPolicy { ChildZDefault , ChildZParentChild = ChildZDefault , ChildZPassThrough }
	Used by compareShapeZIndex() to order shapes. More...

enum	PaintOrder { Fill , Stroke , Markers }

enum	RunThroughLevel { Background , Foreground }

enum	TextRunAroundContour { ContourBox , ContourFull , ContourOutside }
	The behavior text should do when intersecting this shape. More...

enum	TextRunAroundSide { BiggestRunAroundSide , LeftRunAroundSide , RightRunAroundSide , EnoughRunAroundSide , BothRunAroundSide , NoRunAround , RunThrough }
	The behavior text should do when intersecting this shape. More...

Static Public Member Functions inherited from KoPathShape
static KoPathShape *	createShapeFromPainterPath (const QPainterPath &path)
	Creates path shape from given QPainterPath.

Static Public Member Functions inherited from KoShape
static QRectF	absoluteOutlineRect (const QList< KoShape * > &shapes)

static QRectF	boundingRect (const QList< KoShape * > &shapes)

static bool	compareShapeZIndex (KoShape s1, KoShape s2)

static KisHandlePainterHelper	createHandlePainterHelperDocument (QPainter painter, KoShape shape, qreal handleRadius, int decorationThickness)

static KisHandlePainterHelper	createHandlePainterHelperView (QPainter painter, KoShape shape, const KoViewConverter &converter, qreal handleRadius=0.0, int decorationThickness=1)

static QVector< PaintOrder >	defaultPaintOrder ()
	default paint order as per SVG specification

static QList< KoShape * >	linearizeSubtree (const QList< KoShape * > &shapes)

static QList< KoShape * >	linearizeSubtreeSorted (const QList< KoShape * > &shapes)

Public Attributes inherited from KoParameterShape
QList< QPointF >	handles
	the handles that the user can grab and change

bool	parametric

Public Attributes inherited from KoShapeContainer
KoShapeContainerModel *	model

KoShapeContainer::ShapeInterface	shapeInterface

Static Public Attributes inherited from KoShape
static const qint16	maxZIndex = std::numeric_limits<qint16>::max()

static const qint16	minZIndex = std::numeric_limits<qint16>::min()

Detailed Description

An enhanced shape is a custom shape which can be defined by enhanced geometry data. The data consists of a list of commands like moveto, lineto, curveto, etc. which are used to create the outline of the shape. The coordinates or parameters of the commands can be constant values, named variables (identifiers), modifiers, functions or formulae.

Definition at line 37 of file EnhancedPathShape.h.

Member Typedef Documentation

◆ FormulaStore

typedef QMap<QString, EnhancedPathFormula *> EnhancedPathShape::FormulaStore

private

Definition at line 145 of file EnhancedPathShape.h.

◆ ModifierStore

typedef QList<qreal> EnhancedPathShape::ModifierStore

private

Definition at line 146 of file EnhancedPathShape.h.

◆ ParameterStore

typedef QMap<QString, EnhancedPathParameter *> EnhancedPathShape::ParameterStore

private

Definition at line 147 of file EnhancedPathShape.h.

Constructor & Destructor Documentation

◆ EnhancedPathShape() [1/2]

EnhancedPathShape::EnhancedPathShape ( const QRect & viewBox )

Definition at line 28 of file EnhancedPathShape.cpp.

    : m_viewBox(viewBox)
    , m_viewBoxOffset(0.0, 0.0)
    , m_mirrorVertically(false)
    , m_mirrorHorizontally(false)
    , m_pathStretchPointX(-1)
    , m_pathStretchPointY(-1)
    , m_cacheResults(false)
{
}

◆ ~EnhancedPathShape()

EnhancedPathShape::~EnhancedPathShape ( )

override

Definition at line 61 of file EnhancedPathShape.cpp.

{
    reset();
}

References reset().

◆ EnhancedPathShape() [2/2]

EnhancedPathShape::EnhancedPathShape ( const EnhancedPathShape & rhs )

private

Definition at line 39 of file EnhancedPathShape.cpp.

    : KoParameterShape(rhs),
      m_viewBox(rhs.m_viewBox),
      m_viewBound(rhs.m_viewBound),
      m_viewMatrix(rhs.m_viewMatrix),
      m_mirrorMatrix(rhs.m_mirrorMatrix),
      m_viewBoxOffset(rhs.m_viewBoxOffset),
      m_textArea(rhs.m_textArea),
      m_commands(rhs.m_commands),
      m_enhancedHandles(rhs.m_enhancedHandles),
      m_formulae(rhs.m_formulae),
      m_modifiers(rhs.m_modifiers),
      m_parameters(rhs.m_parameters),
      m_mirrorVertically(rhs.m_mirrorVertically),
      m_mirrorHorizontally(rhs.m_mirrorHorizontally),
      m_pathStretchPointX(rhs.m_pathStretchPointX),
      m_pathStretchPointY(rhs.m_pathStretchPointY),
      m_resultCache(rhs.m_resultCache),
      m_cacheResults(rhs.m_cacheResults)
{
}

Member Function Documentation

◆ addCommand() [1/2]

void EnhancedPathShape::addCommand ( const QString & command )

Add command for instance "M 0 0".

Definition at line 370 of file EnhancedPathShape.cpp.

{
    addCommand(command, true);
}

References addCommand().

◆ addCommand() [2/2]

void EnhancedPathShape::addCommand	(	const QString &	command,
		bool	triggerUpdate )

private

Adds a new command.

Definition at line 375 of file EnhancedPathShape.cpp.

{
    QString commandStr = command.simplified();
    if (commandStr.isEmpty()) {
        return;
    }

    // the first character is the command
    EnhancedPathCommand *cmd = new EnhancedPathCommand(commandStr[0], this);

    // strip command char
    commandStr = commandStr.mid(1).simplified();

    // now parse the command parameters
    if (!commandStr.isEmpty()) {
        QStringList tokens = commandStr.split(' ');
        for (int i = 0; i < tokens.count(); ++i) {
            cmd->addParameter(parameter(tokens[i]));
        }
    }
    m_commands.append(cmd);

    if (triggerUpdate) {
        updatePath(size());
    }
}

References EnhancedPathCommand::addParameter(), m_commands, parameter(), KoPathShape::size(), and updatePath().

◆ addFormula()

void EnhancedPathShape::addFormula	(	const QString &	name,
		const QString &	formula )

Add formula with given name and textual representation.

Definition at line 297 of file EnhancedPathShape.cpp.

{
    if (name.isEmpty() || formula.isEmpty()) {
        return;
    }

    m_formulae[name] = new EnhancedPathFormula(formula, this);
}

References m_formulae, and KoShape::name().

◆ addHandle()

void EnhancedPathShape::addHandle ( const QMap< QString, QVariant > & handle )

Add a single handle with format: x y minX maxX minY maxY.

Definition at line 306 of file EnhancedPathShape.cpp.

{
    if (handle.isEmpty()) {
        return;
    }

    if (!handle.contains("draw:handle-position")) {
        return;
    }
    QVariant position = handle.value("draw:handle-position");

    QStringList tokens = position.toString().simplified().split(' ');
    if (tokens.count() < 2) {
        return;
    }

    EnhancedPathHandle *newHandle = new EnhancedPathHandle(this);
    newHandle->setPosition(parameter(tokens[0]), parameter(tokens[1]));

    // check if we have a polar handle
    if (handle.contains("draw:handle-polar")) {
        QVariant polar = handle.value("draw:handle-polar");
        QStringList tokens = polar.toString().simplified().split(' ');
        if (tokens.count() == 2) {
            newHandle->setPolarCenter(parameter(tokens[0]), parameter(tokens[1]));

            QVariant minRadius = handle.value("draw:handle-radius-range-minimum");
            QVariant maxRadius = handle.value("draw:handle-radius-range-maximum");
            if (minRadius.isValid() && maxRadius.isValid()) {
                newHandle->setRadiusRange(parameter(minRadius.toString()), parameter(maxRadius.toString()));
            }
        }
    } else {
        QVariant minX = handle.value("draw:handle-range-x-minimum");
        QVariant maxX = handle.value("draw:handle-range-x-maximum");
        if (minX.isValid() && maxX.isValid()) {
            newHandle->setRangeX(parameter(minX.toString()), parameter(maxX.toString()));
        }

        QVariant minY = handle.value("draw:handle-range-y-minimum");
        QVariant maxY = handle.value("draw:handle-range-y-maximum");
        if (minY.isValid() && maxY.isValid()) {
            newHandle->setRangeY(parameter(minY.toString()), parameter(maxY.toString()));
        }
    }

    m_enhancedHandles.append(newHandle);

    evaluateHandles();
}

References evaluateHandles(), m_enhancedHandles, parameter(), KoShape::position(), EnhancedPathHandle::setPolarCenter(), EnhancedPathHandle::setPosition(), EnhancedPathHandle::setRadiusRange(), EnhancedPathHandle::setRangeX(), and EnhancedPathHandle::setRangeY().

◆ addModifiers()

void EnhancedPathShape::addModifiers ( const QString & modifiers )

Add modifiers with format: modifier0 modifier1 modifier2 ...

Definition at line 357 of file EnhancedPathShape.cpp.

{
    if (modifiers.isEmpty()) {
        return;
    }

    QStringList tokens = modifiers.simplified().split(' ');
    int tokenCount = tokens.count();
    for (int i = 0; i < tokenCount; ++i) {
        m_modifiers.append(tokens[i].toDouble());
    }
}

References m_modifiers, and toDouble().

◆ cloneShape()

KoShape * EnhancedPathShape::cloneShape ( ) const

overridevirtual

creates a deep copy of the shape or shape's subtree

Returns: a cloned shape

Reimplemented from KoShape.

Definition at line 66 of file EnhancedPathShape.cpp.

{
    return new EnhancedPathShape(*this);
}

References EnhancedPathShape().

◆ enableResultCache()

void EnhancedPathShape::enableResultCache ( bool enable )

private

Enables caching results.

Definition at line 524 of file EnhancedPathShape.cpp.

{
    m_resultCache.clear();
    m_cacheResults = enable;
}

References m_cacheResults, and m_resultCache.

◆ evaluateConstantOrReference()

qreal EnhancedPathShape::evaluateConstantOrReference ( const QString & val )

Evaluates the given constant or reference to a identifier, modifier or formula.

Parameters

val	the value to evaluate

Returns: the result of the evaluation

Definition at line 237 of file EnhancedPathShape.cpp.

{
    bool ok = true;
    qreal res = val.toDouble(&ok);
    if (ok) {
        return res;
    }
    return evaluateReference(val);
}

References evaluateReference().

◆ evaluateHandles()

void EnhancedPathShape::evaluateHandles ( )

private

Definition at line 175 of file EnhancedPathShape.cpp.

{
    const int handleCount = m_enhancedHandles.count();
    QList<QPointF> handles;
    for (int i = 0; i < handleCount; ++i) {
        handles.append(m_enhancedHandles[i]->position());
    }
    setHandles(handles);
}

References KoParameterShape::handleCount(), KoParameterShape::handles, m_enhancedHandles, KoShape::position(), and KoParameterShape::setHandles().

◆ evaluateReference()

qreal EnhancedPathShape::evaluateReference ( const QString & reference )

Evaluates the given reference to a identifier, modifier or formula.

Parameters

reference the reference to evaluate

Returns: the result of the evaluation

Definition at line 190 of file EnhancedPathShape.cpp.

{
    if (reference.isEmpty()) {
        return 0.0;
    }

    const char c = reference[0].toLatin1();

    qreal res = 0.0;

    switch (c) {
    // referenced modifier
    case '$': {
        bool success = false;
        int modifierIndex = reference.mid(1).toInt(&success);
        res = m_modifiers.value(modifierIndex);
        break;
    }
    // referenced formula
    case '?': {
        QString fname = reference.mid(1);
        if (m_cacheResults && m_resultCache.contains(fname)) {
            res = m_resultCache.value(fname);
        } else {
            FormulaStore::const_iterator formulaIt = m_formulae.constFind(fname);
            if (formulaIt != m_formulae.constEnd()) {
                EnhancedPathFormula *formula = formulaIt.value();
                if (formula) {
                    res = formula->evaluate();
                    if (m_cacheResults) {
                        m_resultCache.insert(fname, res);
                    }
                }
            }
        }
        break;
    }
    // maybe an identifier ?
    default:
        EnhancedPathNamedParameter p(reference, this);
        res = p.evaluate();
        break;
    }

    return res;
}

References EnhancedPathFormula::evaluate(), m_cacheResults, m_formulae, m_modifiers, m_resultCache, and p.

◆ modifyReference()

void EnhancedPathShape::modifyReference	(	const QString &	reference,
		qreal	value )

Attempts to modify a given reference.

Only modifiers can me modified, others silently ignore the attempt.

Parameters

reference	the reference to modify
value	the new value

Definition at line 247 of file EnhancedPathShape.cpp.

{
    if (reference.isEmpty()) {
        return;
    }

    const char c = reference[0].toLatin1();

    if (c == '$') {
        bool success = false;
        int modifierIndex = reference.mid(1).toInt(&success);
        if (modifierIndex >= 0 && modifierIndex < m_modifiers.count()) {
            m_modifiers[modifierIndex] = value;
        }
    }
}

References m_modifiers, and value().

◆ moveHandleAction()

void EnhancedPathShape::moveHandleAction	(	int	handleId,
		const QPointF &	point,
		Qt::KeyboardModifiers	modifiers = Qt::NoModifier )

overrideprotectedvirtual

Updates the internal state of a KoParameterShape.

This method is called from moveHandle.

Parameters

handleId	of the handle
point	to move the handle to in shape coordinates
modifiers	used during move to point

Implements KoParameterShape.

Definition at line 89 of file EnhancedPathShape.cpp.

{
    Q_UNUSED(modifiers);
    EnhancedPathHandle *handle = m_enhancedHandles[ handleId ];
    if (handle) {
        handle->changePosition(shapeToViewbox(point));
    }
}

References EnhancedPathHandle::changePosition(), m_enhancedHandles, and shapeToViewbox().

◆ normalize()

QPointF EnhancedPathShape::normalize ( )

overridevirtual

Normalizes the path data.

The path points are transformed so that the top-left corner of the bounding rect is at (0,0). This should be called after adding points to the path or changing positions of path points.

Returns: the offset by which the points are moved in shape coordinates.

Reimplemented from KoPathShape.

Definition at line 161 of file EnhancedPathShape.cpp.

{
    QPointF offset = KoParameterShape::normalize();

    m_viewBoxOffset -= offset;

    return offset;
}

References m_viewBoxOffset, and KoParameterShape::normalize().

◆ parameter()

EnhancedPathParameter * EnhancedPathShape::parameter ( const QString & text )

Returns parameter from given textual representation.

Definition at line 264 of file EnhancedPathShape.cpp.

{
    Q_ASSERT(! text.isEmpty());

    ParameterStore::const_iterator parameterIt = m_parameters.constFind(text);
    if (parameterIt != m_parameters.constEnd()) {
        return parameterIt.value();
    } else {
        EnhancedPathParameter *parameter = 0;
        const char c = text[0].toLatin1();
        if (c == '$' || c == '?') {
            parameter = new EnhancedPathReferenceParameter(text, this);
        } else {
            bool success = false;
            qreal constant = text.toDouble(&success);
            if (success) {
                parameter = new EnhancedPathConstantParameter(constant, this);
            } else {
                Identifier identifier = EnhancedPathNamedParameter::identifierFromString(text);
                if (identifier != IdentifierUnknown) {
                    parameter = new EnhancedPathNamedParameter(identifier, this);
                }
            }
        }

        if (parameter) {
            m_parameters[text] = parameter;
        }

        return parameter;
    }
}

References EnhancedPathNamedParameter::identifierFromString(), IdentifierUnknown, m_parameters, and parameter().

◆ parsePathData()

void EnhancedPathShape::parsePathData ( const QString & data )

private

parses the enhanced path data

Definition at line 449 of file EnhancedPathShape.cpp.

{
    if (data.isEmpty()) {
        return;
    }

    int start = -1;
    bool separator = true;
    for (int i = 0; i < data.length(); ++i) {
        QChar ch = data.at(i);
        ushort uni_ch = ch.unicode();
        if (separator && (uni_ch == 'M' || uni_ch == 'L'
                          || uni_ch == 'C' || uni_ch == 'Z'
                          || uni_ch == 'N' || uni_ch == 'F'
                          || uni_ch == 'S' || uni_ch == 'T'
                          || uni_ch == 'U' || uni_ch == 'A'
                          || uni_ch == 'B' || uni_ch == 'W'
                          || uni_ch == 'V' || uni_ch == 'X'
                          || uni_ch == 'Y' || uni_ch == 'Q')) {
            if (start != -1) { // process last chars
                addCommand(data.mid(start, i - start), false);
            }
            start = i;
        }
        separator = ch.isSpace();
    }
    if (start < data.length()) {
        addCommand(data.mid(start));
    }
    if (start != -1) {
        updatePath(size());
    }
}

References addCommand(), KoPathShape::size(), and updatePath().

◆ reset()

void EnhancedPathShape::reset ( )

private

Definition at line 71 of file EnhancedPathShape.cpp.

{
    qDeleteAll(m_commands);
    m_commands.clear();
    qDeleteAll(m_enhancedHandles);
    m_enhancedHandles.clear();
    setHandles(QList<QPointF>());
    qDeleteAll(m_formulae);
    m_formulae.clear();
    qDeleteAll(m_parameters);
    m_parameters.clear();
    m_modifiers.clear();
    m_viewMatrix.reset();
    m_viewBoxOffset = QPointF();
    clear();
    m_textArea.clear();
}

References KoPathShape::clear(), m_commands, m_enhancedHandles, m_formulae, m_modifiers, m_parameters, m_textArea, m_viewBoxOffset, m_viewMatrix, and KoParameterShape::setHandles().

◆ setMirrorHorizontally()

void EnhancedPathShape::setMirrorHorizontally ( bool mirrorHorizontally )

Sets if the shape is to be mirrored horizontally before applying any other transformations.

Definition at line 483 of file EnhancedPathShape.cpp.

{
    if (m_mirrorHorizontally != mirrorHorizontally) {
        m_mirrorHorizontally = mirrorHorizontally;
        updatePath(size());
    }

}

References m_mirrorHorizontally, KoPathShape::size(), and updatePath().

◆ setMirrorVertically()

void EnhancedPathShape::setMirrorVertically ( bool mirrorVertically )

Sets if the shape is to be mirrored vertically before applying any other transformations.

Definition at line 492 of file EnhancedPathShape.cpp.

{
    if (m_mirrorVertically != mirrorVertically) {
        m_mirrorVertically = mirrorVertically;
        updatePath(size());
    }
}

References m_mirrorVertically, KoPathShape::size(), and updatePath().

◆ setPathStretchPointX()

void EnhancedPathShape::setPathStretchPointX ( qreal pathStretchPointX )

Definition at line 530 of file EnhancedPathShape.cpp.

{
    if (m_pathStretchPointX != pathStretchPointX) {
        m_pathStretchPointX = pathStretchPointX;
    }

}

References m_pathStretchPointX.

◆ setPathStretchPointY()

void EnhancedPathShape::setPathStretchPointY ( qreal pathStretchPointY )

Definition at line 538 of file EnhancedPathShape.cpp.

{
    if (m_pathStretchPointY != pathStretchPointY) {
        m_pathStretchPointY = pathStretchPointY;
    }

}

References m_pathStretchPointY.

◆ setSize()

void EnhancedPathShape::setSize ( const QSizeF & size )

overridevirtual

Resize the shape.

Parameters

size the new size of the shape. This is different from scaling as scaling is a so called secondary operation which is comparable to zooming in instead of changing the size of the basic shape. Easiest example of this difference is that using this method will not distort the size of pattern-fills and strokes.

Reimplemented from KoShape.

Definition at line 145 of file EnhancedPathShape.cpp.

{
    // handle offset
    KoParameterShape::setSize(newSize);

    // calculate scaling factors from viewbox size to shape size
    qreal xScale = m_viewBound.width() == 0 ? 1 : newSize.width() / m_viewBound.width();
    qreal yScale = m_viewBound.height() == 0 ? 1 : newSize.height() / m_viewBound.height();

    // create view matrix, take mirroring into account
    m_viewMatrix.reset();
    m_viewMatrix.scale(xScale, yScale);

    updatePath(newSize);
}

References m_viewBound, m_viewMatrix, KoParameterShape::setSize(), and updatePath().

◆ shapeChanged()

void EnhancedPathShape::shapeChanged	(	ChangeType	type,
		KoShape *	shape = 0 )

overrideprotectedvirtual

A hook that allows inheriting classes to do something after a KoShape property changed This is called whenever the shape, position rotation or scale properties were altered.

Parameters

type	an indicator which type was changed.
shape	the shape.

Reimplemented from KoShape.

Definition at line 500 of file EnhancedPathShape.cpp.

{
    KoParameterShape::shapeChanged(type, shape);

    if (!shape || shape == this) {
        if (type == ParentChanged || type == ParameterChanged) {
            updateTextArea();
        }
    }
}

References KoShape::ParameterChanged, KoShape::ParentChanged, KoShape::shapeChanged(), and updateTextArea().

◆ shapeToViewbox()

QPointF EnhancedPathShape::shapeToViewbox ( const QPointF & point ) const

Converts from shape coordinates to viewbox coordinates.

Definition at line 170 of file EnhancedPathShape.cpp.

{
    return (m_mirrorMatrix * m_viewMatrix).inverted().map(point - m_viewBoxOffset);
}

References m_mirrorMatrix, m_viewBoxOffset, and m_viewMatrix.

◆ updatePath()

void EnhancedPathShape::updatePath ( const QSizeF & size )

overrideprotectedvirtual

Update the path of the parameter shape.

Parameters

size	of the shape

Implements KoParameterShape.

Definition at line 98 of file EnhancedPathShape.cpp.

{
    if (isParametricShape()) {
        clear();
        enableResultCache(true);

        foreach (EnhancedPathCommand *cmd, m_commands) {
            cmd->execute();
        }

        enableResultCache(false);

        qreal stretchPointsScale = 1;
        bool isStretched = useStretchPoints(size, stretchPointsScale);
        m_viewBound = outline().boundingRect();
        m_mirrorMatrix.reset();
        m_mirrorMatrix.translate(m_viewBound.center().x(), m_viewBound.center().y());
        m_mirrorMatrix.scale(m_mirrorHorizontally ? -1 : 1, m_mirrorVertically ? -1 : 1);
        m_mirrorMatrix.translate(-m_viewBound.center().x(), -m_viewBound.center().y());
        QTransform matrix(1.0, 0.0, 0.0, 1.0, m_viewBoxOffset.x(), m_viewBoxOffset.y());

        // if stretch points are set than stretch the path manually
        if (isStretched) {
            //if the path was stretched manually the stretch matrix is not more valid
            //and it has to be recalculated so that stretching in x and y direction is the same
            matrix.scale(stretchPointsScale, stretchPointsScale);
            matrix = m_mirrorMatrix * matrix;
        } else {
            matrix = m_mirrorMatrix * m_viewMatrix * matrix;
        }
        foreach (KoSubpath *subpath, subpaths()) {
            foreach (KoPathPoint *point, *subpath) {
                point->map(matrix);
            }
        }

        const int handleCount = m_enhancedHandles.count();
        QList<QPointF> handles;
        for (int i = 0; i < handleCount; ++i) {
            handles.append(matrix.map(m_enhancedHandles[i]->position()));
        }
        setHandles(handles);

        normalize();
    }
}

References KoPathShape::clear(), enableResultCache(), EnhancedPathCommand::execute(), KoParameterShape::handleCount(), KoParameterShape::handles, KoParameterShape::isParametricShape(), m_commands, m_enhancedHandles, m_mirrorHorizontally, m_mirrorMatrix, m_mirrorVertically, m_viewBound, m_viewBoxOffset, m_viewMatrix, KoPathPoint::map(), normalize(), KoPathShape::outline(), KoParameterShape::setHandles(), KoPathShape::size(), KoPathShape::subpaths(), and useStretchPoints().

◆ updateTextArea()

void EnhancedPathShape::updateTextArea ( )

private

Updates the size and position of an optionally existing text-on-shape text area.

Definition at line 511 of file EnhancedPathShape.cpp.

{
    if (m_textArea.size() >= 4) {
        QRectF r = m_viewBox;
        r.setLeft(evaluateConstantOrReference(m_textArea[0]));
        r.setTop(evaluateConstantOrReference(m_textArea[1]));
        r.setRight(evaluateConstantOrReference(m_textArea[2]));
        r.setBottom(evaluateConstantOrReference(m_textArea[3]));
        r = m_viewMatrix.mapRect(r).translated(m_viewBoxOffset);
        setPreferredTextRect(r);
    }
}

References evaluateConstantOrReference(), m_textArea, m_viewBox, m_viewBoxOffset, m_viewMatrix, and KoTosContainer::setPreferredTextRect().

◆ useStretchPoints()

bool EnhancedPathShape::useStretchPoints	(	const QSizeF &	size,
		qreal &	scale )

private

Definition at line 402 of file EnhancedPathShape.cpp.

{
    bool retval = false;
    if (m_pathStretchPointX != -1 && m_pathStretchPointY != -1) {
        qreal scaleX = size.width();
        qreal scaleY = size.height();
        if (qreal(m_viewBox.width()) / m_viewBox.height() < qreal(scaleX) / scaleY) {
            qreal deltaX = (scaleX * m_viewBox.height()) / scaleY - m_viewBox.width();
            foreach (KoSubpath *subpath, subpaths()) {
                foreach (KoPathPoint *currPoint, *subpath) {
                    if (currPoint->point().x() >=  m_pathStretchPointX &&
                            currPoint->controlPoint1().x() >= m_pathStretchPointX &&
                            currPoint->controlPoint2().x() >= m_pathStretchPointX) {
                        currPoint->setPoint(QPointF(currPoint->point().x() + deltaX, currPoint->point().y()));
                        currPoint->setControlPoint1(QPointF(currPoint->controlPoint1().x() + deltaX,
                                                            currPoint->controlPoint1().y()));
                        currPoint->setControlPoint2(QPointF(currPoint->controlPoint2().x() + deltaX,
                                                            currPoint->controlPoint2().y()));
                        retval = true;
                    }
                }
            }
            scale = scaleY / m_viewBox.height();
        } else if (qreal(m_viewBox.width()) / m_viewBox.height() > qreal(scaleX) / scaleY) {
            qreal deltaY = (m_viewBox.width() * scaleY) / scaleX - m_viewBox.height();
            foreach (KoSubpath *subpath, subpaths()) {
                foreach (KoPathPoint *currPoint, *subpath) {
                    if (currPoint->point().y() >=  m_pathStretchPointY &&
                            currPoint->controlPoint1().y() >= m_pathStretchPointY &&
                            currPoint->controlPoint2().y() >= m_pathStretchPointY) {
                        currPoint->setPoint(QPointF(currPoint->point().x(), currPoint->point().y() + deltaY));
                        currPoint->setControlPoint1(QPointF(currPoint->controlPoint1().x(),
                                                            currPoint->controlPoint1().y() + deltaY));
                        currPoint->setControlPoint2(QPointF(currPoint->controlPoint2().x(),
                                                            currPoint->controlPoint2().y() + deltaY));
                        retval = true;
                    }
                }
            }
            scale = scaleX / m_viewBox.width();
        }

        notifyPointsChanged();
    }
    return retval;
}

References KoPathPoint::controlPoint1, KoPathPoint::controlPoint2, m_pathStretchPointX, m_pathStretchPointY, m_viewBox, KoPathShape::notifyPointsChanged(), KoPathPoint::point, KoShape::scale(), KoPathPoint::setControlPoint1(), KoPathPoint::setControlPoint2(), KoPathPoint::setPoint(), KoPathShape::size(), and KoPathShape::subpaths().

◆ viewBox()

QRect EnhancedPathShape::viewBox ( ) const

Returns the viewbox of the enhanced path shape.

Definition at line 185 of file EnhancedPathShape.cpp.

{
    return m_viewBox;
}

References m_viewBox.

Member Data Documentation

◆ m_cacheResults

bool EnhancedPathShape::m_cacheResults

private

indicates if result cache is enabled

Definition at line 165 of file EnhancedPathShape.h.

◆ m_commands

QList<EnhancedPathCommand *> EnhancedPathShape::m_commands

private

the commands creating the outline

Definition at line 155 of file EnhancedPathShape.h.

◆ m_enhancedHandles

QList<EnhancedPathHandle *> EnhancedPathShape::m_enhancedHandles

private

the handles for modifying the shape

Definition at line 156 of file EnhancedPathShape.h.

◆ m_formulae

FormulaStore EnhancedPathShape::m_formulae

private

the formulae

Definition at line 157 of file EnhancedPathShape.h.

◆ m_mirrorHorizontally

bool EnhancedPathShape::m_mirrorHorizontally

private

whether or not the shape is to be mirrored horizontally before transforming it

Definition at line 161 of file EnhancedPathShape.h.

◆ m_mirrorMatrix

QTransform EnhancedPathShape::m_mirrorMatrix

private

matrix to used for mirroring

Definition at line 152 of file EnhancedPathShape.h.

◆ m_mirrorVertically

bool EnhancedPathShape::m_mirrorVertically

private

whether or not the shape is to be mirrored vertically before transforming it

Definition at line 160 of file EnhancedPathShape.h.

◆ m_modifiers

ModifierStore EnhancedPathShape::m_modifiers

private

the modifier values

Definition at line 158 of file EnhancedPathShape.h.

◆ m_parameters

ParameterStore EnhancedPathShape::m_parameters

private

the shared parameters

Definition at line 159 of file EnhancedPathShape.h.

◆ m_pathStretchPointX

qreal EnhancedPathShape::m_pathStretchPointX

private

draw:path-stretchpoint-x attribute

Definition at line 162 of file EnhancedPathShape.h.

◆ m_pathStretchPointY

qreal EnhancedPathShape::m_pathStretchPointY

private

draw:path-stretchpoint-y attribute

Definition at line 163 of file EnhancedPathShape.h.

◆ m_resultCache

QHash<QString, qreal> EnhancedPathShape::m_resultCache

private

cache for intermediate results used when evaluating path

Definition at line 164 of file EnhancedPathShape.h.

◆ m_textArea

QStringList EnhancedPathShape::m_textArea

private

Definition at line 154 of file EnhancedPathShape.h.

◆ m_viewBound

QRectF EnhancedPathShape::m_viewBound

private

the bounding box of the path in viewbox coordinates

Definition at line 150 of file EnhancedPathShape.h.

◆ m_viewBox

QRect EnhancedPathShape::m_viewBox

private

the viewbox rectangle

Definition at line 149 of file EnhancedPathShape.h.

◆ m_viewBoxOffset

QPointF EnhancedPathShape::m_viewBoxOffset

private

Definition at line 153 of file EnhancedPathShape.h.

◆ m_viewMatrix

QTransform EnhancedPathShape::m_viewMatrix

private

matrix to convert from viewbox coordinates to shape coordinates

Definition at line 151 of file EnhancedPathShape.h.

The documentation for this class was generated from the following files:

plugins/flake/pathshapes/enhancedpath/EnhancedPathShape.h
plugins/flake/pathshapes/enhancedpath/EnhancedPathShape.cpp

Public Member Functions

Protected Member Functions

Private Types

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ FormulaStore

◆ ModifierStore

◆ ParameterStore

Constructor & Destructor Documentation

◆ EnhancedPathShape() [1/2]

◆ ~EnhancedPathShape()

◆ EnhancedPathShape() [2/2]

Member Function Documentation

◆ addCommand() [1/2]

◆ addCommand() [2/2]

◆ addFormula()

◆ addHandle()

◆ addModifiers()

◆ cloneShape()

◆ enableResultCache()

◆ evaluateConstantOrReference()

◆ evaluateHandles()

◆ evaluateReference()

◆ modifyReference()

◆ moveHandleAction()

◆ normalize()

◆ parameter()

◆ parsePathData()

◆ reset()

◆ setMirrorHorizontally()

◆ setMirrorVertically()

◆ setPathStretchPointX()

◆ setPathStretchPointY()

◆ setSize()

◆ shapeChanged()

◆ shapeToViewbox()

◆ updatePath()

◆ updateTextArea()

◆ useStretchPoints()

◆ viewBox()

Member Data Documentation

◆ m_cacheResults

◆ m_commands

◆ m_enhancedHandles

◆ m_formulae

◆ m_mirrorHorizontally

◆ m_mirrorMatrix

◆ m_mirrorVertically

◆ m_modifiers

◆ m_parameters

◆ m_pathStretchPointX

◆ m_pathStretchPointY

◆ m_resultCache

◆ m_textArea

◆ m_viewBound

◆ m_viewBox

◆ m_viewBoxOffset

◆ m_viewMatrix
