KoShapeContainerModel Class Reference

#include <KoShapeContainerModel.h>

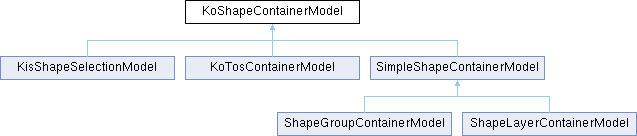

Inheritance diagram for KoShapeContainerModel:

Public Member Functions
virtual void	add (KoShape *shape)=0
virtual void	childChanged (KoShape *shape, KoShape::ChangeType type)
virtual void	containerChanged (KoShapeContainer *container, KoShape::ChangeType type)=0
virtual int	count () const =0
void	deleteOwnedShapes ()
virtual bool	inheritsTransform (const KoShape *shape) const =0
virtual bool	isClipped (const KoShape *shape) const =0
	KoShapeContainerModel ()
	default constructor
virtual void	proposeMove (KoShape *shape, QPointF &move)
virtual void	remove (KoShape *shape)=0
virtual void	setClipped (const KoShape *shape, bool clipping)=0
virtual void	setInheritsTransform (const KoShape *shape, bool inherit)=0
virtual void	shapeHasBeenAddedToHierarchy (KoShape *shape, KoShapeContainer *addedToSubtree)
virtual QList< KoShape * >	shapes () const =0
virtual void	shapeToBeRemovedFromHierarchy (KoShape *shape, KoShapeContainer *removedFromSubtree)
virtual	~KoShapeContainerModel ()
	destructor

Protected Member Functions
	KoShapeContainerModel (const KoShapeContainerModel &rhs)

Detailed Description

The interface for the container model. This class has no implementation, but only pure virtual methods. You can find a fully implemented model using KoShapeContainerDefaultModel. Extending this class and implementing all methods allows you to implement a custom data-backend for the KoShapeContainer.

See also

KoShapeContainer, KoShapeContainerDefaultModel

Definition at line 27 of file KoShapeContainerModel.h.

Constructor & Destructor Documentation

KoShapeContainerModel() [1/2]

KoShapeContainerModel::KoShapeContainerModel

(

)

default constructor

Definition at line 13 of file KoShapeContainerModel.cpp.

{
}

~KoShapeContainerModel()

KoShapeContainerModel::~KoShapeContainerModel ( )

virtual

destructor

Definition at line 17 of file KoShapeContainerModel.cpp.

{
}

KoShapeContainerModel() [2/2]

KoShapeContainerModel::KoShapeContainerModel ( const KoShapeContainerModel & rhs )

protected

Definition at line 67 of file KoShapeContainerModel.cpp.

{
    Q_UNUSED(rhs);
}

Member Function Documentation

add()

virtual void KoShapeContainerModel::add ( KoShape * shape )

pure virtual

Add a shape to this models store.

Parameters

shape

the shape to be managed in the container.

Implemented in ShapeGroupContainerModel, SimpleShapeContainerModel, ShapeLayerContainerModel, KisShapeSelectionModel, and KoTosContainerModel.

childChanged()

void KoShapeContainerModel::childChanged ( KoShape * shape, KoShape::ChangeType type )

virtual

This method is called when one of the shape shapes has been modified. When a shape is rotated, moved or scaled/skewed this method will be called to inform the container of such a change. The change has already happened at the time this method is called. The base implementation notifies the grand parent of the shape that there was a change in a shape. A reimplementation if this function should call this method when overriding the function.

Parameters

shape	the shape that has been changed
type	this enum shows which change the shape has had.

Reimplemented in KisShapeSelectionModel, and ShapeGroupContainerModel.

Definition at line 39 of file KoShapeContainerModel.cpp.

{
    Q_UNUSED(type);
    KoShapeContainer * parent = child->parent();
    Q_ASSERT(parent);
    // propagate the change up the hierarchy
    KoShapeContainer * grandparent = parent->parent();
    if (grandparent) {
        grandparent->model()->childChanged(parent, KoShape::ChildChanged);
    }
}

References KoShape::ChildChanged, childChanged(), KoShapeContainer::model, and KoShape::parent().

containerChanged()

virtual void KoShapeContainerModel::containerChanged ( KoShapeContainer * container, KoShape::ChangeType type )

pure virtual

This method is called as a notification that one of the properties of the container changed. This can be one of size, position, rotation and skew. Note that clipped children will automatically get all these changes, the model does not have to do anything for that.

Parameters

container	the actual container that changed.
type	this enum shows which change the container has had.

Implemented in SimpleShapeContainerModel, KisShapeSelectionModel, and KoTosContainerModel.

count()

virtual int KoShapeContainerModel::count ( ) const

pure virtual

Return the current number of children registered.

Returns

the current number of children registered.

Implemented in KoTosContainerModel, SimpleShapeContainerModel, and KisShapeSelectionModel.

deleteOwnedShapes()

void KoShapeContainerModel::deleteOwnedShapes

(

)

Definition at line 21 of file KoShapeContainerModel.cpp.

{
    QList<KoShape*> ownedShapes = this->shapes();

    Q_FOREACH (KoShape *shape, ownedShapes) {
        shape->setParent(0);
        delete shape;
    }

    KIS_SAFE_ASSERT_RECOVER_NOOP(!this->count());
}

References count(), KIS_SAFE_ASSERT_RECOVER_NOOP, KoShape::setParent(), and shapes().

inheritsTransform()

virtual bool KoShapeContainerModel::inheritsTransform ( const KoShape * shape ) const

pure virtual

Returns if the shape inherits the container transform.

A shape that inherits the transform of the parent container will have its share / rotation / skew etc be calculated as being the product of both its own local transformation and also that of its parent container. If you set this to true and rotate the container, the shape will get that rotation as well automatically.

Returns

if the argument shape has its 'inherits transform' property set.

Parameters

shape

the shape for which the property will be returned.

Implemented in KoTosContainerModel, SimpleShapeContainerModel, and KisShapeSelectionModel.

isClipped()

virtual bool KoShapeContainerModel::isClipped ( const KoShape * shape ) const

pure virtual

Returns if the argument shape has its 'clipping' property set.

A shape that is clipped by the container will have its visible portion limited to the area where it intersects with the container. If a shape is positioned or sized such that it would be painted outside of the KoShape::outline() of its parent container, setting this property to true will clip the shape painting to the container outline.

Returns

if the argument shape has its 'clipping' property set.

Parameters

shape

the shape for which the property will be returned.

Implemented in KisShapeSelectionModel, KoTosContainerModel, and SimpleShapeContainerModel.

proposeMove()

void KoShapeContainerModel::proposeMove ( KoShape * shape, QPointF & move )

virtual

This method is called when the user tries to move a shape that is a shape of the container this model represents. The shape itself is not yet moved; it is proposed to be moved over the param move distance. You can alter the value of the move to affect the actual distance moved. The default implementation does nothing.

Parameters

shape	the shape of this container that the user is trying to move.
move	the distance that the user proposes to move shape from the current position.

Reimplemented in SimpleShapeContainerModel.

Definition at line 33 of file KoShapeContainerModel.cpp.

{
    Q_UNUSED(child);
    Q_UNUSED(move);
}

remove()

virtual void KoShapeContainerModel::remove ( KoShape * shape )

pure virtual

Remove a shape to be completely separated from the model.

Parameters

shape

the shape to be removed.

Implemented in ShapeGroupContainerModel, ShapeLayerContainerModel, KisShapeSelectionModel, KoTosContainerModel, and SimpleShapeContainerModel.

setClipped()

virtual void KoShapeContainerModel::setClipped ( const KoShape * shape, bool clipping )

pure virtual

Set the argument shape to have its 'clipping' property set.

A shape that is clipped by the container will have its visible portion limited to the area where it intersects with the container. If a shape is positioned or sized such that it would be painted outside of the KoShape::outline() of its parent container, setting this property to true will clip the shape painting to the container outline.

Parameters

shape	the shape for which the property will be changed.
clipping	the new value

Implemented in KisShapeSelectionModel, KoTosContainerModel, and SimpleShapeContainerModel.

setInheritsTransform()

virtual void KoShapeContainerModel::setInheritsTransform ( const KoShape * shape, bool inherit )

pure virtual

Set the shape to inherit the container transform.

A shape that inherits the transform of the parent container will have its share / rotation / skew etc be calculated as being the product of both its own local transformation and also that of its parent container. If you set this to true and rotate the container, the shape will get that rotation as well automatically.

Parameters

shape	the shape for which the property will be changed.
inherit	the new value

Implemented in KoTosContainerModel, KisShapeSelectionModel, and SimpleShapeContainerModel.

shapeHasBeenAddedToHierarchy()

void KoShapeContainerModel::shapeHasBeenAddedToHierarchy ( KoShape * shape, KoShapeContainer * addedToSubtree )

virtual

Reimplemented in SimpleShapeContainerModel.

Definition at line 51 of file KoShapeContainerModel.cpp.

{
    KoShapeContainer *parent = addedToSubtree->parent();
    if (parent) {
        parent->model()->shapeHasBeenAddedToHierarchy(shape, parent);
    }
}

References KoShape::parent().

shapes()

virtual QList< KoShape * > KoShapeContainerModel::shapes ( ) const

pure virtual

Return the list of all shapes of this model

Returns

the list of all shapes

Implemented in KoTosContainerModel, SimpleShapeContainerModel, and KisShapeSelectionModel.

shapeToBeRemovedFromHierarchy()

void KoShapeContainerModel::shapeToBeRemovedFromHierarchy ( KoShape * shape, KoShapeContainer * removedFromSubtree )

virtual

Reimplemented in SimpleShapeContainerModel.

Definition at line 59 of file KoShapeContainerModel.cpp.

{
    KoShapeContainer *parent = removedFromSubtree->parent();
    if (parent) {
        parent->model()->shapeToBeRemovedFromHierarchy(shape, parent);
    }
}

References KoShape::parent().

---

The documentation for this class was generated from the following files:

• libs/flake/KoShapeContainerModel.h
• libs/flake/KoShapeContainerModel.cpp
