#include <SimpleShapeContainerModel.h>

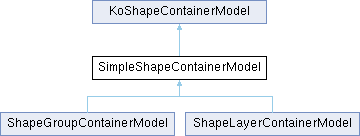

Inheritance diagram for SimpleShapeContainerModel:

Public Member Functions
void	add (KoShape *child) override

KoShapeManager *	associatedRootShapeManager () const

void	containerChanged (KoShapeContainer *, KoShape::ChangeType) override

int	count () const override

bool	inheritsTransform (const KoShape *shape) const override

bool	isClipped (const KoShape *shape) const override

void	proposeMove (KoShape *shape, QPointF &move) override

void	remove (KoShape *shape) override

void	setAssociatedRootShapeManager (KoShapeManager *manager)

void	setClipped (const KoShape *shape, bool value) override

void	setInheritsTransform (const KoShape *shape, bool value) override

void	shapeHasBeenAddedToHierarchy (KoShape shape, KoShapeContainer addedToSubtree) override

QList< KoShape * >	shapes () const override

void	shapeToBeRemovedFromHierarchy (KoShape shape, KoShapeContainer removedFromSubtree) override

	SimpleShapeContainerModel ()

	SimpleShapeContainerModel (const SimpleShapeContainerModel &rhs)

	~SimpleShapeContainerModel () override

Public Member Functions inherited from KoShapeContainerModel
virtual void	childChanged (KoShape *shape, KoShape::ChangeType type)

void	deleteOwnedShapes ()

	KoShapeContainerModel ()
	default constructor

virtual	~KoShapeContainerModel ()
	destructor

Private Member Functions
int	indexOf (const KoShape *shape) const

Private Attributes
KoShapeManager *	m_associatedRootShapeManager = 0

QList< bool >	m_clipped

QList< bool >	m_inheritsTransform

QList< KoShape * >	m_members

Additional Inherited Members
Protected Member Functions inherited from KoShapeContainerModel
	KoShapeContainerModel (const KoShapeContainerModel &rhs)

Detailed Description

Definition at line 15 of file SimpleShapeContainerModel.h.

Constructor & Destructor Documentation

◆ SimpleShapeContainerModel() [1/2]

SimpleShapeContainerModel::SimpleShapeContainerModel ( )

inline

Definition at line 18 of file SimpleShapeContainerModel.h.

18{}

◆ ~SimpleShapeContainerModel()

SimpleShapeContainerModel::~SimpleShapeContainerModel ( )

inlineoverride

Definition at line 19 of file SimpleShapeContainerModel.h.

19{}

◆ SimpleShapeContainerModel() [2/2]

SimpleShapeContainerModel::SimpleShapeContainerModel ( const SimpleShapeContainerModel & rhs )

inline

Definition at line 21 of file SimpleShapeContainerModel.h.

        : KoShapeContainerModel(rhs),
          m_inheritsTransform(rhs.m_inheritsTransform),
          m_clipped(rhs.m_clipped)
    {
        Q_FOREACH (KoShape *shape, rhs.m_members) {
            KoShape *clone = shape->cloneShape();
            KIS_SAFE_ASSERT_RECOVER_NOOP(clone && "Copying this shape is not implemented!");
            if (clone) {
                m_members << clone;
            }
        }

        KIS_ASSERT_RECOVER(m_members.size() == m_inheritsTransform.size() &&
                           m_members.size() == m_clipped.size())
        {
            qDeleteAll(m_members);
            m_members.clear();
            m_inheritsTransform.clear();
            m_clipped.clear();
        }
    }

References KoShape::cloneShape(), KIS_ASSERT_RECOVER, KIS_SAFE_ASSERT_RECOVER_NOOP, m_clipped, m_inheritsTransform, and m_members.

Member Function Documentation

◆ add()

void SimpleShapeContainerModel::add ( KoShape * shape )

inlineoverridevirtual

Add a shape to this models store.

Parameters

shape the shape to be managed in the container.

Implements KoShapeContainerModel.

Definition at line 44 of file SimpleShapeContainerModel.h.

                                      {
        if (m_members.contains(child))
            return;
        m_members.append(child);
        m_clipped.append(false);
        m_inheritsTransform.append(true);
    }

References m_clipped, m_inheritsTransform, and m_members.

◆ associatedRootShapeManager()

KoShapeManager * SimpleShapeContainerModel::associatedRootShapeManager ( ) const

inline

Definition at line 116 of file SimpleShapeContainerModel.h.

                                                       {
        return m_associatedRootShapeManager;
    }

References m_associatedRootShapeManager.

◆ containerChanged()

void SimpleShapeContainerModel::containerChanged	(	KoShapeContainer *	container,
		KoShape::ChangeType	type )

inlineoverridevirtual

This method is called as a notification that one of the properties of the container changed. This can be one of size, position, rotation and skew. Note that clipped children will automatically get all these changes, the model does not have to do anything for that.

Parameters

container	the actual container that changed.
type	this enum shows which change the container has had.

Implements KoShapeContainerModel.

Definition at line 75 of file SimpleShapeContainerModel.h.

75{ }

◆ count()

int SimpleShapeContainerModel::count ( ) const

inlineoverridevirtual

Return the current number of children registered.

Returns: the current number of children registered.

Implements KoShapeContainerModel.

Definition at line 69 of file SimpleShapeContainerModel.h.

                               {
        return m_members.count();
    }

References m_members.

◆ indexOf()

int SimpleShapeContainerModel::indexOf ( const KoShape * shape ) const

inlineprivate

Definition at line 142 of file SimpleShapeContainerModel.h.

                                            {
        // workaround indexOf constness!
        return m_members.indexOf(const_cast<KoShape*>(shape));
    }

References m_members.

◆ inheritsTransform()

bool SimpleShapeContainerModel::inheritsTransform ( const KoShape * shape ) const

inlineoverridevirtual

Returns if the shape inherits the container transform.

A shape that inherits the transform of the parent container will have its share / rotation / skew etc be calculated as being the product of both its own local transformation and also that of its parent container. If you set this to true and rotate the container, the shape will get that rotation as well automatically.

Returns: if the argument shape has its 'inherits transform' property set.

Parameters

shape the shape for which the property will be returned.

Implements KoShapeContainerModel.

Definition at line 82 of file SimpleShapeContainerModel.h.

                                                                {
        const int index = indexOf(shape);
        KIS_SAFE_ASSERT_RECOVER(index >= 0)  { return true;}
        return m_inheritsTransform[index];
    }

References indexOf(), KIS_SAFE_ASSERT_RECOVER, and m_inheritsTransform.

◆ isClipped()

bool SimpleShapeContainerModel::isClipped ( const KoShape * shape ) const

inlineoverridevirtual

Returns if the argument shape has its 'clipping' property set.

A shape that is clipped by the container will have its visible portion limited to the area where it intersects with the container. If a shape is positioned or sized such that it would be painted outside of the KoShape::outline() of its parent container, setting this property to true will clip the shape painting to the container outline.

Returns: if the argument shape has its 'clipping' property set.

Parameters

shape the shape for which the property will be returned.

Implements KoShapeContainerModel.

Definition at line 56 of file SimpleShapeContainerModel.h.

                                                        {
        const int index = indexOf(shape);
        KIS_SAFE_ASSERT_RECOVER(index >= 0) { return false;}
        return m_clipped[index];
    }

References indexOf(), KIS_SAFE_ASSERT_RECOVER, and m_clipped.

◆ proposeMove()

void SimpleShapeContainerModel::proposeMove	(	KoShape *	shape,
		QPointF &	move )

inlineoverridevirtual

This method is called when the user tries to move a shape that is a shape of the container this model represents. The shape itself is not yet moved; it is proposed to be moved over the param move distance. You can alter the value of the move to affect the actual distance moved. The default implementation does nothing.

Parameters

shape	the shape of this container that the user is trying to move.
move	the distance that the user proposes to move shape from the current position.

Reimplemented from KoShapeContainerModel.

Definition at line 88 of file SimpleShapeContainerModel.h.

    {
        KoShapeContainer *parent = shape->parent();
        bool allowedToMove = true;
        while (allowedToMove && parent) {
            allowedToMove = parent->isShapeEditable();
            parent = parent->parent();
        }
        if (! allowedToMove) {
            move.setX(0);
            move.setY(0);
        }
    }

References KoShape::parent().

◆ remove()

void SimpleShapeContainerModel::remove ( KoShape * shape )

inlineoverridevirtual

Remove a shape to be completely separated from the model.

Parameters

shape the shape to be removed.

Implements KoShapeContainerModel.

Definition at line 61 of file SimpleShapeContainerModel.h.

                                         {
        const int index = indexOf(shape);
        KIS_SAFE_ASSERT_RECOVER_RETURN(index >= 0);

        m_members.removeAt(index);
        m_clipped.removeAt(index);
        m_inheritsTransform.removeAt(index);
    }

References indexOf(), KIS_SAFE_ASSERT_RECOVER_RETURN, m_clipped, m_inheritsTransform, and m_members.

◆ setAssociatedRootShapeManager()

void SimpleShapeContainerModel::setAssociatedRootShapeManager ( KoShapeManager * manager )

inline

If the container is the root of shapes hierarchy, it should also track the content of the shape manager. Add all added/removed shapes should be also added to shapeManager.

Definition at line 125 of file SimpleShapeContainerModel.h.

                                                                {
        if (m_associatedRootShapeManager) {
            Q_FOREACH(KoShape *shape, this->shapes()) {
                m_associatedRootShapeManager->remove(shape);
            }
        }

        m_associatedRootShapeManager = manager;

        if (m_associatedRootShapeManager) {
            Q_FOREACH(KoShape *shape, this->shapes()) {
                m_associatedRootShapeManager->addShape(shape);
            }
        }
    }

References KoShapeManager::addShape(), m_associatedRootShapeManager, KoShapeManager::remove(), and shapes().

◆ setClipped()

void SimpleShapeContainerModel::setClipped	(	const KoShape *	shape,
		bool	clipping )

inlineoverridevirtual

Set the argument shape to have its 'clipping' property set.

A shape that is clipped by the container will have its visible portion limited to the area where it intersects with the container. If a shape is positioned or sized such that it would be painted outside of the KoShape::outline() of its parent container, setting this property to true will clip the shape painting to the container outline.

Parameters

shape	the shape for which the property will be changed.
clipping	the new value

Implements KoShapeContainerModel.

Definition at line 51 of file SimpleShapeContainerModel.h.

                                                               {
        const int index = indexOf(shape);
        KIS_SAFE_ASSERT_RECOVER_RETURN(index >= 0);
        m_clipped[index] = value;
    }

References indexOf(), KIS_SAFE_ASSERT_RECOVER_RETURN, m_clipped, and value().

◆ setInheritsTransform()

void SimpleShapeContainerModel::setInheritsTransform	(	const KoShape *	shape,
		bool	inherit )

inlineoverridevirtual

Set the shape to inherit the container transform.

A shape that inherits the transform of the parent container will have its share / rotation / skew etc be calculated as being the product of both its own local transformation and also that of its parent container. If you set this to true and rotate the container, the shape will get that rotation as well automatically.

Parameters

shape	the shape for which the property will be changed.
inherit	the new value

Implements KoShapeContainerModel.

Definition at line 77 of file SimpleShapeContainerModel.h.

                                                                         {
        const int index = indexOf(shape);
        KIS_SAFE_ASSERT_RECOVER_RETURN(index >= 0);
        m_inheritsTransform[index] = value;
    }

References indexOf(), KIS_SAFE_ASSERT_RECOVER_RETURN, m_inheritsTransform, and value().

◆ shapeHasBeenAddedToHierarchy()

void SimpleShapeContainerModel::shapeHasBeenAddedToHierarchy	(	KoShape *	shape,
		KoShapeContainer *	addedToSubtree )

inlineoverridevirtual

Reimplemented from KoShapeContainerModel.

Definition at line 102 of file SimpleShapeContainerModel.h.

                                                                                                 {
        if (m_associatedRootShapeManager) {
            m_associatedRootShapeManager->addShape(shape);
        }
        KoShapeContainerModel::shapeHasBeenAddedToHierarchy(shape, addedToSubtree);
    }

References KoShapeManager::addShape(), m_associatedRootShapeManager, and KoShapeContainerModel::shapeHasBeenAddedToHierarchy().

◆ shapes()

QList< KoShape * > SimpleShapeContainerModel::shapes ( ) const

inlineoverridevirtual

Return the list of all shapes of this model

Returns: the list of all shapes

Implements KoShapeContainerModel.

Definition at line 72 of file SimpleShapeContainerModel.h.

                                            {
        return QList<KoShape*>(m_members);
    }

References m_members.

◆ shapeToBeRemovedFromHierarchy()

void SimpleShapeContainerModel::shapeToBeRemovedFromHierarchy	(	KoShape *	shape,
		KoShapeContainer *	removedFromSubtree )

inlineoverridevirtual

Reimplemented from KoShapeContainerModel.

Definition at line 109 of file SimpleShapeContainerModel.h.

                                                                                                      {
        if (m_associatedRootShapeManager) {
            m_associatedRootShapeManager->remove(shape);
        }
        KoShapeContainerModel::shapeToBeRemovedFromHierarchy(shape, removedFromSubtree);
    }

References m_associatedRootShapeManager, KoShapeManager::remove(), and KoShapeContainerModel::shapeToBeRemovedFromHierarchy().

Member Data Documentation

◆ m_associatedRootShapeManager

KoShapeManager* SimpleShapeContainerModel::m_associatedRootShapeManager = 0

private

Definition at line 151 of file SimpleShapeContainerModel.h.

◆ m_clipped

QList<bool> SimpleShapeContainerModel::m_clipped

private

Definition at line 150 of file SimpleShapeContainerModel.h.

◆ m_inheritsTransform

QList<bool> SimpleShapeContainerModel::m_inheritsTransform

private

Definition at line 149 of file SimpleShapeContainerModel.h.

◆ m_members

QList<KoShape *> SimpleShapeContainerModel::m_members

private

Definition at line 148 of file SimpleShapeContainerModel.h.

The documentation for this class was generated from the following file:

libs/flake/SimpleShapeContainerModel.h

Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ SimpleShapeContainerModel() [1/2]

◆ ~SimpleShapeContainerModel()

◆ SimpleShapeContainerModel() [2/2]

Member Function Documentation

◆ add()

◆ associatedRootShapeManager()

◆ containerChanged()

◆ count()

◆ indexOf()

◆ inheritsTransform()

◆ isClipped()

◆ proposeMove()

◆ remove()

◆ setAssociatedRootShapeManager()

◆ setClipped()

◆ setInheritsTransform()

◆ shapeHasBeenAddedToHierarchy()

◆ shapes()

◆ shapeToBeRemovedFromHierarchy()

Member Data Documentation

◆ m_associatedRootShapeManager

◆ m_clipped

◆ m_inheritsTransform

◆ m_members
