KDcrawIface::DcrawSettingsWidget Class Reference

#include <dcrawsettingswidget.h>

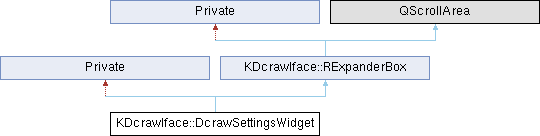

Inheritance diagram for KDcrawIface::DcrawSettingsWidget:

Public Types
enum	AdvancedSettingsOptions { SIXTEENBITS = 0x00000001 , COLORSPACE = 0x00000002 , POSTPROCESSING = 0x00000004 , BLACKWHITEPOINTS = 0x00000008 }
enum	SettingsTabs { DEMOSAICING = 0 , WHITEBALANCE , CORRECTIONS , COLORMANAGEMENT }

Signals
void	signalSettingsChanged ()
void	signalSixteenBitsImageToggled (bool)
Signals inherited from KDcrawIface::RExpanderBox
void	signalItemExpanded (int index, bool b)
void	signalItemToggled (int index, bool b)

Public Member Functions
bool	brightnessSettingsIsEnabled () const
	DcrawSettingsWidget (QWidget *const parent, int advSettings=COLORSPACE)
RFileSelector *	inputProfileUrlEdit () const
RFileSelector *	outputProfileUrlEdit () const
	Private ()
void	readSettings (KConfigGroup &group) override
void	resetToDefault ()
void	setEnabledBrightnessSettings (bool b)
void	setSettings (const RawDecodingSettings &settings)
RawDecodingSettings	settings () const
void	setup (int advSettings)
double	shiftExpoFromEvToLinear (double ev) const
double	shiftExpoFromLinearToEv (double lin) const
void	updateMinimumWidth ()
void	writeSettings (KConfigGroup &group) override
	~DcrawSettingsWidget () override
Public Member Functions inherited from KDcrawIface::RExpanderBox
void	addItem (QWidget *const w, const QIcon &icon, const QString &txt, const QString &objName, bool expandBydefault)
void	addItem (QWidget *const w, const QString &txt, const QString &objName, bool expandBydefault)
void	addStretch ()
bool	checkBoxIsVisible (int index) const
int	count () const
void	createItem (int index, QWidget *const w, const QIcon &icon, const QString &txt, const QString &objName, bool expandBydefault)
int	indexOf (RLabelExpander *const widget) const
void	insertItem (int index, QWidget *const w, const QIcon &icon, const QString &txt, const QString &objName, bool expandBydefault)
void	insertItem (int index, QWidget *const w, const QString &txt, const QString &objName, bool expandBydefault)
void	insertStretch (int index)
bool	isChecked (int index) const
bool	isItemEnabled (int index) const
bool	isItemExpanded (int index) const
QIcon	itemIcon (int index) const
QString	itemText (int index) const
QString	itemToolTip (int index) const
	Private (RExpanderBox *const box)
void	removeItem (int index)
	RExpanderBox (QWidget *const parent=0)
void	setCheckBoxVisible (int index, bool b)
void	setChecked (int index, bool b)
void	setItemEnabled (int index, bool enabled)
void	setItemExpanded (int index, bool b)
void	setItemIcon (int index, const QIcon &icon)
void	setItemText (int index, const QString &txt)
void	setItemToolTip (int index, const QString &tip)
RLabelExpander *	widget (int index) const
	~RExpanderBox () override

Public Attributes
QCheckBox *	autoBrightnessBox
QCheckBox *	autoCACorrectionBox
QCheckBox *	blackPointCheckBox
RIntNumInput *	blackPointSpinBox
QLabel *	brightnessLabel
RDoubleNumInput *	brightnessSpinBox
QLabel *	caBlueMultLabel
RDoubleNumInput *	caBlueMultSpinBox
QLabel *	caRedMultLabel
RDoubleNumInput *	caRedMultSpinBox
QWidget *	colormanSettings
QWidget *	correctionsSettings
QLabel *	customWhiteBalanceGreenLabel
RDoubleNumInput *	customWhiteBalanceGreenSpinBox
QLabel *	customWhiteBalanceLabel
RIntNumInput *	customWhiteBalanceSpinBox
QWidget *	demosaicingSettings
QCheckBox *	dontStretchPixelsCheckBox
QCheckBox *	enableCACorrectionBox
QCheckBox *	expoCorrectionBox
QLabel *	expoCorrectionHighlightLabel
RDoubleNumInput *	expoCorrectionHighlightSpinBox
QLabel *	expoCorrectionShiftLabel
RDoubleNumInput *	expoCorrectionShiftSpinBox
QCheckBox *	fixColorsHighlightsBox
QCheckBox *	fourColorCheckBox
RFileSelector *	inIccUrlEdit
RComboBox *	inputColorSpaceComboBox
QLabel *	inputColorSpaceLabel
QLabel *	medianFilterPassesLabel
RIntNumInput *	medianFilterPassesSpinBox
RComboBox *	noiseReductionComboBox
QLabel *	noiseReductionLabel
QLabel *	NRLabel1
QLabel *	NRLabel2
RIntNumInput *	NRSpinBox1
RIntNumInput *	NRSpinBox2
RFileSelector *	outIccUrlEdit
RComboBox *	outputColorSpaceComboBox
QLabel *	outputColorSpaceLabel
RComboBox *	RAWQualityComboBox
QLabel *	RAWQualityLabel
QLabel *	reconstructLabel
RIntNumInput *	reconstructSpinBox
QCheckBox *	refineInterpolationBox
QCheckBox *	sixteenBitsImage
RComboBox *	unclipColorComboBox
QLabel *	unclipColorLabel
RComboBox *	whiteBalanceComboBox
QLabel *	whiteBalanceLabel
QWidget *	whiteBalanceSettings
QCheckBox *	whitePointCheckBox
RIntNumInput *	whitePointSpinBox
Public Attributes inherited from KDcrawIface::RExpanderBox
RExpanderBox *	parent
QVBoxLayout *	vbox
QList< RLabelExpander * >	wList

Private Slots
void	slotAutoCAToggled (bool)
void	slotCACorrectionToggled (bool)
void	slotExpoCorrectionShiftChanged (double)
void	slotExposureCorrectionToggled (bool)
void	slotInputColorSpaceChanged (int)
void	slotNoiseReductionChanged (int)
void	slotOutputColorSpaceChanged (int)
void	slotRAWQualityChanged (int)
void	slotsixteenBitsImageToggled (bool)
void	slotUnclipColorActivated (int)
void	slotWhiteBalanceToggled (int)

Private Attributes
Private *const	d
Private Attributes inherited from Private
KisCanvas2 *	canvas
int	displayedFrame
int	intendedFrame

Additional Inherited Members
Private Member Functions inherited from Private
	Private (KisCanvas2 *c)

Detailed Description

Definition at line 103 of file dcrawsettingswidget.cpp.

Member Enumeration Documentation

AdvancedSettingsOptions

enum KDcrawIface::DcrawSettingsWidget::AdvancedSettingsOptions

Enumerator
SIXTEENBITS
COLORSPACE
POSTPROCESSING
BLACKWHITEPOINTS

Definition at line 57 of file dcrawsettingswidget.h.

    {
        SIXTEENBITS      = 0x00000001,
        COLORSPACE       = 0x00000002,
        POSTPROCESSING   = 0x00000004,
        BLACKWHITEPOINTS = 0x00000008
    };

SettingsTabs

enum KDcrawIface::DcrawSettingsWidget::SettingsTabs

Enumerator
DEMOSAICING
WHITEBALANCE
CORRECTIONS
COLORMANAGEMENT

Definition at line 65 of file dcrawsettingswidget.h.

    {
        DEMOSAICING = 0,
        WHITEBALANCE,
        CORRECTIONS,
        COLORMANAGEMENT
    };

Constructor & Destructor Documentation

DcrawSettingsWidget()

KDcrawIface::DcrawSettingsWidget::DcrawSettingsWidget ( QWidget *const parent, int advSettings = COLORSPACE )

explicit

Parameters

advSettings

the default value is COLORSPACE

Definition at line 245 of file dcrawsettingswidget.cpp.

    : RExpanderBox(parent), d(new Private)
{
    setup(advSettings);
}

References setup().

~DcrawSettingsWidget()

KDcrawIface::DcrawSettingsWidget::~DcrawSettingsWidget ( )

override

Definition at line 912 of file dcrawsettingswidget.cpp.

{
    delete d;
}

References d.

Member Function Documentation

brightnessSettingsIsEnabled()

bool KDcrawIface::DcrawSettingsWidget::brightnessSettingsIsEnabled

(

)

const

Definition at line 1117 of file dcrawsettingswidget.cpp.

{
    return d->brightnessSpinBox->isEnabled();
}

References d.

inputProfileUrlEdit()

RFileSelector * KDcrawIface::DcrawSettingsWidget::inputProfileUrlEdit

(

)

const

Definition at line 930 of file dcrawsettingswidget.cpp.

{
    return d->inIccUrlEdit;
}

References d.

outputProfileUrlEdit()

RFileSelector * KDcrawIface::DcrawSettingsWidget::outputProfileUrlEdit

(

)

const

Definition at line 935 of file dcrawsettingswidget.cpp.

{
    return d->outIccUrlEdit;
}

References d.

Private()

KDcrawIface::DcrawSettingsWidget::Private ( )

inline

Definition at line 107 of file dcrawsettingswidget.cpp.

    {
        autoBrightnessBox              = 0;
        sixteenBitsImage               = 0;
        fourColorCheckBox              = 0;
        brightnessLabel                = 0;
        brightnessSpinBox              = 0;
        blackPointCheckBox             = 0;
        blackPointSpinBox              = 0;
        whitePointCheckBox             = 0;
        whitePointSpinBox              = 0;
        whiteBalanceComboBox           = 0;
        whiteBalanceLabel              = 0;
        customWhiteBalanceSpinBox      = 0;
        customWhiteBalanceLabel        = 0;
        customWhiteBalanceGreenSpinBox = 0;
        customWhiteBalanceGreenLabel   = 0;
        unclipColorLabel               = 0;
        dontStretchPixelsCheckBox      = 0;
        RAWQualityComboBox             = 0;
        RAWQualityLabel                = 0;
        noiseReductionComboBox         = 0;
        NRSpinBox1                     = 0;
        NRSpinBox2                     = 0;
        NRLabel1                       = 0;
        NRLabel2                       = 0;
        enableCACorrectionBox          = 0;
        autoCACorrectionBox            = 0;
        caRedMultSpinBox               = 0;
        caBlueMultSpinBox              = 0;
        caRedMultLabel                 = 0;
        caBlueMultLabel                = 0;
        unclipColorComboBox            = 0;
        reconstructLabel               = 0;
        reconstructSpinBox             = 0;
        outputColorSpaceLabel          = 0;
        outputColorSpaceComboBox       = 0;
        demosaicingSettings            = 0;
        whiteBalanceSettings           = 0;
        correctionsSettings            = 0;
        colormanSettings               = 0;
        medianFilterPassesSpinBox      = 0;
        medianFilterPassesLabel        = 0;
        inIccUrlEdit                   = 0;
        outIccUrlEdit                  = 0;
        inputColorSpaceLabel           = 0;
        inputColorSpaceComboBox        = 0;
        fixColorsHighlightsBox         = 0;
        refineInterpolationBox         = 0;
        noiseReductionLabel            = 0;
        expoCorrectionBox              = 0;
        expoCorrectionShiftSpinBox     = 0;
        expoCorrectionHighlightSpinBox = 0;
        expoCorrectionShiftLabel       = 0;
        expoCorrectionHighlightLabel   = 0;
    }

readSettings()

void KDcrawIface::DcrawSettingsWidget::readSettings ( KConfigGroup & group )

overridevirtual

Reimplemented from KDcrawIface::RExpanderBox.

Definition at line 1392 of file dcrawsettingswidget.cpp.

{
    RawDecodingSettings prm;
    {
            prm.fixColorsHighlights = group.readEntry(OPTIONFIXCOLORSHIGHLIGHTSENTRY, prm.fixColorsHighlights);
            prm.sixteenBitsImage = group.readEntry(OPTIONDECODESIXTEENBITENTRY, prm.sixteenBitsImage);
            prm.whiteBalance =
                (RawDecodingSettings::WhiteBalance)group.readEntry(OPTIONWHITEBALANCEENTRY, (int)prm.whiteBalance);
            prm.customWhiteBalance = group.readEntry(OPTIONCUSTOMWHITEBALANCEENTRY, prm.customWhiteBalance);
            prm.customWhiteBalanceGreen = group.readEntry(OPTIONCUSTOMWBGREENENTRY, prm.customWhiteBalanceGreen);
            prm.RGBInterpolate4Colors = group.readEntry(OPTIONFOURCOLORRGBENTRY, prm.RGBInterpolate4Colors);
            prm.unclipColors = group.readEntry(OPTIONUNCLIPCOLORSENTRY, prm.unclipColors);
            prm.DontStretchPixels = group.readEntry(OPTIONDONTSTRETCHPIXELSENTRY, prm.DontStretchPixels);
            prm.NRType =
                (RawDecodingSettings::NoiseReduction)group.readEntry(OPTIONNOISEREDUCTIONTYPEENTRY, (int)prm.NRType);
            prm.brightness = group.readEntry(OPTIONBRIGHTNESSMULTIPLIERENTRY, prm.brightness);
            prm.enableBlackPoint = group.readEntry(OPTIONUSEBLACKPOINTENTRY, prm.enableBlackPoint);
            prm.blackPoint = group.readEntry(OPTIONBLACKPOINTENTRY, prm.blackPoint);
            prm.enableWhitePoint = group.readEntry(OPTIONUSEWHITEPOINTENTRY, prm.enableWhitePoint);
            prm.whitePoint = group.readEntry(OPTIONWHITEPOINTENTRY, prm.whitePoint);
            prm.medianFilterPasses = group.readEntry(OPTIONMEDIANFILTERPASSESENTRY, prm.medianFilterPasses);
            prm.NRThreshold = group.readEntry(OPTIONNOISEREDUCTIONTHRESHOLDENTRY, prm.NRThreshold);
            prm.enableCACorrection = group.readEntry(OPTIONUSECACORRECTIONENTRY, prm.enableCACorrection);
            prm.caMultiplier[0] = group.readEntry(OPTIONCAREDMULTIPLIERENTRY, prm.caMultiplier[0]);
            prm.caMultiplier[1] = group.readEntry(OPTIONCABLUEMULTIPLIERENTRY, prm.caMultiplier[1]);
            prm.RAWQuality =
                (RawDecodingSettings::DecodingQuality)group.readEntry(OPTIONDECODINGQUALITYENTRY, (int)prm.RAWQuality);
            prm.outputColorSpace = (RawDecodingSettings::OutputColorSpace)group.readEntry(OPTIONOUTPUTCOLORSPACEENTRY,
                                                                                          (int)prm.outputColorSpace);
            prm.autoBrightness = group.readEntry(OPTIONAUTOBRIGHTNESSENTRY, prm.autoBrightness);

            //-- Extended demosaicing settings ----------------------------------------------------------

            prm.dcbIterations = group.readEntry(OPTIONDCBITERATIONSENTRY, prm.dcbIterations);
            prm.dcbEnhanceFl = group.readEntry(OPTIONDCBENHANCEFLENTRY, prm.dcbEnhanceFl);
            prm.eeciRefine = group.readEntry(OPTIONEECIREFINEENTRY, prm.eeciRefine);
            prm.esMedPasses = group.readEntry(OPTIONESMEDPASSESENTRY, prm.esMedPasses);
            prm.NRChroThreshold = group.readEntry(OPTIONNRCHROMINANCETHRESHOLDENTRY, prm.NRChroThreshold);
            prm.expoCorrection = group.readEntry(OPTIONEXPOCORRECTIONENTRY, prm.expoCorrection);
            prm.expoCorrectionShift = group.readEntry(OPTIONEXPOCORRECTIONSHIFTENTRY, prm.expoCorrectionShift);
            prm.expoCorrectionHighlight =
                group.readEntry(OPTIONEXPOCORRECTIONHIGHLIGHTENTRY, prm.expoCorrectionHighlight);
    }
    setSettings(prm);
    RExpanderBox::readSettings(group);
}

References OPTIONAUTOBRIGHTNESSENTRY, OPTIONBLACKPOINTENTRY, OPTIONBRIGHTNESSMULTIPLIERENTRY, OPTIONCABLUEMULTIPLIERENTRY, OPTIONCAREDMULTIPLIERENTRY, OPTIONCUSTOMWBGREENENTRY, OPTIONCUSTOMWHITEBALANCEENTRY, OPTIONDCBENHANCEFLENTRY, OPTIONDCBITERATIONSENTRY, OPTIONDECODESIXTEENBITENTRY, OPTIONDECODINGQUALITYENTRY, OPTIONDONTSTRETCHPIXELSENTRY, OPTIONEECIREFINEENTRY, OPTIONESMEDPASSESENTRY, OPTIONEXPOCORRECTIONENTRY, OPTIONEXPOCORRECTIONHIGHLIGHTENTRY, OPTIONEXPOCORRECTIONSHIFTENTRY, OPTIONFIXCOLORSHIGHLIGHTSENTRY, OPTIONFOURCOLORRGBENTRY, OPTIONMEDIANFILTERPASSESENTRY, OPTIONNOISEREDUCTIONTHRESHOLDENTRY, OPTIONNOISEREDUCTIONTYPEENTRY, OPTIONNRCHROMINANCETHRESHOLDENTRY, OPTIONOUTPUTCOLORSPACEENTRY, OPTIONUNCLIPCOLORSENTRY, OPTIONUSEBLACKPOINTENTRY, OPTIONUSECACORRECTIONENTRY, OPTIONUSEWHITEPOINTENTRY, OPTIONWHITEBALANCEENTRY, OPTIONWHITEPOINTENTRY, KDcrawIface::RExpanderBox::readSettings(), and setSettings().

resetToDefault()

void KDcrawIface::DcrawSettingsWidget::resetToDefault

(

)

Definition at line 940 of file dcrawsettingswidget.cpp.

{
    setSettings(RawDecodingSettings());
}

References setSettings().

setEnabledBrightnessSettings()

void KDcrawIface::DcrawSettingsWidget::setEnabledBrightnessSettings

(

bool

b

)

Definition at line 1111 of file dcrawsettingswidget.cpp.

{
    d->brightnessLabel->setEnabled(b);
    d->brightnessSpinBox->setEnabled(b);
}

References d.

setSettings()

void KDcrawIface::DcrawSettingsWidget::setSettings

(

const RawDecodingSettings &

settings

)

Definition at line 1122 of file dcrawsettingswidget.cpp.

{
    d->sixteenBitsImage->setChecked(settings.sixteenBitsImage);

    switch(settings.whiteBalance)
    {
        case RawDecodingSettings::CAMERA:
            d->whiteBalanceComboBox->setCurrentIndex(1);
            break;
        case RawDecodingSettings::AUTO:
            d->whiteBalanceComboBox->setCurrentIndex(2);
            break;
        case RawDecodingSettings::CUSTOM:
            d->whiteBalanceComboBox->setCurrentIndex(3);
            break;
        default:
            d->whiteBalanceComboBox->setCurrentIndex(0);
            break;
    }
    slotWhiteBalanceToggled(d->whiteBalanceComboBox->currentIndex());

    d->customWhiteBalanceSpinBox->setValue(settings.customWhiteBalance);
    d->customWhiteBalanceGreenSpinBox->setValue(settings.customWhiteBalanceGreen);
    d->fourColorCheckBox->setChecked(settings.RGBInterpolate4Colors);
    d->autoBrightnessBox->setChecked(settings.autoBrightness);
    d->fixColorsHighlightsBox->setChecked(settings.fixColorsHighlights);

    switch(settings.unclipColors)
    {
        case 0:
            d->unclipColorComboBox->setCurrentIndex(0);
            break;
        case 1:
            d->unclipColorComboBox->setCurrentIndex(1);
            break;
        case 2:
            d->unclipColorComboBox->setCurrentIndex(2);
            break;
        default:         // Reconstruct Highlight method
            d->unclipColorComboBox->setCurrentIndex(3);
            d->reconstructSpinBox->setValue(settings.unclipColors-3);
            break;
    }
    slotUnclipColorActivated(d->unclipColorComboBox->currentIndex());

    d->dontStretchPixelsCheckBox->setChecked(settings.DontStretchPixels);
    d->brightnessSpinBox->setValue(settings.brightness);
    d->blackPointCheckBox->setChecked(settings.enableBlackPoint);
    d->blackPointSpinBox->setEnabled(settings.enableBlackPoint);
    d->blackPointSpinBox->setValue(settings.blackPoint);
    d->whitePointCheckBox->setChecked(settings.enableWhitePoint);
    d->whitePointSpinBox->setEnabled(settings.enableWhitePoint);
    d->whitePointSpinBox->setValue(settings.whitePoint);

    int q = settings.RAWQuality;

    // If Libraw do not support GPL2 pack, reset to BILINEAR.
    if (!KDcraw::librawUseGPL2DemosaicPack())
    {
        for (int i=RawDecodingSettings::DCB ; i <=RawDecodingSettings::LMMSE ; ++i)
        {
            if (q == i)
            {
                q = RawDecodingSettings::BILINEAR;
                qCDebug(LIBKDCRAW_LOG) << "Libraw GPL2 pack not available. Raw quality set to Bilinear";
                break;
            }
        }
    }

    // If Libraw do not support GPL3 pack, reset to BILINEAR.
    if (!KDcraw::librawUseGPL3DemosaicPack() && (q == RawDecodingSettings::AMAZE))
    {
        q = RawDecodingSettings::BILINEAR;
        qCDebug(LIBKDCRAW_LOG) << "Libraw GPL3 pack not available. Raw quality set to Bilinear";
    }

    d->RAWQualityComboBox->setCurrentIndex(q);

    switch(q)
    {
        case RawDecodingSettings::DCB:
            d->medianFilterPassesSpinBox->setValue(settings.dcbIterations);
            d->refineInterpolationBox->setChecked(settings.dcbEnhanceFl);
            break;
        case RawDecodingSettings::VCD_AHD:
            d->medianFilterPassesSpinBox->setValue(settings.eeciRefine);
            d->refineInterpolationBox->setChecked(settings.eeciRefine);
            break;
        default:
            d->medianFilterPassesSpinBox->setValue(settings.medianFilterPasses);
            d->refineInterpolationBox->setChecked(false); // option not used.
            break;
    }

    slotRAWQualityChanged(q);

    d->inputColorSpaceComboBox->setCurrentIndex((int)settings.inputColorSpace);
    slotInputColorSpaceChanged((int)settings.inputColorSpace);
    d->outputColorSpaceComboBox->setCurrentIndex((int)settings.outputColorSpace);
    slotOutputColorSpaceChanged((int)settings.outputColorSpace);

    d->noiseReductionComboBox->setCurrentIndex(settings.NRType);
    slotNoiseReductionChanged(settings.NRType);
    d->NRSpinBox1->setValue(settings.NRThreshold);
    d->NRSpinBox2->setValue(settings.NRChroThreshold);

    d->enableCACorrectionBox->setChecked(settings.enableCACorrection);
    d->caRedMultSpinBox->setValue(settings.caMultiplier[0]);
    d->caBlueMultSpinBox->setValue(settings.caMultiplier[1]);
    d->autoCACorrectionBox->setChecked((settings.caMultiplier[0] == 0.0) && (settings.caMultiplier[1] == 0.0));
    slotCACorrectionToggled(settings.enableCACorrection);

    d->expoCorrectionBox->setChecked(settings.expoCorrection);
    slotExposureCorrectionToggled(settings.expoCorrection);
    d->expoCorrectionShiftSpinBox->setValue(d->shiftExpoFromLinearToEv(settings.expoCorrectionShift));
    d->expoCorrectionHighlightSpinBox->setValue(settings.expoCorrectionHighlight);

    d->inIccUrlEdit->lineEdit()->setText(settings.inputProfile);
    d->outIccUrlEdit->lineEdit()->setText(settings.outputProfile);
}

References d, settings(), slotCACorrectionToggled(), slotExposureCorrectionToggled(), slotInputColorSpaceChanged(), slotNoiseReductionChanged(), slotOutputColorSpaceChanged(), slotRAWQualityChanged(), slotUnclipColorActivated(), and slotWhiteBalanceToggled().

settings()

RawDecodingSettings KDcrawIface::DcrawSettingsWidget::settings

(

)

const

Definition at line 1244 of file dcrawsettingswidget.cpp.

{
    RawDecodingSettings prm;
    prm.sixteenBitsImage = d->sixteenBitsImage->isChecked();

    switch(d->whiteBalanceComboBox->currentIndex())
    {
        case 1:
            prm.whiteBalance = RawDecodingSettings::CAMERA;
            break;
        case 2:
            prm.whiteBalance = RawDecodingSettings::AUTO;
            break;
        case 3:
            prm.whiteBalance = RawDecodingSettings::CUSTOM;
            break;
        default:
            prm.whiteBalance = RawDecodingSettings::NONE;
            break;
    }

    prm.customWhiteBalance      = d->customWhiteBalanceSpinBox->value();
    prm.customWhiteBalanceGreen = d->customWhiteBalanceGreenSpinBox->value();
    prm.RGBInterpolate4Colors   = d->fourColorCheckBox->isChecked();
    prm.autoBrightness          = d->autoBrightnessBox->isChecked();
    prm.fixColorsHighlights     = d->fixColorsHighlightsBox->isChecked();

    switch(d->unclipColorComboBox->currentIndex())
    {
        case 0:
            prm.unclipColors = 0;
            break;
        case 1:
            prm.unclipColors = 1;
            break;
        case 2:
            prm.unclipColors = 2;
            break;
        default:         // Reconstruct Highlight method
            prm.unclipColors =  d->reconstructSpinBox->value()+3;
            break;
    }

    prm.DontStretchPixels    = d->dontStretchPixelsCheckBox->isChecked();
    prm.brightness           = d->brightnessSpinBox->value();
    prm.enableBlackPoint     = d->blackPointCheckBox->isChecked();
    prm.blackPoint           = d->blackPointSpinBox->value();
    prm.enableWhitePoint     = d->whitePointCheckBox->isChecked();
    prm.whitePoint           = d->whitePointSpinBox->value();

    prm.RAWQuality           = (RawDecodingSettings::DecodingQuality)d->RAWQualityComboBox->currentIndex();
    switch(prm.RAWQuality)
    {
        case RawDecodingSettings::DCB:
            prm.dcbIterations      = d->medianFilterPassesSpinBox->value();
            prm.dcbEnhanceFl       = d->refineInterpolationBox->isChecked();
            break;
        case RawDecodingSettings::VCD_AHD:
            prm.esMedPasses        = d->medianFilterPassesSpinBox->value();
            prm.eeciRefine         = d->refineInterpolationBox->isChecked();
            break;
        default:
            prm.medianFilterPasses = d->medianFilterPassesSpinBox->value();
            break;
    }

    prm.NRType = (RawDecodingSettings::NoiseReduction)d->noiseReductionComboBox->currentIndex();
    switch (prm.NRType)
    {
        case RawDecodingSettings::NONR:
        {
            prm.NRThreshold     = 0;
            prm.NRChroThreshold = 0;
            break;
        }
        case RawDecodingSettings::WAVELETSNR:
        case RawDecodingSettings::FBDDNR:
        case RawDecodingSettings::LINENR:
        {
            prm.NRThreshold     = d->NRSpinBox1->value();
            prm.NRChroThreshold = 0;
            break;
        }
        default:    // IMPULSENR
        {
            prm.NRThreshold     = d->NRSpinBox1->value();
            prm.NRChroThreshold = d->NRSpinBox2->value();
            break;
        }
    }

    prm.enableCACorrection      = d->enableCACorrectionBox->isChecked();
    prm.caMultiplier[0]         = d->caRedMultSpinBox->value();
    prm.caMultiplier[1]         = d->caBlueMultSpinBox->value();

    prm.expoCorrection          = d->expoCorrectionBox->isChecked();
    prm.expoCorrectionShift     = d->shiftExpoFromEvToLinear(d->expoCorrectionShiftSpinBox->value());
    prm.expoCorrectionHighlight = d->expoCorrectionHighlightSpinBox->value();

    prm.inputColorSpace         = (RawDecodingSettings::InputColorSpace)(d->inputColorSpaceComboBox->currentIndex());
    prm.outputColorSpace        = (RawDecodingSettings::OutputColorSpace)(d->outputColorSpaceComboBox->currentIndex());
    prm.inputProfile            = d->inIccUrlEdit->lineEdit()->text();
    prm.outputProfile           = d->outIccUrlEdit->lineEdit()->text();

    return prm;
}

References d.

setup()

void KDcrawIface::DcrawSettingsWidget::setup

(

int

advSettings

)

Definition at line 251 of file dcrawsettingswidget.cpp.

{
    setObjectName( QLatin1String("DCRawSettings Expander" ));

    // ---------------------------------------------------------------
    // DEMOSAICING Settings panel

    d->demosaicingSettings               = new QWidget(this);
    QGridLayout* const demosaicingLayout = new QGridLayout(d->demosaicingSettings);

    int line = 0;

    d->sixteenBitsImage = new QCheckBox(i18nc("@option:check", "16 bits color depth"), d->demosaicingSettings);
    d->sixteenBitsImage->setToolTip(i18nc("@info:whatsthis", "<p>If enabled, all RAW files will "
                                "be decoded in 16-bit color depth using a linear gamma curve. To "
                                "prevent dark picture rendering in the editor, it is recommended to "
                                "use Color Management in this mode.</p>"
                                "<p>If disabled, all RAW files will be decoded in 8-bit color "
                                "depth with a BT.709 gamma curve and a 99th-percentile white point. "
                                "This mode is faster than 16-bit decoding.</p>"));
    demosaicingLayout->addWidget(d->sixteenBitsImage, 0, 0, 1, 2);

    if (advSettings & SIXTEENBITS)
    {
        d->sixteenBitsImage->show();
        line = 1;
    }
    else
    {
        d->sixteenBitsImage->hide();
    }

    d->fourColorCheckBox = new QCheckBox(i18nc("@option:check", "Interpolate RGB as four colors"), d->demosaicingSettings);
    d->fourColorCheckBox->setToolTip(i18nc("@info:whatsthis", "<title>Interpolate RGB as four "
                                "colors</title>"
                                "<p>The default is to assume that all green pixels are the same. "
                                "If even-row green pixels are more sensitive to ultraviolet light "
                                "than odd-row this difference causes a mesh pattern in the output; "
                                "using this option solves this problem with minimal loss of detail.</p>"
                                "<p>To resume, this option blurs the image a little, but it "
                                "eliminates false 2x2 mesh patterns with VNG quality method or "
                                "mazes with AHD quality method.</p>"));
    demosaicingLayout->addWidget(d->fourColorCheckBox, line, 0, 1, line == 0 ? 2 : 3);
    line++;

    QLabel* const dcrawVersion = new QLabel(d->demosaicingSettings);
    dcrawVersion->setAlignment(Qt::AlignRight);
    dcrawVersion->setToolTip(i18nc("@info:tooltip", "Visit LibRaw project website"));
    dcrawVersion->setOpenExternalLinks(true);
    dcrawVersion->setTextFormat(Qt::RichText);
    dcrawVersion->setTextInteractionFlags(Qt::LinksAccessibleByMouse);
    dcrawVersion->setText(QString::fromLatin1("<a href=\"%1\">%2</a>")
                          .arg(QLatin1String("https://www.libraw.org"))
                          .arg(QString::fromLatin1("libraw %1").arg(KDcraw::librawVersion())));

    demosaicingLayout->addWidget(dcrawVersion, 0, 2, 1, 1);

    d->dontStretchPixelsCheckBox  = new QCheckBox(i18nc("@option:check", "Do not stretch or rotate pixels"), d->demosaicingSettings);
    d->dontStretchPixelsCheckBox->setToolTip(i18nc("@info:whatsthis",
                                "<title>Do not stretch or rotate pixels</title>"
                                "<p>For Fuji Super CCD cameras, show the image tilted 45 degrees. "
                                "For cameras with non-square pixels, do not stretch the image to "
                                "its correct aspect ratio. In any case, this option guarantees that "
                                "each output pixel corresponds to one RAW pixel.</p>"));
    demosaicingLayout->addWidget(d->dontStretchPixelsCheckBox, line, 0, 1, 3);
    line++;

    d->RAWQualityLabel    = new QLabel(i18nc("@label:listbox", "Quality:"), d->demosaicingSettings);
    d->RAWQualityComboBox = new RComboBox(d->demosaicingSettings);

    // Original dcraw demosaicing methods
    d->RAWQualityComboBox->insertItem(RawDecodingSettings::BILINEAR, i18nc("@item:inlistbox Quality", "Bilinear"));
    d->RAWQualityComboBox->insertItem(RawDecodingSettings::VNG,      i18nc("@item:inlistbox Quality", "VNG"));
    d->RAWQualityComboBox->insertItem(RawDecodingSettings::PPG,      i18nc("@item:inlistbox Quality", "PPG"));
    d->RAWQualityComboBox->insertItem(RawDecodingSettings::AHD,      i18nc("@item:inlistbox Quality", "AHD"));

    // Extended demosaicing method from GPL2 pack
    d->RAWQualityComboBox->insertItem(RawDecodingSettings::DCB,      i18nc("@item:inlistbox Quality", "DCB"));
    d->RAWQualityComboBox->insertItem(RawDecodingSettings::PL_AHD,   i18nc("@item:inlistbox Quality", "AHD v2"));
    d->RAWQualityComboBox->insertItem(RawDecodingSettings::AFD,      i18nc("@item:inlistbox Quality", "AFD"));
    d->RAWQualityComboBox->insertItem(RawDecodingSettings::VCD,      i18nc("@item:inlistbox Quality", "VCD"));
    d->RAWQualityComboBox->insertItem(RawDecodingSettings::VCD_AHD,  i18nc("@item:inlistbox Quality", "VCD & AHD"));
    d->RAWQualityComboBox->insertItem(RawDecodingSettings::LMMSE,    i18nc("@item:inlistbox Quality", "LMMSE"));
    // Extended demosaicing method from GPL3 pack
    d->RAWQualityComboBox->insertItem(RawDecodingSettings::AMAZE,    i18nc("@item:inlistbox Quality", "AMaZE"));

    // If Libraw do not support GPL2 pack, disable entries relevant.
    if (!KDcraw::librawUseGPL2DemosaicPack())
    {
        for (int i=RawDecodingSettings::DCB ; i <=RawDecodingSettings::LMMSE ; ++i)
            d->RAWQualityComboBox->combo()->setItemData(i, false, Qt::UserRole-1);
    }

    // If Libraw do not support GPL3 pack, disable entries relevant.
    if (!KDcraw::librawUseGPL3DemosaicPack())
    {
        d->RAWQualityComboBox->combo()->setItemData(RawDecodingSettings::AMAZE, false, Qt::UserRole-1);
    }

    d->RAWQualityComboBox->setDefaultIndex(RawDecodingSettings::BILINEAR);
    d->RAWQualityComboBox->setCurrentIndex(RawDecodingSettings::BILINEAR);
    d->RAWQualityComboBox->setToolTip(i18nc("@info:whatsthis", "<title>Quality (interpolation)</title>"
                                "<p>Select here the demosaicing method to use when decoding RAW "
                                "images. A demosaicing algorithm is a digital image process used to "
                                "interpolate a complete image from the partial raw data received "
                                "from the color-filtered image sensor, internal to many digital "
                                "cameras, in form of a matrix of colored pixels. Also known as CFA "
                                "interpolation or color reconstruction, another common spelling is "
                                "demosaicing. The following methods are available for demosaicing "
                                "RAW images:</p>"

                                // Original dcraw demosaicing methods

                                "<p><ul><li><emphasis strong='true'>Bilinear</emphasis>: use "
                                "high-speed but low-quality bilinear interpolation (default - for "
                                "slow computers). In this method, the red value of a non-red pixel "
                                "is computed as the average of the adjacent red pixels, and similarly "
                                "for blue and green.</li>"

                                "<li><emphasis strong='true'>VNG</emphasis>: use Variable Number "
                                "of Gradients interpolation. This method computes gradients near "
                                "the pixel of interest and uses the lower gradients (representing "
                                "smoother and more similar parts of the image) to make an estimate.</li>"

                                "<li><emphasis strong='true'>PPG</emphasis>: use Patterned-Pixel-"
                                "Grouping interpolation. Pixel Grouping uses assumptions about "
                                "natural scenery in making estimates. It has fewer color artifacts "
                                "on natural images than the Variable Number of Gradients method.</li>"

                                "<li><emphasis strong='true'>AHD</emphasis>: use Adaptive "
                                "Homogeneity-Directed interpolation. This method selects the "
                                "direction of interpolation so as to maximize a homogeneity metric, "
                                "thus typically minimizing color artifacts.</li>"

                                // Extended demosaicing method

                                "<li><emphasis strong='true'>DCB</emphasis>: DCB interpolation from "
                                "linuxphoto.org project.</li>"

                                "<li><emphasis strong='true'>AHD v2</emphasis>: modified AHD "
                                "interpolation using Variance of Color Differences method.</li>"

                                "<li><emphasis strong='true'>AFD</emphasis>: Adaptive Filtered "
                                "Demosaicing interpolation through 5 pass median filter from PerfectRaw "
                                "project.</li>"

                                "<li><emphasis strong='true'>VCD</emphasis>: Variance of Color "
                                "Differences interpolation.</li>"

                                "<li><emphasis strong='true'>VCD & AHD</emphasis>: Mixed demosaicing "
                                "between VCD and AHD.</li>"

                                "<li><emphasis strong='true'>LMMSE</emphasis>: color demosaicing via "
                                "directional linear minimum mean-square error estimation interpolation "
                                "from PerfectRaw.</li>"

                                "<li><emphasis strong='true'>AMaZE</emphasis>: Aliasing Minimization "
                                "interpolation and Zipper Elimination to apply color aberration removal "
                                "from RawTherapee project.</li></ul></p>"

                                "<p>Note: some methods can be unavailable if RAW decoder have been built "
                                "without extension packs.</p>"));

    demosaicingLayout->addWidget(d->RAWQualityLabel,    line, 0, 1, 1);
    demosaicingLayout->addWidget(d->RAWQualityComboBox, line, 1, 1, 2);
    line++;

    d->medianFilterPassesSpinBox = new RIntNumInput(d->demosaicingSettings);
    d->medianFilterPassesSpinBox->setRange(0, 10, 1);
    d->medianFilterPassesSpinBox->setDefaultValue(0);
    d->medianFilterPassesLabel   = new QLabel(i18nc("@label:slider", "Pass:"), d->whiteBalanceSettings);
    d->medianFilterPassesSpinBox->setToolTip( i18nc("@info:whatsthis", "<title>Pass</title>"
                                "<p>Set here the passes used by the median filter applied after "
                                "interpolation to Red-Green and Blue-Green channels.</p>"
                                "<p>This setting is only available for specific Quality options: "
                                "<emphasis strong='true'>Bilinear</emphasis>, <emphasis strong='true'>"
                                "VNG</emphasis>, <emphasis strong='true'>PPG</emphasis>, "
                                "<emphasis strong='true'>AHD</emphasis>, <emphasis strong='true'>"
                                "DCB</emphasis>, and <emphasis strong='true'>VCD & AHD</emphasis>.</p>"));
    demosaicingLayout->addWidget(d->medianFilterPassesLabel,   line, 0, 1, 1);
    demosaicingLayout->addWidget(d->medianFilterPassesSpinBox, line, 1, 1, 2);
    line++;

    d->refineInterpolationBox = new QCheckBox(i18nc("@option:check", "Refine interpolation"), d->demosaicingSettings);
    d->refineInterpolationBox->setToolTip(i18nc("@info:whatsthis", "<title>Refine interpolation</title>"
                                "<p>This setting is available only for few Quality options:</p>"
                                "<p><ul><li><emphasis strong='true'>DCB</emphasis>: turn on "
                                "the enhance interpolated colors filter.</li>"
                                "<li><emphasis strong='true'>VCD & AHD</emphasis>: turn on the "
                                "enhanced effective color interpolation (EECI) refine to improve "
                                "sharpness.</li></ul></p>"));
    demosaicingLayout->addWidget(d->refineInterpolationBox, line, 0, 1, 2);

    // If Libraw do not support GPL2 pack, disable options relevant.
    if (!KDcraw::librawUseGPL2DemosaicPack())
    {
        d->medianFilterPassesLabel->setEnabled(false);
        d->medianFilterPassesSpinBox->setEnabled(false);
        d->refineInterpolationBox->setEnabled(false);
    }

    addItem(d->demosaicingSettings, KisIconUtils::loadIcon("kdcraw").pixmap(16, 16), i18nc("@label", "Demosaicing"), QString("demosaicing"), true);

    // ---------------------------------------------------------------
    // WHITE BALANCE Settings Panel

    d->whiteBalanceSettings               = new QWidget(this);
    QGridLayout* const whiteBalanceLayout = new QGridLayout(d->whiteBalanceSettings);

    d->whiteBalanceLabel    = new QLabel(i18nc("@label:listbox", "Method:"), d->whiteBalanceSettings);
    d->whiteBalanceComboBox = new RComboBox(d->whiteBalanceSettings);
    d->whiteBalanceComboBox->insertItem(RawDecodingSettings::NONE,   i18nc("@item:inlistbox", "Default D65"));
    d->whiteBalanceComboBox->insertItem(RawDecodingSettings::CAMERA, i18nc("@item:inlistbox", "Camera"));
    d->whiteBalanceComboBox->insertItem(RawDecodingSettings::AUTO,   i18nc("@item:inlistbox set while balance automatically", "Automatic"));
    d->whiteBalanceComboBox->insertItem(RawDecodingSettings::CUSTOM, i18nc("@item:inlistbox set white balance manually", "Manual"));
    d->whiteBalanceComboBox->setDefaultIndex(RawDecodingSettings::CAMERA);
    d->whiteBalanceComboBox->setToolTip(i18nc("@info:whatsthis", "<title>White Balance</title>"
                                "<p>Configure the raw white balance:</p>"
                                "<p><ul><li><emphasis strong='true'>Default D65</emphasis>: "
                                "Use a standard daylight D65 white balance.</li>"
                                "<li><emphasis strong='true'>Camera</emphasis>: Use the white "
                                "balance specified by the camera. If not available, reverts to "
                                "default neutral white balance.</li>"
                                "<li><emphasis strong='true'>Automatic</emphasis>: Calculates an "
                                "automatic white balance averaging the entire image.</li>"
                                "<li><emphasis strong='true'>Manual</emphasis>: Set a custom "
                                "temperature and green level values.</li></ul></p>"));

    d->customWhiteBalanceSpinBox = new RIntNumInput(d->whiteBalanceSettings);
    d->customWhiteBalanceSpinBox->setRange(2000, 12000, 10);
    d->customWhiteBalanceSpinBox->setDefaultValue(6500);
    d->customWhiteBalanceLabel   = new QLabel(i18nc("@label:slider", "T(K):"), d->whiteBalanceSettings);
    d->customWhiteBalanceSpinBox->setToolTip( i18nc("@info:whatsthis", "<title>Temperature</title>"
                                "<p>Set here the color temperature in Kelvin.</p>"));

    d->customWhiteBalanceGreenSpinBox = new RDoubleNumInput(d->whiteBalanceSettings);
    d->customWhiteBalanceGreenSpinBox->setDecimals(2);
    d->customWhiteBalanceGreenSpinBox->setRange(0.2, 2.5, 0.01);
    d->customWhiteBalanceGreenSpinBox->setDefaultValue(1.0);
    d->customWhiteBalanceGreenLabel   = new QLabel(i18nc("@label:slider Green component", "Green:"), d->whiteBalanceSettings);
    d->customWhiteBalanceGreenSpinBox->setToolTip(i18nc("@info:whatsthis", "<p>Set here the "
                                "green component to set magenta color cast removal level.</p>"));

    d->unclipColorLabel    = new QLabel(i18nc("@label:listbox", "Highlights:"), d->whiteBalanceSettings);
    d->unclipColorComboBox = new RComboBox(d->whiteBalanceSettings);
    d->unclipColorComboBox->insertItem(0, i18nc("@item:inlistbox", "Solid white"));
    d->unclipColorComboBox->insertItem(1, i18nc("@item:inlistbox", "Unclip"));
    d->unclipColorComboBox->insertItem(2, i18nc("@item:inlistbox", "Blend"));
    d->unclipColorComboBox->insertItem(3, i18nc("@item:inlistbox", "Rebuild"));
    d->unclipColorComboBox->setDefaultIndex(0);
    d->unclipColorComboBox->setToolTip(i18nc("@info:whatsthis", "<title>Highlights</title>"
                                "<p>Select here the highlight clipping method:</p>"
                                "<p><ul><li><emphasis strong='true'>Solid white</emphasis>: "
                                "clip all highlights to solid white</li>"
                                "<li><emphasis strong='true'>Unclip</emphasis>: leave highlights "
                                "unclipped in various shades of pink</li>"
                                "<li><emphasis strong='true'>Blend</emphasis>:Blend clipped and "
                                "unclipped values together for a gradual fade to white</li>"
                                "<li><emphasis strong='true'>Rebuild</emphasis>: reconstruct "
                                "highlights using a level value</li></ul></p>"));

    d->reconstructLabel   = new QLabel(i18nc("@label:slider Highlight reconstruct level", "Level:"), d->whiteBalanceSettings);
    d->reconstructSpinBox = new RIntNumInput(d->whiteBalanceSettings);
    d->reconstructSpinBox->setRange(0, 6, 1);
    d->reconstructSpinBox->setDefaultValue(0);
    d->reconstructSpinBox->setToolTip(i18nc("@info:whatsthis", "<title>Level</title>"
                                "<p>Specify the reconstruct highlight level. Low values favor "
                                "whites and high values favor colors.</p>"));

    d->expoCorrectionBox = new QCheckBox(i18nc("@option:check", "Exposure Correction (E.V)"), d->whiteBalanceSettings);
    d->expoCorrectionBox->setToolTip(i18nc("@info:whatsthis", "<p>Turn on the exposure "
                                "correction before interpolation.</p>"));

    d->expoCorrectionShiftLabel   = new QLabel(i18nc("@label:slider", "Linear Shift:"), d->whiteBalanceSettings);
    d->expoCorrectionShiftSpinBox = new RDoubleNumInput(d->whiteBalanceSettings);
    d->expoCorrectionShiftSpinBox->setDecimals(2);
    d->expoCorrectionShiftSpinBox->setRange(-2.0, 3.0, 0.01);
    d->expoCorrectionShiftSpinBox->setDefaultValue(0.0);
    d->expoCorrectionShiftSpinBox->setToolTip(i18nc("@info:whatsthis", "<title>Shift</title>"
                                "<p>Linear Shift of exposure correction before interpolation in E.V</p>"));

    d->expoCorrectionHighlightLabel   = new QLabel(i18nc("@label:slider", "Highlight:"), d->whiteBalanceSettings);
    d->expoCorrectionHighlightSpinBox = new RDoubleNumInput(d->whiteBalanceSettings);
    d->expoCorrectionHighlightSpinBox->setDecimals(2);
    d->expoCorrectionHighlightSpinBox->setRange(0.0, 1.0, 0.01);
    d->expoCorrectionHighlightSpinBox->setDefaultValue(0.0);
    d->expoCorrectionHighlightSpinBox->setToolTip(i18nc("@info:whatsthis", "<title>Highlight</title>"
                                "<p>Amount of highlight preservation for exposure correction "
                                "before interpolation in E.V. Only take effect if Shift Correction is > 1.0 E.V</p>"));

    d->fixColorsHighlightsBox = new QCheckBox(i18nc("@option:check", "Correct false colors in highlights"), d->whiteBalanceSettings);
    d->fixColorsHighlightsBox->setToolTip(i18nc("@info:whatsthis", "<p>If enabled, images with "
                                "overblown channels are processed much more accurately, without "
                                "'pink clouds' (and blue highlights under tungsten lamps).</p>"));

    d->autoBrightnessBox = new QCheckBox(i18nc("@option:check", "Auto Brightness"), d->whiteBalanceSettings);
    d->autoBrightnessBox->setToolTip(i18nc("@info:whatsthis", "<p>If disable, use a fixed white level "
                                "and ignore the image histogram to adjust brightness.</p>"));

    d->brightnessLabel   = new QLabel(i18nc("@label:slider", "Brightness:"), d->whiteBalanceSettings);
    d->brightnessSpinBox = new RDoubleNumInput(d->whiteBalanceSettings);
    d->brightnessSpinBox->setDecimals(2);
    d->brightnessSpinBox->setRange(0.0, 10.0, 0.01);
    d->brightnessSpinBox->setDefaultValue(1.0);
    d->brightnessSpinBox->setToolTip(i18nc("@info:whatsthis", "<title>Brightness</title>"
                                "<p>Specify the brightness level of output image. The default "
                                "value is 1.0 (works in 8-bit mode only).</p>"));

    if (! (advSettings & POSTPROCESSING))
    {
        d->brightnessLabel->hide();
        d->brightnessSpinBox->hide();
    }

    d->blackPointCheckBox = new QCheckBox(i18nc("@option:check Black point", "Black:"), d->whiteBalanceSettings);
    d->blackPointCheckBox->setToolTip(i18nc("@info:whatsthis", "<title>Black point</title>"
                                "<p>Use a specific black point value to decode RAW pictures. If "
                                "you set this option to off, the Black Point value will be "
                                "automatically computed.</p>"));
    d->blackPointSpinBox = new RIntNumInput(d->whiteBalanceSettings);
    d->blackPointSpinBox->setRange(0, 1000, 1);
    d->blackPointSpinBox->setDefaultValue(0);
    d->blackPointSpinBox->setToolTip(i18nc("@info:whatsthis", "<title>Black point value</title>"
                                "<p>Specify specific black point value of the output image.</p>"));

    d->whitePointCheckBox = new QCheckBox(i18nc("@option:check White point", "White:"), d->whiteBalanceSettings);
    d->whitePointCheckBox->setToolTip(i18nc("@info:whatsthis", "<title>White point</title>"
                                "<p>Use a specific white point value to decode RAW pictures. If "
                                "you set this option to off, the White Point value will be "
                                "automatically computed.</p>"));
    d->whitePointSpinBox = new RIntNumInput(d->whiteBalanceSettings);
    d->whitePointSpinBox->setRange(0, 20000, 1);
    d->whitePointSpinBox->setDefaultValue(0);
    d->whitePointSpinBox->setToolTip(i18nc("@info:whatsthis", "<title>White point value</title>"
                                "<p>Specify specific white point value of the output image.</p>"));

    if (! (advSettings & BLACKWHITEPOINTS))
    {
        d->blackPointCheckBox->hide();
        d->blackPointSpinBox->hide();
        d->whitePointCheckBox->hide();
        d->whitePointSpinBox->hide();
    }

    whiteBalanceLayout->addWidget(d->whiteBalanceLabel,              0,  0, 1, 1);
    whiteBalanceLayout->addWidget(d->whiteBalanceComboBox,           0,  1, 1, 2);
    whiteBalanceLayout->addWidget(d->customWhiteBalanceLabel,        1,  0, 1, 1);
    whiteBalanceLayout->addWidget(d->customWhiteBalanceSpinBox,      1,  1, 1, 2);
    whiteBalanceLayout->addWidget(d->customWhiteBalanceGreenLabel,   2,  0, 1, 1);
    whiteBalanceLayout->addWidget(d->customWhiteBalanceGreenSpinBox, 2,  1, 1, 2);
    whiteBalanceLayout->addWidget(d->unclipColorLabel,               3,  0, 1, 1);
    whiteBalanceLayout->addWidget(d->unclipColorComboBox,            3,  1, 1, 2);
    whiteBalanceLayout->addWidget(d->reconstructLabel,               4,  0, 1, 1);
    whiteBalanceLayout->addWidget(d->reconstructSpinBox,             4,  1, 1, 2);
    whiteBalanceLayout->addWidget(d->expoCorrectionBox,              5,  0, 1, 2);
    whiteBalanceLayout->addWidget(d->expoCorrectionShiftLabel,       6,  0, 1, 1);
    whiteBalanceLayout->addWidget(d->expoCorrectionShiftSpinBox,     6,  1, 1, 2);
    whiteBalanceLayout->addWidget(d->expoCorrectionHighlightLabel,   7,  0, 1, 1);
    whiteBalanceLayout->addWidget(d->expoCorrectionHighlightSpinBox, 7,  1, 1, 2);
    whiteBalanceLayout->addWidget(d->fixColorsHighlightsBox,         8,  0, 1, 3);
    whiteBalanceLayout->addWidget(d->autoBrightnessBox,              9,  0, 1, 3);
    whiteBalanceLayout->addWidget(d->brightnessLabel,                10, 0, 1, 1);
    whiteBalanceLayout->addWidget(d->brightnessSpinBox,              10, 1, 1, 2);
    whiteBalanceLayout->addWidget(d->blackPointCheckBox,             11, 0, 1, 1);
    whiteBalanceLayout->addWidget(d->blackPointSpinBox,              11, 1, 1, 2);
    whiteBalanceLayout->addWidget(d->whitePointCheckBox,             12, 0, 1, 1);
    whiteBalanceLayout->addWidget(d->whitePointSpinBox, 12, 1, 1, 2);

    const int styleSpacing = QApplication::style()->pixelMetric(QStyle::PM_LayoutHorizontalSpacing);
    whiteBalanceLayout->setSpacing(styleSpacing);
    whiteBalanceLayout->setContentsMargins(styleSpacing, styleSpacing, styleSpacing, styleSpacing);

    addItem(d->whiteBalanceSettings, KisIconUtils::loadIcon("kdcraw").pixmap(16, 16), i18nc("@label", "White Balance"), QString("whitebalance"), true);

    // ---------------------------------------------------------------
    // CORRECTIONS Settings panel

    d->correctionsSettings               = new QWidget(this);
    QGridLayout* const correctionsLayout = new QGridLayout(d->correctionsSettings);

    d->noiseReductionLabel    = new QLabel(i18nc("@label:listbox", "Noise reduction:"), d->correctionsSettings);
    d->noiseReductionComboBox = new RComboBox(d->colormanSettings);
    d->noiseReductionComboBox->insertItem(RawDecodingSettings::NONR,       i18nc("@item:inlistbox Noise Reduction", "None"));
    d->noiseReductionComboBox->insertItem(RawDecodingSettings::WAVELETSNR, i18nc("@item:inlistbox Noise Reduction", "Wavelets"));
    d->noiseReductionComboBox->insertItem(RawDecodingSettings::FBDDNR,     i18nc("@item:inlistbox Noise Reduction", "FBDD"));
    d->noiseReductionComboBox->insertItem(RawDecodingSettings::LINENR,     i18nc("@item:inlistbox Noise Reduction", "CFA Line Denoise"));
    d->noiseReductionComboBox->insertItem(RawDecodingSettings::IMPULSENR,  i18nc("@item:inlistbox Noise Reduction", "Impulse Denoise"));
    d->noiseReductionComboBox->setDefaultIndex(RawDecodingSettings::NONR);
    d->noiseReductionComboBox->setToolTip(i18nc("@info:whatsthis", "<title>Noise Reduction</title>"
                                "<p>Select here the noise reduction method to apply during RAW "
                                "decoding.</p>"
                                "<p><ul><li><emphasis strong='true'>None</emphasis>: no "
                                "noise reduction.</li>"
                                "<li><emphasis strong='true'>Wavelets</emphasis>: wavelets "
                                "correction to erase noise while preserving real detail. It's "
                                "applied after interpolation.</li>"
                                "<li><emphasis strong='true'>FBDD</emphasis>: Fake Before "
                                "Demosaicing Denoising noise reduction. It's applied before "
                                "interpolation.</li>"
                                "<li><emphasis strong='true'>CFA Line Denoise</emphasis>: Banding "
                                "noise suppression. It's applied after interpolation.</li>"
                                "<li><emphasis strong='true'>Impulse Denoise</emphasis>: Impulse "
                                "noise suppression. It's applied after interpolation.</li></ul></p>"));

    d->NRSpinBox1 = new RIntNumInput(d->correctionsSettings);
    d->NRSpinBox1->setRange(100, 1000, 1);
    d->NRSpinBox1->setDefaultValue(100);
    d->NRLabel1   = new QLabel(d->correctionsSettings);

    d->NRSpinBox2 = new RIntNumInput(d->correctionsSettings);
    d->NRSpinBox2->setRange(100, 1000, 1);
    d->NRSpinBox2->setDefaultValue(100);
    d->NRLabel2   = new QLabel(d->correctionsSettings);

    d->enableCACorrectionBox = new QCheckBox(i18nc("@option:check", "Enable Chromatic Aberration correction"), d->correctionsSettings);
    d->enableCACorrectionBox->setToolTip(i18nc("@info:whatsthis", "<title>Enable Chromatic "
                                "Aberration correction</title>"
                                "<p>Enlarge the raw red-green and blue-yellow axis by the given "
                                "factors (automatic by default).</p>"));

    d->autoCACorrectionBox = new QCheckBox(i18nc("@option:check", "Automatic color axis adjustments"), d->correctionsSettings);
    d->autoCACorrectionBox->setToolTip(i18nc("@info:whatsthis", "<title>Automatic Chromatic "
                                "Aberration correction</title>"
                                "<p>If this option is turned on, it will try to shift image "
                                "channels slightly and evaluate Chromatic Aberration change. Note "
                                "that if you shot blue-red pattern, the method may fail. In this "
                                "case, disable this option and tune manually color factors.</p>"));

    d->caRedMultLabel   = new QLabel(i18nc("@label:slider", "Red-Green:"), d->correctionsSettings);
    d->caRedMultSpinBox = new RDoubleNumInput(d->correctionsSettings);
    d->caRedMultSpinBox->setDecimals(1);
    d->caRedMultSpinBox->setRange(-4.0, 4.0, 0.1);
    d->caRedMultSpinBox->setDefaultValue(0.0);
    d->caRedMultSpinBox->setToolTip(i18nc("@info:whatsthis", "<title>Red-Green multiplier</title>"
                                "<p>Set here the amount of correction on red-green axis</p>"));

    d->caBlueMultLabel   = new QLabel(i18nc("@label:slider", "Blue-Yellow:"), d->correctionsSettings);
    d->caBlueMultSpinBox = new RDoubleNumInput(d->correctionsSettings);
    d->caBlueMultSpinBox->setDecimals(1);
    d->caBlueMultSpinBox->setRange(-4.0, 4.0, 0.1);
    d->caBlueMultSpinBox->setDefaultValue(0.0);
    d->caBlueMultSpinBox->setToolTip(i18nc("@info:whatsthis", "<title>Blue-Yellow multiplier</title>"
                                "<p>Set here the amount of correction on blue-yellow axis</p>"));

    correctionsLayout->addWidget(d->noiseReductionLabel,    0, 0, 1, 1);
    correctionsLayout->addWidget(d->noiseReductionComboBox, 0, 1, 1, 2);
    correctionsLayout->addWidget(d->NRLabel1,               1, 0, 1, 1);
    correctionsLayout->addWidget(d->NRSpinBox1,             1, 1, 1, 2);
    correctionsLayout->addWidget(d->NRLabel2,               2, 0, 1, 1);
    correctionsLayout->addWidget(d->NRSpinBox2,             2, 1, 1, 2);
    correctionsLayout->addWidget(d->enableCACorrectionBox,  3, 0, 1, 3);
    correctionsLayout->addWidget(d->autoCACorrectionBox,    4, 0, 1, 3);
    correctionsLayout->addWidget(d->caRedMultLabel,         5, 0, 1, 1);
    correctionsLayout->addWidget(d->caRedMultSpinBox,       5, 1, 1, 2);
    correctionsLayout->addWidget(d->caBlueMultLabel,        6, 0, 1, 1);
    correctionsLayout->addWidget(d->caBlueMultSpinBox,      6, 1, 1, 2);

    correctionsLayout->setRowStretch(7, 10);
    correctionsLayout->setSpacing(styleSpacing);
    correctionsLayout->setContentsMargins(styleSpacing, styleSpacing, styleSpacing, styleSpacing);

    addItem(d->correctionsSettings, KisIconUtils::loadIcon("kdcraw").pixmap(16, 16), i18nc("@label", "Corrections"), QString("corrections"), false);

    // ---------------------------------------------------------------
    // COLOR MANAGEMENT Settings panel

    d->colormanSettings               = new QWidget(this);
    QGridLayout* const colormanLayout = new QGridLayout(d->colormanSettings);

    d->inputColorSpaceLabel     = new QLabel(i18nc("@label:listbox", "Camera Profile:"), d->colormanSettings);
    d->inputColorSpaceComboBox  = new RComboBox(d->colormanSettings);
    d->inputColorSpaceComboBox->insertItem(RawDecodingSettings::NOINPUTCS,     i18nc("@item:inlistbox Camera Profile", "None"));
    d->inputColorSpaceComboBox->insertItem(RawDecodingSettings::EMBEDDED,      i18nc("@item:inlistbox Camera Profile", "Embedded"));
    d->inputColorSpaceComboBox->insertItem(RawDecodingSettings::CUSTOMINPUTCS, i18nc("@item:inlistbox Camera Profile", "Custom"));
    d->inputColorSpaceComboBox->setDefaultIndex(RawDecodingSettings::NOINPUTCS);
    d->inputColorSpaceComboBox->setToolTip(i18nc("@info:whatsthis", "<title>Camera Profile</title>"
                                "<p>Select here the input color space used to decode RAW data.</p>"
                                "<p><ul><li><emphasis strong='true'>None</emphasis>: no "
                                "input color profile is used during RAW decoding.</li>"
                                "<li><emphasis strong='true'>Embedded</emphasis>: use embedded "
                                "color profile from RAW file, if it exists.</li>"
                                "<li><emphasis strong='true'>Custom</emphasis>: use a custom "
                                "input color space profile.</li></ul></p>"));

    d->inIccUrlEdit = new RFileSelector(d->colormanSettings);
    d->inIccUrlEdit->setFileDlgMode(QFileDialog::ExistingFile);
    d->inIccUrlEdit->setFileDlgFilter(i18n("ICC Files (*.icc; *.icm)"));

    d->outputColorSpaceLabel    = new QLabel(i18nc("@label:listbox", "Workspace:"), d->colormanSettings);
    d->outputColorSpaceComboBox = new RComboBox( d->colormanSettings );
    d->outputColorSpaceComboBox->insertItem(RawDecodingSettings::RAWCOLOR,       i18nc("@item:inlistbox Workspace", "Raw (no profile)"));
    d->outputColorSpaceComboBox->insertItem(RawDecodingSettings::SRGB,           i18nc("@item:inlistbox Workspace", "sRGB"));
    d->outputColorSpaceComboBox->insertItem(RawDecodingSettings::ADOBERGB,       i18nc("@item:inlistbox Workspace", "Adobe RGB"));
    d->outputColorSpaceComboBox->insertItem(RawDecodingSettings::WIDEGAMMUT,     i18nc("@item:inlistbox Workspace", "Wide Gamut"));
    d->outputColorSpaceComboBox->insertItem(RawDecodingSettings::PROPHOTO,       i18nc("@item:inlistbox Workspace", "Pro-Photo"));
    d->outputColorSpaceComboBox->insertItem(RawDecodingSettings::CUSTOMOUTPUTCS, i18nc("@item:inlistbox Workspace", "Custom"));
    d->outputColorSpaceComboBox->setDefaultIndex(RawDecodingSettings::SRGB);
    d->outputColorSpaceComboBox->setToolTip(i18nc("@info:whatsthis", "<title>Workspace</title>"
                                "<p>Select here the output color space used to decode RAW data.</p>"
                                "<p><ul><li><emphasis strong='true'>Raw (no profile)</emphasis>: "
                                "in this mode, no output color space is used during RAW decoding.</li>"
                                "<li><emphasis strong='true'>sRGB</emphasis>: this is an RGB "
                                "color space, created cooperatively by Hewlett-Packard and "
                                "Microsoft. It is the best choice for images destined for the Web "
                                "and portrait photography.</li>"
                                "<li><emphasis strong='true'>Adobe RGB</emphasis>: this color "
                                "space is an extended RGB color space, developed by Adobe. It is "
                                "used for photography applications such as advertising and fine "
                                "art.</li>"
                                "<li><emphasis strong='true'>Wide Gamut</emphasis>: this color "
                                "space is an expanded version of the Adobe RGB color space.</li>"
                                "<li><emphasis strong='true'>Pro-Photo</emphasis>: this color "
                                "space is an RGB color space, developed by Kodak, that offers an "
                                "especially large gamut designed for use with photographic outputs "
                                "in mind.</li>"
                                "<li><emphasis strong='true'>Custom</emphasis>: use a custom "
                                "output color space profile.</li></ul></p>"));

    d->outIccUrlEdit = new RFileSelector(d->colormanSettings);
    d->outIccUrlEdit->setFileDlgMode(QFileDialog::ExistingFile);
    d->outIccUrlEdit->setFileDlgFilter(i18n("ICC Files (*.icc *.icm)"));

    colormanLayout->addWidget(d->inputColorSpaceLabel,     0, 0, 1, 1);
    colormanLayout->addWidget(d->inputColorSpaceComboBox,  0, 1, 1, 2);
    colormanLayout->addWidget(d->inIccUrlEdit,             1, 0, 1, 3);
    colormanLayout->addWidget(d->outputColorSpaceLabel,    2, 0, 1, 1);
    colormanLayout->addWidget(d->outputColorSpaceComboBox, 2, 1, 1, 2);
    colormanLayout->addWidget(d->outIccUrlEdit,            3, 0, 1, 3);
    colormanLayout->setRowStretch(4, 10);
    colormanLayout->setSpacing(styleSpacing);
    colormanLayout->setContentsMargins(styleSpacing, styleSpacing, styleSpacing, styleSpacing);

    addItem(d->colormanSettings, KisIconUtils::loadIcon("kdcraw").pixmap(16, 16), i18nc("@label", "Color Management"), QString("colormanagement"), false);

    if (! (advSettings & COLORSPACE))
        removeItem(COLORMANAGEMENT);

    addStretch();

    // ---------------------------------------------------------------

    connect(d->unclipColorComboBox, static_cast<void (RComboBox::*)(int)>(&RComboBox::activated),
            this, &DcrawSettingsWidget::slotUnclipColorActivated);

    connect(d->whiteBalanceComboBox, static_cast<void (RComboBox::*)(int)>(&RComboBox::activated),
            this, &DcrawSettingsWidget::slotWhiteBalanceToggled);

    connect(d->noiseReductionComboBox, static_cast<void (RComboBox::*)(int)>(&RComboBox::activated),
            this, &DcrawSettingsWidget::slotNoiseReductionChanged);

    connect(d->enableCACorrectionBox, &QCheckBox::toggled,
            this, &DcrawSettingsWidget::slotCACorrectionToggled);

    connect(d->autoCACorrectionBox, &QCheckBox::toggled,
            this, &DcrawSettingsWidget::slotAutoCAToggled);

    connect(d->blackPointCheckBox, SIGNAL(toggled(bool)),
            d->blackPointSpinBox, SLOT(setEnabled(bool)));

    connect(d->whitePointCheckBox, SIGNAL(toggled(bool)),
            d->whitePointSpinBox, SLOT(setEnabled(bool)));

    connect(d->sixteenBitsImage, &QCheckBox::toggled,
            this, &DcrawSettingsWidget::slotsixteenBitsImageToggled);

    connect(d->inputColorSpaceComboBox, static_cast<void (RComboBox::*)(int)>(&RComboBox::activated),
            this, &DcrawSettingsWidget::slotInputColorSpaceChanged);

    connect(d->outputColorSpaceComboBox, static_cast<void (RComboBox::*)(int)>(&RComboBox::activated),
            this, &DcrawSettingsWidget::slotOutputColorSpaceChanged);

    connect(d->expoCorrectionBox, &QCheckBox::toggled,
            this, &DcrawSettingsWidget::slotExposureCorrectionToggled);

    connect(d->expoCorrectionShiftSpinBox, &RDoubleNumInput::valueChanged,
            this, &DcrawSettingsWidget::slotExpoCorrectionShiftChanged);

    // Wrapper to Q_EMIT signal when something is changed in settings.

    connect(d->inIccUrlEdit->lineEdit(), &QLineEdit::textChanged,
            this, &DcrawSettingsWidget::signalSettingsChanged);

    connect(d->outIccUrlEdit->lineEdit(), &QLineEdit::textChanged,
            this, &DcrawSettingsWidget::signalSettingsChanged);

    connect(d->whiteBalanceComboBox, static_cast<void (RComboBox::*)(int)>(&RComboBox::activated),
            this, &DcrawSettingsWidget::signalSettingsChanged);

    connect(d->RAWQualityComboBox, static_cast<void (RComboBox::*)(int)>(&RComboBox::activated),
            this, &DcrawSettingsWidget::slotRAWQualityChanged);

    connect(d->unclipColorComboBox, static_cast<void (RComboBox::*)(int)>(&RComboBox::activated),
            this, &DcrawSettingsWidget::signalSettingsChanged);

    connect(d->inputColorSpaceComboBox, static_cast<void (RComboBox::*)(int)>(&RComboBox::activated),
            this, &DcrawSettingsWidget::signalSettingsChanged);

    connect(d->outputColorSpaceComboBox, static_cast<void (RComboBox::*)(int)>(&RComboBox::activated),
            this, &DcrawSettingsWidget::signalSettingsChanged);

    connect(d->blackPointCheckBox, &QCheckBox::toggled,
            this, &DcrawSettingsWidget::signalSettingsChanged);

    connect(d->whitePointCheckBox, &QCheckBox::toggled,
            this, &DcrawSettingsWidget::signalSettingsChanged);

    connect(d->sixteenBitsImage, &QCheckBox::toggled,
            this, &DcrawSettingsWidget::signalSettingsChanged);

    connect(d->fixColorsHighlightsBox, &QCheckBox::toggled,
            this, &DcrawSettingsWidget::signalSettingsChanged);

    connect(d->autoBrightnessBox, &QCheckBox::toggled,
            this, &DcrawSettingsWidget::signalSettingsChanged);

    connect(d->fourColorCheckBox, &QCheckBox::toggled,
            this, &DcrawSettingsWidget::signalSettingsChanged);

    connect(d->dontStretchPixelsCheckBox, &QCheckBox::toggled,
            this, &DcrawSettingsWidget::signalSettingsChanged);

    connect(d->refineInterpolationBox, &QCheckBox::toggled,
            this, &DcrawSettingsWidget::signalSettingsChanged);

    connect(d->customWhiteBalanceSpinBox, &RIntNumInput::valueChanged,
            this, &DcrawSettingsWidget::signalSettingsChanged);

    connect(d->reconstructSpinBox, &RIntNumInput::valueChanged,
            this, &DcrawSettingsWidget::signalSettingsChanged);

    connect(d->blackPointSpinBox, &RIntNumInput::valueChanged,
            this, &DcrawSettingsWidget::signalSettingsChanged);

    connect(d->whitePointSpinBox, &RIntNumInput::valueChanged,
            this, &DcrawSettingsWidget::signalSettingsChanged);

    connect(d->NRSpinBox1, &RIntNumInput::valueChanged,
            this, &DcrawSettingsWidget::signalSettingsChanged);

    connect(d->NRSpinBox2, &RIntNumInput::valueChanged,
            this, &DcrawSettingsWidget::signalSettingsChanged);

    connect(d->medianFilterPassesSpinBox, &RIntNumInput::valueChanged,
            this, &DcrawSettingsWidget::signalSettingsChanged);

    connect(d->customWhiteBalanceGreenSpinBox, &RDoubleNumInput::valueChanged,
            this, &DcrawSettingsWidget::signalSettingsChanged);

    connect(d->caRedMultSpinBox, &RDoubleNumInput::valueChanged,
            this, &DcrawSettingsWidget::signalSettingsChanged);

    connect(d->caBlueMultSpinBox, &RDoubleNumInput::valueChanged,
            this, &DcrawSettingsWidget::signalSettingsChanged);

    connect(d->brightnessSpinBox, &RDoubleNumInput::valueChanged,
            this, &DcrawSettingsWidget::signalSettingsChanged);

    connect(d->expoCorrectionHighlightSpinBox, &RDoubleNumInput::valueChanged,
            this, &DcrawSettingsWidget::signalSettingsChanged);
}

References KDcrawIface::RComboBox::activated(), KDcrawIface::RExpanderBox::addItem(), KDcrawIface::RExpanderBox::addStretch(), BLACKWHITEPOINTS, COLORMANAGEMENT, COLORSPACE, connect(), d, KisIconUtils::loadIcon(), POSTPROCESSING, KDcrawIface::RExpanderBox::removeItem(), signalSettingsChanged(), SIXTEENBITS, slotAutoCAToggled(), slotCACorrectionToggled(), slotExpoCorrectionShiftChanged(), slotExposureCorrectionToggled(), slotInputColorSpaceChanged(), slotNoiseReductionChanged(), slotOutputColorSpaceChanged(), slotRAWQualityChanged(), slotsixteenBitsImageToggled(), slotUnclipColorActivated(), slotWhiteBalanceToggled(), KDcrawIface::RDoubleNumInput::valueChanged(), and KDcrawIface::RIntNumInput::valueChanged().

shiftExpoFromEvToLinear()

double KDcrawIface::DcrawSettingsWidget::shiftExpoFromEvToLinear ( double ev ) const

inline

Convert Exposure correction shift E.V value from GUI to Linear value needs by libraw decoder.

Definition at line 166 of file dcrawsettingswidget.cpp.

    {
        // From GUI : -2.0EV => 0.25
        //            +3.0EV => 8.00
        return (1.55*ev + 3.35);
    }

shiftExpoFromLinearToEv()

double KDcrawIface::DcrawSettingsWidget::shiftExpoFromLinearToEv ( double lin ) const

inline

Convert Exposure correction shift Linear value from liraw decoder to E.V value needs by GUI.

Definition at line 175 of file dcrawsettingswidget.cpp.

    {
        // From GUI : 0.25 => -2.0EV
        //            8.00 => +3.0EV
        return ((lin-3.35) / 1.55);
    }

signalSettingsChanged

void KDcrawIface::DcrawSettingsWidget::signalSettingsChanged ( )

signal

signalSixteenBitsImageToggled

void KDcrawIface::DcrawSettingsWidget::signalSixteenBitsImageToggled ( bool )

signal

slotAutoCAToggled

void KDcrawIface::DcrawSettingsWidget::slotAutoCAToggled ( bool b )

privateslot

Definition at line 1032 of file dcrawsettingswidget.cpp.

{
    if (b)
    {
        d->caRedMultSpinBox->setValue(0.0);
        d->caBlueMultSpinBox->setValue(0.0);
    }

    bool mult = (!b) && (d->autoCACorrectionBox->isEnabled());
    d->caRedMultSpinBox->setEnabled(mult);
    d->caBlueMultSpinBox->setEnabled(mult);
    d->caRedMultLabel->setEnabled(mult);
    d->caBlueMultLabel->setEnabled(mult);
    Q_EMIT signalSettingsChanged();
}

References d, and signalSettingsChanged().

slotCACorrectionToggled

void KDcrawIface::DcrawSettingsWidget::slotCACorrectionToggled ( bool b )

privateslot

Definition at line 1026 of file dcrawsettingswidget.cpp.

{
    d->autoCACorrectionBox->setEnabled(b);
    slotAutoCAToggled(d->autoCACorrectionBox->isChecked());
}

References d, and slotAutoCAToggled().

slotExpoCorrectionShiftChanged

void KDcrawIface::DcrawSettingsWidget::slotExpoCorrectionShiftChanged ( double ev )

privateslot

Definition at line 1058 of file dcrawsettingswidget.cpp.

{
    // Only enable Highligh exposure correction if Shift correction is >= 1.0, else this settings do not take effect.
    bool b = (ev >= 1.0);

    d->expoCorrectionHighlightLabel->setEnabled(b);
    d->expoCorrectionHighlightSpinBox->setEnabled(b);

    Q_EMIT signalSettingsChanged();
}

References d, and signalSettingsChanged().

slotExposureCorrectionToggled

void KDcrawIface::DcrawSettingsWidget::slotExposureCorrectionToggled ( bool b )

privateslot

Definition at line 1048 of file dcrawsettingswidget.cpp.

{
    d->expoCorrectionShiftLabel->setEnabled(b);
    d->expoCorrectionShiftSpinBox->setEnabled(b);
    d->expoCorrectionHighlightLabel->setEnabled(b);
    d->expoCorrectionHighlightSpinBox->setEnabled(b);

    slotExpoCorrectionShiftChanged(d->expoCorrectionShiftSpinBox->value());
}

References d, and slotExpoCorrectionShiftChanged().

slotInputColorSpaceChanged

void KDcrawIface::DcrawSettingsWidget::slotInputColorSpaceChanged ( int item )

privateslot

Definition at line 1069 of file dcrawsettingswidget.cpp.

{
    d->inIccUrlEdit->setEnabled(item == RawDecodingSettings::CUSTOMINPUTCS);
}

References d.

slotNoiseReductionChanged

void KDcrawIface::DcrawSettingsWidget::slotNoiseReductionChanged ( int item )

privateslot

Definition at line 983 of file dcrawsettingswidget.cpp.

{
    d->NRSpinBox1->setEnabled(true);
    d->NRLabel1->setEnabled(true);
    d->NRSpinBox2->setEnabled(true);
    d->NRLabel2->setEnabled(true);
    d->NRLabel1->setText(i18nc("@label", "Threshold:"));
    d->NRSpinBox1->setToolTip(i18nc("@info:whatsthis", "<title>Threshold</title>"
                                "<p>Set here the noise reduction threshold value to use.</p>"));

    switch(item)
    {
        case RawDecodingSettings::WAVELETSNR:
        case RawDecodingSettings::FBDDNR:
        case RawDecodingSettings::LINENR:
            d->NRSpinBox2->setVisible(false);
            d->NRLabel2->setVisible(false);
            break;

        case RawDecodingSettings::IMPULSENR:
            d->NRLabel1->setText(i18nc("@label", "Luminance:"));
            d->NRSpinBox1->setToolTip(i18nc("@info:whatsthis", "<title>Luminance</title>"
                                "<p>Amount of Luminance impulse noise reduction.</p>"));
            d->NRLabel2->setText(i18nc("@label", "Chrominance:"));
            d->NRSpinBox2->setToolTip(i18nc("@info:whatsthis", "<title>Chrominance</title>"
                                "<p>Amount of Chrominance impulse noise reduction.</p>"));
            d->NRSpinBox2->setVisible(true);
            d->NRLabel2->setVisible(true);
            break;

        default:
            d->NRSpinBox1->setEnabled(false);
            d->NRLabel1->setEnabled(false);
            d->NRSpinBox2->setEnabled(false);
            d->NRLabel2->setEnabled(false);
            d->NRSpinBox2->setVisible(false);
            d->NRLabel2->setVisible(false);
            break;
    }

    Q_EMIT signalSettingsChanged();
}

References d, and signalSettingsChanged().

slotOutputColorSpaceChanged

void KDcrawIface::DcrawSettingsWidget::slotOutputColorSpaceChanged ( int item )

privateslot

Definition at line 1074 of file dcrawsettingswidget.cpp.

{
    d->outIccUrlEdit->setEnabled(item == RawDecodingSettings::CUSTOMOUTPUTCS);
}

References d.

slotRAWQualityChanged

void KDcrawIface::DcrawSettingsWidget::slotRAWQualityChanged ( int quality )

privateslot

Definition at line 1079 of file dcrawsettingswidget.cpp.

{
    switch(quality)
    {
        case RawDecodingSettings::DCB:
        case RawDecodingSettings::VCD_AHD:
            // These options can be only available if Libraw use GPL2 pack.
            d->medianFilterPassesLabel->setEnabled(KDcraw::librawUseGPL2DemosaicPack());
            d->medianFilterPassesSpinBox->setEnabled(KDcraw::librawUseGPL2DemosaicPack());
            d->refineInterpolationBox->setEnabled(KDcraw::librawUseGPL2DemosaicPack());
            break;

        case RawDecodingSettings::PL_AHD:
        case RawDecodingSettings::AFD:
        case RawDecodingSettings::VCD:
        case RawDecodingSettings::LMMSE:
        case RawDecodingSettings::AMAZE:
            d->medianFilterPassesLabel->setEnabled(false);
            d->medianFilterPassesSpinBox->setEnabled(false);
            d->refineInterpolationBox->setEnabled(false);
            break;

        default: // BILINEAR, VNG, PPG, AHD
            d->medianFilterPassesLabel->setEnabled(true);
            d->medianFilterPassesSpinBox->setEnabled(true);
            d->refineInterpolationBox->setEnabled(false);
            break;
    }

    Q_EMIT signalSettingsChanged();
}

References d, and signalSettingsChanged().

slotsixteenBitsImageToggled

void KDcrawIface::DcrawSettingsWidget::slotsixteenBitsImageToggled ( bool b )

privateslot

Definition at line 945 of file dcrawsettingswidget.cpp.

{
    setEnabledBrightnessSettings(!b);
    Q_EMIT signalSixteenBitsImageToggled(d->sixteenBitsImage->isChecked());
}

References d, setEnabledBrightnessSettings(), and signalSixteenBitsImageToggled().

slotUnclipColorActivated

void KDcrawIface::DcrawSettingsWidget::slotUnclipColorActivated ( int v )

privateslot

Definition at line 969 of file dcrawsettingswidget.cpp.

{
    if (v == 3)     // Reconstruct Highlight method
    {
        d->reconstructLabel->setEnabled(true);
        d->reconstructSpinBox->setEnabled(true);
    }
    else
    {
        d->reconstructLabel->setEnabled(false);
        d->reconstructSpinBox->setEnabled(false);
    }
}

References d, and v.

slotWhiteBalanceToggled

void KDcrawIface::DcrawSettingsWidget::slotWhiteBalanceToggled ( int v )

privateslot

Definition at line 951 of file dcrawsettingswidget.cpp.

{
    if (v == 3)
    {
        d->customWhiteBalanceSpinBox->setEnabled(true);
        d->customWhiteBalanceGreenSpinBox->setEnabled(true);
        d->customWhiteBalanceLabel->setEnabled(true);
        d->customWhiteBalanceGreenLabel->setEnabled(true);
    }
    else
    {
        d->customWhiteBalanceSpinBox->setEnabled(false);
        d->customWhiteBalanceGreenSpinBox->setEnabled(false);
        d->customWhiteBalanceLabel->setEnabled(false);
        d->customWhiteBalanceGreenLabel->setEnabled(false);
    }
}

References d, and v.

updateMinimumWidth()

void KDcrawIface::DcrawSettingsWidget::updateMinimumWidth

(

)

Definition at line 917 of file dcrawsettingswidget.cpp.

{
    int width = 0;

    for (int i = 0; i < count(); i++)
    {
        if (widget(i)->width() > width)
            width = widget(i)->width();
    }

    setMinimumWidth(width);
}

References KDcrawIface::RExpanderBox::count(), and KDcrawIface::RExpanderBox::widget().

writeSettings()

void KDcrawIface::DcrawSettingsWidget::writeSettings ( KConfigGroup & group )

overridevirtual

Reimplemented from KDcrawIface::RExpanderBox.

Definition at line 1351 of file dcrawsettingswidget.cpp.

{
    RawDecodingSettings prm = settings();
    {
            group.writeEntry(OPTIONFIXCOLORSHIGHLIGHTSENTRY, prm.fixColorsHighlights);
            group.writeEntry(OPTIONDECODESIXTEENBITENTRY, prm.sixteenBitsImage);
            group.writeEntry(OPTIONWHITEBALANCEENTRY, (int)prm.whiteBalance);
            group.writeEntry(OPTIONCUSTOMWHITEBALANCEENTRY, prm.customWhiteBalance);
            group.writeEntry(OPTIONCUSTOMWBGREENENTRY, prm.customWhiteBalanceGreen);
            group.writeEntry(OPTIONFOURCOLORRGBENTRY, prm.RGBInterpolate4Colors);
            group.writeEntry(OPTIONUNCLIPCOLORSENTRY, prm.unclipColors);
            group.writeEntry(OPTIONDONTSTRETCHPIXELSENTRY, prm.DontStretchPixels);
            group.writeEntry(OPTIONNOISEREDUCTIONTYPEENTRY, (int)prm.NRType);
            group.writeEntry(OPTIONBRIGHTNESSMULTIPLIERENTRY, prm.brightness);
            group.writeEntry(OPTIONUSEBLACKPOINTENTRY, prm.enableBlackPoint);
            group.writeEntry(OPTIONBLACKPOINTENTRY, prm.blackPoint);
            group.writeEntry(OPTIONUSEWHITEPOINTENTRY, prm.enableWhitePoint);
            group.writeEntry(OPTIONWHITEPOINTENTRY, prm.whitePoint);
            group.writeEntry(OPTIONMEDIANFILTERPASSESENTRY, prm.medianFilterPasses);
            group.writeEntry(OPTIONNOISEREDUCTIONTHRESHOLDENTRY, prm.NRThreshold);
            group.writeEntry(OPTIONUSECACORRECTIONENTRY, prm.enableCACorrection);
            group.writeEntry(OPTIONCAREDMULTIPLIERENTRY, prm.caMultiplier[0]);
            group.writeEntry(OPTIONCABLUEMULTIPLIERENTRY, prm.caMultiplier[1]);
            group.writeEntry(OPTIONDECODINGQUALITYENTRY, (int)prm.RAWQuality);
            group.writeEntry(OPTIONOUTPUTCOLORSPACEENTRY, (int)prm.outputColorSpace);
            group.writeEntry(OPTIONAUTOBRIGHTNESSENTRY, prm.autoBrightness);

            //-- Extended demosaicing settings ----------------------------------------------------------

            group.writeEntry(OPTIONDCBITERATIONSENTRY, prm.dcbIterations);
            group.writeEntry(OPTIONDCBENHANCEFLENTRY, prm.dcbEnhanceFl);
            group.writeEntry(OPTIONEECIREFINEENTRY, prm.eeciRefine);
            group.writeEntry(OPTIONESMEDPASSESENTRY, prm.esMedPasses);
            group.writeEntry(OPTIONNRCHROMINANCETHRESHOLDENTRY, prm.NRChroThreshold);
            group.writeEntry(OPTIONEXPOCORRECTIONENTRY, prm.expoCorrection);
            group.writeEntry(OPTIONEXPOCORRECTIONSHIFTENTRY, prm.expoCorrectionShift);
            group.writeEntry(OPTIONEXPOCORRECTIONHIGHLIGHTENTRY, prm.expoCorrectionHighlight);
    }
    RExpanderBox::writeSettings(group);
}

References OPTIONAUTOBRIGHTNESSENTRY, OPTIONBLACKPOINTENTRY, OPTIONBRIGHTNESSMULTIPLIERENTRY, OPTIONCABLUEMULTIPLIERENTRY, OPTIONCAREDMULTIPLIERENTRY, OPTIONCUSTOMWBGREENENTRY, OPTIONCUSTOMWHITEBALANCEENTRY, OPTIONDCBENHANCEFLENTRY, OPTIONDCBITERATIONSENTRY, OPTIONDECODESIXTEENBITENTRY, OPTIONDECODINGQUALITYENTRY, OPTIONDONTSTRETCHPIXELSENTRY, OPTIONEECIREFINEENTRY, OPTIONESMEDPASSESENTRY, OPTIONEXPOCORRECTIONENTRY, OPTIONEXPOCORRECTIONHIGHLIGHTENTRY, OPTIONEXPOCORRECTIONSHIFTENTRY, OPTIONFIXCOLORSHIGHLIGHTSENTRY, OPTIONFOURCOLORRGBENTRY, OPTIONMEDIANFILTERPASSESENTRY, OPTIONNOISEREDUCTIONTHRESHOLDENTRY, OPTIONNOISEREDUCTIONTYPEENTRY, OPTIONNRCHROMINANCETHRESHOLDENTRY, OPTIONOUTPUTCOLORSPACEENTRY, OPTIONUNCLIPCOLORSENTRY, OPTIONUSEBLACKPOINTENTRY, OPTIONUSECACORRECTIONENTRY, OPTIONUSEWHITEPOINTENTRY, OPTIONWHITEBALANCEENTRY, OPTIONWHITEPOINTENTRY, settings(), and KDcrawIface::RExpanderBox::writeSettings().

Member Data Documentation

autoBrightnessBox

QCheckBox* KDcrawIface::DcrawSettingsWidget::autoBrightnessBox

Definition at line 210 of file dcrawsettingswidget.cpp.

autoCACorrectionBox

QCheckBox* KDcrawIface::DcrawSettingsWidget::autoCACorrectionBox

Definition at line 214 of file dcrawsettingswidget.cpp.

blackPointCheckBox

QCheckBox* KDcrawIface::DcrawSettingsWidget::blackPointCheckBox

Definition at line 207 of file dcrawsettingswidget.cpp.

blackPointSpinBox

RIntNumInput* KDcrawIface::DcrawSettingsWidget::blackPointSpinBox

Definition at line 231 of file dcrawsettingswidget.cpp.

brightnessLabel

QLabel* KDcrawIface::DcrawSettingsWidget::brightnessLabel

Definition at line 192 of file dcrawsettingswidget.cpp.

brightnessSpinBox

RDoubleNumInput* KDcrawIface::DcrawSettingsWidget::brightnessSpinBox

Definition at line 240 of file dcrawsettingswidget.cpp.

caBlueMultLabel

QLabel* KDcrawIface::DcrawSettingsWidget::caBlueMultLabel

Definition at line 197 of file dcrawsettingswidget.cpp.

caBlueMultSpinBox

RDoubleNumInput* KDcrawIface::DcrawSettingsWidget::caBlueMultSpinBox

Definition at line 239 of file dcrawsettingswidget.cpp.

caRedMultLabel

QLabel* KDcrawIface::DcrawSettingsWidget::caRedMultLabel

Definition at line 196 of file dcrawsettingswidget.cpp.

caRedMultSpinBox

RDoubleNumInput* KDcrawIface::DcrawSettingsWidget::caRedMultSpinBox

Definition at line 238 of file dcrawsettingswidget.cpp.

colormanSettings

QWidget* KDcrawIface::DcrawSettingsWidget::colormanSettings

Definition at line 187 of file dcrawsettingswidget.cpp.

correctionsSettings

QWidget* KDcrawIface::DcrawSettingsWidget::correctionsSettings

Definition at line 186 of file dcrawsettingswidget.cpp.

customWhiteBalanceGreenLabel

QLabel* KDcrawIface::DcrawSettingsWidget::customWhiteBalanceGreenLabel

Definition at line 191 of file dcrawsettingswidget.cpp.

customWhiteBalanceGreenSpinBox

RDoubleNumInput* KDcrawIface::DcrawSettingsWidget::customWhiteBalanceGreenSpinBox

Definition at line 237 of file dcrawsettingswidget.cpp.

customWhiteBalanceLabel

QLabel* KDcrawIface::DcrawSettingsWidget::customWhiteBalanceLabel

Definition at line 190 of file dcrawsettingswidget.cpp.

customWhiteBalanceSpinBox

RIntNumInput* KDcrawIface::DcrawSettingsWidget::customWhiteBalanceSpinBox

Definition at line 229 of file dcrawsettingswidget.cpp.

d

Private* const KDcrawIface::DcrawSettingsWidget::d

private

Definition at line 121 of file dcrawsettingswidget.h.

demosaicingSettings

QWidget* KDcrawIface::DcrawSettingsWidget::demosaicingSettings

Definition at line 184 of file dcrawsettingswidget.cpp.

dontStretchPixelsCheckBox

QCheckBox* KDcrawIface::DcrawSettingsWidget::dontStretchPixelsCheckBox

Definition at line 212 of file dcrawsettingswidget.cpp.

enableCACorrectionBox

QCheckBox* KDcrawIface::DcrawSettingsWidget::enableCACorrectionBox

Definition at line 213 of file dcrawsettingswidget.cpp.

expoCorrectionBox

QCheckBox* KDcrawIface::DcrawSettingsWidget::expoCorrectionBox

Definition at line 217 of file dcrawsettingswidget.cpp.

expoCorrectionHighlightLabel

QLabel* KDcrawIface::DcrawSettingsWidget::expoCorrectionHighlightLabel

Definition at line 205 of file dcrawsettingswidget.cpp.

expoCorrectionHighlightSpinBox

RDoubleNumInput* KDcrawIface::DcrawSettingsWidget::expoCorrectionHighlightSpinBox

Definition at line 242 of file dcrawsettingswidget.cpp.

expoCorrectionShiftLabel

QLabel* KDcrawIface::DcrawSettingsWidget::expoCorrectionShiftLabel

Definition at line 204 of file dcrawsettingswidget.cpp.

expoCorrectionShiftSpinBox

RDoubleNumInput* KDcrawIface::DcrawSettingsWidget::expoCorrectionShiftSpinBox

Definition at line 241 of file dcrawsettingswidget.cpp.

fixColorsHighlightsBox

QCheckBox* KDcrawIface::DcrawSettingsWidget::fixColorsHighlightsBox

Definition at line 215 of file dcrawsettingswidget.cpp.

fourColorCheckBox

QCheckBox* KDcrawIface::DcrawSettingsWidget::fourColorCheckBox

Definition at line 211 of file dcrawsettingswidget.cpp.

inIccUrlEdit

RFileSelector* KDcrawIface::DcrawSettingsWidget::inIccUrlEdit

Definition at line 219 of file dcrawsettingswidget.cpp.

inputColorSpaceComboBox

RComboBox* KDcrawIface::DcrawSettingsWidget::inputColorSpaceComboBox

Definition at line 226 of file dcrawsettingswidget.cpp.

inputColorSpaceLabel

QLabel* KDcrawIface::DcrawSettingsWidget::inputColorSpaceLabel

Definition at line 200 of file dcrawsettingswidget.cpp.

medianFilterPassesLabel

QLabel* KDcrawIface::DcrawSettingsWidget::medianFilterPassesLabel

Definition at line 202 of file dcrawsettingswidget.cpp.

medianFilterPassesSpinBox

RIntNumInput* KDcrawIface::DcrawSettingsWidget::medianFilterPassesSpinBox

Definition at line 235 of file dcrawsettingswidget.cpp.

noiseReductionComboBox

RComboBox* KDcrawIface::DcrawSettingsWidget::noiseReductionComboBox

Definition at line 222 of file dcrawsettingswidget.cpp.

noiseReductionLabel

QLabel* KDcrawIface::DcrawSettingsWidget::noiseReductionLabel

Definition at line 203 of file dcrawsettingswidget.cpp.

NRLabel1

QLabel* KDcrawIface::DcrawSettingsWidget::NRLabel1

Definition at line 194 of file dcrawsettingswidget.cpp.

NRLabel2

QLabel* KDcrawIface::DcrawSettingsWidget::NRLabel2

Definition at line 195 of file dcrawsettingswidget.cpp.

NRSpinBox1

RIntNumInput* KDcrawIface::DcrawSettingsWidget::NRSpinBox1

Definition at line 233 of file dcrawsettingswidget.cpp.

NRSpinBox2

RIntNumInput* KDcrawIface::DcrawSettingsWidget::NRSpinBox2

Definition at line 234 of file dcrawsettingswidget.cpp.

outIccUrlEdit

RFileSelector* KDcrawIface::DcrawSettingsWidget::outIccUrlEdit

Definition at line 220 of file dcrawsettingswidget.cpp.

outputColorSpaceComboBox

RComboBox* KDcrawIface::DcrawSettingsWidget::outputColorSpaceComboBox

Definition at line 227 of file dcrawsettingswidget.cpp.

outputColorSpaceLabel

QLabel* KDcrawIface::DcrawSettingsWidget::outputColorSpaceLabel

Definition at line 201 of file dcrawsettingswidget.cpp.

RAWQualityComboBox

RComboBox* KDcrawIface::DcrawSettingsWidget::RAWQualityComboBox

Definition at line 224 of file dcrawsettingswidget.cpp.

RAWQualityLabel

QLabel* KDcrawIface::DcrawSettingsWidget::RAWQualityLabel

Definition at line 193 of file dcrawsettingswidget.cpp.

reconstructLabel

QLabel* KDcrawIface::DcrawSettingsWidget::reconstructLabel

Definition at line 199 of file dcrawsettingswidget.cpp.

reconstructSpinBox

RIntNumInput* KDcrawIface::DcrawSettingsWidget::reconstructSpinBox

Definition at line 230 of file dcrawsettingswidget.cpp.

refineInterpolationBox

QCheckBox* KDcrawIface::DcrawSettingsWidget::refineInterpolationBox

Definition at line 216 of file dcrawsettingswidget.cpp.

sixteenBitsImage

QCheckBox* KDcrawIface::DcrawSettingsWidget::sixteenBitsImage

Definition at line 209 of file dcrawsettingswidget.cpp.

unclipColorComboBox

RComboBox* KDcrawIface::DcrawSettingsWidget::unclipColorComboBox

Definition at line 225 of file dcrawsettingswidget.cpp.

unclipColorLabel

QLabel* KDcrawIface::DcrawSettingsWidget::unclipColorLabel

Definition at line 198 of file dcrawsettingswidget.cpp.

whiteBalanceComboBox

RComboBox* KDcrawIface::DcrawSettingsWidget::whiteBalanceComboBox

Definition at line 223 of file dcrawsettingswidget.cpp.

whiteBalanceLabel

QLabel* KDcrawIface::DcrawSettingsWidget::whiteBalanceLabel

Definition at line 189 of file dcrawsettingswidget.cpp.

whiteBalanceSettings

QWidget* KDcrawIface::DcrawSettingsWidget::whiteBalanceSettings

Definition at line 185 of file dcrawsettingswidget.cpp.

whitePointCheckBox

QCheckBox* KDcrawIface::DcrawSettingsWidget::whitePointCheckBox

Definition at line 208 of file dcrawsettingswidget.cpp.

whitePointSpinBox

RIntNumInput* KDcrawIface::DcrawSettingsWidget::whitePointSpinBox

Definition at line 232 of file dcrawsettingswidget.cpp.

---

The documentation for this class was generated from the following files:

• plugins/impex/raw/3rdparty/libkdcraw/src/dcrawsettingswidget.cpp
• plugins/impex/raw/3rdparty/libkdcraw/src/dcrawsettingswidget.h
