#include <rexpanderbox.h>

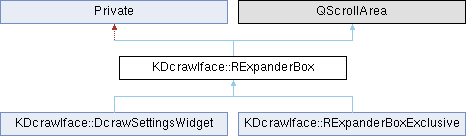

Inheritance diagram for KDcrawIface::RExpanderBox:

Signals
void	signalItemExpanded (int index, bool b)

void	signalItemToggled (int index, bool b)

Public Member Functions
void	addItem (QWidget *const w, const QIcon &icon, const QString &txt, const QString &objName, bool expandBydefault)

void	addItem (QWidget *const w, const QString &txt, const QString &objName, bool expandBydefault)

void	addStretch ()

bool	checkBoxIsVisible (int index) const

int	count () const

void	createItem (int index, QWidget *const w, const QIcon &icon, const QString &txt, const QString &objName, bool expandBydefault)

int	indexOf (RLabelExpander *const widget) const

void	insertItem (int index, QWidget *const w, const QIcon &icon, const QString &txt, const QString &objName, bool expandBydefault)

void	insertItem (int index, QWidget *const w, const QString &txt, const QString &objName, bool expandBydefault)

void	insertStretch (int index)

bool	isChecked (int index) const

bool	isItemEnabled (int index) const

bool	isItemExpanded (int index) const

QIcon	itemIcon (int index) const

QString	itemText (int index) const

QString	itemToolTip (int index) const

	Private (RExpanderBox *const box)

virtual void	readSettings (KConfigGroup &group)

void	removeItem (int index)

	RExpanderBox (QWidget *const parent=0)

void	setCheckBoxVisible (int index, bool b)

void	setChecked (int index, bool b)

void	setItemEnabled (int index, bool enabled)

void	setItemExpanded (int index, bool b)

void	setItemIcon (int index, const QIcon &icon)

void	setItemText (int index, const QString &txt)

void	setItemToolTip (int index, const QString &tip)

RLabelExpander *	widget (int index) const

virtual void	writeSettings (KConfigGroup &group)

	~RExpanderBox () override

Public Attributes
RExpanderBox *	parent

QVBoxLayout *	vbox

QList< RLabelExpander * >	wList

Private Slots
void	slotItemExpanded (bool b)

void	slotItemToggled (bool b)

Private Attributes
Private *const	d

Private Attributes inherited from Private
KisCanvas2 *	canvas

int	displayedFrame

int	intendedFrame

Additional Inherited Members
Private Member Functions inherited from Private
	Private (KisCanvas2 *c)

Detailed Description

Definition at line 510 of file rexpanderbox.cpp.

Constructor & Destructor Documentation

◆ RExpanderBox()

KDcrawIface::RExpanderBox::RExpanderBox ( QWidget *const parent = 0 )

Definition at line 558 of file rexpanderbox.cpp.

    : QScrollArea(parent), d(new Private(this))
{
    setFrameStyle(QFrame::NoFrame);
    setWidgetResizable(true);
    QWidget* const main = new QWidget(viewport());
    d->vbox             = new QVBoxLayout(main);
    d->vbox->setContentsMargins(0, 0, 0, 0);
    d->vbox->setSpacing(QApplication::style()->pixelMetric(QStyle::PM_LayoutHorizontalSpacing));
    setWidget(main);

    setAutoFillBackground(false);
    viewport()->setAutoFillBackground(false);
    main->setAutoFillBackground(false);
}

References d, and main().

◆ ~RExpanderBox()

KDcrawIface::RExpanderBox::~RExpanderBox ( )

override

Definition at line 574 of file rexpanderbox.cpp.

{
    d->wList.clear();
    delete d;
}

References d.

Member Function Documentation

◆ addItem() [1/2]

void KDcrawIface::RExpanderBox::addItem	(	QWidget *const	w,
		const QIcon &	icon,
		const QString &	txt,
		const QString &	objName,
		bool	expandBydefault )

Add RLabelExpander item at end of box layout with these settings : 'w' : the widget hosted by RLabelExpander. 'pix' : pixmap used as icon to item title. 'txt' : text used as item title. 'objName' : item object name used to read/save expanded settings to rc file. 'expandBydefault' : item state by default (expanded or not).

Definition at line 604 of file rexpanderbox.cpp.

{
    d->createItem(-1, w, icon, txt, objName, expandBydefault);
}

References d.

◆ addItem() [2/2]

void KDcrawIface::RExpanderBox::addItem	(	QWidget *const	w,
		const QString &	txt,
		const QString &	objName,
		bool	expandBydefault )

Definition at line 610 of file rexpanderbox.cpp.

{
    addItem(w, QIcon(), txt, objName, expandBydefault);
}

References addItem().

◆ addStretch()

void KDcrawIface::RExpanderBox::addStretch ( )

Definition at line 616 of file rexpanderbox.cpp.

{
    d->vbox->addStretch(10);
}

References d.

◆ checkBoxIsVisible()

bool KDcrawIface::RExpanderBox::checkBoxIsVisible ( int index ) const

Definition at line 586 of file rexpanderbox.cpp.

{
    if (index > d->wList.count() || index < 0) return false;
    return d->wList[index]->checkBoxIsVisible();
}

References d.

◆ count()

int KDcrawIface::RExpanderBox::count ( ) const

Definition at line 691 of file rexpanderbox.cpp.

{
    return d->wList.count();
}

References d.

◆ createItem()

void KDcrawIface::RExpanderBox::createItem	(	int	index,
		QWidget *const	w,
		const QIcon &	icon,
		const QString &	txt,
		const QString &	objName,
		bool	expandBydefault )

inline

Definition at line 520 of file rexpanderbox.cpp.

    {
        RLabelExpander* const exp = new RLabelExpander(parent->viewport());
        exp->setText(txt);
        exp->setIcon(icon.pixmap(QApplication::style()->pixelMetric(QStyle::PM_SmallIconSize)));
        exp->setWidget(w);
        exp->setLineVisible(!wList.isEmpty());
        exp->setObjectName(objName);
        exp->setExpandByDefault(expandBydefault);

        if (index >= 0)
        {
            vbox->insertWidget(index, exp);
            wList.insert(index, exp);
        }
        else
        {
            vbox->addWidget(exp);
            wList.append(exp);
        }

        parent->connect(exp, SIGNAL(signalExpanded(bool)),
                        parent, SLOT(slotItemExpanded(bool)));

        parent->connect(exp, SIGNAL(signalToggled(bool)),
                        parent, SLOT(slotItemToggled(bool)));
    }

References KDcrawIface::RLabelExpander::setExpandByDefault(), KDcrawIface::RLabelExpander::setIcon(), KDcrawIface::RLabelExpander::setLineVisible(), KDcrawIface::RLabelExpander::setText(), and KDcrawIface::RLabelExpander::setWidget().

◆ indexOf()

int KDcrawIface::RExpanderBox::indexOf ( RLabelExpander *const widget ) const

Definition at line 726 of file rexpanderbox.cpp.

{
    for (int i = 0 ; i < count(); ++i)
    {
        RLabelExpander* const exp = d->wList[i];

        if (widget == exp)
            return i;
    }
    return -1;
}

References count(), d, and widget().

◆ insertItem() [1/2]

void KDcrawIface::RExpanderBox::insertItem	(	int	index,
		QWidget *const	w,
		const QIcon &	icon,
		const QString &	txt,
		const QString &	objName,
		bool	expandBydefault )

Insert RLabelExpander item at box layout index with these settings : 'w' : the widget hosted by RLabelExpander. 'pix' : pixmap used as icon to item title. 'txt' : text used as item title. 'objName' : item object name used to read/save expanded settings to rc file. 'expandBydefault' : item state by default (expanded or not).

Definition at line 621 of file rexpanderbox.cpp.

{
    d->createItem(index, w, icon, txt, objName, expandBydefault);
}

References d.

◆ insertItem() [2/2]

void KDcrawIface::RExpanderBox::insertItem	(	int	index,
		QWidget *const	w,
		const QString &	txt,
		const QString &	objName,
		bool	expandBydefault )

Definition at line 649 of file rexpanderbox.cpp.

{
    insertItem(index, w, QIcon(), txt, objName, expandBydefault);
}

References insertItem().

◆ insertStretch()

void KDcrawIface::RExpanderBox::insertStretch ( int index )

Definition at line 655 of file rexpanderbox.cpp.

{
    d->vbox->insertStretch(index, 10);
}

References d.

◆ isChecked()

bool KDcrawIface::RExpanderBox::isChecked ( int index ) const

Definition at line 598 of file rexpanderbox.cpp.

{
    if (index > d->wList.count() || index < 0) return false;
    return d->wList[index]->isChecked();
}

References d.

◆ isItemEnabled()

bool KDcrawIface::RExpanderBox::isItemEnabled ( int index ) const

Definition at line 714 of file rexpanderbox.cpp.

{
    if (index > d->wList.count() || index < 0) return false;
    return d->wList[index]->isEnabled();
}

References d.

◆ isItemExpanded()

bool KDcrawIface::RExpanderBox::isItemExpanded ( int index ) const

Definition at line 749 of file rexpanderbox.cpp.

{
    if (index > d->wList.count() || index < 0) return false;

    RLabelExpander* const exp = d->wList[index];

    if (!exp) return false;

    return (exp->isExpanded());
}

References d, and KDcrawIface::RLabelExpander::isExpanded().

◆ itemIcon()

QIcon KDcrawIface::RExpanderBox::itemIcon ( int index ) const

Definition at line 685 of file rexpanderbox.cpp.

{
    if (index > d->wList.count() || index < 0) return QIcon();
    return d->wList[index]->icon();
}

References d.

◆ itemText()

QString KDcrawIface::RExpanderBox::itemText ( int index ) const

Definition at line 673 of file rexpanderbox.cpp.

{
    if (index > d->wList.count() || index < 0) return QString();
    return d->wList[index]->text();
}

References d.

◆ itemToolTip()

QString KDcrawIface::RExpanderBox::itemToolTip ( int index ) const

Definition at line 702 of file rexpanderbox.cpp.

{
    if (index > d->wList.count() || index < 0) return QString();
    return d->wList[index]->toolTip();
}

References d.

◆ Private()

KDcrawIface::RExpanderBox::Private ( RExpanderBox *const box )

inline

Definition at line 514 of file rexpanderbox.cpp.

    {
        parent = box;
        vbox   = 0;
    }

◆ readSettings()

void KDcrawIface::RExpanderBox::readSettings ( KConfigGroup & group )

virtual

Reimplemented in KDcrawIface::DcrawSettingsWidget.

Definition at line 760 of file rexpanderbox.cpp.

{
    for (int i = 0 ; i < count(); ++i)
    {
        RLabelExpander* const exp = d->wList[i];

        if (exp)
        {
            exp->setExpanded(group.readEntry(QString("%1 Expanded").arg(exp->objectName()),
                                             exp->isExpandByDefault()));
        }
    }
}

References count(), d, KDcrawIface::RLabelExpander::isExpandByDefault(), and KDcrawIface::RLabelExpander::setExpanded().

◆ removeItem()

void KDcrawIface::RExpanderBox::removeItem ( int index )

Definition at line 660 of file rexpanderbox.cpp.

{
    if (index > d->wList.count() || index < 0) return;
    d->wList[index]->hide();
    d->wList.removeAt(index);
}

References d.

◆ setCheckBoxVisible()

void KDcrawIface::RExpanderBox::setCheckBoxVisible	(	int	index,
		bool	b )

Definition at line 580 of file rexpanderbox.cpp.

{
    if (index > d->wList.count() || index < 0) return;
    d->wList[index]->setCheckBoxVisible(b);
}

References d.

◆ setChecked()

void KDcrawIface::RExpanderBox::setChecked	(	int	index,
		bool	b )

Definition at line 592 of file rexpanderbox.cpp.

{
    if (index > d->wList.count() || index < 0) return;
    d->wList[index]->setChecked(b);
}

References d.

◆ setItemEnabled()

void KDcrawIface::RExpanderBox::setItemEnabled	(	int	index,
		bool	enabled )

Definition at line 708 of file rexpanderbox.cpp.

{
    if (index > d->wList.count() || index < 0) return;
    d->wList[index]->setEnabled(enabled);
}

References d.

◆ setItemExpanded()

void KDcrawIface::RExpanderBox::setItemExpanded	(	int	index,
		bool	b )

Definition at line 738 of file rexpanderbox.cpp.

{
    if (index > d->wList.count() || index < 0) return;

    RLabelExpander* const exp = d->wList[index];

    if (!exp) return;

    exp->setExpanded(b);
}

References d, and KDcrawIface::RLabelExpander::setExpanded().

◆ setItemIcon()

void KDcrawIface::RExpanderBox::setItemIcon	(	int	index,
		const QIcon &	icon )

Definition at line 679 of file rexpanderbox.cpp.

{
    if (index > d->wList.count() || index < 0) return;
    d->wList[index]->setIcon(icon.pixmap(style()->pixelMetric(QStyle::PM_SmallIconSize)));
}

References d.

◆ setItemText()

void KDcrawIface::RExpanderBox::setItemText	(	int	index,
		const QString &	txt )

Definition at line 667 of file rexpanderbox.cpp.

{
    if (index > d->wList.count() || index < 0) return;
    d->wList[index]->setText(txt);
}

References d.

◆ setItemToolTip()

void KDcrawIface::RExpanderBox::setItemToolTip	(	int	index,
		const QString &	tip )

Definition at line 696 of file rexpanderbox.cpp.

{
    if (index > d->wList.count() || index < 0) return;
    d->wList[index]->setToolTip(tip);
}

References d.

◆ signalItemExpanded

void KDcrawIface::RExpanderBox::signalItemExpanded	(	int	index,
		bool	b )

signal

◆ signalItemToggled

void KDcrawIface::RExpanderBox::signalItemToggled	(	int	index,
		bool	b )

signal

◆ slotItemExpanded

void KDcrawIface::RExpanderBox::slotItemExpanded ( bool b )

privateslot

Definition at line 627 of file rexpanderbox.cpp.

{
    RLabelExpander* const exp = dynamic_cast<RLabelExpander*>(sender());

    if (exp)
    {
        int index = indexOf(exp);
        Q_EMIT signalItemExpanded(index, b);
    }
}

References indexOf(), and signalItemExpanded().

◆ slotItemToggled

void KDcrawIface::RExpanderBox::slotItemToggled ( bool b )

privateslot

Definition at line 638 of file rexpanderbox.cpp.

{
    RLabelExpander* const exp = dynamic_cast<RLabelExpander*>(sender());

    if (exp)
    {
        int index = indexOf(exp);
        Q_EMIT signalItemToggled(index, b);
    }
}

References indexOf(), and signalItemToggled().

◆ widget()

RLabelExpander * KDcrawIface::RExpanderBox::widget ( int index ) const

Definition at line 720 of file rexpanderbox.cpp.

{
    if (index > d->wList.count() || index < 0) return 0;
    return d->wList[index];
}

References d.

◆ writeSettings()

void KDcrawIface::RExpanderBox::writeSettings ( KConfigGroup & group )

virtual

Reimplemented in KDcrawIface::DcrawSettingsWidget.

Definition at line 774 of file rexpanderbox.cpp.

{
    for (int i = 0 ; i < count(); ++i)
    {
        RLabelExpander* const exp = d->wList[i];

        if (exp)
        {
            group.writeEntry(QString("%1 Expanded").arg(exp->objectName()),
                             exp->isExpanded());
        }
    }
}

References count(), d, and KDcrawIface::RLabelExpander::isExpanded().

Member Data Documentation

◆ d

Private* const KDcrawIface::RExpanderBox::d

private

Definition at line 270 of file rexpanderbox.h.

◆ parent

RExpanderBox* KDcrawIface::RExpanderBox::parent

Definition at line 555 of file rexpanderbox.cpp.

◆ vbox

QVBoxLayout* KDcrawIface::RExpanderBox::vbox

Definition at line 553 of file rexpanderbox.cpp.

◆ wList

QList<RLabelExpander*> KDcrawIface::RExpanderBox::wList

Definition at line 551 of file rexpanderbox.cpp.

The documentation for this class was generated from the following files:

plugins/impex/raw/3rdparty/libkdcraw/src/rexpanderbox.cpp
plugins/impex/raw/3rdparty/libkdcraw/src/rexpanderbox.h

Signals

Public Member Functions

Public Attributes

Private Slots

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ RExpanderBox()

◆ ~RExpanderBox()

Member Function Documentation

◆ addItem() [1/2]

◆ addItem() [2/2]

◆ addStretch()

◆ checkBoxIsVisible()

◆ count()

◆ createItem()

◆ indexOf()

◆ insertItem() [1/2]

◆ insertItem() [2/2]

◆ insertStretch()

◆ isChecked()

◆ isItemEnabled()

◆ isItemExpanded()

◆ itemIcon()

◆ itemText()

◆ itemToolTip()

◆ Private()

◆ readSettings()

◆ removeItem()

◆ setCheckBoxVisible()

◆ setChecked()

◆ setItemEnabled()

◆ setItemExpanded()

◆ setItemIcon()

◆ setItemText()

◆ setItemToolTip()

◆ signalItemExpanded

◆ signalItemToggled

◆ slotItemExpanded

◆ slotItemToggled

◆ widget()

◆ writeSettings()

Member Data Documentation

◆ d

◆ parent

◆ vbox

◆ wList
