KisAsyncAnimationCacheRenderer Class Reference

#include <KisAsyncAnimationCacheRenderer.h>

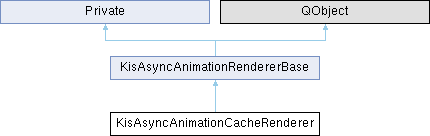

Inheritance diagram for KisAsyncAnimationCacheRenderer:

Classes
struct	Private

Signals
void	sigCompleteRegenerationInternal (int frame)
Signals inherited from KisAsyncAnimationRendererBase
void	sigFrameCancelled (int frame, KisAsyncAnimationRendererBase::CancelReason cancelReason)
void	sigFrameCompleted (int frame)

Public Member Functions
	KisAsyncAnimationCacheRenderer ()
void	setFrameCache (KisAnimationFrameCacheSP cache)
	~KisAsyncAnimationCacheRenderer ()
Public Member Functions inherited from KisAsyncAnimationRendererBase
bool	isActive () const
	KisAsyncAnimationRendererBase (QObject *parent=0)
void	startFrameRegeneration (KisImageSP image, int frame, const KisRegion &regionOfInterest, Flags flags, KisLockFrameGenerationLock &&frameGenerationLock)
void	startFrameRegeneration (KisImageSP image, int frame, Flags flags, KisLockFrameGenerationLock &&frameGenerationLock)
virtual	~KisAsyncAnimationRendererBase ()
Public Member Functions inherited from Private
	Private (KisCanvas2 *c)

Protected Member Functions
void	clearFrameRegenerationState (bool isCancelled) override
void	frameCancelledCallback (int frame, CancelReason cancelReason) override
	frameCancelledCallback is called when the rendering of the frame was cancelled.
void	frameCompletedCallback (int frame, const KisRegion &requestedRegion) override
	frameCompletedCallback is called by the renderer when a new frame becomes ready
Protected Member Functions inherited from KisAsyncAnimationRendererBase
KisImageSP	requestedImage () const

Private Slots
void	slotCompleteRegenerationInternal (int frame)

Private Attributes
const QScopedPointer< Private >	m_d

Additional Inherited Members
Public Types inherited from KisAsyncAnimationRendererBase
enum	CancelReason { UserCancelled = 0 , RenderingFailed , RenderingTimedOut }
enum	Flag { None = 0x0 , Cancellable = 0x1 }
Public Slots inherited from KisAsyncAnimationRendererBase
void	cancelCurrentFrameRendering (CancelReason cancelReason)
	cancels current rendering operation
Public Attributes inherited from KisAsyncAnimationRendererBase
KisSignalAutoConnectionsStore	imageRequestConnections
bool	isCancelled = false
QTimer	regenerationTimeout
int	requestedFrame = -1
KisImageSP	requestedImage
KisRegion	requestedRegion
Public Attributes inherited from Private
KisCanvas2 *	canvas
int	displayedFrame
int	intendedFrame
Protected Slots inherited from KisAsyncAnimationRendererBase
void	notifyFrameCancelled (int frame, KisAsyncAnimationRendererBase::CancelReason cancelReason)
void	notifyFrameCompleted (int frame)

Detailed Description

Definition at line 12 of file KisAsyncAnimationCacheRenderer.h.

Constructor & Destructor Documentation

KisAsyncAnimationCacheRenderer()

KisAsyncAnimationCacheRenderer::KisAsyncAnimationCacheRenderer

(

)

Definition at line 19 of file KisAsyncAnimationCacheRenderer.cpp.

    : m_d(new Private)
{
    connect(this, SIGNAL(sigCompleteRegenerationInternal(int)), SLOT(slotCompleteRegenerationInternal(int)), Qt::QueuedConnection);
}

References connect(), sigCompleteRegenerationInternal(), and slotCompleteRegenerationInternal().

~KisAsyncAnimationCacheRenderer()

KisAsyncAnimationCacheRenderer::~KisAsyncAnimationCacheRenderer

(

)

Definition at line 25 of file KisAsyncAnimationCacheRenderer.cpp.

{
}

Member Function Documentation

clearFrameRegenerationState()

void KisAsyncAnimationCacheRenderer::clearFrameRegenerationState ( bool isCancelled )

overrideprotectedvirtual

Called by KisAsyncAnimationRendererBase when the processing has been completed and the internal state of the populator should be cleared

Parameters

isCancelled

tells if frame regeneration has failed to be regenerated

Reimplemented from KisAsyncAnimationRendererBase.

Definition at line 69 of file KisAsyncAnimationCacheRenderer.cpp.

{
    m_d->requestInfo.clear();
    m_d->requestedCache = nullptr; // TODO: implement clear() for weak pointers

    KisAsyncAnimationRendererBase::clearFrameRegenerationState(isCancelled);
}

References KisAsyncAnimationRendererBase::clearFrameRegenerationState(), KisAsyncAnimationRendererBase::isCancelled, and m_d.

frameCancelledCallback()

void KisAsyncAnimationCacheRenderer::frameCancelledCallback ( int frame, CancelReason cancelReason )

overrideprotectedvirtual

frameCancelledCallback is called when the rendering of the frame was cancelled.

The rendering of the frame can be either cancelled by the image itself or by receiving a timeout signal (10 seconds).

NOTE: the slot is called in the GUI thread. Don't forget to call notifyFrameCancelled() in he end of your call.

Implements KisAsyncAnimationRendererBase.

Definition at line 64 of file KisAsyncAnimationCacheRenderer.cpp.

{
    notifyFrameCancelled(frame, cancelReason);
}

References KisAsyncAnimationRendererBase::notifyFrameCancelled().

frameCompletedCallback()

void KisAsyncAnimationCacheRenderer::frameCompletedCallback ( int frame, const KisRegion & requestedRegion )

overrideprotectedvirtual

frameCompletedCallback is called by the renderer when a new frame becomes ready

NOTE1: the callback is called from the context of a image worker thread! So it is asynchronous from the GUI thread. NOTE2: in case of successful processing of the frame, the callback must issue some signal, connected to notifyFrameCompleted() via auto connection, to continue processing. Please do not call the method directly, because notifyFame*() slots should be called from the context of the GUI thread. NOTE3: In case of failure, notifyFrameCancelled(). The same threading rules apply.

Implements KisAsyncAnimationRendererBase.

Definition at line 34 of file KisAsyncAnimationCacheRenderer.cpp.

{
    KisAnimationFrameCacheSP cache = m_d->requestedCache;
    KisImageSP image = requestedImage();
    if (!cache || !image) return;

    m_d->requestInfo = cache->fetchFrameData(frame, image, requestedRegion);
    Q_EMIT sigCompleteRegenerationInternal(frame);
}

References KisAnimationFrameCache::fetchFrameData(), m_d, KisAsyncAnimationRendererBase::requestedImage, KisAsyncAnimationRendererBase::requestedRegion, and sigCompleteRegenerationInternal().

setFrameCache()

void KisAsyncAnimationCacheRenderer::setFrameCache

(

KisAnimationFrameCacheSP

cache

)

Definition at line 29 of file KisAsyncAnimationCacheRenderer.cpp.

{
    m_d->requestedCache = cache;
}

References m_d.

sigCompleteRegenerationInternal

void KisAsyncAnimationCacheRenderer::sigCompleteRegenerationInternal ( int frame )

signal

slotCompleteRegenerationInternal

void KisAsyncAnimationCacheRenderer::slotCompleteRegenerationInternal ( int frame )

privateslot

Definition at line 44 of file KisAsyncAnimationCacheRenderer.cpp.

{
    if (!isActive()) return;

    KIS_SAFE_ASSERT_RECOVER(m_d->requestInfo) {
        frameCancelledCallback(frame, RenderingFailed);
        return;
    }

    KisAnimationFrameCacheSP cache = m_d->requestedCache;
    if (!cache) {
        frameCancelledCallback(frame, UserCancelled);
        return;
    }

    cache->addConvertedFrameData(m_d->requestInfo, frame);
    notifyFrameCompleted(frame);
}

References KisAnimationFrameCache::addConvertedFrameData(), frameCancelledCallback(), KisAsyncAnimationRendererBase::isActive(), KIS_SAFE_ASSERT_RECOVER, m_d, KisAsyncAnimationRendererBase::notifyFrameCompleted(), KisAsyncAnimationRendererBase::RenderingFailed, and KisAsyncAnimationRendererBase::UserCancelled.

Member Data Documentation

m_d

const QScopedPointer<Private> KisAsyncAnimationCacheRenderer::m_d

private

Definition at line 35 of file KisAsyncAnimationCacheRenderer.h.

---

The documentation for this class was generated from the following files:

• libs/ui/KisAsyncAnimationCacheRenderer.h
• libs/ui/KisAsyncAnimationCacheRenderer.cpp
