#include <KisAsyncAnimationRendererBase.h>

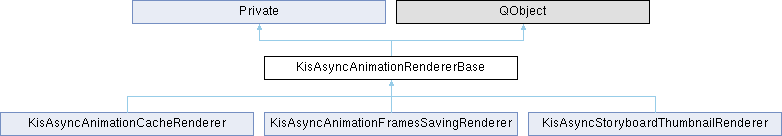

Inheritance diagram for KisAsyncAnimationRendererBase:

Public Types
enum	CancelReason { UserCancelled = 0 , RenderingFailed , RenderingTimedOut }

enum	Flag { None = 0x0 , Cancellable = 0x1 }

Public Slots
void	cancelCurrentFrameRendering (CancelReason cancelReason)
	cancels current rendering operation

Signals
void	sigFrameCancelled (int frame, KisAsyncAnimationRendererBase::CancelReason cancelReason)

void	sigFrameCompleted (int frame)

Public Member Functions
bool	isActive () const

	KisAsyncAnimationRendererBase (QObject *parent=0)

void	startFrameRegeneration (KisImageSP image, int frame, const KisRegion &regionOfInterest, Flags flags, KisLockFrameGenerationLock &&frameGenerationLock)

void	startFrameRegeneration (KisImageSP image, int frame, Flags flags, KisLockFrameGenerationLock &&frameGenerationLock)

virtual	~KisAsyncAnimationRendererBase ()

Public Member Functions inherited from Private
	Private (KisCanvas2 *c)

Public Attributes
KisSignalAutoConnectionsStore	imageRequestConnections

bool	isCancelled = false

QTimer	regenerationTimeout

int	requestedFrame = -1

KisImageSP	requestedImage

KisRegion	requestedRegion

Public Attributes inherited from Private
KisCanvas2 *	canvas

int	displayedFrame

int	intendedFrame

Protected Slots
void	notifyFrameCancelled (int frame, KisAsyncAnimationRendererBase::CancelReason cancelReason)

void	notifyFrameCompleted (int frame)

Protected Member Functions
virtual void	clearFrameRegenerationState (bool isCancelled)

virtual void	frameCancelledCallback (int frame, CancelReason cancelReason)=0
	frameCancelledCallback is called when the rendering of the frame was cancelled.

virtual void	frameCompletedCallback (int frame, const KisRegion &requestedRegion)=0
	frameCompletedCallback is called by the renderer when a new frame becomes ready

KisImageSP	requestedImage () const

Private Slots
void	slotFrameRegenerationCancelled ()

void	slotFrameRegenerationFinished (int frame)

void	slotFrameRegenerationTimedOut ()

Private Attributes
const QScopedPointer< Private >	m_d

Detailed Description

KisAsyncAnimationRendererBase is a special class representing a single worker thread inside KisAsyncAnimationRenderDialogBase. It connects the specified image using correct Qt::DirectConnection connections and reacts on them. On sigFrameReady() signal it calls frameCompletedCallback(), so the derived class can fetch a frame from the image and process it. On sigFrameCancelled() it calls frameCancelledCallback(). The derived class should override these two methods to do the actual work.

Definition at line 23 of file KisAsyncAnimationRendererBase.cpp.

Member Enumeration Documentation

◆ CancelReason

enum KisAsyncAnimationRendererBase::CancelReason

Enumerator
UserCancelled
RenderingFailed
RenderingTimedOut

Definition at line 40 of file KisAsyncAnimationRendererBase.h.

                      {
        UserCancelled = 0,
        RenderingFailed,
        RenderingTimedOut
    };

◆ Flag

enum KisAsyncAnimationRendererBase::Flag

Enumerator
None
Cancellable

Definition at line 33 of file KisAsyncAnimationRendererBase.h.

    {
        None = 0x0,
        Cancellable = 0x1
    };

Constructor & Destructor Documentation

◆ KisAsyncAnimationRendererBase()

KisAsyncAnimationRendererBase::KisAsyncAnimationRendererBase ( QObject * parent = 0 )

explicit

Definition at line 35 of file KisAsyncAnimationRendererBase.cpp.

    : QObject(parent),
      m_d(new Private())
{
    connect(&m_d->regenerationTimeout, SIGNAL(timeout()), SLOT(slotFrameRegenerationTimedOut()));

    KisImageConfig cfg(true);

    m_d->regenerationTimeout.setSingleShot(true);
    m_d->regenerationTimeout.setInterval(cfg.frameRenderingTimeout());
}

References connect(), KisImageConfig::frameRenderingTimeout(), m_d, and slotFrameRegenerationTimedOut().

◆ ~KisAsyncAnimationRendererBase()

KisAsyncAnimationRendererBase::~KisAsyncAnimationRendererBase ( )

virtual

Definition at line 47 of file KisAsyncAnimationRendererBase.cpp.

{

}

Member Function Documentation

◆ cancelCurrentFrameRendering

void KisAsyncAnimationRendererBase::cancelCurrentFrameRendering ( CancelReason cancelReason )

slot

cancels current rendering operation

After calling this slot requestedImage() becomes invalid.

See also: requestedImage()

Definition at line 88 of file KisAsyncAnimationRendererBase.cpp.

{
    KIS_SAFE_ASSERT_RECOVER_RETURN(m_d->requestedImage);
    frameCancelledCallback(m_d->requestedFrame, cancelReason);
}

References frameCancelledCallback(), KIS_SAFE_ASSERT_RECOVER_RETURN, and m_d.

◆ clearFrameRegenerationState()

void KisAsyncAnimationRendererBase::clearFrameRegenerationState ( bool isCancelled )

protectedvirtual

Called by KisAsyncAnimationRendererBase when the processing has been completed and the internal state of the populator should be cleared

Parameters

isCancelled tells if frame regeneration has failed to be regenerated

Reimplemented in KisAsyncAnimationCacheRenderer, and KisAsyncStoryboardThumbnailRenderer.

Definition at line 165 of file KisAsyncAnimationRendererBase.cpp.

{
    // TODO: for some reason we mark the process as cancelled in any case, and it
    //       seem to be a correct behavior
    Q_UNUSED(isCancelled);

    m_d->imageRequestConnections.clear();
    m_d->requestedImage = 0;
    m_d->requestedFrame = -1;
    m_d->regenerationTimeout.stop();
    m_d->isCancelled = true;
    m_d->requestedRegion = KisRegion();
}

References isCancelled, and m_d.

◆ frameCancelledCallback()

virtual void KisAsyncAnimationRendererBase::frameCancelledCallback	(	int	frame,
		CancelReason	cancelReason )

protectedpure virtual

frameCancelledCallback is called when the rendering of the frame was cancelled.

The rendering of the frame can be either cancelled by the image itself or by receiving a timeout signal (10 seconds).

NOTE: the slot is called in the GUI thread. Don't forget to call notifyFrameCancelled() in he end of your call.

Implemented in KisAsyncAnimationCacheRenderer, KisAsyncAnimationFramesSavingRenderer, and KisAsyncStoryboardThumbnailRenderer.

◆ frameCompletedCallback()

virtual void KisAsyncAnimationRendererBase::frameCompletedCallback	(	int	frame,
		const KisRegion &	requestedRegion )

protectedpure virtual

frameCompletedCallback is called by the renderer when a new frame becomes ready

NOTE1: the callback is called from the context of a image worker thread! So it is asynchronous from the GUI thread. NOTE2: in case of successful processing of the frame, the callback must issue some signal, connected to notifyFrameCompleted() via auto connection, to continue processing. Please do not call the method directly, because notifyFame*() slots should be called from the context of the GUI thread. NOTE3: In case of failure, notifyFrameCancelled(). The same threading rules apply.

Implemented in KisAsyncAnimationCacheRenderer, KisAsyncAnimationFramesSavingRenderer, and KisAsyncStoryboardThumbnailRenderer.

◆ isActive()

bool KisAsyncAnimationRendererBase::isActive ( ) const

Returns: true if the regeneration process is in progress

Definition at line 83 of file KisAsyncAnimationRendererBase.cpp.

{
    return m_d->requestedImage;
}

References m_d.

◆ notifyFrameCancelled

void KisAsyncAnimationRendererBase::notifyFrameCancelled	(	int	frame,
		KisAsyncAnimationRendererBase::CancelReason	cancelReason )

protectedslot

Called by a derived class to cancel processing of the frames. After calling this method, the dialog will stop processing the frames and close.

Definition at line 144 of file KisAsyncAnimationRendererBase.cpp.

{
    KIS_SAFE_ASSERT_RECOVER_NOOP(QThread::currentThread() == this->thread());

    // the image events can come with a delay, even after
    // the processing was cancelled
    if (m_d->isCancelled) return;

    {
        // clean state right after the assert checks
        auto cleanup = kismpl::finally([&] () {
            clearFrameRegenerationState(true);
        });

        KIS_SAFE_ASSERT_RECOVER_RETURN(m_d->requestedImage);
        KIS_SAFE_ASSERT_RECOVER_RETURN(m_d->requestedFrame == frame);
    }

    Q_EMIT sigFrameCancelled(frame, cancelReason);
}

References clearFrameRegenerationState(), KIS_SAFE_ASSERT_RECOVER_NOOP, KIS_SAFE_ASSERT_RECOVER_RETURN, m_d, and sigFrameCancelled().

◆ notifyFrameCompleted

void KisAsyncAnimationRendererBase::notifyFrameCompleted ( int frame )

protectedslot

Called by a derived class to continue processing of the frames

Definition at line 122 of file KisAsyncAnimationRendererBase.cpp.

{
    KIS_SAFE_ASSERT_RECOVER_NOOP(QThread::currentThread() == this->thread());

    // the image events can come with a delay, even after
    // the processing was cancelled
    if (m_d->isCancelled) return;

    {
        // clean state right after the assert checks
        auto cleanup = kismpl::finally([&] () {
            clearFrameRegenerationState(false);
        });

        KIS_SAFE_ASSERT_RECOVER_RETURN(m_d->requestedImage);
        KIS_SAFE_ASSERT_RECOVER_RETURN(m_d->requestedFrame == frame);
    }


    Q_EMIT sigFrameCompleted(frame);
}

References clearFrameRegenerationState(), KIS_SAFE_ASSERT_RECOVER_NOOP, KIS_SAFE_ASSERT_RECOVER_RETURN, m_d, and sigFrameCompleted().

◆ requestedImage()

KisImageSP KisAsyncAnimationRendererBase::requestedImage ( ) const

protected

Returns: the image that for which the rendering was requested using startFrameRegeneration(). Should be used by the derived classes only.

Please note that requestedImage() will become null as soon as the user cancels the processing. That happens in the GUI thread so frameCompletedCallback() should be extremely careful when requesting the value (check the shared pointer after fetching).

◆ sigFrameCancelled

void KisAsyncAnimationRendererBase::sigFrameCancelled	(	int	frame,
		KisAsyncAnimationRendererBase::CancelReason	cancelReason )

signal

◆ sigFrameCompleted

void KisAsyncAnimationRendererBase::sigFrameCompleted ( int frame )

signal

◆ slotFrameRegenerationCancelled

void KisAsyncAnimationRendererBase::slotFrameRegenerationCancelled ( )

privateslot

Definition at line 94 of file KisAsyncAnimationRendererBase.cpp.

{
    // the cancel can arrive in async way
    if (!m_d->requestedImage) return;
    frameCancelledCallback(m_d->requestedFrame, RenderingFailed);
}

References frameCancelledCallback(), m_d, and RenderingFailed.

◆ slotFrameRegenerationFinished

void KisAsyncAnimationRendererBase::slotFrameRegenerationFinished ( int frame )

privateslot

Definition at line 108 of file KisAsyncAnimationRendererBase.cpp.

{
    // We might have already cancelled the regeneration. We don't check
    // isCancelled flag here because this code runs asynchronously.
    if (!m_d->requestedImage) return;

    // WARNING: executed in the context of image worker thread!

    // probably a bit too strict...
    KIS_SAFE_ASSERT_RECOVER_NOOP(QThread::currentThread() != this->thread());

    frameCompletedCallback(frame, m_d->requestedRegion);
}

References frameCompletedCallback(), KIS_SAFE_ASSERT_RECOVER_NOOP, and m_d.

◆ slotFrameRegenerationTimedOut

void KisAsyncAnimationRendererBase::slotFrameRegenerationTimedOut ( )

privateslot

Definition at line 101 of file KisAsyncAnimationRendererBase.cpp.

{
    // the timeout can arrive in async way
    if (!m_d->requestedImage) return;
    frameCancelledCallback(m_d->requestedFrame, RenderingTimedOut);
}

References frameCancelledCallback(), m_d, and RenderingTimedOut.

◆ startFrameRegeneration() [1/2]

void KisAsyncAnimationRendererBase::startFrameRegeneration	(	KisImageSP	image,
		int	frame,
		const KisRegion &	regionOfInterest,
		Flags	flags,
		KisLockFrameGenerationLock &&	frameGenerationLock )

Initiates the rendering of the frame frame on an image image. Only regionOfInterest is regenerated. If regionOfInterest is empty, then entire bounds of the image is regenerated.

Definition at line 52 of file KisAsyncAnimationRendererBase.cpp.

{
    KIS_SAFE_ASSERT_RECOVER_NOOP(QThread::currentThread() == this->thread());

    m_d->requestedImage = image;
    m_d->requestedFrame = frame;
    m_d->isCancelled = false;
    m_d->requestedRegion = !regionOfInterest.isEmpty() ? regionOfInterest : image->bounds();

    KisImageAnimationInterface *animation = m_d->requestedImage->animationInterface();

    m_d->imageRequestConnections.clear();
    m_d->imageRequestConnections.addConnection(
                animation, SIGNAL(sigFrameReady(int)),
                this, SLOT(slotFrameRegenerationFinished(int)),
                Qt::DirectConnection);

    m_d->imageRequestConnections.addConnection(
                animation, SIGNAL(sigFrameCancelled()),
                this, SLOT(slotFrameRegenerationCancelled()),
                Qt::AutoConnection);

    m_d->regenerationTimeout.start();
    animation->requestFrameRegeneration(m_d->requestedFrame, m_d->requestedRegion, flags & Cancellable, std::move(frameGenerationLock));
}

References KisImage::bounds(), Cancellable, KisRegion::isEmpty(), KIS_SAFE_ASSERT_RECOVER_NOOP, m_d, KisImageAnimationInterface::requestFrameRegeneration(), sigFrameCancelled(), slotFrameRegenerationCancelled(), and slotFrameRegenerationFinished().

◆ startFrameRegeneration() [2/2]

void KisAsyncAnimationRendererBase::startFrameRegeneration	(	KisImageSP	image,
		int	frame,
		Flags	flags,
		KisLockFrameGenerationLock &&	frameGenerationLock )

Convenience overload that regenerates the full image

Definition at line 78 of file KisAsyncAnimationRendererBase.cpp.

{
    startFrameRegeneration(image, frame, KisRegion(), flags, std::move(frameGenerationLock));
}

References startFrameRegeneration().

Member Data Documentation

◆ imageRequestConnections

KisSignalAutoConnectionsStore KisAsyncAnimationRendererBase::imageRequestConnections

Definition at line 26 of file KisAsyncAnimationRendererBase.cpp.

◆ isCancelled

bool KisAsyncAnimationRendererBase::isCancelled = false

Definition at line 31 of file KisAsyncAnimationRendererBase.cpp.

◆ m_d

const QScopedPointer<Private> KisAsyncAnimationRendererBase::m_d

private

Definition at line 150 of file KisAsyncAnimationRendererBase.h.

◆ regenerationTimeout

QTimer KisAsyncAnimationRendererBase::regenerationTimeout

Definition at line 27 of file KisAsyncAnimationRendererBase.cpp.

◆ requestedFrame

int KisAsyncAnimationRendererBase::requestedFrame = -1

Definition at line 30 of file KisAsyncAnimationRendererBase.cpp.

◆ requestedImage

KisImageSP KisAsyncAnimationRendererBase::requestedImage

Definition at line 29 of file KisAsyncAnimationRendererBase.cpp.

◆ requestedRegion

KisRegion KisAsyncAnimationRendererBase::requestedRegion

Definition at line 32 of file KisAsyncAnimationRendererBase.cpp.

The documentation for this class was generated from the following files:

libs/ui/KisAsyncAnimationRendererBase.cpp
libs/ui/KisAsyncAnimationRendererBase.h

Public Types

Public Slots

Signals

Public Member Functions

Public Attributes

Protected Slots

Protected Member Functions

Private Slots

Private Attributes

Detailed Description

Member Enumeration Documentation

◆ CancelReason

◆ Flag

Constructor & Destructor Documentation

◆ KisAsyncAnimationRendererBase()

◆ ~KisAsyncAnimationRendererBase()

Member Function Documentation

◆ cancelCurrentFrameRendering

◆ clearFrameRegenerationState()

◆ frameCancelledCallback()

◆ frameCompletedCallback()

◆ isActive()

◆ notifyFrameCancelled

◆ notifyFrameCompleted

◆ requestedImage()

◆ sigFrameCancelled

◆ sigFrameCompleted

◆ slotFrameRegenerationCancelled

◆ slotFrameRegenerationFinished

◆ slotFrameRegenerationTimedOut

◆ startFrameRegeneration() [1/2]

◆ startFrameRegeneration() [2/2]

Member Data Documentation

◆ imageRequestConnections

◆ isCancelled

◆ m_d

◆ regenerationTimeout

◆ requestedFrame

◆ requestedImage

◆ requestedRegion
