KisAsyncStoryboardThumbnailRenderer Class Reference

requests regeneration of a frame. The regeneration should be requested after switching the KisImage to the relevant frame. More...

#include <KisAsyncStoryboardThumbnailRenderer.h>

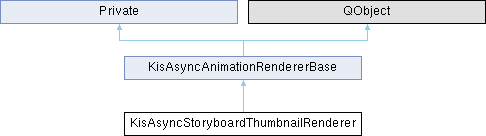

Inheritance diagram for KisAsyncStoryboardThumbnailRenderer:

Signals
void	sigNotifyFrameCancelled (int frame, KisAsyncAnimationRendererBase::CancelReason cancelReason)
void	sigNotifyFrameCompleted (int frameTime)
void	sigNotifyFrameCompleted (int frameTime, KisPaintDeviceSP frameContents)
Signals inherited from KisAsyncAnimationRendererBase
void	sigFrameCancelled (int frame, KisAsyncAnimationRendererBase::CancelReason cancelReason)
void	sigFrameCompleted (int frame)

Public Member Functions
	KisAsyncStoryboardThumbnailRenderer (QObject *parent)
	~KisAsyncStoryboardThumbnailRenderer ()
Public Member Functions inherited from KisAsyncAnimationRendererBase
bool	isActive () const
	KisAsyncAnimationRendererBase (QObject *parent=0)
void	startFrameRegeneration (KisImageSP image, int frame, const KisRegion &regionOfInterest, Flags flags, KisLockFrameGenerationLock &&frameGenerationLock)
void	startFrameRegeneration (KisImageSP image, int frame, Flags flags, KisLockFrameGenerationLock &&frameGenerationLock)
virtual	~KisAsyncAnimationRendererBase ()
Public Member Functions inherited from Private
	Private (KisCanvas2 *c)

Protected Member Functions
void	clearFrameRegenerationState (bool isCancelled) override
void	frameCancelledCallback (int frame, CancelReason cancelReason) override
	frameCancelledCallback is called when the rendering of the frame was cancelled.
void	frameCompletedCallback (int frame, const KisRegion &requestedRegion) override
	frameCompletedCallback is called by the renderer when a new frame becomes ready
Protected Member Functions inherited from KisAsyncAnimationRendererBase
KisImageSP	requestedImage () const

Additional Inherited Members
Public Types inherited from KisAsyncAnimationRendererBase
enum	CancelReason { UserCancelled = 0 , RenderingFailed , RenderingTimedOut }
enum	Flag { None = 0x0 , Cancellable = 0x1 }
Public Slots inherited from KisAsyncAnimationRendererBase
void	cancelCurrentFrameRendering (CancelReason cancelReason)
	cancels current rendering operation
Public Attributes inherited from KisAsyncAnimationRendererBase
KisSignalAutoConnectionsStore	imageRequestConnections
bool	isCancelled = false
QTimer	regenerationTimeout
int	requestedFrame = -1
KisImageSP	requestedImage
KisRegion	requestedRegion
Public Attributes inherited from Private
KisCanvas2 *	canvas
int	displayedFrame
int	intendedFrame
Protected Slots inherited from KisAsyncAnimationRendererBase
void	notifyFrameCancelled (int frame, KisAsyncAnimationRendererBase::CancelReason cancelReason)
void	notifyFrameCompleted (int frame)

Detailed Description

requests regeneration of a frame. The regeneration should be requested after switching the KisImage to the relevant frame.

Definition at line 19 of file KisAsyncStoryboardThumbnailRenderer.h.

Constructor & Destructor Documentation

KisAsyncStoryboardThumbnailRenderer()

KisAsyncStoryboardThumbnailRenderer::KisAsyncStoryboardThumbnailRenderer

(

QObject *

parent

)

Definition at line 11 of file KisAsyncStoryboardThumbnailRenderer.cpp.

    : KisAsyncAnimationRendererBase(parent)
{
    connect(this, SIGNAL(sigNotifyFrameCompleted(int)), SLOT(notifyFrameCompleted(int)), Qt::QueuedConnection);
    connect(this,
            SIGNAL(sigNotifyFrameCancelled(int, KisAsyncAnimationRendererBase::CancelReason)),
            SLOT(notifyFrameCancelled(int, KisAsyncAnimationRendererBase::CancelReason)), Qt::QueuedConnection);
}

References connect(), KisAsyncAnimationRendererBase::notifyFrameCancelled(), KisAsyncAnimationRendererBase::notifyFrameCompleted(), sigNotifyFrameCancelled(), and sigNotifyFrameCompleted().

~KisAsyncStoryboardThumbnailRenderer()

KisAsyncStoryboardThumbnailRenderer::~KisAsyncStoryboardThumbnailRenderer

(

)

Definition at line 20 of file KisAsyncStoryboardThumbnailRenderer.cpp.

{
}

Member Function Documentation

clearFrameRegenerationState()

void KisAsyncStoryboardThumbnailRenderer::clearFrameRegenerationState ( bool isCancelled )

overrideprotectedvirtual

Called by KisAsyncAnimationRendererBase when the processing has been completed and the internal state of the populator should be cleared

Parameters

isCancelled

tells if frame regeneration has failed to be regenerated

Reimplemented from KisAsyncAnimationRendererBase.

Definition at line 42 of file KisAsyncStoryboardThumbnailRenderer.cpp.

{
    KisAsyncAnimationRendererBase::clearFrameRegenerationState(isCancelled);
}

References KisAsyncAnimationRendererBase::clearFrameRegenerationState(), and KisAsyncAnimationRendererBase::isCancelled.

frameCancelledCallback()

void KisAsyncStoryboardThumbnailRenderer::frameCancelledCallback ( int frame, CancelReason cancelReason )

overrideprotectedvirtual

frameCancelledCallback is called when the rendering of the frame was cancelled.

The rendering of the frame can be either cancelled by the image itself or by receiving a timeout signal (10 seconds).

NOTE: the slot is called in the GUI thread. Don't forget to call notifyFrameCancelled() in he end of your call.

Implements KisAsyncAnimationRendererBase.

Definition at line 37 of file KisAsyncStoryboardThumbnailRenderer.cpp.

{
    Q_EMIT sigNotifyFrameCancelled(frame, cancelReason);
}

References sigNotifyFrameCancelled().

frameCompletedCallback()

void KisAsyncStoryboardThumbnailRenderer::frameCompletedCallback ( int frame, const KisRegion & requestedRegion )

overrideprotectedvirtual

frameCompletedCallback is called by the renderer when a new frame becomes ready

NOTE1: the callback is called from the context of a image worker thread! So it is asynchronous from the GUI thread. NOTE2: in case of successful processing of the frame, the callback must issue some signal, connected to notifyFrameCompleted() via auto connection, to continue processing. Please do not call the method directly, because notifyFame*() slots should be called from the context of the GUI thread. NOTE3: In case of failure, notifyFrameCancelled(). The same threading rules apply.

Implements KisAsyncAnimationRendererBase.

Definition at line 24 of file KisAsyncStoryboardThumbnailRenderer.cpp.

{
    KisImageSP image = requestedImage();
    KisPaintDeviceSP requestedFrame = image ? new KisPaintDevice(*image->projection(), KritaUtils::CopySnapshot) : nullptr;

    if (requestedFrame) {
        Q_EMIT sigNotifyFrameCompleted(frameTime);
        Q_EMIT sigNotifyFrameCompleted(frameTime, requestedFrame);
    } else {
        Q_EMIT sigNotifyFrameCancelled(frameTime, KisAsyncAnimationRendererBase::RenderingFailed);
    }
}

References KritaUtils::CopySnapshot, KisImage::projection(), KisAsyncAnimationRendererBase::RenderingFailed, KisAsyncAnimationRendererBase::requestedFrame, KisAsyncAnimationRendererBase::requestedImage, sigNotifyFrameCancelled(), and sigNotifyFrameCompleted().

sigNotifyFrameCancelled

void KisAsyncStoryboardThumbnailRenderer::sigNotifyFrameCancelled ( int frame, KisAsyncAnimationRendererBase::CancelReason cancelReason )

signal

sigNotifyFrameCompleted [1/2]

void KisAsyncStoryboardThumbnailRenderer::sigNotifyFrameCompleted ( int frameTime )

signal

sigNotifyFrameCompleted [2/2]

void KisAsyncStoryboardThumbnailRenderer::sigNotifyFrameCompleted ( int frameTime, KisPaintDeviceSP frameContents )

signal

---

The documentation for this class was generated from the following files:

• plugins/dockers/storyboarddocker/KisAsyncStoryboardThumbnailRenderer.h
• plugins/dockers/storyboarddocker/KisAsyncStoryboardThumbnailRenderer.cpp
