#include <kis_convolution_filter.h>

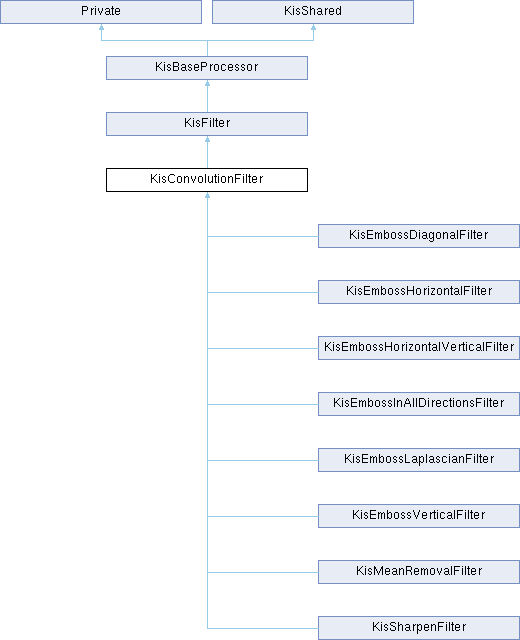

Inheritance diagram for KisConvolutionFilter:

Public Member Functions
QRect	changedRect (const QRect &rect, const KisFilterConfigurationSP _config, int lod) const override

	KisConvolutionFilter (const KoID &id, const KoID &category, const QString &entry)

QRect	neededRect (const QRect &rect, const KisFilterConfigurationSP _config, int lod) const override

void	processImpl (KisPaintDeviceSP device, const QRect &applyRect, const KisFilterConfigurationSP config, KoUpdater *progressUpdater) const override

Public Member Functions inherited from KisFilter
virtual bool	configurationAllowedForMask (KisFilterConfigurationSP config) const

virtual void	fixLoadedFilterConfigurationForMasks (KisFilterConfigurationSP config) const

	KisFilter (const KoID &id, const KoID &category, const QString &entry)

virtual bool	needsTransparentPixels (const KisFilterConfigurationSP config, const KoColorSpace *cs) const

void	process (const KisPaintDeviceSP src, KisPaintDeviceSP dst, KisSelectionSP selection, const QRect &applyRect, const KisFilterConfigurationSP config, KoUpdater *progressUpdater=0) const

void	process (KisPaintDeviceSP device, const QRect &applyRect, const KisFilterConfigurationSP config, KoUpdater *progressUpdater=0) const

virtual bool	supportsLevelOfDetail (const KisFilterConfigurationSP config, int lod) const

	~KisFilter () override

Public Member Functions inherited from KisBaseProcessor
KisBookmarkedConfigurationManager *	bookmarkManager ()

const KisBookmarkedConfigurationManager *	bookmarkManager () const

ColorSpaceIndependence	colorSpaceIndependence () const

virtual KisConfigWidget *	createConfigurationWidget (QWidget *parent, const KisPaintDeviceSP dev, bool useForMasks) const

virtual KisFilterConfigurationSP	defaultConfiguration (KisResourcesInterfaceSP resourcesInterface) const

virtual KisFilterConfigurationSP	factoryConfiguration (KisResourcesInterfaceSP resourcesInterface) const

QString	id () const

	KisBaseProcessor (const KoID &id, const KoID &category, const QString &entry)

KoID	menuCategory () const

QString	menuEntry () const

QString	name () const

	Private ()

QKeySequence	shortcut () const

bool	showConfigurationWidget ()
	If true, the filter wants to show a configuration widget.

bool	supportsAdjustmentLayers () const
	This filter can be used in adjustment layers.

bool	supportsPainting () const

bool	supportsThreading () const

virtual	~KisBaseProcessor ()

Public Member Functions inherited from Private
	Private (KisCanvas2 *c)

Public Member Functions inherited from KisShared
bool	deref ()

bool	ref ()

int	refCount ()

QAtomicInt *	sharedWeakReference ()

Protected Member Functions
void	setIgnoreAlpha (bool v)

Protected Member Functions inherited from KisFilter
QString	configEntryGroup () const

void	setSupportsLevelOfDetail (bool value)

Protected Member Functions inherited from KisBaseProcessor
void	init (const QString &configEntryGroup)

void	setColorSpaceIndependence (ColorSpaceIndependence v)

void	setShortcut (const QKeySequence &shortcut)

void	setShowConfigurationWidget (bool v)

void	setSupportsAdjustmentLayers (bool v)

void	setSupportsPainting (bool v)

void	setSupportsThreading (bool v)

Protected Member Functions inherited from KisShared
	KisShared ()

	~KisShared ()

Protected Attributes
bool	m_ignoreAlpha {false}

KisConvolutionKernelSP	m_matrix

Additional Inherited Members
Public Attributes inherited from KisBaseProcessor
KisBookmarkedConfigurationManager *	bookmarkManager

KoID	category

ColorSpaceIndependence	colorSpaceIndependence

QString	entry

KoID	id

QKeySequence	shortcut

bool	showConfigurationWidget

bool	supportsAdjustmentLayers

bool	supportsPainting

bool	supportsThreading

Public Attributes inherited from Private
KisCanvas2 *	canvas

int	displayedFrame

int	intendedFrame

Detailed Description

Definition at line 17 of file kis_convolution_filter.h.

Constructor & Destructor Documentation

◆ KisConvolutionFilter()

KisConvolutionFilter::KisConvolutionFilter	(	const KoID &	id,
		const KoID &	category,
		const QString &	entry )

Definition at line 24 of file kis_convolution_filter.cpp.

        : KisFilter(id, category, entry)
{
    setColorSpaceIndependence(FULLY_INDEPENDENT);
    setSupportsLevelOfDetail(true);
}

References FULLY_INDEPENDENT, KisBaseProcessor::setColorSpaceIndependence(), and KisFilter::setSupportsLevelOfDetail().

Member Function Documentation

◆ changedRect()

QRect KisConvolutionFilter::changedRect	(	const QRect &	rect,
		const KisFilterConfigurationSP	config,
		int	lod ) const

overridevirtual

Similar to neededRect : some filters will alter a lot of pixels that are near to each other at the same time. So when you changed a single rectangle in a device, the actual rectangle that will feel the influence of this change might be bigger. Use this function to determine that rect.

Reimplemented from KisFilter.

Definition at line 69 of file kis_convolution_filter.cpp.

{
    return neededRect(rect, _config, lod);
}

References neededRect().

◆ neededRect()

QRect KisConvolutionFilter::neededRect	(	const QRect &	rect,
		const KisFilterConfigurationSP	config,
		int	lod ) const

overridevirtual

Some filters need pixels outside the current processing rect to compute the new value (for instance, convolution filters)

Reimplemented from KisFilter.

Definition at line 58 of file kis_convolution_filter.cpp.

{
    Q_UNUSED(_config);

    KisLodTransformScalar t(lod);

    const int windowsize = qMax(m_matrix->width(), m_matrix->height());
    const int margin  = qCeil(t.scale(0.5 * windowsize)) + 1;
    return kisGrowRect(rect, margin);
}

References KisConvolutionKernel::height(), kisGrowRect(), m_matrix, KisLodTransformScalar::scale(), and KisConvolutionKernel::width().

◆ processImpl()

void KisConvolutionFilter::processImpl	(	KisPaintDeviceSP	device,
		const QRect &	applyRect,
		const KisFilterConfigurationSP	config,
		KoUpdater *	progressUpdater ) const

overridevirtual

Override this function with the implementation of your filter.

This is a low level function that expects all the conditions for the

Parameters

device	be met. Use usual process() methods instead.
device	the paint device to filter
applyRect	the rectangle where the filter is applied
config	the parameters of the filter
progressUpdater	to pass on the progress the filter is making

Implements KisFilter.

Definition at line 32 of file kis_convolution_filter.cpp.

{
    Q_UNUSED(config);

    QPoint srcTopLeft = applyRect.topLeft();
    Q_ASSERT(device != 0);

    KisConvolutionPainter painter(device);

    QBitArray channelFlags;
    if (config) {
        channelFlags = config->channelFlags();
    }
    if (channelFlags.isEmpty() || !config) {
        channelFlags = QBitArray(device->colorSpace()->channelCount(), true);
    }

    painter.setChannelFlags(channelFlags);
    painter.setProgress(progressUpdater);
    painter.applyMatrix(m_matrix, device, srcTopLeft, srcTopLeft, applyRect.size(), BORDER_REPEAT);

}

References KisConvolutionPainter::applyMatrix(), BORDER_REPEAT, KoColorSpace::channelCount(), KisPaintDevice::colorSpace(), m_matrix, KisPainter::setChannelFlags(), and KisPainter::setProgress().

◆ setIgnoreAlpha()

void KisConvolutionFilter::setIgnoreAlpha ( bool v )

protected

Definition at line 74 of file kis_convolution_filter.cpp.

{
    m_ignoreAlpha = v;
}

References m_ignoreAlpha, and v.

Member Data Documentation

◆ m_ignoreAlpha

bool KisConvolutionFilter::m_ignoreAlpha {false}

protected

Definition at line 36 of file kis_convolution_filter.h.

36{false};

◆ m_matrix

KisConvolutionKernelSP KisConvolutionFilter::m_matrix

protected

Definition at line 35 of file kis_convolution_filter.h.

The documentation for this class was generated from the following files:

plugins/filters/convolutionfilters/kis_convolution_filter.h
plugins/filters/convolutionfilters/kis_convolution_filter.cpp
