KisFilter Class Reference

#include <kis_filter.h>

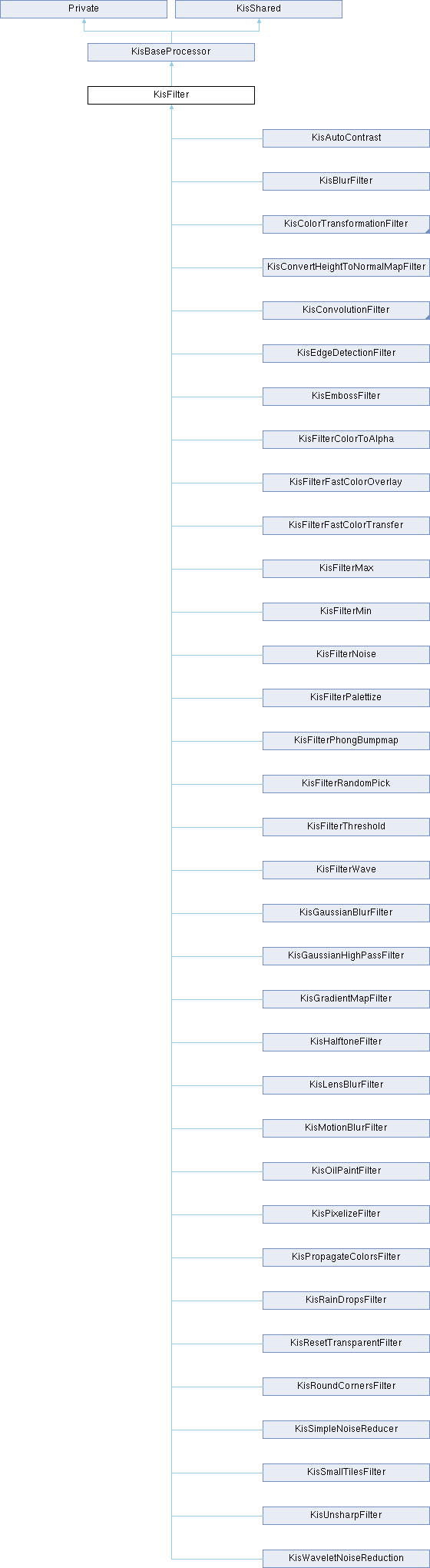

Inheritance diagram for KisFilter:

Public Member Functions
virtual QRect	changedRect (const QRect &rect, const KisFilterConfigurationSP config, int lod) const
virtual bool	configurationAllowedForMask (KisFilterConfigurationSP config) const
virtual void	fixLoadedFilterConfigurationForMasks (KisFilterConfigurationSP config) const
	KisFilter (const KoID &id, const KoID &category, const QString &entry)
virtual QRect	neededRect (const QRect &rect, const KisFilterConfigurationSP config, int lod) const
virtual bool	needsTransparentPixels (const KisFilterConfigurationSP config, const KoColorSpace *cs) const
void	process (const KisPaintDeviceSP src, KisPaintDeviceSP dst, KisSelectionSP selection, const QRect &applyRect, const KisFilterConfigurationSP config, KoUpdater *progressUpdater=0) const
void	process (KisPaintDeviceSP device, const QRect &applyRect, const KisFilterConfigurationSP config, KoUpdater *progressUpdater=0) const
virtual void	processImpl (KisPaintDeviceSP device, const QRect &applyRect, const KisFilterConfigurationSP config, KoUpdater *progressUpdater=0) const =0
virtual bool	supportsLevelOfDetail (const KisFilterConfigurationSP config, int lod) const
	~KisFilter () override
Public Member Functions inherited from KisBaseProcessor
KisBookmarkedConfigurationManager *	bookmarkManager ()
const KisBookmarkedConfigurationManager *	bookmarkManager () const
ColorSpaceIndependence	colorSpaceIndependence () const
virtual KisConfigWidget *	createConfigurationWidget (QWidget *parent, const KisPaintDeviceSP dev, bool useForMasks) const
virtual KisFilterConfigurationSP	defaultConfiguration (KisResourcesInterfaceSP resourcesInterface) const
virtual KisFilterConfigurationSP	factoryConfiguration (KisResourcesInterfaceSP resourcesInterface) const
QString	id () const
	KisBaseProcessor (const KoID &id, const KoID &category, const QString &entry)
KoID	menuCategory () const
QString	menuEntry () const
QString	name () const
	Private ()
QKeySequence	shortcut () const
bool	showConfigurationWidget ()
	If true, the filter wants to show a configuration widget.
bool	supportsAdjustmentLayers () const
	This filter can be used in adjustment layers.
bool	supportsPainting () const
bool	supportsThreading () const
virtual	~KisBaseProcessor ()
Public Member Functions inherited from Private
	Private (KisCanvas2 *c)
Public Member Functions inherited from KisShared
bool	deref ()
bool	ref ()
int	refCount ()
QAtomicInt *	sharedWeakReference ()

Protected Member Functions
QString	configEntryGroup () const
void	setSupportsLevelOfDetail (bool value)
Protected Member Functions inherited from KisBaseProcessor
void	init (const QString &configEntryGroup)
void	setColorSpaceIndependence (ColorSpaceIndependence v)
void	setShortcut (const QKeySequence &shortcut)
void	setShowConfigurationWidget (bool v)
void	setSupportsAdjustmentLayers (bool v)
void	setSupportsPainting (bool v)
void	setSupportsThreading (bool v)
Protected Member Functions inherited from KisShared
	KisShared ()
	~KisShared ()

Private Attributes
bool	m_supportsLevelOfDetail

Additional Inherited Members
Public Attributes inherited from KisBaseProcessor
KisBookmarkedConfigurationManager *	bookmarkManager
KoID	category
ColorSpaceIndependence	colorSpaceIndependence
QString	entry
KoID	id
QKeySequence	shortcut
bool	showConfigurationWidget
bool	supportsAdjustmentLayers
bool	supportsPainting
bool	supportsThreading
Public Attributes inherited from Private
KisCanvas2 *	canvas
int	displayedFrame
int	intendedFrame

Detailed Description

Basic interface of a Krita filter.

Definition at line 26 of file kis_filter.h.

Constructor & Destructor Documentation

KisFilter()

KisFilter::KisFilter	(	const KoID &	id,
		const KoID &	category,
		const QString &	entry )

Construct a Krita filter

Definition at line 22 of file kis_filter.cc.

    : KisBaseProcessor(_id, category, entry),
      m_supportsLevelOfDetail(false)
{
    init(id() + "_filter_bookmarks");
}

References KisBaseProcessor::init().

~KisFilter()

KisFilter::~KisFilter ( )

override

Definition at line 29 of file kis_filter.cc.

{
}

Member Function Documentation

changedRect()

QRect KisFilter::changedRect ( const QRect & rect, const KisFilterConfigurationSP config, int lod ) const

virtual

Similar to neededRect : some filters will alter a lot of pixels that are near to each other at the same time. So when you changed a single rectangle in a device, the actual rectangle that will feel the influence of this change might be bigger. Use this function to determine that rect.

Reimplemented in KisBlurFilter, KisGaussianBlurFilter, KisLensBlurFilter, KisMotionBlurFilter, KisConvertHeightToNormalMapFilter, KisConvolutionFilter, KisEdgeDetectionFilter, KisGaussianHighPassFilter, KisSimpleNoiseReducer, KisOilPaintFilter, KisUnsharpFilter, KisFilterPhongBumpmap, KisPixelizeFilter, KisPropagateColorsFilter, KisFilterRandomPick, and KisFilterWave.

Definition at line 98 of file kis_filter.cc.

{
    Q_UNUSED(c);
    Q_UNUSED(lod);
    return rect;
}

configEntryGroup()

QString KisFilter::configEntryGroup ( ) const

protected

configurationAllowedForMask()

bool KisFilter::configurationAllowedForMask ( KisFilterConfigurationSP config ) const

virtual

Reimplemented in KisGaussianBlurFilter.

Definition at line 125 of file kis_filter.cc.

{
    Q_UNUSED(config);
    return supportsAdjustmentLayers();
}

References KisBaseProcessor::supportsAdjustmentLayers.

fixLoadedFilterConfigurationForMasks()

void KisFilter::fixLoadedFilterConfigurationForMasks ( KisFilterConfigurationSP config ) const

virtual

Reimplemented in KisGaussianBlurFilter.

Definition at line 131 of file kis_filter.cc.

{
    Q_UNUSED(config);
}

neededRect()

QRect KisFilter::neededRect ( const QRect & rect, const KisFilterConfigurationSP config, int lod ) const

virtual

Some filters need pixels outside the current processing rect to compute the new value (for instance, convolution filters)

Reimplemented in KisBlurFilter, KisGaussianBlurFilter, KisLensBlurFilter, KisMotionBlurFilter, KisConvertHeightToNormalMapFilter, KisConvolutionFilter, KisEdgeDetectionFilter, KisGaussianHighPassFilter, KisSimpleNoiseReducer, KisOilPaintFilter, KisUnsharpFilter, KisFilterPhongBumpmap, KisPixelizeFilter, KisPropagateColorsFilter, KisFilterRandomPick, and KisFilterWave.

Definition at line 91 of file kis_filter.cc.

{
    Q_UNUSED(c);
    Q_UNUSED(lod);
    return rect;
}

needsTransparentPixels()

bool KisFilter::needsTransparentPixels ( const KisFilterConfigurationSP config, const KoColorSpace * cs ) const

virtual

Reimplemented in KisFilterASCCDL, KisMultiChannelFilter, KisFilterInvert, KisPropagateColorsFilter, and KisResetTransparentFilter.

Definition at line 117 of file kis_filter.cc.

{
    Q_UNUSED(config);
    Q_UNUSED(cs);

    return false;
}

process() [1/2]

void KisFilter::process	(	const KisPaintDeviceSP	src,
		KisPaintDeviceSP	dst,
		KisSelectionSP	selection,
		const QRect &	applyRect,
		const KisFilterConfigurationSP	config,
		KoUpdater *	progressUpdater = 0 ) const

Filter src device and write the result into dst device. If dst is an alpha color space device, it will get special treatment.

Parameters

src	the source paint device
dst	the destination paint device
selection	the selection
applyRect	the rectangle where the filter is applied
config	the parameters of the filter
progressUpdater	to pass on the progress the filter is making

Definition at line 41 of file kis_filter.cc.

{
    KIS_SAFE_ASSERT_RECOVER_NOOP(config->hasLocalResourcesSnapshot());

    if (applyRect.isEmpty()) return;
    QRect needRect = neededRect(applyRect, config, src->defaultBounds()->currentLevelOfDetail());

    KisPaintDeviceSP temporary;
    KisTransaction *transaction = 0;

    bool weirdDstColorSpace =
        dst->colorSpace() != dst->compositionSourceColorSpace() &&
        *dst->colorSpace() != *dst->compositionSourceColorSpace();

    if(src == dst && !selection && !weirdDstColorSpace) {
        temporary = src;
    }
    else {
        temporary = dst->createCompositionSourceDevice(src, needRect);
        transaction = new KisTransaction(temporary);
    }

    try {
        QScopedPointer<KoDummyUpdaterHolder> updaterHolder;

        if (!progressUpdater) {
            // TODO: remove dependency on KoUpdater, depend on KoProgressProxy,
            //       it is more lightweight
            updaterHolder.reset(new KoDummyUpdaterHolder());
            progressUpdater = updaterHolder->updater();
        }

        processImpl(temporary, applyRect, config, progressUpdater);
    }
    catch (const std::bad_alloc&) {
        warnKrita << "Filter" << name() << "failed to allocate enough memory to run.";
    }


    if(transaction) {
        delete transaction;
        KisPainter::copyAreaOptimized(applyRect.topLeft(), temporary, dst, applyRect, selection);
    }
}

References KisPaintDevice::colorSpace(), KisPaintDevice::compositionSourceColorSpace(), KisPainter::copyAreaOptimized(), KisPaintDevice::createCompositionSourceDevice(), KIS_SAFE_ASSERT_RECOVER_NOOP, KisBaseProcessor::name(), neededRect(), processImpl(), and warnKrita.

process() [2/2]

void KisFilter::process	(	KisPaintDeviceSP	device,
		const QRect &	applyRect,
		const KisFilterConfigurationSP	config,
		KoUpdater *	progressUpdater = 0 ) const

A convenience method for a two-device process() function

Definition at line 33 of file kis_filter.cc.

{
    process(device, device, KisSelectionSP(), applyRect, config, progressUpdater);
}

References process().

processImpl()

virtual void KisFilter::processImpl ( KisPaintDeviceSP device, const QRect & applyRect, const KisFilterConfigurationSP config, KoUpdater * progressUpdater = 0 ) const

pure virtual

Override this function with the implementation of your filter.

This is a low level function that expects all the conditions for the

Parameters

device	be met. Use usual process() methods instead.
device	the paint device to filter
applyRect	the rectangle where the filter is applied
config	the parameters of the filter
progressUpdater	to pass on the progress the filter is making

Implemented in KisGaussianHighPassFilter, KisColorTransformationFilter, KisAutoContrast, KisConvolutionFilter, KisEmbossFilter, KisFilterFastColorTransfer, KisGradientMapFilter, KisHalftoneFilter, KisSimpleNoiseReducer, KisWaveletNoiseReduction, KisFilterNoise, KisOilPaintFilter, KisFilterPalettize, KisFilterPhongBumpmap, KisPixelizeFilter, KisPropagateColorsFilter, KisRainDropsFilter, KisFilterRandomPick, KisRoundCornersFilter, KisSmallTilesFilter, KisFilterThreshold, KisUnsharpFilter, KisFilterWave, KisResetTransparentFilter, KisGaussianBlurFilter, KisFilterColorToAlpha, KisFilterMin, KisFilterFastColorOverlay, KisConvertHeightToNormalMapFilter, KisEdgeDetectionFilter, KisBlurFilter, KisLensBlurFilter, KisMotionBlurFilter, and KisFilterMax.

setSupportsLevelOfDetail()

void KisFilter::setSupportsLevelOfDetail ( bool value )

protected

Definition at line 112 of file kis_filter.cc.

{
    m_supportsLevelOfDetail = value;
}

References m_supportsLevelOfDetail, and value().

supportsLevelOfDetail()

bool KisFilter::supportsLevelOfDetail ( const KisFilterConfigurationSP config, int lod ) const

virtual

Returns true if the filter is capable of handling LoD scaled planes when generating preview.

Definition at line 105 of file kis_filter.cc.

{
    Q_UNUSED(config);
    Q_UNUSED(lod);
    return m_supportsLevelOfDetail;
}

References m_supportsLevelOfDetail.

Member Data Documentation

m_supportsLevelOfDetail

bool KisFilter::m_supportsLevelOfDetail

private

Definition at line 113 of file kis_filter.h.

---

The documentation for this class was generated from the following files:

• libs/image/filter/kis_filter.h
• libs/image/filter/kis_filter.cc
