#include <kis_simple_noise_reducer.h>

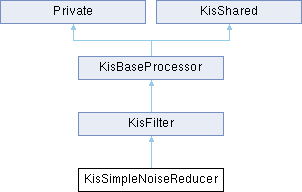

Inheritance diagram for KisSimpleNoiseReducer:

Public Member Functions
QRect	changedRect (const QRect &rect, const KisFilterConfigurationSP _config, int lod) const override

KisConfigWidget *	createConfigurationWidget (QWidget *parent, const KisPaintDeviceSP dev, bool useForMasks) const override

	KisSimpleNoiseReducer ()

QRect	neededRect (const QRect &rect, const KisFilterConfigurationSP _config, int lod) const override

void	processImpl (KisPaintDeviceSP device, const QRect &applyRect, const KisFilterConfigurationSP config, KoUpdater *progressUpdater) const override

	~KisSimpleNoiseReducer () override

Public Member Functions inherited from KisFilter
virtual bool	configurationAllowedForMask (KisFilterConfigurationSP config) const

virtual void	fixLoadedFilterConfigurationForMasks (KisFilterConfigurationSP config) const

	KisFilter (const KoID &id, const KoID &category, const QString &entry)

virtual bool	needsTransparentPixels (const KisFilterConfigurationSP config, const KoColorSpace *cs) const

void	process (const KisPaintDeviceSP src, KisPaintDeviceSP dst, KisSelectionSP selection, const QRect &applyRect, const KisFilterConfigurationSP config, KoUpdater *progressUpdater=0) const

void	process (KisPaintDeviceSP device, const QRect &applyRect, const KisFilterConfigurationSP config, KoUpdater *progressUpdater=0) const

virtual bool	supportsLevelOfDetail (const KisFilterConfigurationSP config, int lod) const

	~KisFilter () override

Public Member Functions inherited from KisBaseProcessor
KisBookmarkedConfigurationManager *	bookmarkManager ()

const KisBookmarkedConfigurationManager *	bookmarkManager () const

ColorSpaceIndependence	colorSpaceIndependence () const

virtual KisFilterConfigurationSP	factoryConfiguration (KisResourcesInterfaceSP resourcesInterface) const

QString	id () const

	KisBaseProcessor (const KoID &id, const KoID &category, const QString &entry)

KoID	menuCategory () const

QString	menuEntry () const

QString	name () const

	Private ()

QKeySequence	shortcut () const

bool	showConfigurationWidget ()
	If true, the filter wants to show a configuration widget.

bool	supportsAdjustmentLayers () const
	This filter can be used in adjustment layers.

bool	supportsPainting () const

bool	supportsThreading () const

virtual	~KisBaseProcessor ()

Public Member Functions inherited from Private
	Private (KisCanvas2 *c)

Public Member Functions inherited from KisShared
bool	deref ()

bool	ref ()

int	refCount ()

QAtomicInt *	sharedWeakReference ()

Static Public Member Functions
static KoID	id ()

Protected Member Functions
KisFilterConfigurationSP	defaultConfiguration (KisResourcesInterfaceSP resourcesInterface) const override

Protected Member Functions inherited from KisFilter
QString	configEntryGroup () const

void	setSupportsLevelOfDetail (bool value)

Protected Member Functions inherited from KisBaseProcessor
void	init (const QString &configEntryGroup)

void	setColorSpaceIndependence (ColorSpaceIndependence v)

void	setShortcut (const QKeySequence &shortcut)

void	setShowConfigurationWidget (bool v)

void	setSupportsAdjustmentLayers (bool v)

void	setSupportsPainting (bool v)

void	setSupportsThreading (bool v)

Protected Member Functions inherited from KisShared
	KisShared ()

	~KisShared ()

Additional Inherited Members
Public Attributes inherited from KisBaseProcessor
KisBookmarkedConfigurationManager *	bookmarkManager

KoID	category

ColorSpaceIndependence	colorSpaceIndependence

QString	entry

KoID	id

QKeySequence	shortcut

bool	showConfigurationWidget

bool	supportsAdjustmentLayers

bool	supportsPainting

bool	supportsThreading

Public Attributes inherited from Private
KisCanvas2 *	canvas

int	displayedFrame

int	intendedFrame

Detailed Description

Author: Cyrille Berger

Definition at line 15 of file kis_simple_noise_reducer.h.

Constructor & Destructor Documentation

◆ KisSimpleNoiseReducer()

KisSimpleNoiseReducer::KisSimpleNoiseReducer ( )

Definition at line 29 of file kis_simple_noise_reducer.cpp.

    : KisFilter(id(), FiltersCategoryEnhanceId, i18n("&Gaussian Noise Reduction..."))
{
    setSupportsPainting(false);
    setSupportsLevelOfDetail(true);
}

References KisFilter::setSupportsLevelOfDetail(), and KisBaseProcessor::setSupportsPainting().

◆ ~KisSimpleNoiseReducer()

KisSimpleNoiseReducer::~KisSimpleNoiseReducer ( )

override

Definition at line 36 of file kis_simple_noise_reducer.cpp.

37{

38}

Member Function Documentation

◆ changedRect()

QRect KisSimpleNoiseReducer::changedRect	(	const QRect &	rect,
		const KisFilterConfigurationSP	config,
		int	lod ) const

overridevirtual

Similar to neededRect : some filters will alter a lot of pixels that are near to each other at the same time. So when you changed a single rectangle in a device, the actual rectangle that will feel the influence of this change might be bigger. Use this function to determine that rect.

Reimplemented from KisFilter.

Definition at line 112 of file kis_simple_noise_reducer.cpp.

{
    return neededRect(rect, _config, lod);
}

References neededRect().

◆ createConfigurationWidget()

KisConfigWidget * KisSimpleNoiseReducer::createConfigurationWidget	(	QWidget *	parent,
		const KisPaintDeviceSP	dev,
		bool	useForMasks ) const

overridevirtual

Create the configuration widget for this processor.

Parameters

parent	the Qt owner widget of this widget
dev	the paintdevice this filter will act on
useForMasks	shown if the filer is going to be used in a mask. Some filters may provide limited options when applied as a mask (e.g. Gaussian Blur)

Reimplemented from KisBaseProcessor.

Definition at line 40 of file kis_simple_noise_reducer.cpp.

{
    Q_UNUSED(dev);
    vKisIntegerWidgetParam param;
    param.push_back(KisIntegerWidgetParam(0, 255, 15, i18n("Threshold"), "threshold"));
    param.push_back(KisIntegerWidgetParam(0, 10, 1, i18n("Window size"), "windowsize"));
    return new KisMultiIntegerFilterWidget(id().id(), parent, id().id(), param);
}

◆ defaultConfiguration()

KisFilterConfigurationSP KisSimpleNoiseReducer::defaultConfiguration ( KisResourcesInterfaceSP resourcesInterface ) const

overrideprotectedvirtual

Return the configuration set as the default by the user or the default configuration from the filter writer as returned by factoryConfiguration.

This configuration is used by default for the configuration widget and given to the process function if there is no configuration widget.

Returns: the default configuration of this widget

Reimplemented from KisBaseProcessor.

Definition at line 49 of file kis_simple_noise_reducer.cpp.

{
    KisFilterConfigurationSP config = factoryConfiguration(resourcesInterface);
    config->setProperty("threshold", 15);
    config->setProperty("windowsize", 1);
    return config;
}

References KisBaseProcessor::factoryConfiguration().

◆ id()

static KoID KisSimpleNoiseReducer::id ( )

inlinestatic

Definition at line 29 of file kis_simple_noise_reducer.h.

                            {
        return KoID("gaussiannoisereducer", i18n("Gaussian Noise Reducer"));
    }

◆ neededRect()

QRect KisSimpleNoiseReducer::neededRect	(	const QRect &	rect,
		const KisFilterConfigurationSP	config,
		int	lod ) const

overridevirtual

Some filters need pixels outside the current processing rect to compute the new value (for instance, convolution filters)

Reimplemented from KisFilter.

Definition at line 103 of file kis_simple_noise_reducer.cpp.

{
    KisLodTransformScalar t(lod);

    const int windowsize = _config->getInt("windowsize", 1);
    const int margin  = qCeil(t.scale(qreal(windowsize))) + 1;
    return kisGrowRect(rect, margin);
}

References kisGrowRect(), and KisLodTransformScalar::scale().

◆ processImpl()

void KisSimpleNoiseReducer::processImpl	(	KisPaintDeviceSP	device,
		const QRect &	applyRect,
		const KisFilterConfigurationSP	config,
		KoUpdater *	progressUpdater ) const

overridevirtual

Override this function with the implementation of your filter.

This is a low level function that expects all the conditions for the

Parameters

device	be met. Use usual process() methods instead.
device	the paint device to filter
applyRect	the rectangle where the filter is applied
config	the parameters of the filter
progressUpdater	to pass on the progress the filter is making

Implements KisFilter.

Definition at line 63 of file kis_simple_noise_reducer.cpp.

{
    QPoint srcTopLeft = applyRect.topLeft();
    Q_ASSERT(device);

    KIS_SAFE_ASSERT_RECOVER_RETURN(config);

    const int threshold = config->getInt("threshold", 15);
    const int windowsize = config->getInt("windowsize", 1);

    const KoColorSpace* cs = device->colorSpace();

    // Compute the blur mask
    KisCircleMaskGenerator* kas = new KisCircleMaskGenerator(2*windowsize + 1, 1, windowsize, windowsize, 2, true);

    KisConvolutionKernelSP kernel = KisConvolutionKernel::fromMaskGenerator(kas);
    delete kas;

    KisPaintDeviceSP interm = new KisPaintDevice(*device); // TODO no need for a full copy and then a transaction
    KisConvolutionPainter painter(interm);
    painter.beginTransaction();
    painter.applyMatrix(kernel, interm, srcTopLeft, srcTopLeft, applyRect.size(), BORDER_REPEAT);
    painter.deleteTransaction();


    KisSequentialConstIteratorProgress intermIt(interm, applyRect, progressUpdater);
    KisSequentialIterator dstIt(device, applyRect);

    while (dstIt.nextPixel() && intermIt.nextPixel()) {
        const quint8 diff = cs->difference(dstIt.oldRawData(), intermIt.oldRawData());
        if (diff > threshold) {
            memcpy(dstIt.rawData(), intermIt.oldRawData(), cs->pixelSize());
        }
    }
}

References KisConvolutionPainter::applyMatrix(), KisPainter::beginTransaction(), BORDER_REPEAT, KisPaintDevice::colorSpace(), KisPainter::deleteTransaction(), KoColorSpace::difference(), KisConvolutionKernel::fromMaskGenerator(), KIS_SAFE_ASSERT_RECOVER_RETURN, KisSequentialIteratorBase< IteratorPolicy, SourcePolicy, ProgressPolicy >::nextPixel(), KisSequentialIteratorBase< IteratorPolicy, SourcePolicy, ProgressPolicy >::oldRawData(), KoColorSpace::pixelSize(), and KisSequentialIteratorBase< IteratorPolicy, SourcePolicy, ProgressPolicy >::rawData().

The documentation for this class was generated from the following files:

plugins/filters/imageenhancement/kis_simple_noise_reducer.h
plugins/filters/imageenhancement/kis_simple_noise_reducer.cpp
