KisFilterFastColorOverlay Class Reference

#include <KisFilterFastColorOverlay.h>

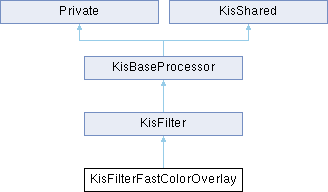

Inheritance diagram for KisFilterFastColorOverlay:

Public Member Functions
KisConfigWidget *	createConfigurationWidget (QWidget *parent, const KisPaintDeviceSP dev, bool useForMasks) const override
KisFilterConfigurationSP	defaultConfiguration (KisResourcesInterfaceSP resourcesInterface) const override
	KisFilterFastColorOverlay ()
void	processImpl (KisPaintDeviceSP device, const QRect &rect, const KisFilterConfigurationSP config, KoUpdater *progressUpdater) const override
Public Member Functions inherited from KisFilter
virtual QRect	changedRect (const QRect &rect, const KisFilterConfigurationSP config, int lod) const
virtual bool	configurationAllowedForMask (KisFilterConfigurationSP config) const
virtual void	fixLoadedFilterConfigurationForMasks (KisFilterConfigurationSP config) const
	KisFilter (const KoID &id, const KoID &category, const QString &entry)
virtual QRect	neededRect (const QRect &rect, const KisFilterConfigurationSP config, int lod) const
virtual bool	needsTransparentPixels (const KisFilterConfigurationSP config, const KoColorSpace *cs) const
void	process (const KisPaintDeviceSP src, KisPaintDeviceSP dst, KisSelectionSP selection, const QRect &applyRect, const KisFilterConfigurationSP config, KoUpdater *progressUpdater=0) const
void	process (KisPaintDeviceSP device, const QRect &applyRect, const KisFilterConfigurationSP config, KoUpdater *progressUpdater=0) const
virtual bool	supportsLevelOfDetail (const KisFilterConfigurationSP config, int lod) const
	~KisFilter () override
Public Member Functions inherited from KisBaseProcessor
KisBookmarkedConfigurationManager *	bookmarkManager ()
const KisBookmarkedConfigurationManager *	bookmarkManager () const
ColorSpaceIndependence	colorSpaceIndependence () const
virtual KisFilterConfigurationSP	factoryConfiguration (KisResourcesInterfaceSP resourcesInterface) const
QString	id () const
	KisBaseProcessor (const KoID &id, const KoID &category, const QString &entry)
KoID	menuCategory () const
QString	menuEntry () const
QString	name () const
	Private ()
QKeySequence	shortcut () const
bool	showConfigurationWidget ()
	If true, the filter wants to show a configuration widget.
bool	supportsAdjustmentLayers () const
	This filter can be used in adjustment layers.
bool	supportsPainting () const
bool	supportsThreading () const
virtual	~KisBaseProcessor ()
Public Member Functions inherited from Private
	Private (KisCanvas2 *c)
Public Member Functions inherited from KisShared
bool	deref ()
bool	ref ()
int	refCount ()
QAtomicInt *	sharedWeakReference ()

Static Public Member Functions
static QColor	defaultColor ()
static QString	defaultCompositeOp ()
static int	defaultOpacity ()
static KoID	id ()

Additional Inherited Members
Public Attributes inherited from KisBaseProcessor
KisBookmarkedConfigurationManager *	bookmarkManager
KoID	category
ColorSpaceIndependence	colorSpaceIndependence
QString	entry
KoID	id
QKeySequence	shortcut
bool	showConfigurationWidget
bool	supportsAdjustmentLayers
bool	supportsPainting
bool	supportsThreading
Public Attributes inherited from Private
KisCanvas2 *	canvas
int	displayedFrame
int	intendedFrame
Protected Member Functions inherited from KisFilter
QString	configEntryGroup () const
void	setSupportsLevelOfDetail (bool value)
Protected Member Functions inherited from KisBaseProcessor
void	init (const QString &configEntryGroup)
void	setColorSpaceIndependence (ColorSpaceIndependence v)
void	setShortcut (const QKeySequence &shortcut)
void	setShowConfigurationWidget (bool v)
void	setSupportsAdjustmentLayers (bool v)
void	setSupportsPainting (bool v)
void	setSupportsThreading (bool v)
Protected Member Functions inherited from KisShared
	KisShared ()
	~KisShared ()

Detailed Description

Definition at line 12 of file KisFilterFastColorOverlay.h.

Constructor & Destructor Documentation

KisFilterFastColorOverlay()

KisFilterFastColorOverlay::KisFilterFastColorOverlay

(

)

Definition at line 21 of file KisFilterFastColorOverlay.cpp.

    : KisFilter(id(), FiltersCategoryColorId, i18n("Fast Color &Overlay..."))
{
}

Member Function Documentation

createConfigurationWidget()

KisConfigWidget * KisFilterFastColorOverlay::createConfigurationWidget ( QWidget * parent, const KisPaintDeviceSP dev, bool useForMasks ) const

overridevirtual

Create the configuration widget for this processor.

Parameters

parent	the Qt owner widget of this widget
dev	the paintdevice this filter will act on
useForMasks	shown if the filer is going to be used in a mask. Some filters may provide limited options when applied as a mask (e.g. Gaussian Blur)

Reimplemented from KisBaseProcessor.

Definition at line 82 of file KisFilterFastColorOverlay.cpp.

{
    Q_UNUSED(dev);
    Q_UNUSED(useForMasks);
    return new KisWdgFilterFastColorOverlay(parent);
}

defaultColor()

QColor KisFilterFastColorOverlay::defaultColor ( )

static

Definition at line 98 of file KisFilterFastColorOverlay.cpp.

{
    return QColor(62, 140, 236);
}

defaultCompositeOp()

QString KisFilterFastColorOverlay::defaultCompositeOp ( )

static

Definition at line 108 of file KisFilterFastColorOverlay.cpp.

{
    // Use the normal blending mode (OVER is "normal").
    // This offers the best performance, but will change the color of all opaque pixels,
    // which may be unexpected in some situations (for example, coloring a scanned sketch on a white background).
    return COMPOSITE_OVER;
}

References COMPOSITE_OVER.

defaultConfiguration()

KisFilterConfigurationSP KisFilterFastColorOverlay::defaultConfiguration ( KisResourcesInterfaceSP resourcesInterface ) const

overridevirtual

Return the configuration set as the default by the user or the default configuration from the filter writer as returned by factoryConfiguration.

This configuration is used by default for the configuration widget and given to the process function if there is no configuration widget.

Returns

the default configuration of this widget

Reimplemented from KisBaseProcessor.

Definition at line 89 of file KisFilterFastColorOverlay.cpp.

{
    KisFilterConfigurationSP config = factoryConfiguration(resourcesInterface);
    config->setProperty("color", defaultColor());
    config->setProperty("opacity", defaultOpacity());
    config->setProperty("compositeop", defaultCompositeOp());
    return config;
}

References defaultColor(), defaultCompositeOp(), defaultOpacity(), and KisBaseProcessor::factoryConfiguration().

defaultOpacity()

int KisFilterFastColorOverlay::defaultOpacity ( )

static

Definition at line 103 of file KisFilterFastColorOverlay.cpp.

{
    return 100;
}

id()

static KoID KisFilterFastColorOverlay::id ( )

inlinestatic

Definition at line 27 of file KisFilterFastColorOverlay.h.

                            {
        return KoID("fastcoloroverlay", i18n("Fast Color Overlay"));
    }

processImpl()

void KisFilterFastColorOverlay::processImpl ( KisPaintDeviceSP device, const QRect & applyRect, const KisFilterConfigurationSP config, KoUpdater * progressUpdater ) const

overridevirtual

Override this function with the implementation of your filter.

This is a low level function that expects all the conditions for the

Parameters

device	be met. Use usual process() methods instead.
device	the paint device to filter
applyRect	the rectangle where the filter is applied
config	the parameters of the filter
progressUpdater	to pass on the progress the filter is making

Implements KisFilter.

Definition at line 26 of file KisFilterFastColorOverlay.cpp.

{
    Q_UNUSED(progressUpdater);

    const KoColorSpace *colorSpace = device->colorSpace();

    KoColor overlayColor = config->getColor("color", KoColor(defaultColor(), KoColorSpaceRegistry::instance()->rgb8()));
    overlayColor.convertTo(colorSpace);

    KoCompositeOp::ParameterInfo paramInfo;
    paramInfo.opacity = config->getPropertyLazy("opacity", defaultOpacity()) / 100.0f;
    paramInfo.flow = 1.0;
    paramInfo.channelFlags = colorSpace->channelFlags(true, false);

    const KoCompositeOp *compositeOp =
        colorSpace->compositeOp(config->getPropertyLazy("compositeop", defaultCompositeOp()));

    KisRandomAccessorSP dstIt = device->createRandomAccessorNG();

    qint32 dstY_ = rect.y();
    qint32 rowsRemaining = rect.height();

    while (rowsRemaining > 0) {
        qint32 dstX_ = rect.x();
        qint32 columnsRemaining = rect.width();
        qint32 numContiguousDstRows = dstIt->numContiguousRows(dstY_);

        qint32 rows = qMin(numContiguousDstRows, rowsRemaining);

        while (columnsRemaining > 0) {

            qint32 numContiguousDstColumns = dstIt->numContiguousColumns(dstX_);
            qint32 columns = qMin(numContiguousDstColumns, columnsRemaining);

            qint32 dstRowStride = dstIt->rowStride(dstX_, dstY_);
            dstIt->moveTo(dstX_, dstY_);

            paramInfo.dstRowStart   = dstIt->rawData();
            paramInfo.dstRowStride  = dstRowStride;
            paramInfo.srcRowStart   = overlayColor.data();
            paramInfo.srcRowStride  = 0;
            paramInfo.maskRowStart  = 0;
            paramInfo.maskRowStride = 0;
            paramInfo.rows          = rows;
            paramInfo.cols          = columns;
            colorSpace->bitBlt(overlayColor.colorSpace(), paramInfo, compositeOp, KoColorConversionTransformation::internalRenderingIntent(), KoColorConversionTransformation::internalConversionFlags());

            dstX_ += columns;
            columnsRemaining -= columns;
        }

        dstY_ += rows;
        rowsRemaining -= rows;
    }
}

References KoColorSpace::bitBlt(), KoColorSpace::channelFlags(), KoCompositeOp::ParameterInfo::channelFlags, KisPaintDevice::colorSpace(), KoColor::colorSpace(), KoCompositeOp::ParameterInfo::cols, KoColorSpace::compositeOp(), KoColor::convertTo(), KisPaintDevice::createRandomAccessorNG(), KoColor::data(), defaultColor(), defaultCompositeOp(), defaultOpacity(), KoCompositeOp::ParameterInfo::dstRowStart, KoCompositeOp::ParameterInfo::dstRowStride, KoCompositeOp::ParameterInfo::flow, KoColorSpaceRegistry::instance(), KoColorConversionTransformation::internalConversionFlags(), KoColorConversionTransformation::internalRenderingIntent(), KoCompositeOp::ParameterInfo::maskRowStart, KoCompositeOp::ParameterInfo::maskRowStride, KisRandomConstAccessorNG::moveTo(), KisRandomConstAccessorNG::numContiguousColumns(), KisRandomConstAccessorNG::numContiguousRows(), KoCompositeOp::ParameterInfo::opacity, KisBaseAccessor::rawData(), KoCompositeOp::ParameterInfo::rows, KisRandomConstAccessorNG::rowStride(), KoCompositeOp::ParameterInfo::srcRowStart, and KoCompositeOp::ParameterInfo::srcRowStride.

---

The documentation for this class was generated from the following files:

• plugins/filters/colors/KisFilterFastColorOverlay.h
• plugins/filters/colors/KisFilterFastColorOverlay.cpp
