KisCrossChannelFilter Class Reference

#include <kis_cross_channel_filter.h>

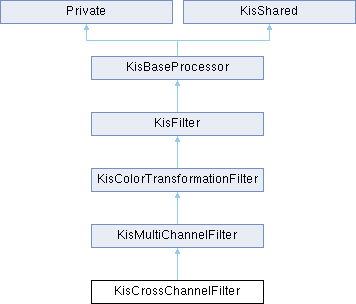

Inheritance diagram for KisCrossChannelFilter:

Public Member Functions
KisConfigWidget *	createConfigurationWidget (QWidget *parent, const KisPaintDeviceSP dev, bool useForMasks) const override
KoColorTransformation *	createTransformation (const KoColorSpace *cs, const KisFilterConfigurationSP config) const override
KisFilterConfigurationSP	factoryConfiguration (KisResourcesInterfaceSP resourcesInterface) const override
	KisCrossChannelFilter ()
	~KisCrossChannelFilter () override
Public Member Functions inherited from KisMultiChannelFilter
bool	needsTransparentPixels (const KisFilterConfigurationSP config, const KoColorSpace *cs) const override
Public Member Functions inherited from KisColorTransformationFilter
	KisColorTransformationFilter (const KoID &id, const KoID &category, const QString &entry)
void	processImpl (KisPaintDeviceSP device, const QRect &applyRect, const KisFilterConfigurationSP config, KoUpdater *progressUpdater) const override
	~KisColorTransformationFilter () override
Public Member Functions inherited from KisFilter
virtual QRect	changedRect (const QRect &rect, const KisFilterConfigurationSP config, int lod) const
virtual bool	configurationAllowedForMask (KisFilterConfigurationSP config) const
virtual void	fixLoadedFilterConfigurationForMasks (KisFilterConfigurationSP config) const
	KisFilter (const KoID &id, const KoID &category, const QString &entry)
virtual QRect	neededRect (const QRect &rect, const KisFilterConfigurationSP config, int lod) const
void	process (const KisPaintDeviceSP src, KisPaintDeviceSP dst, KisSelectionSP selection, const QRect &applyRect, const KisFilterConfigurationSP config, KoUpdater *progressUpdater=0) const
void	process (KisPaintDeviceSP device, const QRect &applyRect, const KisFilterConfigurationSP config, KoUpdater *progressUpdater=0) const
virtual bool	supportsLevelOfDetail (const KisFilterConfigurationSP config, int lod) const
	~KisFilter () override
Public Member Functions inherited from KisBaseProcessor
KisBookmarkedConfigurationManager *	bookmarkManager ()
const KisBookmarkedConfigurationManager *	bookmarkManager () const
ColorSpaceIndependence	colorSpaceIndependence () const
virtual KisFilterConfigurationSP	defaultConfiguration (KisResourcesInterfaceSP resourcesInterface) const
QString	id () const
	KisBaseProcessor (const KoID &id, const KoID &category, const QString &entry)
KoID	menuCategory () const
QString	menuEntry () const
QString	name () const
	Private ()
QKeySequence	shortcut () const
bool	showConfigurationWidget ()
	If true, the filter wants to show a configuration widget.
bool	supportsAdjustmentLayers () const
	This filter can be used in adjustment layers.
bool	supportsPainting () const
bool	supportsThreading () const
virtual	~KisBaseProcessor ()
Public Member Functions inherited from Private
	Private (KisCanvas2 *c)
Public Member Functions inherited from KisShared
bool	deref ()
bool	ref ()
int	refCount ()
QAtomicInt *	sharedWeakReference ()

Static Public Member Functions
static KoID	id ()
Static Public Member Functions inherited from KisMultiChannelFilter
static int	findChannel (const QVector< VirtualChannelInfo > &virtualChannels, const VirtualChannelInfo::Type &channelType)
static QVector< VirtualChannelInfo >	getVirtualChannels (const KoColorSpace *cs, int maxChannels=-1)

Additional Inherited Members
Public Attributes inherited from KisBaseProcessor
KisBookmarkedConfigurationManager *	bookmarkManager
KoID	category
ColorSpaceIndependence	colorSpaceIndependence
QString	entry
KoID	id
QKeySequence	shortcut
bool	showConfigurationWidget
bool	supportsAdjustmentLayers
bool	supportsPainting
bool	supportsThreading
Public Attributes inherited from Private
KisCanvas2 *	canvas
int	displayedFrame
int	intendedFrame
Protected Member Functions inherited from KisMultiChannelFilter
	KisMultiChannelFilter (const KoID &id, const QString &entry)
Protected Member Functions inherited from KisFilter
QString	configEntryGroup () const
void	setSupportsLevelOfDetail (bool value)
Protected Member Functions inherited from KisBaseProcessor
void	init (const QString &configEntryGroup)
void	setColorSpaceIndependence (ColorSpaceIndependence v)
void	setShortcut (const QKeySequence &shortcut)
void	setShowConfigurationWidget (bool v)
void	setSupportsAdjustmentLayers (bool v)
void	setSupportsPainting (bool v)
void	setSupportsThreading (bool v)
Protected Member Functions inherited from KisShared
	KisShared ()
	~KisShared ()

Detailed Description

Filter which applies a relative adjustment to a (virtual) color channel based on the value of another. The amount of adjustment for a given input is controlled by a user-defined curve.

Definition at line 29 of file kis_cross_channel_filter.h.

Constructor & Destructor Documentation

KisCrossChannelFilter()

KisCrossChannelFilter::KisCrossChannelFilter

(

)

Definition at line 328 of file kis_cross_channel_filter.cpp.

                                             : KisMultiChannelFilter(id(), i18n("&Cross-channel adjustment curves..."))
{}

~KisCrossChannelFilter()

KisCrossChannelFilter::~KisCrossChannelFilter ( )

override

Definition at line 331 of file kis_cross_channel_filter.cpp.

{}

Member Function Documentation

createConfigurationWidget()

KisConfigWidget * KisCrossChannelFilter::createConfigurationWidget ( QWidget * parent, const KisPaintDeviceSP dev, bool useForMasks ) const

overridevirtual

Create the configuration widget for this processor.

Parameters

parent	the Qt owner widget of this widget
dev	the paintdevice this filter will act on
useForMasks	shown if the filer is going to be used in a mask. Some filters may provide limited options when applied as a mask (e.g. Gaussian Blur)

Reimplemented from KisBaseProcessor.

Definition at line 334 of file kis_cross_channel_filter.cpp.

{
    return new KisCrossChannelConfigWidget(parent, dev);
}

createTransformation()

KoColorTransformation * KisCrossChannelFilter::createTransformation ( const KoColorSpace * cs, const KisFilterConfigurationSP config ) const

overridevirtual

Create the color transformation that will be applied on the device.

Implements KisColorTransformationFilter.

Definition at line 365 of file kis_cross_channel_filter.cpp.

{
    const KisCrossChannelFilterConfiguration* configBC =
        dynamic_cast<const KisCrossChannelFilterConfiguration*>(config.data());
    Q_ASSERT(configBC);

    const QVector<QVector<quint16> > &originalTransfers = configBC->transfers();
    const QList<KisCubicCurve> &curves = configBC->curves();
    const QVector<int> &drivers = configBC->driverChannels();

    const QVector<VirtualChannelInfo> virtualChannels =
        KisMultiChannelFilter::getVirtualChannels(cs, originalTransfers.size());

    if (originalTransfers.size() > int(virtualChannels.size())) {
        // We got an illegal number of colorchannels :(
        return 0;
    }

    QVector<KoColorTransformation*> transforms;
    // Channel order reversed in order to adjust saturation before hue. This allows mapping grays to colors.
    for (int i = virtualChannels.size() - 1; i >= 0; i--) {
        if (!curves[i].isConstant(0.5)) {
            int channel = mapChannel(virtualChannels[i]);
            int driverChannel = mapChannel(virtualChannels[drivers[i]]);
            QHash<QString, QVariant> params;
            params["channel"] = channel;
            params["driverChannel"] = driverChannel;
            params["curve"] = QVariant::fromValue(originalTransfers[i]);
            params["relative"] = true;
            params["lumaRed"]   = cs->lumaCoefficients()[0];
            params["lumaGreen"] = cs->lumaCoefficients()[1];
            params["lumaBlue"]  = cs->lumaCoefficients()[2];

            transforms << cs->createColorTransformation("hsv_curve_adjustment", params);
        }
    }

    return KoCompositeColorTransformation::createOptimizedCompositeTransform(transforms);
}

References KoColorSpace::createColorTransformation(), KoCompositeColorTransformation::createOptimizedCompositeTransform(), KisMultiChannelFilterConfiguration::curves(), KisSharedPtr< T >::data(), KisCrossChannelFilterConfiguration::driverChannels(), KisMultiChannelFilter::getVirtualChannels(), KoColorSpace::lumaCoefficients, mapChannel(), and KisMultiChannelFilterConfiguration::transfers().

factoryConfiguration()

KisFilterConfigurationSP KisCrossChannelFilter::factoryConfiguration ( KisResourcesInterfaceSP resourcesInterface ) const

overridevirtual

Returns

the default configuration object as defined by whoever wrote the plugin. This object must be filled in with fromXML after that.

Reimplemented from KisColorTransformationFilter.

Definition at line 339 of file kis_cross_channel_filter.cpp.

{
    return new KisCrossChannelFilterConfiguration(0, nullptr, resourcesInterface);
}

id()

static KoID KisCrossChannelFilter::id ( )

inlinestatic

Definition at line 40 of file kis_cross_channel_filter.h.

                            {
        return KoID("crosschannel", i18n("Cross-channel color adjustment"));
    }

---

The documentation for this class was generated from the following files:

• plugins/filters/colorsfilters/kis_cross_channel_filter.h
• plugins/filters/colorsfilters/kis_cross_channel_filter.cpp
