KisFilterDodgeBurn Class Reference

#include <DodgeBurn.h>

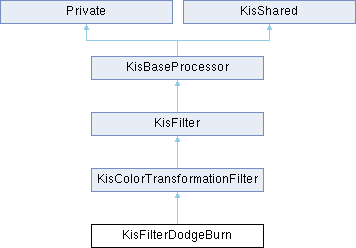

Inheritance diagram for KisFilterDodgeBurn:

Public Types
enum	Type { SHADOWS , MIDTONES , HIGHLIGHTS }

Public Member Functions
KisConfigWidget *	createConfigurationWidget (QWidget *parent, const KisPaintDeviceSP dev, bool useForMasks) const override
KoColorTransformation *	createTransformation (const KoColorSpace *cs, const KisFilterConfigurationSP config) const override
KisFilterConfigurationSP	defaultConfiguration (KisResourcesInterfaceSP resourcesInterface) const override
	KisFilterDodgeBurn (const QString &id, const QString &prefix, const QString &name)
Public Member Functions inherited from KisColorTransformationFilter
KisFilterConfigurationSP	factoryConfiguration (KisResourcesInterfaceSP resourcesInterface) const override
	KisColorTransformationFilter (const KoID &id, const KoID &category, const QString &entry)
void	processImpl (KisPaintDeviceSP device, const QRect &applyRect, const KisFilterConfigurationSP config, KoUpdater *progressUpdater) const override
	~KisColorTransformationFilter () override
Public Member Functions inherited from KisFilter
virtual QRect	changedRect (const QRect &rect, const KisFilterConfigurationSP config, int lod) const
virtual bool	configurationAllowedForMask (KisFilterConfigurationSP config) const
virtual void	fixLoadedFilterConfigurationForMasks (KisFilterConfigurationSP config) const
	KisFilter (const KoID &id, const KoID &category, const QString &entry)
virtual QRect	neededRect (const QRect &rect, const KisFilterConfigurationSP config, int lod) const
virtual bool	needsTransparentPixels (const KisFilterConfigurationSP config, const KoColorSpace *cs) const
void	process (const KisPaintDeviceSP src, KisPaintDeviceSP dst, KisSelectionSP selection, const QRect &applyRect, const KisFilterConfigurationSP config, KoUpdater *progressUpdater=0) const
void	process (KisPaintDeviceSP device, const QRect &applyRect, const KisFilterConfigurationSP config, KoUpdater *progressUpdater=0) const
virtual bool	supportsLevelOfDetail (const KisFilterConfigurationSP config, int lod) const
	~KisFilter () override
Public Member Functions inherited from KisBaseProcessor
KisBookmarkedConfigurationManager *	bookmarkManager ()
const KisBookmarkedConfigurationManager *	bookmarkManager () const
ColorSpaceIndependence	colorSpaceIndependence () const
QString	id () const
	KisBaseProcessor (const KoID &id, const KoID &category, const QString &entry)
KoID	menuCategory () const
QString	menuEntry () const
QString	name () const
	Private ()
QKeySequence	shortcut () const
bool	showConfigurationWidget ()
	If true, the filter wants to show a configuration widget.
bool	supportsAdjustmentLayers () const
	This filter can be used in adjustment layers.
bool	supportsPainting () const
bool	supportsThreading () const
virtual	~KisBaseProcessor ()
Public Member Functions inherited from Private
	Private (KisCanvas2 *c)
Public Member Functions inherited from KisShared
bool	deref ()
bool	ref ()
int	refCount ()
QAtomicInt *	sharedWeakReference ()

Private Attributes
QString	m_prefix

Additional Inherited Members
Public Attributes inherited from KisBaseProcessor
KisBookmarkedConfigurationManager *	bookmarkManager
KoID	category
ColorSpaceIndependence	colorSpaceIndependence
QString	entry
KoID	id
QKeySequence	shortcut
bool	showConfigurationWidget
bool	supportsAdjustmentLayers
bool	supportsPainting
bool	supportsThreading
Public Attributes inherited from Private
KisCanvas2 *	canvas
int	displayedFrame
int	intendedFrame
Protected Member Functions inherited from KisFilter
QString	configEntryGroup () const
void	setSupportsLevelOfDetail (bool value)
Protected Member Functions inherited from KisBaseProcessor
void	init (const QString &configEntryGroup)
void	setColorSpaceIndependence (ColorSpaceIndependence v)
void	setShortcut (const QKeySequence &shortcut)
void	setShowConfigurationWidget (bool v)
void	setSupportsAdjustmentLayers (bool v)
void	setSupportsPainting (bool v)
void	setSupportsThreading (bool v)
Protected Member Functions inherited from KisShared
	KisShared ()
	~KisShared ()

Detailed Description

Definition at line 14 of file DodgeBurn.h.

Member Enumeration Documentation

Type

enum KisFilterDodgeBurn::Type

Enumerator
SHADOWS
MIDTONES
HIGHLIGHTS

Definition at line 17 of file DodgeBurn.h.

              {
      SHADOWS,
      MIDTONES,
      HIGHLIGHTS
    };

Constructor & Destructor Documentation

KisFilterDodgeBurn()

KisFilterDodgeBurn::KisFilterDodgeBurn	(	const QString &	id,
		const QString &	prefix,
		const QString &	name )

Definition at line 15 of file DodgeBurn.cpp.

                                                                                                     : KisColorTransformationFilter(KoID(id, name), FiltersCategoryAdjustId, name), m_prefix(prefix)
{
    setColorSpaceIndependence(FULLY_INDEPENDENT);
    setSupportsPainting(true);
}

References FULLY_INDEPENDENT, KisBaseProcessor::setColorSpaceIndependence(), and KisBaseProcessor::setSupportsPainting().

Member Function Documentation

createConfigurationWidget()

KisConfigWidget * KisFilterDodgeBurn::createConfigurationWidget ( QWidget * parent, const KisPaintDeviceSP dev, bool useForMasks ) const

overridevirtual

Create the configuration widget for this processor.

Parameters

parent	the Qt owner widget of this widget
dev	the paintdevice this filter will act on
useForMasks	shown if the filer is going to be used in a mask. Some filters may provide limited options when applied as a mask (e.g. Gaussian Blur)

Reimplemented from KisBaseProcessor.

Definition at line 21 of file DodgeBurn.cpp.

{
    Q_UNUSED(dev);
    return new KisDodgeBurnConfigWidget(parent, id());
}

createTransformation()

KoColorTransformation * KisFilterDodgeBurn::createTransformation ( const KoColorSpace * cs, const KisFilterConfigurationSP config ) const

overridevirtual

Create the color transformation that will be applied on the device.

Implements KisColorTransformationFilter.

Definition at line 35 of file DodgeBurn.cpp.

{
    QHash<QString, QVariant> params;
    QString suffix = "Midtones";
    if (config) {
        params["exposure"] = config->getDouble("exposure", 0.5);
        int type = config->getInt("type", KisFilterDodgeBurn::MIDTONES);
        switch(type)
          {
            case KisFilterDodgeBurn::HIGHLIGHTS:
              suffix = "Highlights";
              break;
            case KisFilterDodgeBurn::SHADOWS:
              suffix = "Shadows";
              break;
            default:
              break;
          }
    }
    return cs->createColorTransformation(m_prefix + suffix, params);

}

References KoColorSpace::createColorTransformation(), HIGHLIGHTS, m_prefix, MIDTONES, and SHADOWS.

defaultConfiguration()

KisFilterConfigurationSP KisFilterDodgeBurn::defaultConfiguration ( KisResourcesInterfaceSP resourcesInterface ) const

overridevirtual

Return the configuration set as the default by the user or the default configuration from the filter writer as returned by factoryConfiguration.

This configuration is used by default for the configuration widget and given to the process function if there is no configuration widget.

Returns

the default configuration of this widget

Reimplemented from KisBaseProcessor.

Definition at line 27 of file DodgeBurn.cpp.

{
    KisFilterConfigurationSP config = factoryConfiguration(resourcesInterface);
    config->setProperty("exposure", 0.5);
    config->setProperty("type", KisFilterDodgeBurn::MIDTONES);
    return config;
}

References KisColorTransformationFilter::factoryConfiguration(), and MIDTONES.

Member Data Documentation

m_prefix

QString KisFilterDodgeBurn::m_prefix

private

Definition at line 30 of file DodgeBurn.h.

---

The documentation for this class was generated from the following files:

• plugins/filters/dodgeburn/DodgeBurn.h
• plugins/filters/dodgeburn/DodgeBurn.cpp
