#include <kis_generator.h>

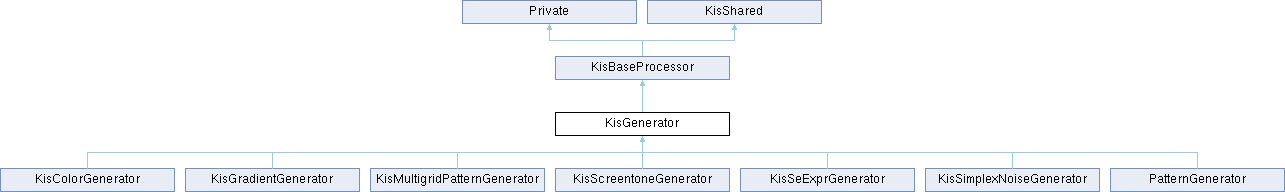

Inheritance diagram for KisGenerator:

Public Member Functions
virtual bool	allowsSplittingIntoPatches () const

virtual void	generate (KisProcessingInformation dst, const QSize &size, const KisFilterConfigurationSP config) const

virtual void	generate (KisProcessingInformation dst, const QSize &size, const KisFilterConfigurationSP config, KoUpdater *progressUpdater) const =0

virtual QRect	generatedRect (QRect _imageArea, const KisFilterConfigurationSP=0) const

	KisGenerator (const KoID &id, const KoID &category, const QString &entry)

	~KisGenerator () override

Public Member Functions inherited from KisBaseProcessor
KisBookmarkedConfigurationManager *	bookmarkManager ()

const KisBookmarkedConfigurationManager *	bookmarkManager () const

ColorSpaceIndependence	colorSpaceIndependence () const

virtual KisConfigWidget *	createConfigurationWidget (QWidget *parent, const KisPaintDeviceSP dev, bool useForMasks) const

virtual KisFilterConfigurationSP	defaultConfiguration (KisResourcesInterfaceSP resourcesInterface) const

virtual KisFilterConfigurationSP	factoryConfiguration (KisResourcesInterfaceSP resourcesInterface) const

QString	id () const

	KisBaseProcessor (const KoID &id, const KoID &category, const QString &entry)

KoID	menuCategory () const

QString	menuEntry () const

QString	name () const

	Private ()

QKeySequence	shortcut () const

bool	showConfigurationWidget ()
	If true, the filter wants to show a configuration widget.

bool	supportsAdjustmentLayers () const
	This filter can be used in adjustment layers.

bool	supportsPainting () const

bool	supportsThreading () const

virtual	~KisBaseProcessor ()

Public Member Functions inherited from Private
	Private (KisCanvas2 *c)

Public Member Functions inherited from KisShared
bool	deref ()

bool	ref ()

int	refCount ()

QAtomicInt *	sharedWeakReference ()

Protected Member Functions
QString	configEntryGroup () const

Protected Member Functions inherited from KisBaseProcessor
void	init (const QString &configEntryGroup)

void	setColorSpaceIndependence (ColorSpaceIndependence v)

void	setShortcut (const QKeySequence &shortcut)

void	setShowConfigurationWidget (bool v)

void	setSupportsAdjustmentLayers (bool v)

void	setSupportsPainting (bool v)

void	setSupportsThreading (bool v)

Protected Member Functions inherited from KisShared
	KisShared ()

	~KisShared ()

Friends
class	KisGeneratorConfigurationFactory

Additional Inherited Members
Public Attributes inherited from KisBaseProcessor
KisBookmarkedConfigurationManager *	bookmarkManager

KoID	category

ColorSpaceIndependence	colorSpaceIndependence

QString	entry

KoID	id

QKeySequence	shortcut

bool	showConfigurationWidget

bool	supportsAdjustmentLayers

bool	supportsPainting

bool	supportsThreading

Public Attributes inherited from Private
KisCanvas2 *	canvas

int	displayedFrame

int	intendedFrame

Detailed Description

Basic interface of a Krita generator: a generator is a program that can fill a paint device with a color. A generator can have a preferred colorspace.

Generators can have initial parameter settings that determine the way a particular generator works, but also state that allows the generator to continue from one invocation of generate to another (handy for, e.g., painting)

Definition at line 32 of file kis_generator.h.

Constructor & Destructor Documentation

◆ KisGenerator()

KisGenerator::KisGenerator	(	const KoID &	id,
		const KoID &	category,
		const QString &	entry )

Definition at line 19 of file kis_generator.cpp.

    : KisBaseProcessor(_id, category, entry)
{
    init(id() + "_generator_bookmarks");
}

References KisBaseProcessor::init().

◆ ~KisGenerator()

KisGenerator::~KisGenerator ( )

override

Definition at line 25 of file kis_generator.cpp.

26{

27}

Member Function Documentation

◆ allowsSplittingIntoPatches()

virtual bool KisGenerator::allowsSplittingIntoPatches ( ) const

inlinevirtual

Reports whether this generator can run properly while tiling the image into patches (as opposed to over the whole image in one single pass).

Generators that are known to not work properly should override this function and return false.

Reimplemented in KisMultigridPatternGenerator, and PatternGenerator.

Definition at line 80 of file kis_generator.h.

80{ return true; }

◆ configEntryGroup()

QString KisGenerator::configEntryGroup ( ) const

protected

Returns: the name of config group in KConfig

◆ generate() [1/2]

void KisGenerator::generate	(	KisProcessingInformation	dst,
		const QSize &	size,
		const KisFilterConfigurationSP	config ) const

virtual

Provided for convenience when no progress reporting is needed.

Reimplemented in KisGradientGenerator, KisMultigridPatternGenerator, PatternGenerator, KisScreentoneGenerator, KisSeExprGenerator, KisSimplexNoiseGenerator, and KisColorGenerator.

Definition at line 29 of file kis_generator.cpp.

{
    generate(dst, size, config, 0);
}

References generate().

◆ generate() [2/2]

virtual void KisGenerator::generate	(	KisProcessingInformation	dst,
		const QSize &	size,
		const KisFilterConfigurationSP	config,
		KoUpdater *	progressUpdater ) const

pure virtual

Override this function with the implementation of your generator.

Parameters

dst	the destination paint device
size	the size of the area that is to be filled
config	the parameters of the filter
progressUpdater	the progress updater

Implemented in KisGradientGenerator, KisMultigridPatternGenerator, PatternGenerator, KisScreentoneGenerator, KisSeExprGenerator, KisSimplexNoiseGenerator, KisColorGenerator, KisGradientGenerator, KisMultigridPatternGenerator, PatternGenerator, KisScreentoneGenerator, KisSeExprGenerator, KisSimplexNoiseGenerator, and KisColorGenerator.

◆ generatedRect()

QRect KisGenerator::generatedRect	(	QRect	_imageArea,
		const KisFilterConfigurationSP	= 0 ) const

virtual

Parameters

_imageArea the rectangle of the image

Returns: the rectangle that is affected by this generator, if the generator is supposed to affect all pixels, then the function should return _imageArea

Definition at line 37 of file kis_generator.cpp.

{
    return _imageArea;
}

Friends And Related Symbol Documentation

◆ KisGeneratorConfigurationFactory

friend class KisGeneratorConfigurationFactory

friend

Definition at line 34 of file kis_generator.h.

The documentation for this class was generated from the following files:

libs/image/generator/kis_generator.h
libs/image/generator/kis_generator.cpp
