KisMultigridPatternGenerator Class Reference

#include <multigridpatterngenerator.h>

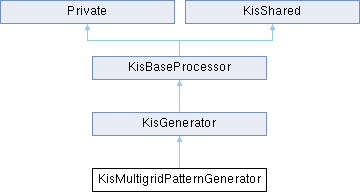

Inheritance diagram for KisMultigridPatternGenerator:

Public Types
enum	Connector {   None , Acute , Obtuse , Cross ,   CenterDot , CornerDot }

Public Member Functions
virtual bool	allowsSplittingIntoPatches () const override
KisConfigWidget *	createConfigurationWidget (QWidget *parent, const KisPaintDeviceSP dev, bool useForMasks) const override
KisFilterConfigurationSP	defaultConfiguration (KisResourcesInterfaceSP resourcesInterface) const override
virtual void	generate (KisProcessingInformation dst, const QSize &size, const KisFilterConfigurationSP config) const
void	generate (KisProcessingInformation dst, const QSize &size, const KisFilterConfigurationSP config, KoUpdater *progressUpdater) const override
virtual void	generate (KisProcessingInformation dst, const QSize &size, const KisFilterConfigurationSP config, KoUpdater *progressUpdater) const=0
	KisMultigridPatternGenerator ()
Public Member Functions inherited from KisGenerator
virtual QRect	generatedRect (QRect _imageArea, const KisFilterConfigurationSP=0) const
	KisGenerator (const KoID &id, const KoID &category, const QString &entry)
	~KisGenerator () override
Public Member Functions inherited from KisBaseProcessor
KisBookmarkedConfigurationManager *	bookmarkManager ()
const KisBookmarkedConfigurationManager *	bookmarkManager () const
ColorSpaceIndependence	colorSpaceIndependence () const
virtual KisFilterConfigurationSP	factoryConfiguration (KisResourcesInterfaceSP resourcesInterface) const
QString	id () const
	KisBaseProcessor (const KoID &id, const KoID &category, const QString &entry)
KoID	menuCategory () const
QString	menuEntry () const
QString	name () const
	Private ()
QKeySequence	shortcut () const
bool	showConfigurationWidget ()
	If true, the filter wants to show a configuration widget.
bool	supportsAdjustmentLayers () const
	This filter can be used in adjustment layers.
bool	supportsPainting () const
bool	supportsThreading () const
virtual	~KisBaseProcessor ()
Public Member Functions inherited from Private
	Private (KisCanvas2 *c)
Public Member Functions inherited from KisShared
bool	deref ()
bool	ref ()
int	refCount ()
QAtomicInt *	sharedWeakReference ()

Static Public Member Functions
static KoID	id ()

Private Member Functions
QList< KisMultiGridRhomb >	generateRhombs (int lines, int divisions, qreal offset) const
QList< int >	getIndicesFromPoint (QPointF point, QList< qreal > angles, qreal offset) const
QPointF	getVertice (QList< int > indices, QList< qreal > angles) const

Additional Inherited Members
Public Attributes inherited from KisBaseProcessor
KisBookmarkedConfigurationManager *	bookmarkManager
KoID	category
ColorSpaceIndependence	colorSpaceIndependence
QString	entry
KoID	id
QKeySequence	shortcut
bool	showConfigurationWidget
bool	supportsAdjustmentLayers
bool	supportsPainting
bool	supportsThreading
Public Attributes inherited from Private
KisCanvas2 *	canvas
int	displayedFrame
int	intendedFrame
Protected Member Functions inherited from KisGenerator
QString	configEntryGroup () const
Protected Member Functions inherited from KisBaseProcessor
void	init (const QString &configEntryGroup)
void	setColorSpaceIndependence (ColorSpaceIndependence v)
void	setShortcut (const QKeySequence &shortcut)
void	setShowConfigurationWidget (bool v)
void	setSupportsAdjustmentLayers (bool v)
void	setSupportsPainting (bool v)
void	setSupportsThreading (bool v)
Protected Member Functions inherited from KisShared
	KisShared ()
	~KisShared ()

Detailed Description

Definition at line 45 of file multigridpatterngenerator.h.

Member Enumeration Documentation

Connector

enum KisMultigridPatternGenerator::Connector

Enumerator
None
Acute
Obtuse
Cross
CenterDot
CornerDot

Definition at line 49 of file multigridpatterngenerator.h.

                  {
        None,
        Acute,
        Obtuse,
        Cross,
        CenterDot,
        CornerDot
    };

Constructor & Destructor Documentation

KisMultigridPatternGenerator()

KisMultigridPatternGenerator::KisMultigridPatternGenerator

(

)

Definition at line 51 of file multigridpatterngenerator.cpp.

                                                           : KisGenerator(id(), KoID("basic"), i18n("&Multigrid Pattern..."))
{
    setColorSpaceIndependence(FULLY_INDEPENDENT);
    setSupportsPainting(true);
}

References FULLY_INDEPENDENT, KisBaseProcessor::setColorSpaceIndependence(), and KisBaseProcessor::setSupportsPainting().

Member Function Documentation

allowsSplittingIntoPatches()

virtual bool KisMultigridPatternGenerator::allowsSplittingIntoPatches ( ) const

inlineoverridevirtual

Reports whether this generator can run properly while tiling the image into patches (as opposed to over the whole image in one single pass).

Generators that are known to not work properly should override this function and return false.

Reimplemented from KisGenerator.

Definition at line 76 of file multigridpatterngenerator.h.

{ return false; }

createConfigurationWidget()

KisConfigWidget * KisMultigridPatternGenerator::createConfigurationWidget ( QWidget * parent, const KisPaintDeviceSP dev, bool useForMasks ) const

overridevirtual

Create the configuration widget for this processor.

Parameters

parent	the Qt owner widget of this widget
dev	the paintdevice this filter will act on
useForMasks	shown if the filer is going to be used in a mask. Some filters may provide limited options when applied as a mask (e.g. Gaussian Blur)

Reimplemented from KisBaseProcessor.

Definition at line 92 of file multigridpatterngenerator.cpp.

{
    Q_UNUSED(dev);
    return new KisWdgMultigridPattern(parent);
}

defaultConfiguration()

KisFilterConfigurationSP KisMultigridPatternGenerator::defaultConfiguration ( KisResourcesInterfaceSP resourcesInterface ) const

overridevirtual

Return the configuration set as the default by the user or the default configuration from the filter writer as returned by factoryConfiguration.

This configuration is used by default for the configuration widget and given to the process function if there is no configuration widget.

Returns

the default configuration of this widget

Reimplemented from KisBaseProcessor.

Definition at line 57 of file multigridpatterngenerator.cpp.

{
    KisFilterConfigurationSP config = factoryConfiguration(resourcesInterface);

    QLinearGradient gradient;
    gradient.setColorAt(0, Qt::green);
    gradient.setColorAt(1.0, Qt::blue);
    KoStopGradientSP grad = KoStopGradient::fromQGradient(&gradient);
    if (grad) {
        QDomDocument doc;
        QDomElement elt = doc.createElement("gradient");
        grad->toXML(doc, elt);
        doc.appendChild(elt);
        config->setProperty("gradientXML", doc.toString());
    }

    QVariant v;
    KoColor c;
    v.setValue(c);
    config->setProperty("lineColor", v);
    config->setProperty("divisions", 5);
    config->setProperty("lineWidth", 1);
    config->setProperty("dimensions", 5);
    config->setProperty("offset", .2);

    config->setProperty("colorRatio", 1.0);
    config->setProperty("colorIndex", 0.0);
    config->setProperty("colorIntersect", 0.0);

    config->setProperty("connectorColor", v);
    config->setProperty("connectorType", Connector::None);
    config->setProperty("connectorWidth", 1);
    return config;
}

References KisBaseProcessor::factoryConfiguration(), KoStopGradient::fromQGradient(), None, and v.

generate() [1/3]

void KisGenerator::generate ( KisProcessingInformation dst, const QSize & size, const KisFilterConfigurationSP config ) const

virtual

Provided for convenience when no progress reporting is needed.

Reimplemented from KisGenerator.

Definition at line 59 of file kis_generator.cpp.

{
    generate(dst, size, config, 0);
}

generate() [2/3]

void KisMultigridPatternGenerator::generate ( KisProcessingInformation dst, const QSize & size, const KisFilterConfigurationSP config, KoUpdater * progressUpdater ) const

overridevirtual

Override this function with the implementation of your generator.

Parameters

dst	the destination paint device
size	the size of the area that is to be filled
config	the parameters of the filter
progressUpdater	the progress updater

Implements KisGenerator.

Definition at line 98 of file multigridpatterngenerator.cpp.

{
    KisPaintDeviceSP dst = dstInfo.paintDevice();

    Q_ASSERT(!dst.isNull());
    Q_ASSERT(config);

    if (config) {

        QLinearGradient gradient;
        gradient.setColorAt(0, Qt::green);
        gradient.setColorAt(1.0, Qt::blue);
        KoStopGradientSP grad = KoStopGradient::fromQGradient(&gradient);
        if (config->hasProperty("gradientXML")) {
            QDomDocument doc;
            doc.setContent(config->getString("gradientXML", ""));
            KoStopGradient gradient = KoStopGradient::fromXML(doc.firstChildElement());
            if (gradient.stops().size() > 0) {
                grad->setStops(gradient.stops());
            }
        }

        int divisions = config->getInt("divisions", 1);
        int dimensions = config->getInt("dimensions", 5);
        qreal offset = config->getFloat("offset", .2);
        QRectF bounds(QPoint(), size);

        KoColor lineColor = config->getColor("lineColor");
        lineColor.setOpacity(1.0);
        int lineWidth = config->getInt("lineWidth", 1);

        qreal colorRatio = config->getFloat("colorRatio", 1.0);
        qreal colorIndex = config->getFloat("colorIndex", 0.0);
        qreal colorIntersect = config->getFloat("colorIntersect", 0.0);

        qreal diameter = QLineF(bounds.topLeft(), bounds.bottomRight()).length();
        qreal scale = diameter/2/divisions;

        QList<KisMultiGridRhomb> rhombs = generateRhombs(dimensions, divisions, offset);

        KisProgressUpdateHelper progress(progressUpdater, 100, rhombs.size());


        KisPainter gc(dst);
        gc.setChannelFlags(config->channelFlags());
        gc.setOpacityToUnit();
        gc.setFillStyle(KisPainter::FillStyleBackgroundColor);
        gc.setStrokeStyle(KisPainter::StrokeStyleBrush);
        gc.setSelection(dstInfo.selection());

        gc.fill(bounds.left(), bounds.top(), bounds.right(), bounds.bottom(), lineColor);

        QTransform tf;
        tf.translate(bounds.center().x(), bounds.center().y());
        tf.scale(scale, scale);
        if (dimensions%2>0) {
            tf.rotateRadians((M_PI/dimensions)*0.5);
        }
        KoColor c = grad->stops()[0].color;
        for (int i= 0; i < rhombs.size(); i++){
            KisMultiGridRhomb rhomb = rhombs.at(i);
            QPolygonF shape = tf.map(rhomb.shape);

            QPointF center = shape.at(0)+shape.at(1)+shape.at(2)+shape.at(3);
            center.setX(center.x()/4.0);
            center.setY(center.y()/4.0);

            QTransform lineWidthTransform;

            qreal scaleForLineWidth = qMax(1-(qreal(lineWidth)/scale), 0.0);
            lineWidthTransform.scale(scaleForLineWidth, scaleForLineWidth);
            QPointF scaledCenter = lineWidthTransform.map(center);
            lineWidthTransform.reset();

            lineWidthTransform.translate(center.x()-scaledCenter.x(), center.y()-scaledCenter.y());
            lineWidthTransform.scale(scaleForLineWidth, scaleForLineWidth);

            shape = lineWidthTransform.map(shape);
            if (shape.intersects(bounds) && shape.boundingRect().width()>0) {
                QPainterPath p;
                p.addPolygon(lineWidthTransform.map(shape));

                qreal gradientPos = 1;

                qreal w1 = QLineF (shape.at(0), shape.at(2)).length();
                qreal w2 = QLineF (shape.at(1), shape.at(3)).length();
                qreal shapeRatio = qMin(w1, w2)/qMax(w1, w2);

                qreal intersectRatio = qreal(rhomb.line1)/qreal(dimensions);
                intersectRatio += qreal(rhomb.line2)/qreal(dimensions);
                intersectRatio *= 0.5;

                qreal indexRatio = 1-abs(qreal(rhomb.parallel1)/qreal(divisions/2.0));
                indexRatio *= 1-abs(qreal(rhomb.parallel2)/qreal(divisions/2.0));

                if (colorRatio>=0) {
                    gradientPos *= 1-(shapeRatio*colorRatio);
                } else {
                    gradientPos *= 1-((1-shapeRatio)*abs(colorRatio));
                }
                if (colorIntersect>=0) {
                    gradientPos *= 1-(intersectRatio*colorIntersect);
                } else {
                    gradientPos *= 1-((1-intersectRatio)*abs(colorIntersect));
                }
                if (colorIndex>=0) {
                    gradientPos *= 1-(indexRatio*colorIndex);
                } else {
                    gradientPos *= 1-((1-indexRatio)*abs(colorIndex));
                }

                grad->colorAt(c, gradientPos);
                gc.setBackgroundColor(c);

                gc.fillPainterPath(p, p.boundingRect().adjusted(-2, -2, 2, 2).toRect());

                int connectorType = config->getInt("connectorType", Connector::None);

                if (connectorType != Connector::None) {
                    gc.setBackgroundColor(config->getColor("connectorColor"));
                    qreal connectorWidth = qreal(config->getInt("connectorWidth", 1))*.5;
                    QPainterPath pConnect;
                    qreal lower = connectorWidth/scale;

                    if (connectorType == Connector::Cross) {
                        QPointF cl = QLineF(shape.at(0), shape.at(1)).pointAt(0.5-lower);
                        pConnect.moveTo(cl);
                        cl = QLineF(shape.at(0), shape.at(1)).pointAt(0.5+lower);
                        pConnect.lineTo(cl);
                        cl = QLineF(shape.at(2), shape.at(3)).pointAt(0.5-lower);
                        pConnect.lineTo(cl);
                        cl = QLineF(shape.at(2), shape.at(3)).pointAt(0.5+lower);
                        pConnect.lineTo(cl);
                        pConnect.closeSubpath();

                        cl = QLineF(shape.at(1), shape.at(2)).pointAt(0.5-lower);
                        pConnect.moveTo(cl);
                        cl = QLineF(shape.at(1), shape.at(2)).pointAt(0.5+lower);
                        pConnect.lineTo(cl);
                        cl = QLineF(shape.at(3), shape.at(0)).pointAt(0.5-lower);
                        pConnect.lineTo(cl);
                        cl = QLineF(shape.at(3), shape.at(0)).pointAt(0.5+lower);
                        pConnect.lineTo(cl);
                        pConnect.closeSubpath();

                    } else if (connectorType == Connector::CornerDot) {
                        QPointF cW(connectorWidth, connectorWidth);

                        QRectF dot (shape.at(0)-cW, shape.at(0)+cW);
                        pConnect.addEllipse(dot);
                        dot = QRectF(shape.at(1)-cW, shape.at(1)+cW);
                        pConnect.addEllipse(dot);
                        dot = QRectF(shape.at(2)-cW, shape.at(2)+cW);
                        pConnect.addEllipse(dot);
                        dot = QRectF(shape.at(3)-cW, shape.at(3)+cW);
                        pConnect.addEllipse(dot);
                        pConnect = pConnect.intersected(p);

                    } else if (connectorType == Connector::CenterDot) {

                        QRectF dot (center-QPointF(connectorWidth, connectorWidth), center+QPointF(connectorWidth, connectorWidth));
                        pConnect.addEllipse(dot);

                    } else {
                        for (int i=1; i<shape.size(); i++) {
                            QPainterPath pAngle;
                            QPointF curPoint = shape.at(i);
                            QLineF l1(curPoint, shape.at(i-1));
                            QPointF np;
                            if (i==4) {
                                np = shape.at(1);
                            } else {
                                np = shape.at(i+1);
                            }
                            QLineF l2(curPoint, np);
                            qreal angleDiff = abs(fmod(abs(l1.angle()-l2.angle())+180, 360)-180);

                            if (round(angleDiff) == 90) {
                                continue;
                            }
                            if (angleDiff > 90 && connectorType == Connector::Acute) {
                                continue;
                            }
                            if (angleDiff < 90 && connectorType == Connector::Obtuse) {
                                continue;
                            }

                            qreal length = (l1.length()*0.5)-connectorWidth;
                            QRectF sweep(curPoint-QPointF(length, length), curPoint+QPointF(length, length));
                            length = (l1.length()*0.5)+connectorWidth;
                            QRectF sweep2(curPoint-QPointF(length, length), curPoint+QPointF(length, length));

                            pAngle.moveTo(shape.at(i));
                            pAngle.addEllipse(sweep2);
                            pAngle.addEllipse(sweep);
                            pAngle = pAngle.intersected(p);
                            pAngle.closeSubpath();
                            pConnect.addPath(pAngle);
                        }
                        pConnect.closeSubpath();

                    }
                    pConnect.setFillRule(Qt::WindingFill);
                    gc.fillPainterPath(pConnect);

                }

                progress.step();
            }
        }

        gc.end();
    }
}

References Acute, bounds, CenterDot, CornerDot, Cross, KisPainter::end(), KisPainter::fill(), KisPainter::fillPainterPath(), KisPainter::FillStyleBackgroundColor, KoStopGradient::fromQGradient(), KoStopGradient::fromXML(), generateRhombs(), KisSharedPtr< T >::isNull(), length(), KisMultiGridRhomb::line1, KisMultiGridRhomb::line2, M_PI, None, Obtuse, p, KisProcessingInformation::paintDevice(), KisMultiGridRhomb::parallel1, KisMultiGridRhomb::parallel2, KisConstProcessingInformation::selection, KisPainter::setBackgroundColor(), KisPainter::setChannelFlags(), KisPainter::setFillStyle(), KoColor::setOpacity(), KisPainter::setOpacityToUnit(), KisPainter::setSelection(), KisPainter::setStrokeStyle(), KisMultiGridRhomb::shape, KisProgressUpdateHelper::step(), KoStopGradient::stops(), and KisPainter::StrokeStyleBrush.

generate() [3/3]

virtual void KisGenerator::generate ( KisProcessingInformation dst, const QSize & size, const KisFilterConfigurationSP config, KoUpdater * progressUpdater ) const

virtual

Override this function with the implementation of your generator.

Parameters

dst	the destination paint device
size	the size of the area that is to be filled
config	the parameters of the filter
progressUpdater	the progress updater

Implements KisGenerator.

generateRhombs()

QList< KisMultiGridRhomb > KisMultigridPatternGenerator::generateRhombs ( int lines, int divisions, qreal offset ) const

private

Definition at line 316 of file multigridpatterngenerator.cpp.

{
    QList<KisMultiGridRhomb> rhombs;
    QList<QLineF> parallelLines;
    QList<qreal> angles;

    int halfLines = divisions;
    int totalLines = (halfLines*2) +1;

    //setup our imaginary lines...
    int dimensions = lines;
    for (int i = 0; i< dimensions; i++) {
        qreal angle = 2*(M_PI/lines)*i;
        angles.append(angle);
    }


    for (int i = 0; i <angles.size(); i++ ) {
        qreal angle1 = angles.at(i);
        QPointF p1(totalLines*cos(angle1), -totalLines*sin(angle1));
        QPointF p2 = -p1;


        for (int parallel1 = 0; parallel1 < totalLines; parallel1++) {
            int index1 = halfLines-parallel1;

            QPointF offset1((index1+offset)*sin(angle1), (index1+offset)*cos(angle1));
            QLineF l1(p1, p2);
            l1.translate(offset1);

            for (int k = i+1; k <angles.size(); k++ ) {
                qreal angle2 = angles.at(k);
                QPointF p3(totalLines*cos(angle2), -totalLines*sin(angle2));
                QPointF p4 = -p3;


                for (int parallel2 = 0; parallel2 < totalLines; parallel2++) {
                    int index2 = halfLines-parallel2;

                    QPointF offset2((index2+offset)*sin(angle2), (index2+offset)*cos(angle2));
                    QLineF l2(p3, p4);
                    l2.translate(offset2);


                    QPointF intersect;
                    if (l1.intersects(l2, &intersect) == QLineF::BoundedIntersection) {

                        QList<int> indices = getIndicesFromPoint(intersect, angles, offset );

                        QPolygonF shape;
                        indices[i] = index1+1;
                        indices[k] = index2+1;
                        shape << getVertice(indices, angles);
                        indices[i] = index1;
                        indices[k] = index2+1;
                        shape << getVertice(indices, angles);
                        indices[i] = index1;
                        indices[k] = index2;
                        shape << getVertice(indices, angles);
                        indices[i] = index1+1;
                        indices[k] = index2;
                        shape << getVertice(indices, angles);
                        indices[i] = index1+1;
                        indices[k] = index2+1;
                        shape << getVertice(indices, angles);

                        KisMultiGridRhomb rhomb;
                        rhomb.shape = shape;
                        rhomb.parallel1 = index1;
                        rhomb.parallel2 = index2;
                        rhomb.line1 = i;
                        rhomb.line2 = k;

                        rhombs.append(rhomb);
                    }

                }
            }
        }
    }


    return rhombs;
}

References getIndicesFromPoint(), getVertice(), KisMultiGridRhomb::line1, KisMultiGridRhomb::line2, M_PI, p1, p2, p3, KisMultiGridRhomb::parallel1, KisMultiGridRhomb::parallel2, and KisMultiGridRhomb::shape.

getIndicesFromPoint()

QList< int > KisMultigridPatternGenerator::getIndicesFromPoint ( QPointF point, QList< qreal > angles, qreal offset ) const

private

Definition at line 401 of file multigridpatterngenerator.cpp.

{
    QList<int> indices;

    for (int a=0; a< angles.size(); a++) {

        QPointF p = point;

        qreal index = p.x() * sin(angles.at(a)) + (p.y()) * cos(angles.at(a));
        indices.append(floor(index-offset+1));
    }
    return indices;
}

References p.

getVertice()

QPointF KisMultigridPatternGenerator::getVertice ( QList< int > indices, QList< qreal > angles ) const

private

Projects the 5d vertice to a point.

Definition at line 415 of file multigridpatterngenerator.cpp.

{
    if (indices.isEmpty() || angles.isEmpty()) {
        qDebug() << "error";
        return QPointF();
    }
    qreal x = 0;
    qreal y = 0;

    for (int i=0; i<indices.size(); i++) {
        x += indices.at(i)*cos(angles.at(i));
        y += indices.at(i)*sin(angles.at(i));
    }

    return QPointF(x, y);
}

id()

static KoID KisMultigridPatternGenerator::id ( )

inlinestatic

Definition at line 68 of file multigridpatterngenerator.h.

                            {
        return KoID("multigrid", i18n("Multigrid"));
    }

---

The documentation for this class was generated from the following files:

• plugins/generators/multigridpattern/multigridpatterngenerator.h
• plugins/generators/multigridpattern/multigridpatterngenerator.cpp
