#include <kis_generator_stroke_strategy.h>

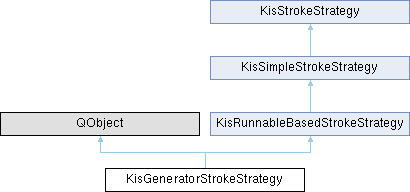

Inheritance diagram for KisGeneratorStrokeStrategy:

Public Member Functions
	KisGeneratorStrokeStrategy ()

	~KisGeneratorStrokeStrategy () override

Public Member Functions inherited from KisRunnableBasedStrokeStrategy
void	doStrokeCallback (KisStrokeJobData *data) override

	KisRunnableBasedStrokeStrategy (const KisRunnableBasedStrokeStrategy &rhs)

	KisRunnableBasedStrokeStrategy (const QLatin1String &id, const KUndo2MagicString &name=KUndo2MagicString())

KisRunnableStrokeJobsInterface *	runnableJobsInterface () const

	~KisRunnableBasedStrokeStrategy ()

Public Member Functions inherited from KisSimpleStrokeStrategy
virtual void	cancelStrokeCallback ()

KisStrokeJobData *	createCancelData () override

KisStrokeJobStrategy *	createCancelStrategy () override

KisStrokeJobStrategy *	createDabStrategy () override

KisStrokeJobData *	createFinishData () override

KisStrokeJobStrategy *	createFinishStrategy () override

KisStrokeJobData *	createInitData () override

KisStrokeJobStrategy *	createInitStrategy () override

KisStrokeJobData *	createResumeData () override

KisStrokeJobStrategy *	createResumeStrategy () override

KisStrokeJobData *	createSuspendData () override

KisStrokeJobStrategy *	createSuspendStrategy () override

virtual void	finishStrokeCallback ()

virtual void	initStrokeCallback ()

	KisSimpleStrokeStrategy (const QLatin1String &id, const KUndo2MagicString &name=KUndo2MagicString())

virtual void	resumeStrokeCallback ()

virtual void	suspendStrokeCallback ()

Public Member Functions inherited from KisStrokeStrategy
qreal	balancingRatioOverride () const

bool	canForgetAboutMe () const

bool	clearsRedoOnStart () const

virtual KisStrokeStrategy *	createLodClone (int levelOfDetail)

KisLodPreferences	currentLodPreferences () const

bool	forceLodModeIfPossible () const

QString	id () const

bool	isAsynchronouslyCancellable () const

bool	isExclusive () const

	KisStrokeStrategy (const QLatin1String &id, const KUndo2MagicString &name=KUndo2MagicString())

KUndo2MagicString	name () const

bool	needsExplicitCancel () const

virtual void	notifyUserEndedStroke ()

virtual void	notifyUserStartedStroke ()

bool	requestsOtherStrokesToEnd () const

void	setForceLodModeIfPossible (bool forceLodModeIfPossible)

void	setMutatedJobsInterface (KisStrokesQueueMutatedJobInterface *mutatedJobsInterface, KisStrokeId strokeId)

bool	supportsWrapAroundMode () const

virtual void	tryCancelCurrentStrokeJobAsync ()
	tryCancelCurrentStrokeJobAsync is called by the strokes queue when the stroke is being cancelled. The stroke strategy may or may not handle this request and cancel the currently running long action.

virtual	~KisStrokeStrategy ()

Static Public Member Functions
static QVector< KisStrokeJobData * >	createJobsData (const KisGeneratorLayerSP layer, QSharedPointer< boost::none_t > cookie, const KisGeneratorSP f, const KisPaintDeviceSP dev, const QRegion &rc, const KisFilterConfigurationSP filterConfig)

Static Public Member Functions inherited from KisSimpleStrokeStrategy
static QLatin1String	jobTypeToString (JobType type)

Additional Inherited Members
Public Types inherited from KisSimpleStrokeStrategy
enum	JobType { JOB_INIT = 0 , JOB_CANCEL , JOB_FINISH , JOB_DOSTROKE , JOB_SUSPEND , JOB_RESUME , NJOBS }

Protected Member Functions inherited from KisSimpleStrokeStrategy
void	enableJob (JobType type, bool enable=true, KisStrokeJobData::Sequentiality sequentiality=KisStrokeJobData::SEQUENTIAL, KisStrokeJobData::Exclusivity exclusivity=KisStrokeJobData::NORMAL)

	KisSimpleStrokeStrategy (const KisSimpleStrokeStrategy &rhs)

Protected Member Functions inherited from KisStrokeStrategy
void	addMutatedJob (KisStrokeJobData *data)

void	addMutatedJobs (const QVector< KisStrokeJobData * > list)

	KisStrokeStrategy (const KisStrokeStrategy &rhs)

void	setAsynchronouslyCancellable (bool value)

void	setBalancingRatioOverride (qreal value)

void	setCanForgetAboutMe (bool value)

void	setClearsRedoOnStart (bool value)

void	setExclusive (bool value)

void	setNeedsExplicitCancel (bool value)

void	setRequestsOtherStrokesToEnd (bool value)

void	setSupportsWrapAroundMode (bool value)

Detailed Description

Definition at line 16 of file kis_generator_stroke_strategy.h.

Constructor & Destructor Documentation

◆ KisGeneratorStrokeStrategy()

KisGeneratorStrokeStrategy::KisGeneratorStrokeStrategy ( )

Definition at line 18 of file kis_generator_stroke_strategy.cpp.

    : KisRunnableBasedStrokeStrategy(QLatin1String("KisGenerator"), kundo2_i18n("Fill Layer Render"))
{
    enableJob(KisSimpleStrokeStrategy::JOB_INIT, true, KisStrokeJobData::BARRIER, KisStrokeJobData::EXCLUSIVE);
    enableJob(KisSimpleStrokeStrategy::JOB_DOSTROKE);

    setRequestsOtherStrokesToEnd(false);
    setClearsRedoOnStart(false);
    setCanForgetAboutMe(false);
}

References KisStrokeJobData::BARRIER, KisSimpleStrokeStrategy::enableJob(), KisStrokeJobData::EXCLUSIVE, KisSimpleStrokeStrategy::JOB_DOSTROKE, KisSimpleStrokeStrategy::JOB_INIT, KisStrokeStrategy::setCanForgetAboutMe(), KisStrokeStrategy::setClearsRedoOnStart(), and KisStrokeStrategy::setRequestsOtherStrokesToEnd().

◆ ~KisGeneratorStrokeStrategy()

KisGeneratorStrokeStrategy::~KisGeneratorStrokeStrategy ( )

override

Definition at line 72 of file kis_generator_stroke_strategy.cpp.

73{

74}

Member Function Documentation

◆ createJobsData()

QVector< KisStrokeJobData * > KisGeneratorStrokeStrategy::createJobsData	(	const KisGeneratorLayerSP	layer,
		QSharedPointer< boost::none_t >	cookie,
		const KisGeneratorSP	f,
		const KisPaintDeviceSP	dev,
		const QRegion &	rc,
		const KisFilterConfigurationSP	filterConfig )

static

Definition at line 29 of file kis_generator_stroke_strategy.cpp.

{
    using namespace KritaUtils;

    QVector<KisStrokeJobData *> jobsData;

    QSharedPointer<KisProcessingVisitor::ProgressHelper> helper(new KisProcessingVisitor::ProgressHelper(layer));

    addJobBarrier(jobsData, nullptr);

    for (const auto& rc: region) {
        if (f->allowsSplittingIntoPatches()) {
            QVector<QRect> tiles = splitRectIntoPatches(rc, optimalPatchSize());

            for(const auto& tile: tiles) {
                KisProcessingInformation dstCfg(dev, tile.topLeft(), KisSelectionSP());
                addJobConcurrent(jobsData, [=]() {
                    f->generate(dstCfg, tile.size(), filterConfig, helper->updater());

                    // HACK ALERT!!!
                    // this avoids cyclic loop with KisRecalculateGeneratorLayerJob::run()
                    const_cast<KisGeneratorLayerSP &>(layer)->setDirtyWithoutUpdate({tile});

                    const_cast<QSharedPointer<boost::none_t> &>(cookie).clear();
                });
            }
        } else {
            KisProcessingInformation dstCfg(dev, rc.topLeft(), KisSelectionSP());

            addJobSequential(jobsData, [=]() {
                f->generate(dstCfg, rc.size(), filterConfig, helper->updater());

                // HACK ALERT!!!
                // this avoids cyclic loop with KisRecalculateGeneratorLayerJob::run()
                const_cast<KisGeneratorLayerSP &>(layer)->setDirtyWithoutUpdate({rc});

                const_cast<QSharedPointer<boost::none_t>&>(cookie).clear();
            });
        }
    }

    return jobsData;
}

The documentation for this class was generated from the following files:

libs/image/generator/kis_generator_stroke_strategy.h
libs/image/generator/kis_generator_stroke_strategy.cpp
